——Ideal for a wide range of large-scale events: commercial spaces, TV shows, concerts, nightclubs, and various other settings.

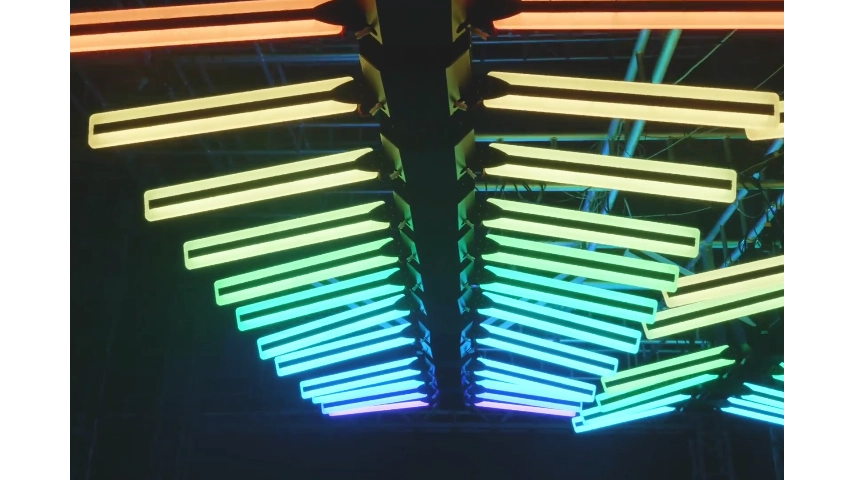

FENG-YI’s kinetic Wing Light is perfect for large-scale events, enhancing commercial spaces, TV shows, concerts, and nightclubs with dynamic kinetic light effects. Elevate your venue’s ambiance with cutting-edge kinetic Light technology designed for impactful visual experiences.
◉ Product Features
Dynamic Mechanical Wings
A host paired with a set of wings, enabling smooth wing movements with a fastest single-stroke operation time of 10.5 seconds.
Vibrant RGB Lighting
Each wing is equipped with 20 RGB pixels, allowing for rich color mixing and dynamic lighting effects.
Multi-Control Modes
Supports DMX512 (for actions, 9-channel mode) and SPI control signals for precise operation and synchronization.
Efficient Power Usage
Operates at a power consumption of less than 100W per unit, ensuring energy efficiency.
◉ Specifications
| Item No. | FY-EF-60075 | ||
| Fixture |
40 Pixels | ||
| Light angle: 360° | |||
| Material:Acrylic + aluminium | |||
| Wing Dimensions :L820 x H100mm | |||
| Product size:L1842 x H1360mm | |||
| Operating Angle: 73° | |||
| Power: 100w | |||
| Weight: 20kg | |||
| Motion speed: 6.9°/s | |||
| IP Class: IP 20 | |||
| Control | Movement Control: DMX512 signal | ||
| Wing LED Control: SPI Data signal | |||
| Channels for movement: 9CH | |||
| Channels for wing LED: 120CH Need to use with SPI pixel controller | |||
| Electrical and Connectionsz |
Input volts: 100 to 240 Voltage;50/60Hz | ||
| Rated current: 0.5A(220V);0.9A(110V) | |||
| DMX512 signal connections: 3-Pin XLR input and output for movement | |||
| SPI signal connections: 5-Pin XLR input and output for wing LED SPI data | |||
| PowerCON input and output, Maximum connect 10 winches via daisy chain（220V）;Maximum connect 5 winches via daisy chain(110V) | |||
| Ambient temperature: 0-40℃ | |||
| Installation | The minimum installation height is 2.5 meters | ||
| Ensure vertical hang | |||
| 1x FY-SE-70087 clamps for hanging installation | |||
| Safety wire attachment hole | |||
◉ Product Details
◉ Applications
Commercial Spaces
Enhances visual appeal in shopping malls, exhibition halls, and brand stores with dynamic wing and lighting displays.
High-End Entertainment Venues
Creates immersive atmospheres in nightclubs, bars, and concert halls with synchronized light and mechanical wing shows.
Stage Performances
Adds a dynamic visual element to theatrical productions, music concerts, and dance performances.
◉ Advantages
Dynamic Mechanical & Lighting Integration
Combines mechanical wing movement with RGB pixel lighting for captivating and multi-dimensional visual experiences.
Precise Control
Supports DMX512 and SPI control for accurate synchronization of wing actions and lighting effects.
Energy-Efficient
Operates at less than 100W per unit, reducing energy costs while maintaining high performance.
Durable Construction
Painted iron shell ensures sturdiness and longevity for continuous use in various venues.
Easy Installation & Operation
Comes with clear instructions and necessary accessories for convenient setup and use.
◉ Customization Options
Wing Design
Customization of wing shape, size, or the number of RGB pixels to fit specific design concepts.
Control Configuration
Adjustment of DMX channel modes or SPI signal parameters to match unique control system setups.
Shell Finish
Options for different shell colors or surface treatments to align with venue aesthetics.
◉ Packaging & Logistic
Packaging
Each unit is packaged in a carton; flight cases are available for bulk orders to ensure safe transportation of multiple units.
Logistics
Shipped via freight or courier services. The product should be stored and transported within the operating temperature range (0-40°C) to avoid damage.
◉ Frequently Asked Questions
Customization/OEM Services
Do customized products enjoy the same warranty service as standard products?
Yes, customized products have the same warranty policy as standard products (under non-human damage, the whole machine is warranted for 1 year, and LED lamp beads are warranted for 2 years). For faults caused by customized functions (e.g., adaptation issues of the special light control protocol specified by the customer), the after-sales team will give priority to targeted troubleshooting to ensure no impact on use.
Wedding & Parties Lighting Solutions
How is safety ensured?
Encoder closed-loop control, emergency stop circuits, software/hardware limit switches, load monitoring, and collision-avoidance zones. A comprehensive pre-performance checklist is provided.
Logistics Services
How is the lamp packaging protected? What if damage occurs during transportation?
The packaging adopts three-layer protection: shockproof foam + hard carton + wooden box (for large equipment such as elevating lights). Key parts of the lamp (e.g., moving head light lens, elevating structure) are individually wrapped with EPE foam. If damage occurs during transportation, the customer must take photos (of the damaged packaging and the faulty part of the product) and send them to the logistics department within 24 hours of receipt. We will give priority to reissuing new products (or arranging repairs) and hold the logistics company responsible. The customer does not need to bear additional costs.
Nightclub Lighting
Do you offer pre-programmed services?
Yes, we can pre-set multiple "lighting scenes" (e.g., welcome mode, performance mode, climax mode, and clearing mode) for you. You can switch between them at will, allowing you to see how the lighting changes dynamically with the music and business hours, creating a truly immersive experience.
Products
The X/Y axis moves abnormally (jitter, no response). What causes this?
Address the issue as follows:
1. Mechanical Check: Open the fixture (after power-off) to inspect if the X/Y axis belts are loose or broken; re-tighten or replace belts if needed.
2. Optical Coupling Calibration: Enter "Settings → Motor Calibration → X/Y Axis" to adjust the offset (-128~+127) or enable "Optical Coupling" (auto-corrects step loss).
3. Reset & Restart: Press "Menu → Reset → XY Reset" to reposition the axes; if no response, check the X/Y axis photoelectric switches (replace if "X/Y Hall Error" appears in the error menu).
