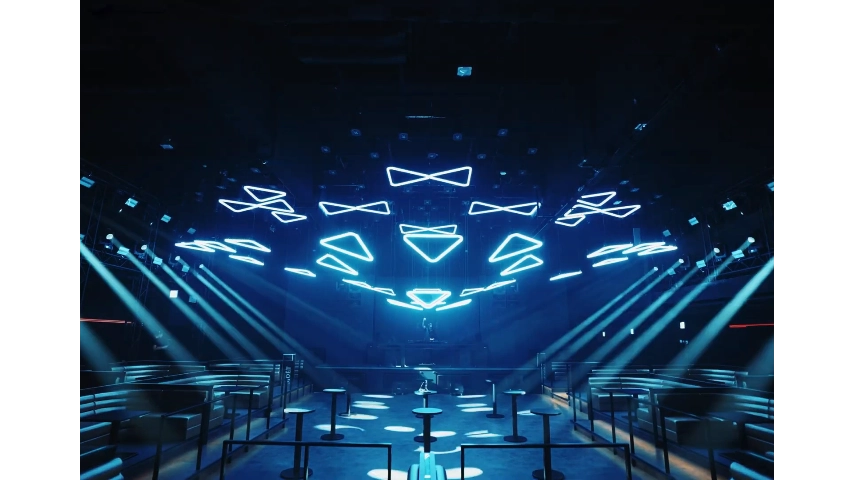

Kinetic Arc Light
The Arc Light (Item No.: DLB-026) is a high-performance LED triangle projection system engineered to deliver immersive visual experiences for large-scale events.
Featuring 72 pixels with 432 pieces of 0.2W RGB 3-in-1 LEDs, it supports precise DMX512 control via multi-channel winches (Winch A: 222ch, Winch B: 4ch, Winch C: 4ch).
Constructed from aluminum, PE, and PCB, this system ensures durability while producing vibrant, synchronized lighting effects, making it ideal for venues like nightclubs, concerts, and stage performances.
◉ Product Features
Pixel-Level Control
Equipped with 72 pixels and 432 pcs of 0.2W RGB 3-in-1 LEDs, enabling rich color mixing and dynamic pattern creation.
Multi-Channel DMX Control
Supports DMX512 control with dedicated channels for winches (Winch A: 222 channels, Winch B: 4 channels, Winch C: 4 channels) to adjust positioning and lighting effects.
Durable Construction
Made from aluminium (for structural strength), PE (for light diffusion), and PCB (for electrical stability), ensuring longevity in various event environments.
System Integration
Works as part of a larger system (including 3×DLB-P9-9109 units) with a total power of 650W, enabling coordinated visual displays.
◉ Specifications
| Item No. | DLB-G3-11042 (3 meters) | ||
| DLB-G6-11043(6meters) | |||
| Fixture |
72 Pixels | ||
| 432 pCs 0.3W RGB LED | |||
| Light angle:270° | |||
| Material: LLDPE White | |||
| Power: 130W | |||
| Dimensions :L1029mm*W1029 mm*H1029mm | |||
| Weight: 2.8kg | |||
| Winch（0-6m） | Lifting height: 0-6meters | ||
| Average lifting speed: 0.3m/s(3meters)；0.45m/s(6meters) | |||
| Power: 100W(1pcs) | |||
| Dimensions :L247*W167*H337mm | |||
| Power: 150w | |||
| Size: L342 *W208*H374mm | |||
| Weight: 7.8kg(1pcs) | |||
| Material: Aluminium | |||
| Housing color: Black | |||
| IP Class:lP20 | |||
| Group | Winches x 3 | ||
| Arc Light x 1 | |||
| Control | Graphic LCD control panel | ||
| 4 Menu buttons to set the functions | |||
| DMX512/RDM Protocol | |||
| DMX channels: winch A: 222CH；Winch B: 4CH；Winch C: 4CH | |||
| Electrical and Connectionsz |
AC100 to 240 Volts , 50/60 Hz | ||
| Total power:450W Maximum | |||
| Total weight: 28kg Maximum | |||
| Hold hands and quickly insert cables for signalinput and output | |||
| Hold hands and quickly insert cables for powerinput and output, Maximum connect 6 winchesvia daisy chain(220v),Maximum connect 3winches via daisy chain(110v) | |||
| Ambient temperature:5-40' | |||
| Installation | The minimum installation height is 4 meters | ||
| Ensure vertical hang | |||
| 3x FY-SE-70001 clamps for hanging installation | |||
| Safety wire attachment hole | |||
◉ Applications

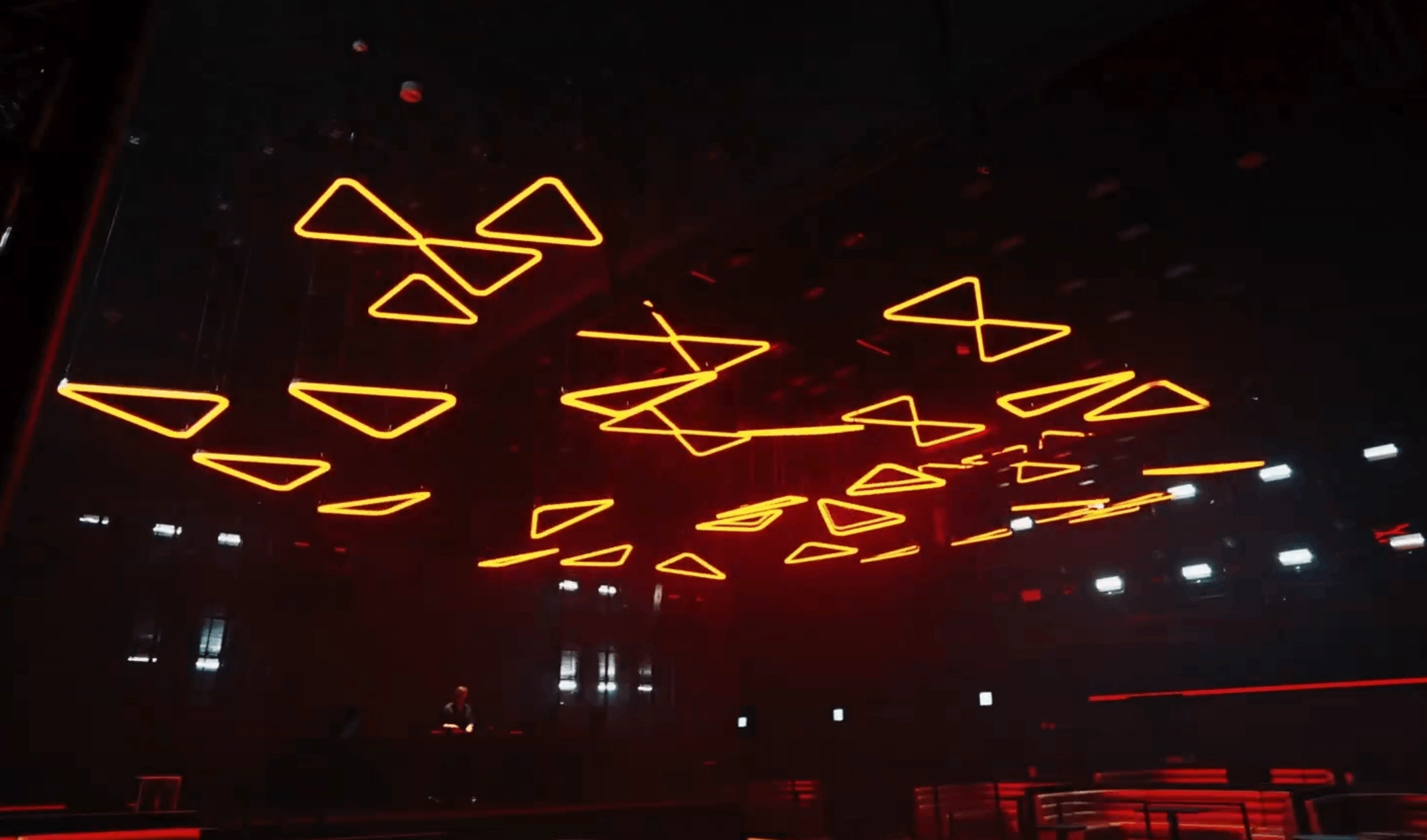

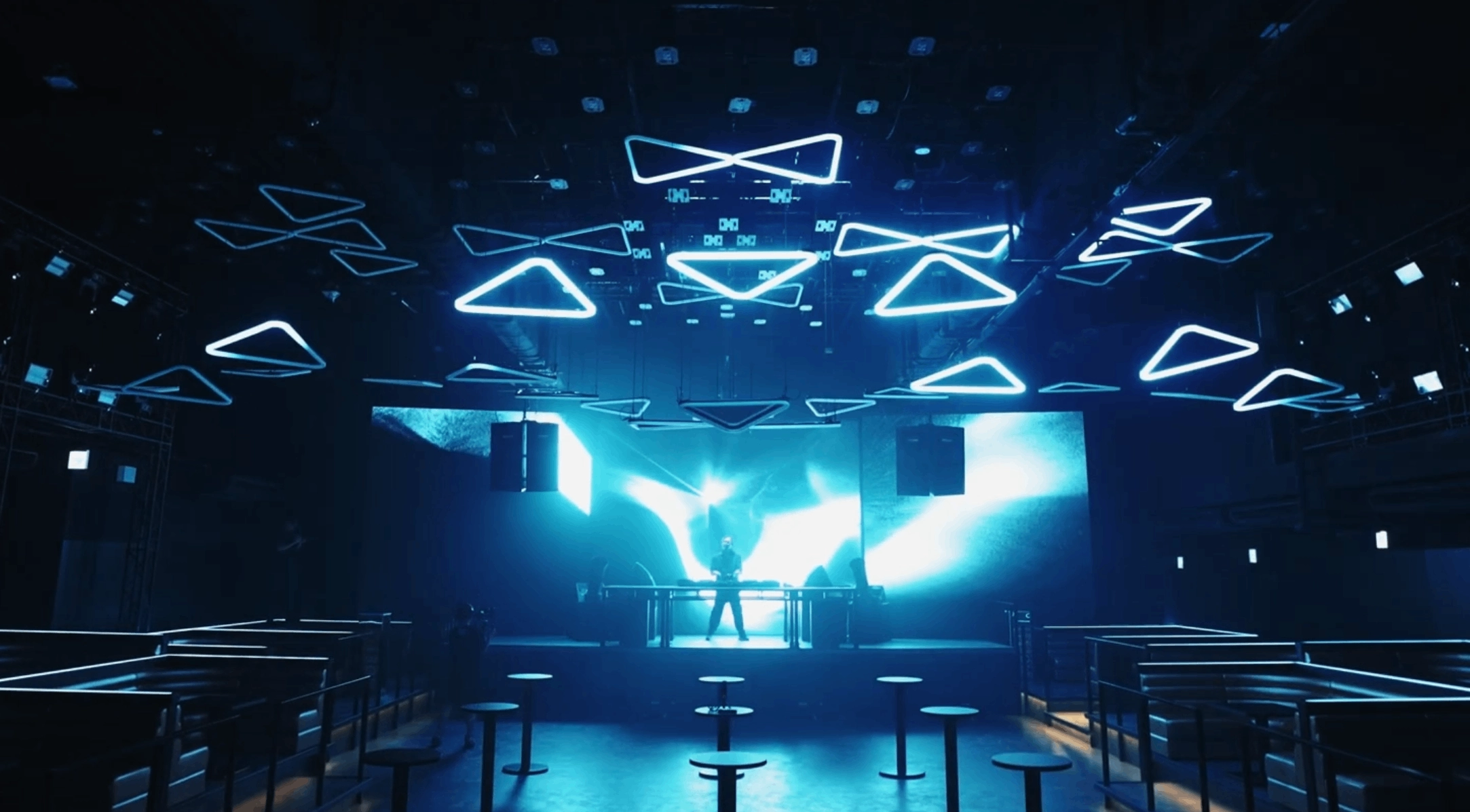

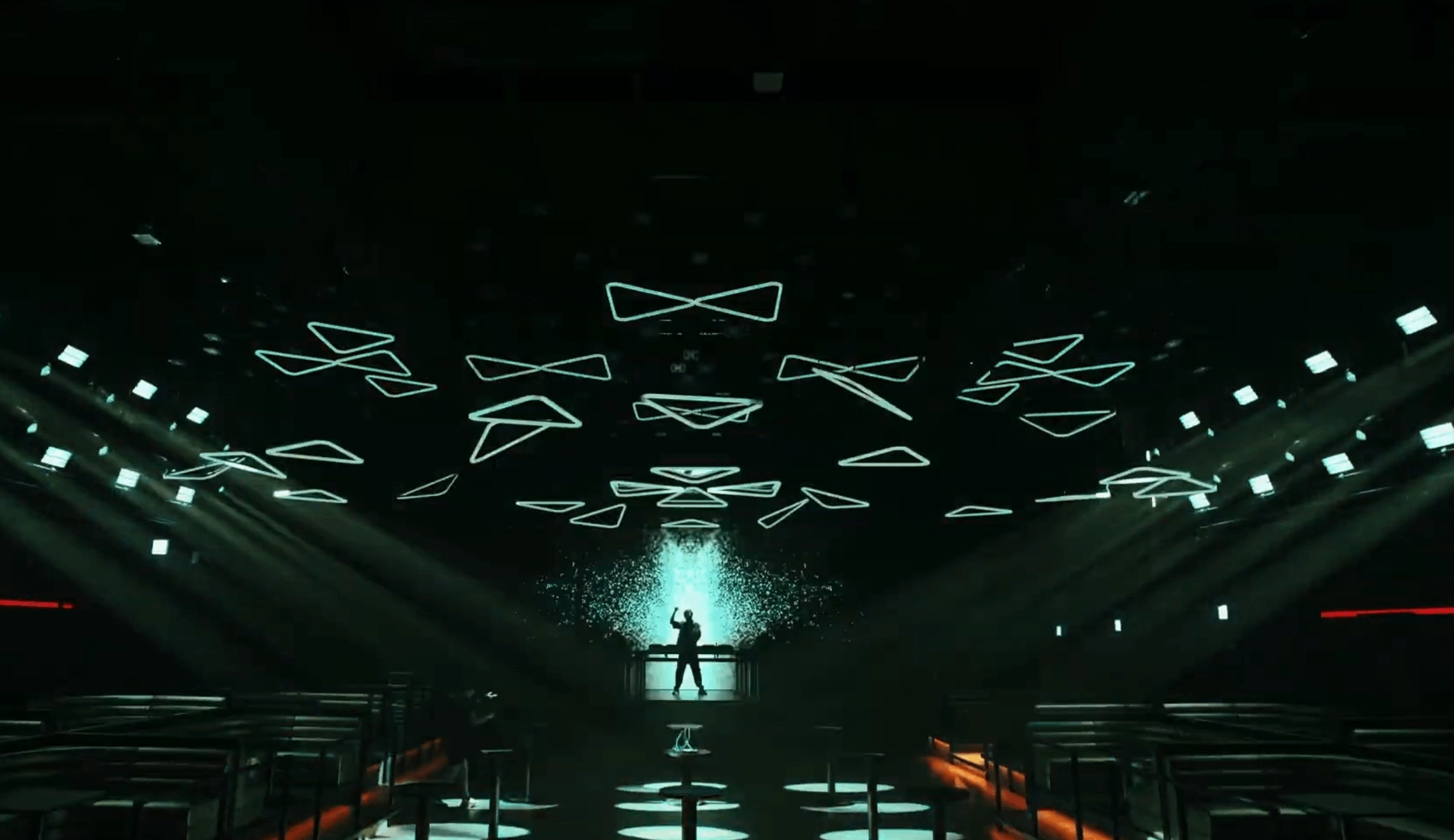

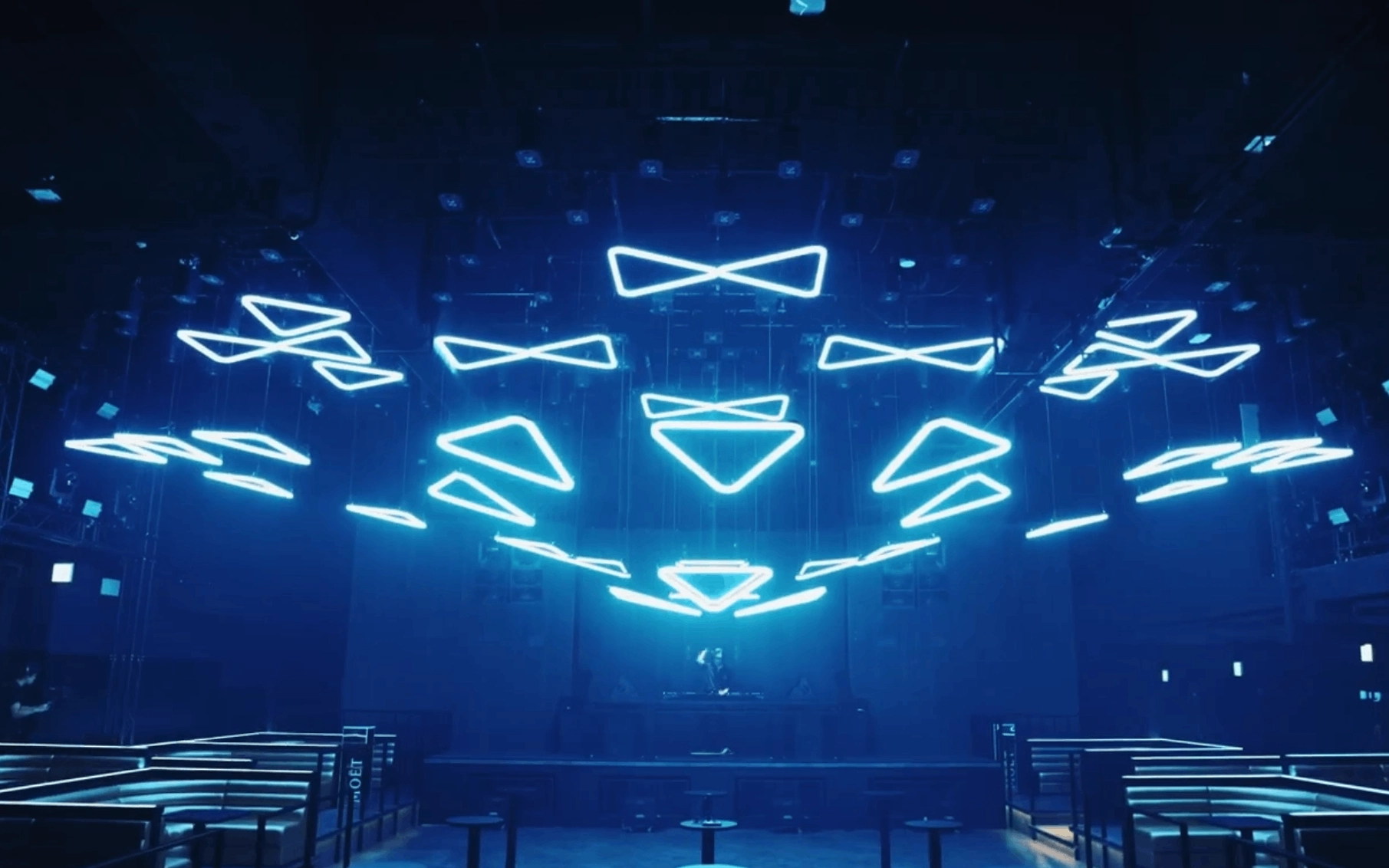

Nightclubs & Bars
Creates dynamic, color-changing backdrops and visual accents for dance floors and stages.
Concerts & Music Festivals
Delivers synchronized lighting effects that complement live performances and stage productions.
Large-Scale Events
Enhances visual appeal at corporate events, award ceremonies, and themed parties with immersive LED displays.
Theatrical Productions
Adds atmospheric lighting and geometric visual elements to theatrical shows and installations.
◉ Advantages & Competitiveness
High Pixel Density
72 pixels with 432 RGB LEDs provide fine-grained control over color and pattern, enabling complex visual designs.
Robust Material Combination
The mix of aluminium (structural integrity), PE (light diffusion), and PCB (electrical reliability) ensures long-term performance.
Flexible DMX Control
Multi-channel winch control allows precise adjustment of both lighting effects and physical positioning, offering creative versatility.
Scalable System
Integrates seamlessly with 3×DLB-P9-9109 units for large-scale, coordinated visual experiences with a total power of 650W.
◉ Customization Options
Pixel & LED Configuration
Adjustments to the number of pixels or LEDs for tailored brightness and resolution requirements.
Size & Shape Modifications
Custom dimensions or alternative geometric shapes (subject to structural feasibility).
DMX Channel Optimization
Custom DMX channel allocations to match specific control system setups.
Material Upgrades
Options for enhanced materials (e.g., higher-grade aluminium or UV-resistant PE) for specialized environments.
◉ Packaging & Logistic
Packaging
▪ Each unit is packaged in a sturdy carton with foam insulation to protect aluminium and LED components during transit. Custom flight cases are available for bulk orders to ensure safety for multiple units.
Logistics Instructions
▪ Shipped via freight or courier services. The product is classified as electronic equipment; ensure transport within the ambient temperature range (-5~40°C) to avoid damage.
◉ Frequently Asked Questions
Products
What light control modes does the 7-lamp 60W wash light support? Is it compatible with DMX consoles of other brands?
It supports three control modes: DMX512, sound activation, and auto-run. The channels can be selected as 23CH/35CH/51CH (the 51CH mode enables independent R/G/B/W dimming for each individual lamp bead). It complies with the international universal DMX512 protocol and is compatible with mainstream brand consoles (e.g., MA, Good, Pearl consoles). When connecting, it is recommended to connect a 120Ω terminator to the output end of the last light to reduce signal interference.
What is the service life of LED lamp beads? Is professional personnel required for later replacement?
All our lights adopt imported LED chips, with a service life of ≥ 50,000 hours under normal use (8 hours of daily use can last for 17 years). The replacement of lamp beads requires professional operation—due to the involvement of wire soldering and heat dissipation adaptation, unprofessional operation may cause short circuits or uneven light effects. You can contact the after-sales team for on-site replacement or repair-by-mail services.
The X/Y axis moves abnormally (jitter, no response). What causes this?
Address the issue as follows:
1. Mechanical Check: Open the fixture (after power-off) to inspect if the X/Y axis belts are loose or broken; re-tighten or replace belts if needed.
2. Optical Coupling Calibration: Enter "Settings → Motor Calibration → X/Y Axis" to adjust the offset (-128~+127) or enable "Optical Coupling" (auto-corrects step loss).
3. Reset & Restart: Press "Menu → Reset → XY Reset" to reposition the axes; if no response, check the X/Y axis photoelectric switches (replace if "X/Y Hall Error" appears in the error menu).
How to set the DMX starting address via the panel?
Follow these steps:
1. Press "Left" (multiple times if needed) to return to the main interface.
2. Press "Up/Down" to select "Settings", then press "OK" to enter.
3. Select "DMX Address" and press "OK" to enter edit mode.
4. Adjust the hundreds digit (e.g., 2 for address 286) with "Up/Down", press "OK" to confirm; repeat for tens (8) and units (6) digits.
5. Press "OK" again to save the address (e.g., A286) and exit edit mode.
What is the XY-axis rotation angle of moving head lights? Are there any load-bearing requirements for installation?
For conventional moving head lights, the X-axis rotation ranges from 0° to 540°, and the Y-axis rotation ranges from 0° to 205° (some models support 16-bit fine adjustment). Installation requirements: For hoisting, the load-bearing capacity of the support frame must be ≥ 1.5 times the weight of the light (e.g., a 10kg moving head light requires a support frame with ≥ 15kg load-bearing capacity). Additionally, a safety rope must be used to pass through the light's handle. When installing at an angle or upside down, pedestrians are prohibited from passing below, and the hook screws and rope wear must be checked regularly.
