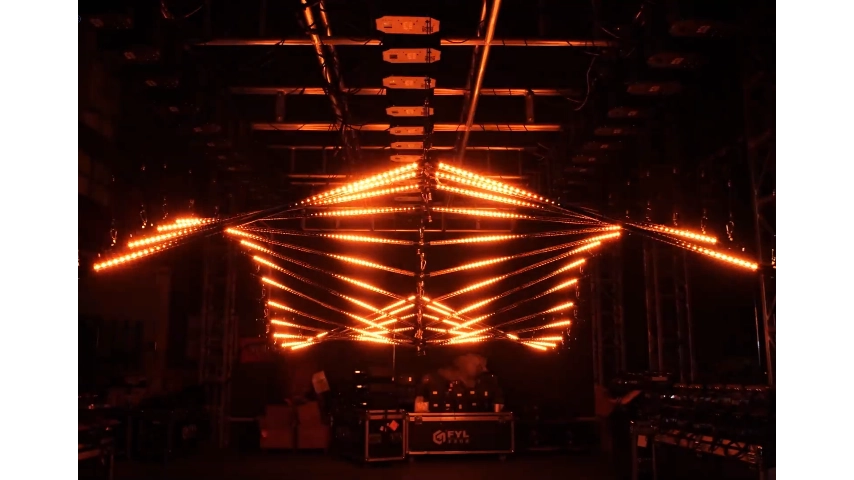

Kinetic Double Rod
The Dynamic Double Rod is an innovative LED projection system designed to create immersive and dynamic visual experiences. Composed of 2 LED tubes and 3 hosts, it features 54 dual-sided luminous pixels with 100 pcs of 0.3W RGB LEDs, enabling 360° light emission.
With adjustable lifting strokes (3 m/6 m) and DMX512 control, it delivers synchronized, vibrant RGB lighting effects while dynamically adjusting height, making it perfect for large-scale events, stage performances, and creative installations.
◉ Product Features
360° Luminous Wing Design
Equipped with 54 dual-sided luminous pixels and 100 pcs of 0.3W RGB LEDs, ensuring all-around light emission for immersive visual coverage.
Dynamic Lifting Function
Supports lifting strokes of 3m or 6m with a maximum speed of 0.8m/s, adding dynamic vertical movement to visual displays.
Precise DMX Control
Adopts DMX512 protocol with 168CH for the main unit and 4CH for the slave unit, enabling professional control over lifting, color, brightness, and other parameters.
Versatile Scene Adaptation
The wing-shaped structure projects soft and uniform RGB light, ideal for crafting thematic atmospheres in various events.
◉ Specifications
| Item No. | DLB-E3-11026(3 meters} | ||
| DLB-E6-11027(6 meters) | |||
| Fixture |
54 Pixels on two side |
||
| 108 pCs 0.2W RGB3 in 1 LED | |||
| Light angle:360° | |||
| Material: Transparent | |||
| Power: 22W | |||
| Size :D23mm l1200mm | |||
| Weight: 0.4kg | |||
| Winch | Lifting height: 0-6meters | ||
|
Average lifting speed: 0-0.6m/s |
|||
| Power: 100W(1pcs) | |||
| Size: L247*W167*H304mm | |||
| Weight: 7kg(1pcs) | |||
| Material: Aluminium | |||
| Housing color: Black | |||
| IP Class:lP20 | |||
| Group | Winches x 3 | ||
|
Double rod x 1 |
|||
| Control | Graphic LCD control panel | ||
| 4 Menu buttons to set the functions | |||
| DMX512/RDM Protocol | |||
| DMX channels: winch A: 222CH；Winch B: 4CH；Winch C: 4CH | |||
| Electrical and Connectionsz |
AC100 to 240 Volts , 50/60 Hz | ||
| Total power:322W Maximum | |||
| Total weight: 21.4kg Maximum | |||
| 3-Pin XLR input and output | |||
| PowerCON blue input and output,Maximum connect 6 winches viadasiay chain | |||
| Ambient temperature:5-40' | |||
| Installation | The minimum installation height is 4 meters | ||
| Ensure vertical hang | |||
| 3x FY-SE-70001 clamps for hanging installation | |||
| Safety wire attachment hole | |||
| Compliance | CE/Rosh | ||
◉ Applications
Stage Performances
Adds dynamic lighting and wing-shaped visual elements to concerts, theatrical shows, and dance performances.
Large-Scale Events
Enhances visual appeal for weddings, award ceremonies, and corporate galas with immersive RGB light displays.
Entertainment Venues
Creates captivating atmospheres in nightclubs, bars, and theme parks with synchronized light and lifting effects.
◉ Advantages
360° Immersive Lighting
The wing-shaped design with dual-sided luminous pixels ensures uniform light distribution, enhancing spatial visual appeal.
Flexible Lifting Dynamics
Multiple stroke options (3m/6m) and 0.8m/s speed allow tailored vertical movement for different venue heights.
Rich RGB Color Mixing
100×0.3W RGB LEDs enable vibrant color combinations, meeting diverse thematic lighting needs.
Precise DMX Control
168CH for the main unit and 4CH for the slave unit allow professional lighting designers to fine-tune effects with accuracy.
Safe & Sturdy Structure
With durable metal and plastic enclosures and IP20 protection, it ensures stable operation during events.
◉ Customization Options
Lantern Customization
Adjustment of lantern size, shape, or the number of luminous pixels to fit specific venue or design requirements.
Lifting Stroke
Custom stroke lengths for specialized venue heights (subject to technical feasibility).
Control Channels
Customization of DMX channel count for simplified or extended control functions.
Exterior Finish
Custom color options for the aluminium lantern and host unit to match venue aesthetics.
◉ Packaging & Logistic
Packaging
◦ Each unit is packed in a dedicated carton with protective foam, ensuring protection during transit. For bulk orders, custom flight cases are available.
◦ Included accessories: User manual, warranty card, signal cable, power cable, mounting hardware.
Logistics
◦ Transport via freight or courier services; mark as "fragile" to ensure careful handling.
◦ Storage: Keep in a dry environment with a temperature range of -5°C to 40°C; avoid direct moisture exposure.
◉ Frequently Asked Questions
Customization/OEM Services
What is the minimum order quantity (MOQ) for OEM services? What materials need to be provided?
The MOQ for OEM services varies by product type: ≥ 50 units for a single model of conventional lights, and ≥ 20 units for a single model of large equipment such as elevating lights/moving head lights. The following materials need to be provided: the brand trademark registration certificate (or authorization letter), and vector graphics of the OEM logo (AI format is preferred). If modifications to the product manual content (e.g., brand information, contact details) are required, the final version of the text materials must be provided.
Wholesale Cooperation
Is there a regional protection policy to avoid competition among multiple wholesalers in the same region?
For prefecture-level cities and above, an "exclusive wholesale cooperation" policy is implemented: If there is already a cooperative wholesaler in a region (with an annual purchase amount of ≥ 300,000 RMB), no second wholesaler of the same type will be developed. For county-level regions, 2-3 wholesalers can be developed based on market demand, but clear sales scopes must be divided (e.g., by town) to avoid vicious competition.
Products
The fixture does not respond to the DMX controller. How to fix it?
Resolve with these checks:
1. DMX Address & Channels: Ensure the fixture’s starting address is correct (e.g., 34CH fixture 1: A001, fixture 2: A035) and the controller’s channel count ≥ total fixture channels.
2. Signal Wiring: Use shielded twisted-pair DMX cables (≤150m); install a 120Ω terminal resistor between pins 2-3 of the last fixture’s XLR connector.
3. Signal Amplification: For cable lengths >150m, add a DMX signal amplifier to avoid signal loss; separate DMX cables from high-voltage power cables (≥1m apart) to prevent interference.
Logistics Services
Can urgent orders (e.g., customers need the lights the next day) be arranged for expedited shipment?
Expedited shipment is supported for urgent orders: For standard models (e.g., conventional PAR lights, 7-lamp 60W wash lights), if stock is sufficient, SF Express/JD Air Freight can be arranged on the same day (freight is borne by the customer; e.g., the air freight for 10 conventional lights is approximately 200-300 RMB), with next-day delivery. For standard models out of stock, expedited production can be arranged (shipment within 3 days), and an expedited fee (10%-15% of the order amount) will be charged. Specific details to be confirmed with the account manager.
Nightclub Lighting
Do you offer pre-programmed services?
Yes, we can pre-set multiple "lighting scenes" (e.g., welcome mode, performance mode, climax mode, and clearing mode) for you. You can switch between them at will, allowing you to see how the lighting changes dynamically with the music and business hours, creating a truly immersive experience.
