升降线条灯 - FENG-YI

Kinetic Line Light

FENG-YI’s Kinetic Line Light delivers dynamic illumination with advanced kinetic LED line light technology. Ideal for modern spaces, this Kinetic Light offers energy-efficient, seamless lighting with sleek design. Enhance your environment with FENG-YI’s innovative kinetic LED line lights today.

Specifications

Item No.

DLB-E3-11028   (3 meters)

DLB-E6-11029   (6 meters)

Fixture

54 Pixels on two side
108 pcs 0.2W RGB 3 in 1 LED
Light angle: 360°
Material: Transparent Polycarbonate
Power: 22W
Dimensions : D23mm *L1200 mm
Weight: 0.4kg
Winch(0-6meters)   Lifting height: 0-6meters
Average lifting speed:  0.47m/s (3meters); 0.65m/s (6meters)
Power: 100W(1pcs)
Dimensions : L247 *W167*H337mm
Weight: 7kg(1pcs)
Material: Aluminium
Housing color: Black
IP Class:lP20
Group Winches x 3
Pixel Line x 1
Control Graphic LCD control panel
4 Menu buttons to set the functions
DMX512/RDM Protocol
DMX channels: Winch A: 168CH, Winch B: 4ch
Electrical and  Connectionsz
AC100 to 240 Volts , 50/60 Hz
Total power:230W Maximum
Total weight: 16kg Maximum
Hold hands and quickly insert cables for signal input and output
Hold hands and quickly insert cables for power input and output, Maximum connect 9 winches via daisy chain(220V);Maximum connect 6 winches via daisy chain(110V)
Ambient temperature:5-40'
Installation The minimum installation height is 4 meters
Ensure vertical hang
2x FY-SE-70001 clamps for hanging installation
Safety wire attachment hole

Product Details

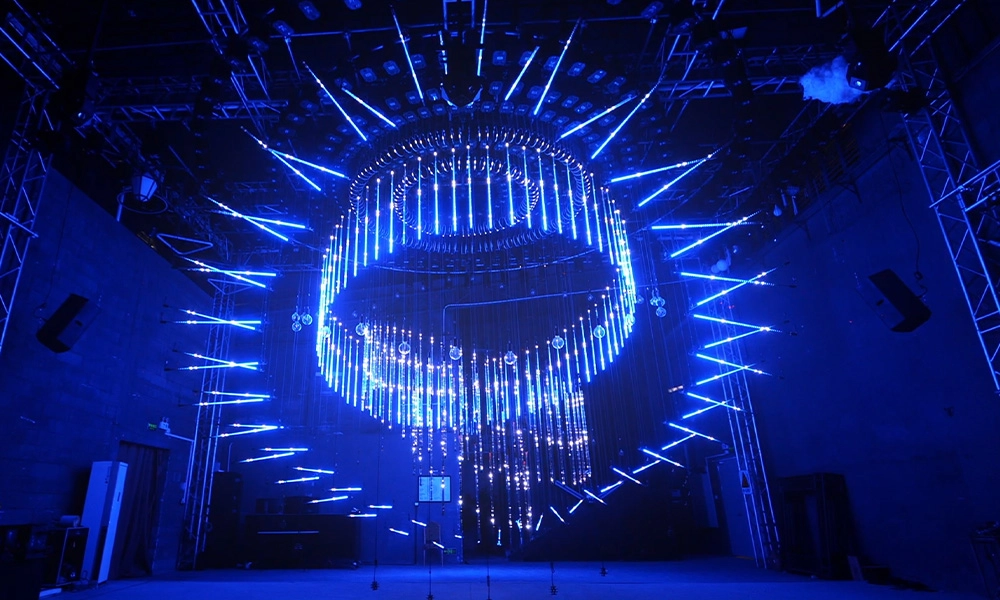

Lifting Line Light-01 - FENG-YI

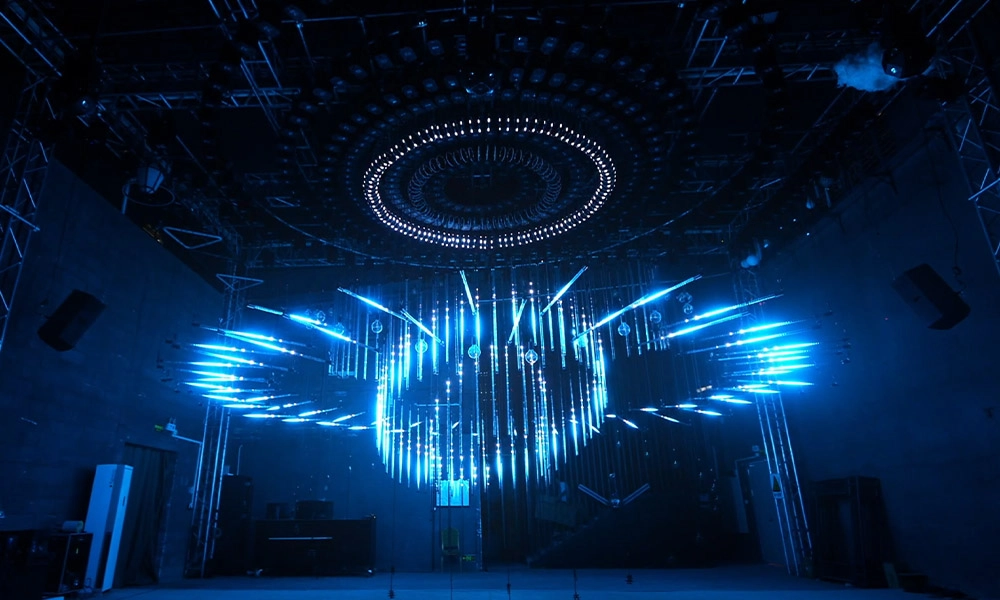

Lifting Line Light-02 - FENG-YI

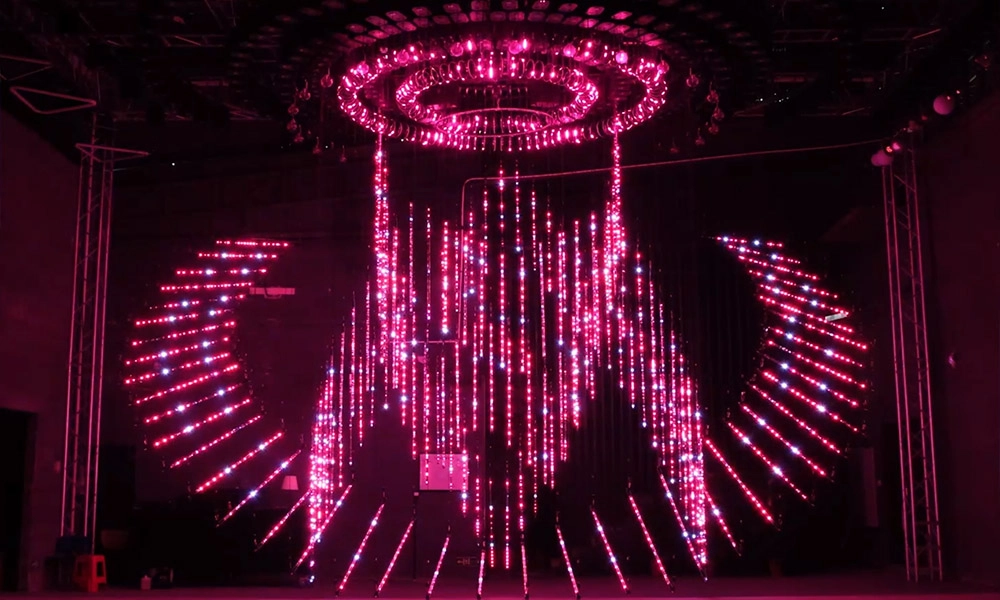

Lifting Line Light-03 - FENG-YI

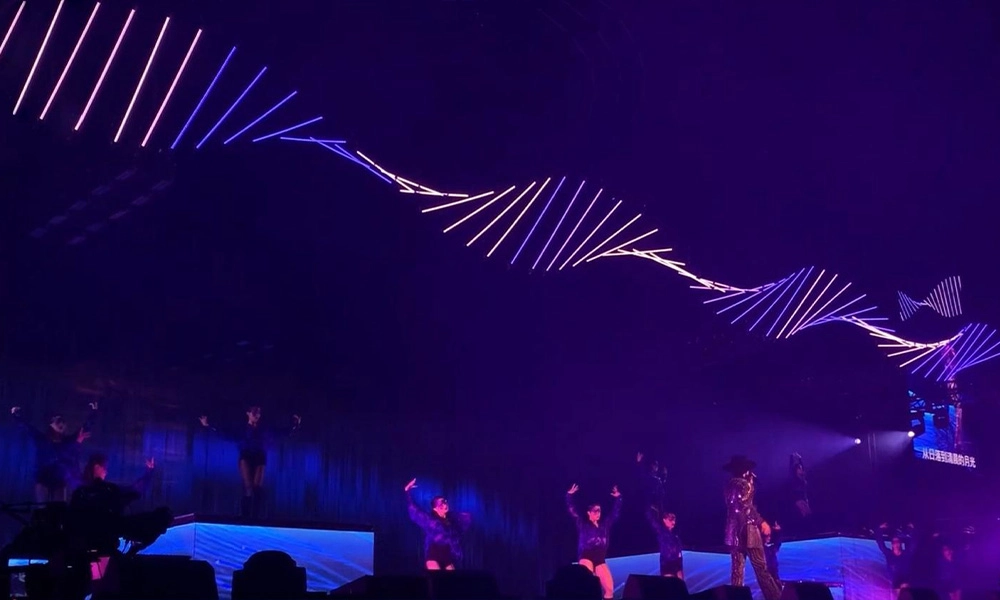

Lifting Line Light - FENG-YI

Packaging & Logistic

Packaging - FENG-YI

Packaging

Each unit is packaged in a sturdy carton with foam insulation to protect aluminium components during transit. Custom flight cases are available for bulk orders to ensure safety for multiple units.

Logistics - FENG-YI

Logistics

Shipped via freight or courier services. The product is classified as electronic equipment; ensure transport within the ambient temperature range (5 - 40°C) to avoid damage.

Frequently Asked Questions

Products
The fixture does not respond to the DMX controller. How to fix it?

Resolve with these checks:

1. DMX Address & Channels: Ensure the fixture’s starting address is correct (e.g., 34CH fixture 1: A001, fixture 2: A035) and the controller’s channel count ≥ total fixture channels.

2. Signal Wiring: Use shielded twisted-pair DMX cables (≤150m); install a 120Ω terminal resistor between pins 2-3 of the last fixture’s XLR connector.

3. Signal Amplification: For cable lengths >150m, add a DMX signal amplifier to avoid signal loss; separate DMX cables from high-voltage power cables (≥1m apart) to prevent interference.

What light control modes does the 7-lamp 60W wash light support? Is it compatible with DMX consoles of other brands?

It supports three control modes: DMX512, sound activation, and auto-run. The channels can be selected as 23CH/35CH/51CH (the 51CH mode enables independent R/G/B/W dimming for each individual lamp bead). It complies with the international universal DMX512 protocol and is compatible with mainstream brand consoles (e.g., MA, Good, Pearl consoles). When connecting, it is recommended to connect a 120Ω terminator to the output end of the last light to reduce signal interference.

After-Sales Support
Can technical training be provided? For example, teaching customers how to debug DMX consoles and set light addresses.

Free technical training is supported:

▪ Online training: Operation video tutorials and live teaching (e.g., a "DMX Light Control Practical Course" once a month) are provided.

▪ Offline training: For wholesale customers (with a single purchase of ≥ 100 units), technicians can be arranged for on-site training (1-2 days, including console debugging, address setting, and fault troubleshooting).

▪ Customized training: For large-scale projects (e.g., stadium lighting projects), on-site technical guidance can be provided (charged based on the project cycle, specific details to be negotiated).

Customization/OEM Services
Do customized products enjoy the same warranty service as standard products?

Yes, customized products have the same warranty policy as standard products (under non-human damage, the whole machine is warranted for 1 year, and LED lamp beads are warranted for 2 years). For faults caused by customized functions (e.g., adaptation issues of the special light control protocol specified by the customer), the after-sales team will give priority to targeted troubleshooting to ensure no impact on use.

Wedding & Parties Lighting Solutions
Is system operation quiet?

We offer noise-optimized solutions (vibration damping/soft start/low-noise wire rope guidance) to meet acoustic requirements for TV studios and commercial spaces.
