kinetic Lantern

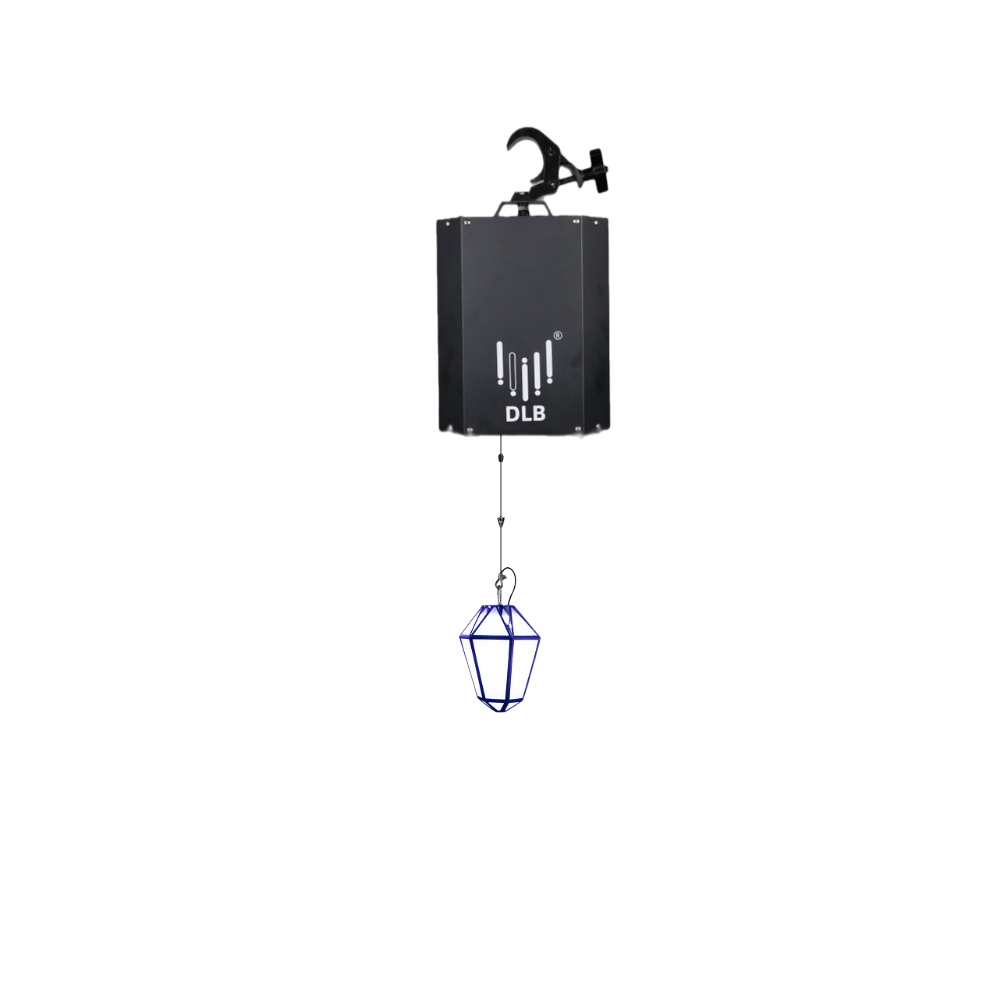

The Lantern is an innovative LED projection system that merges traditional lantern aesthetics with modern lifting technology. Featuring 3-pixel RGB 3-in-1 LEDs with a 360° luminous angle, it supports a lifting stroke of 0-3 meters and DMX512 + RDM control. With a durable aluminum construction and vibrant RGB lighting, it creates immersive visual experiences, making it ideal for events, stage performances, and decorative installations.
◉ Product Features
360° Luminous Lantern Design
Equipped with 3-pixel RGB 3-in-1 LEDs, ensuring all-around light emission for comprehensive visual coverage.
Dynamic Lifting Function
Supports a lifting stroke of 0-3 meters with a speed range of 0-0.5m/s, adding dynamic vertical movement to visual displays.
Precise DMX Control
Adopts DMX512 + RDM protocol with 15 channels, enabling professional control over lifting, color, brightness, and other parameters.
Traditional & Modern Fusion
The lantern-shaped structure projects soft and uniform RGB light, ideal for crafting thematic atmospheres in various events.
◉ Specifications
| Item No. | DLB-CH3-11100(3-meter stroke) | ||
| Fixture |
Resolution: 3 pixels | ||
| Light Source: RGB Tri-color LED | |||
| Beam Angle: 360° | |||
| Materiat Aluminum | |||
| Power: 116W | |||
| Weight: 3.1 kg (1 pcs) | |||
| Dimensions: 400 x530 mm | |||
| Winch（0-3m） | Lifting height: 0-3meters | ||
| One lifting host per set | |||
| Load Capacity: 8 kg | |||
| Lifting speed: 0-0.5 m/s | |||
| 16bit fine | |||
| Color: Black | |||
| Material: Aluminium | |||
| Housing color: Black | |||
| Dimensions:L280 xW342 xH390 mm | |||
| Control |
LCD Control Panel | ||
| 4 menu button setting functions | |||
| DMX512 + RDM Control Protocol | |||
| Channel Mode: 15 channels | |||
| 0-100% linear dimming | |||
| Electrical and Connectionsz |
Total Power: 300W (1 set of equipment) | ||
| Total weight: 21 kg | |||
| Input Voltage: Ac100 to 240 Volts | |||
| Sigal Connection: XLR 3-pin RCA Male/Female Jack | |||
| Power Connection: Blue-white plug input/outputpower socket,maximum manual hand-holdingconnection for 5 sets of equipment (at 220V),maximum manual hand-holding connection for2 sets of equipment (at 110V) | |||
| Ambient temperature:5-40' | |||
| Installation | The minimum installation height is 4 meters | ||
| Ensure vertical hang | |||
| 2 x FY-SE-70002 lamp hooks for hanging installation | |||
| Safety wire attachment hole | |||
◉ Applications
Stage Performances
Adds dynamic lighting and lantern-shaped visual elements to concerts, theatrical shows, and dance performances.
Large-Scale Events
Enhances visual appeal for weddings, award ceremonies, and corporate galas with immersive RGB light displays.
Entertainment Venues
Creates captivating atmospheres in nightclubs, bars, and theme parks with synchronized light and lifting effects.
◉ Advantages
360° Immersive Lighting
The lantern-shaped design with 360° luminous LEDs ensures uniform light distribution, enhancing spatial visual appeal.
Flexible Lifting Dynamics
A 0-3m lifting stroke and 0-0.5m/s speed allow tailored vertical movement for different venue heights.
Rich RGB Color Mixing
RGB 3-in-1 LEDs enable vibrant color combinations, meeting diverse thematic lighting needs.
Precise DMX Control
15-channel DMX512 + RDM control allows professional lighting designers to fine-tune effects with accuracy.
Safe & Sturdy Structure
With durable aluminium construction and safety chain connection, it ensures stable operation during events.
◉ Customization Options
Lantern Customization
Adjustment of lantern size, shape, or the number of luminous pixels to fit specific venue or design requirements.
Lifting Stroke
Custom stroke lengths for specialized venue heights (subject to technical feasibility).
Control Channels
Customization of DMX channel count for simplified or extended control functions.
Exterior Finish
Custom color options for the aluminium lantern and host unit to match venue aesthetics.
◉ Packaging & Logistic
Packaging
◦ Each unit is packed in a dedicated carton with protective foam, ensuring protection during transit. For bulk orders, custom flight cases are available.
◦ Included accessories: User manual, warranty card, signal cable, power cable, mounting hardware.
Logistics
◦ Transport via freight or courier services; mark as "fragile" to ensure careful handling.
◦ Storage: Keep in a dry environment with a temperature range of -5°C to 40°C; avoid direct moisture exposure.
◉ Frequently Asked Questions
Nightclub Lighting
Will the equipment break down easily? How long is the after-sales service?
Our products are designed specifically for the entertainment industry. They feature excellent heat dissipation and can withstand the harsh, high-temperature, high-humidity, and dusty environments of bars. They are guaranteed to operate continuously for 2,000 hours. We offer a one-year warranty starting from the date of delivery (excluding consumables such as bulbs and LEDs). If the product is damaged due to quality issues, the seller will provide a replacement free of charge.
Wholesale Cooperation
Is there a regional protection policy to avoid competition among multiple wholesalers in the same region?
For prefecture-level cities and above, an "exclusive wholesale cooperation" policy is implemented: If there is already a cooperative wholesaler in a region (with an annual purchase amount of ≥ 300,000 RMB), no second wholesaler of the same type will be developed. For county-level regions, 2-3 wholesalers can be developed based on market demand, but clear sales scopes must be divided (e.g., by town) to avoid vicious competition.
Products
The cutting blades do not move linearly. How to troubleshoot?
Fix with these steps:
1. Channel Check: Ensure the correct cutting channel (e.g., Cut 1: CH24) is selected on the controller; set the channel value to 100-255 (0=no movement).
2. Motor Calibration: Enter "Factory Settings → Motor Calibration → Cut 1" and adjust the offset (-128~+127) to compensate for mechanical errors.
3. Mechanical Blockage: Power off the fixture and check if debris (dust, wire) is blocking the blade’s travel path; clean the path with a soft brush and re-test.
What light control modes does the 7-lamp 60W wash light support? Is it compatible with DMX consoles of other brands?
It supports three control modes: DMX512, sound activation, and auto-run. The channels can be selected as 23CH/35CH/51CH (the 51CH mode enables independent R/G/B/W dimming for each individual lamp bead). It complies with the international universal DMX512 protocol and is compatible with mainstream brand consoles (e.g., MA, Good, Pearl consoles). When connecting, it is recommended to connect a 120Ω terminator to the output end of the last light to reduce signal interference.
Wedding & Parties Lighting Solutions
Are there minimum requirements for venue ceiling height and load capacity?
We recommend a clear height of ≥6–8 m (higher may be required for choreography needs). Load capacity is calculated based on point load plus safety factor. We provide structural calculations and suspension point recommendations.
