Kinetic Bubble Light
The Kinetic LED Bubble is an innovative LED projection system designed to create immersive, dynamic lighting atmospheres.
Featuring a 360° luminous PE bubble sphere with 12 SMD5050 RGB LEDs, it supports DMX512 control, master-slave operation, and sound activation.
With adjustable lifting strokes (3 m, 6 m, or 9 m) and a maximum speed of 0.65 m/s, this system elevates visual experiences in large venues through synchronized color mixing and vertical movement.
◉ Product Features
Dynamic Lifting Function 360° Luminous Sphere
The PE bubble sphere (outer diameter 200mm, inner diameter 95mm milky white) emits light in all directions, creating uniform and vivid RGB color effects.
Versatile Control Modes
•Integrates DMX512 (9-channel mode), master-slave synchronization, and sound-activated triggering for flexible scene customization.
Smooth Lifting Function
Offers adjustable lifting strokes (3 m/6 m/9 m) with a maximum speed of 0.65 m/s, enabling dynamic vertical movement.
Intuitive Operation Interface
Built-in LCD display panel and 4 mechanical single keys for easy parameter setting and status monitoring.
Efficient RGB Lighting
12 SMD5050 RGB LEDs provide 0-100% linear dimming and rich color mixing capabilities.
◉ Specifications
| Item No. | DLB-008 | ||
| Fixture |
1 Pixels | ||
| RGB 3 in 1 LED | |||
| Light angle:360° | |||
| Material: Polycarbonate | |||
| Power: 5W | |||
| Size :D200mm x D95mm | |||
| Weight: 0.36kg | |||
| Winch | Lifting height: 0-2meters | ||
| Average lifting speed:0- 0.6m/s | |||
| Power: 60W(1pcs) | |||
| Size: L170 *W170*H205mm | |||
| Weight: 2.9kg(1pcs) | |||
| Material: Aluminium | |||
| Housing color: White | |||
| IP Class:lP20 | |||
| Group | Winches x 1 | ||
| Arc Light x 1 | |||
| Control | Graphic LCD control panel | ||
| 4 Menu buttons to set the functions | |||
| DMX512/RDM Protocol | |||
| DMX channels:9CH | |||
| Electrical and Connectionsz |
AC100 to 240 Volts , 50/60 Hz | ||
| Total power:70W Maximum | |||
| Total weight:3.5kg Maximum | |||
| Signal：0.35m T-type quick docking | |||
| Power：0.35m T-type quick docking | |||
| Ambient temperature:5-40' | |||
| Installation | Ceiling Opening Diameter:D200mm Maximum | ||
| Ensure vertical hang | |||
| Ensure installation | |||
| Ceiling clearance:D313mm Miniximum | |||
| Safety wire attachment hole | |||
| Compliance | CE/Rosh | ||
◉ Applications

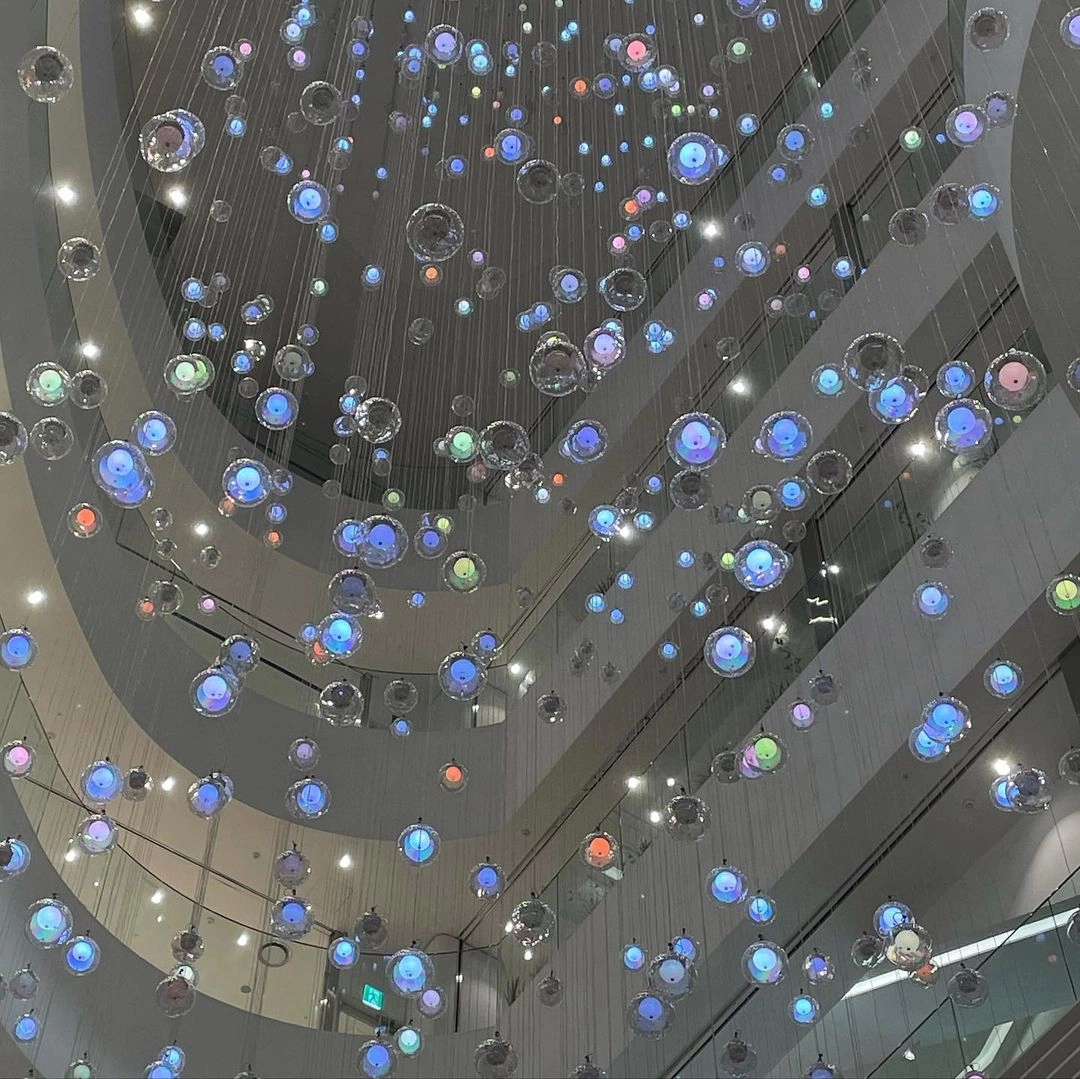

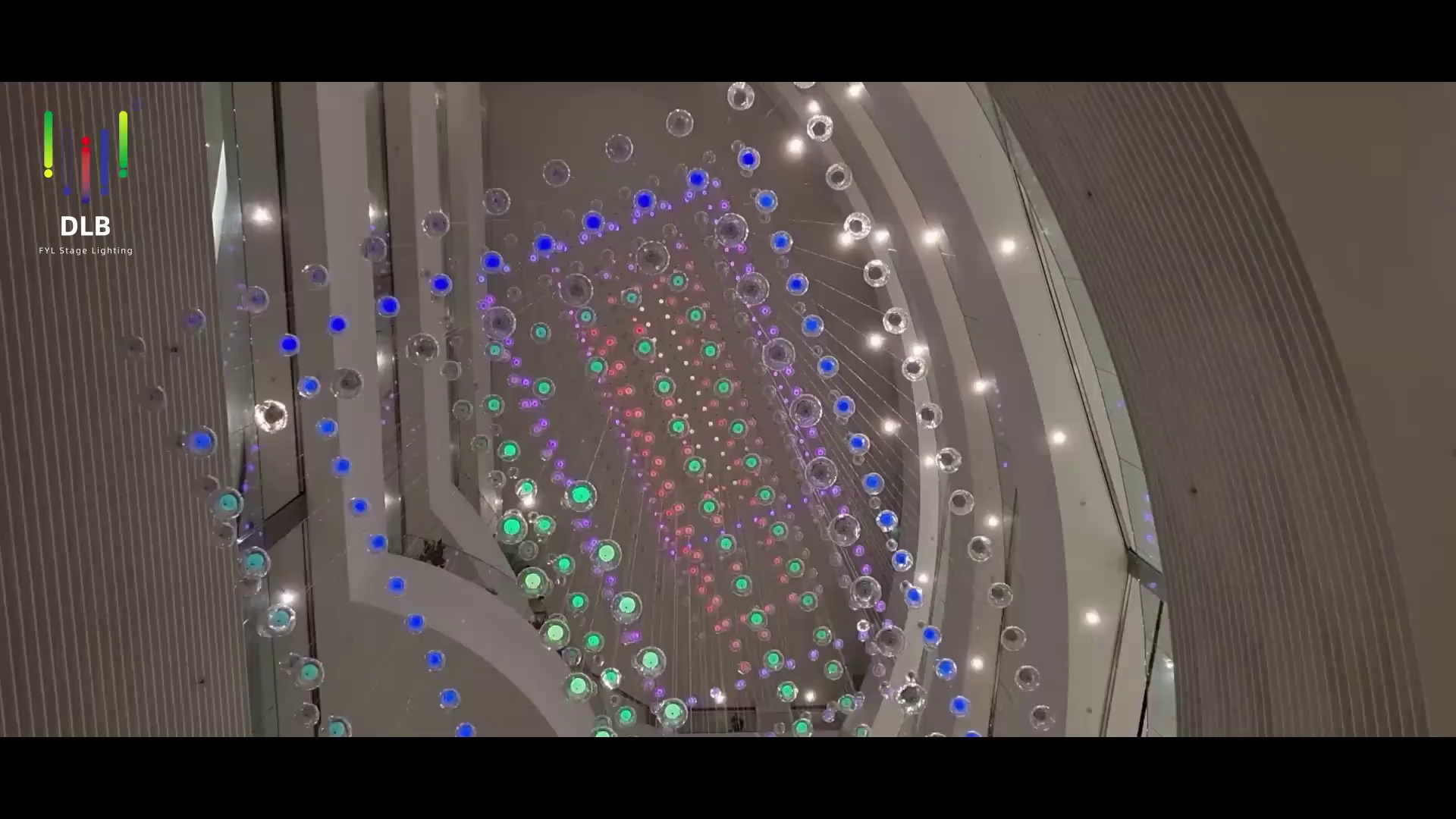

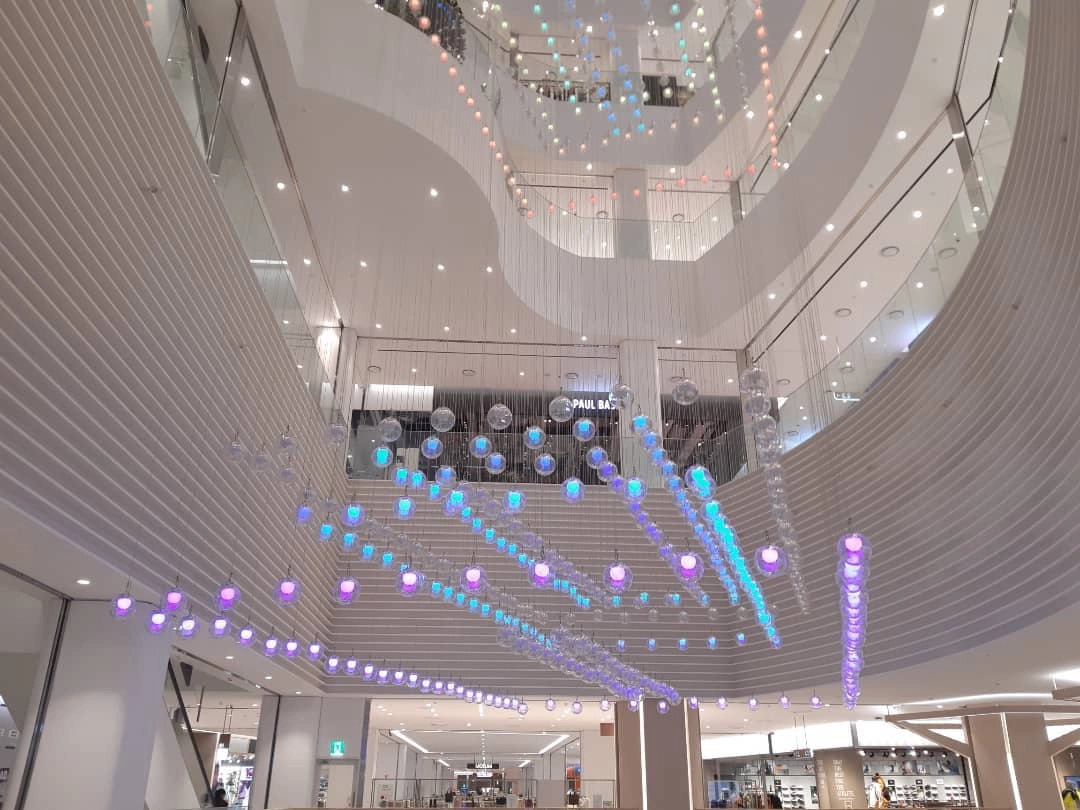

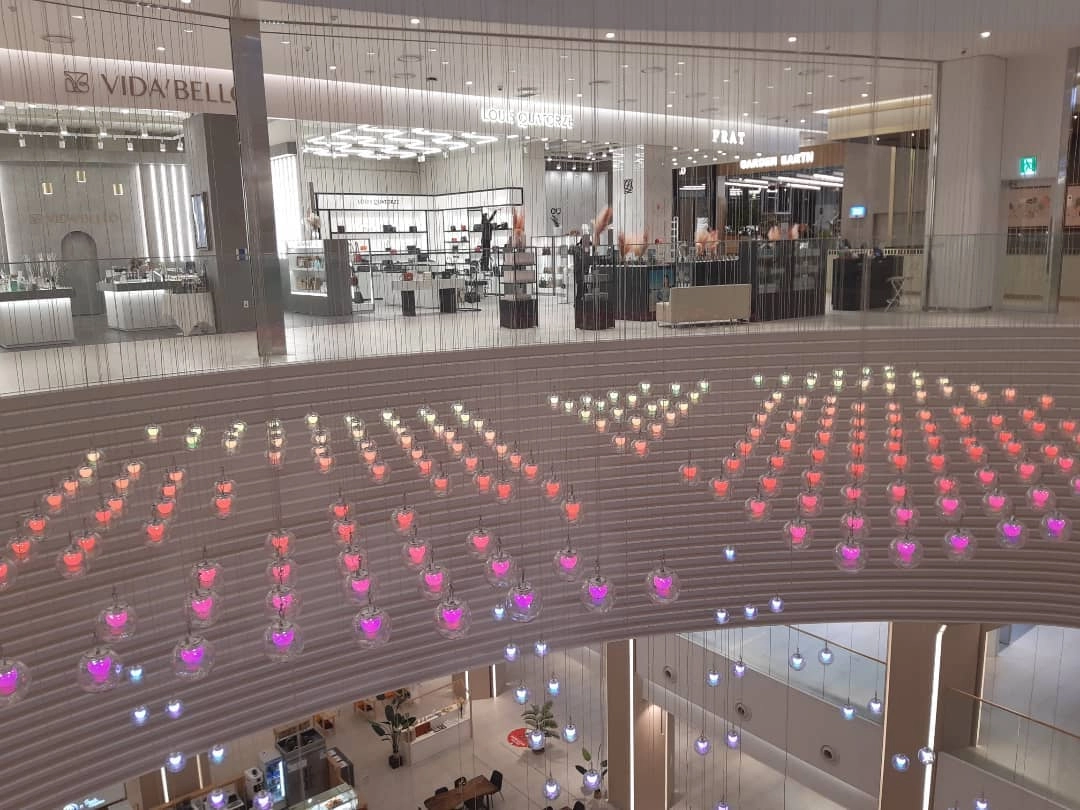

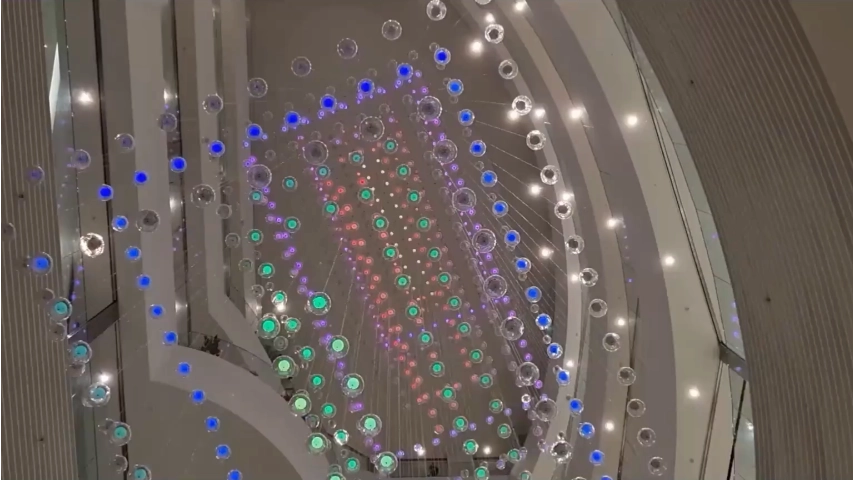

Commercial Spaces
Shopping malls, atriums, exhibition halls, and luxury hotels for aesthetic and interactive lighting displays.
Event Venues
Weddings, banquets, concerts, and corporate events to create dynamic and romantic atmospheres.
Entertainment Locations
Nightclubs, bars, and theme parks for immersive visual experiences synchronized with music or events.
◉ Advantages & Competitiveness
360° Immersive Lighting
The PE bubble sphere’s all-around illumination ensures uniform color distribution, enhancing spatial visual appeal.
Flexible Control Options
Supports DMX512, master-slave, and sound-activated modes, adapting to both professional and simple operation needs
Customizable Lifting Dynamics
Multiple stroke options (3m/6m/9m) and adjustable speed allow tailored vertical movement for different venue heights.
User-Friendly Operation
LCD display and mechanical keys simplify parameter adjustment, while daisy-chaining up to 10 hosts streamlines large-scale deployments
Durable & Safe Design
IP20 protection, sturdy metal host enclosure, and safety mounting components ensure reliable indoor use.
◉ Customization Options
Bubble Sphere Customization
Outer sphere color (plated finishes other than default) or material modifications.
Lifting Stroke
Custom stroke lengths for specialized venue requirements (subject to technical feasibility).
Control Functions
Extended DMX channel modes or additional control protocols (e.g., Art-Net) for integrated smart lighting systems.
Host Aesthetics
Custom spray coating colors for the metal host enclosure to match venue design themes.
◉ Packaging & Logistic
Packaging
▪ Each unit is packaged with protective foam and placed in a durable carton. For bulk orders, custom packaging (e.g., flight cases for multiple units) is available.
▪ Included accessories: User manual, warranty card, 1.5m 3-pin XLR signal cable, 1.5m 3-core power cable, mounting hardware.
Logistics Instructions
▪ Transport via courier or freight; mark as "fragile" to ensure careful handling.
▪ Storage: Keep in a dry, cool environment (0-40°C) away from direct moisture or extreme temperatures.
◉ Frequently Asked Questions
Products
What light control modes does the 7-lamp 60W wash light support? Is it compatible with DMX consoles of other brands?
It supports three control modes: DMX512, sound activation, and auto-run. The channels can be selected as 23CH/35CH/51CH (the 51CH mode enables independent R/G/B/W dimming for each individual lamp bead). It complies with the international universal DMX512 protocol and is compatible with mainstream brand consoles (e.g., MA, Good, Pearl consoles). When connecting, it is recommended to connect a 120Ω terminator to the output end of the last light to reduce signal interference.
How to set the DMX starting address via the panel?
Follow these steps:
1. Press "Left" (multiple times if needed) to return to the main interface.
2. Press "Up/Down" to select "Settings", then press "OK" to enter.
3. Select "DMX Address" and press "OK" to enter edit mode.
4. Adjust the hundreds digit (e.g., 2 for address 286) with "Up/Down", press "OK" to confirm; repeat for tens (8) and units (6) digits.
5. Press "OK" again to save the address (e.g., A286) and exit edit mode.
The lamp does not light up. What should I check?
Troubleshoot in 4 steps:
1. Power Supply: Confirm the input voltage matches AC 200V~240V/50~60Hz; check if the power cable is securely connected and the switch is on.
2. Cooling Period: Ensure the fixture has cooled for 20 minutes after previous use (mandatory cooling to prevent overheat damage).
3. DMX Signal: If in DMX mode, verify the controller is sending "Shutter On" (CH6: 252-255) and "Dimming" (CH7: 100-255) signals.
4. Internal Wiring: If above checks pass, contact after-sales to inspect internal connections (e.g., lamp holder, driver board) for loose or burned components.
The fixture overheats and shuts down. What should I do?
Resolve overheating issues:
1. Environment Check: Ensure the operating temperature ≤60℃; move the fixture away from heat sources (e.g., stage heaters) and ensure 50cm clearance around the fan grille.
2. Fan Maintenance: Clean the fan and fan grille with compressed air (remove dust buildup); check if the fan runs when the fixture is powered on (replace fan if silent).
3. Protection Threshold: Enter "Settings → Temperature Protection" to adjust the threshold (default 60℃, max 80℃) if the environment requires higher operating temperatures.
What is the XY-axis rotation angle of moving head lights? Are there any load-bearing requirements for installation?
For conventional moving head lights, the X-axis rotation ranges from 0° to 540°, and the Y-axis rotation ranges from 0° to 205° (some models support 16-bit fine adjustment). Installation requirements: For hoisting, the load-bearing capacity of the support frame must be ≥ 1.5 times the weight of the light (e.g., a 10kg moving head light requires a support frame with ≥ 15kg load-bearing capacity). Additionally, a safety rope must be used to pass through the light's handle. When installing at an angle or upside down, pedestrians are prohibited from passing below, and the hook screws and rope wear must be checked regularly.
