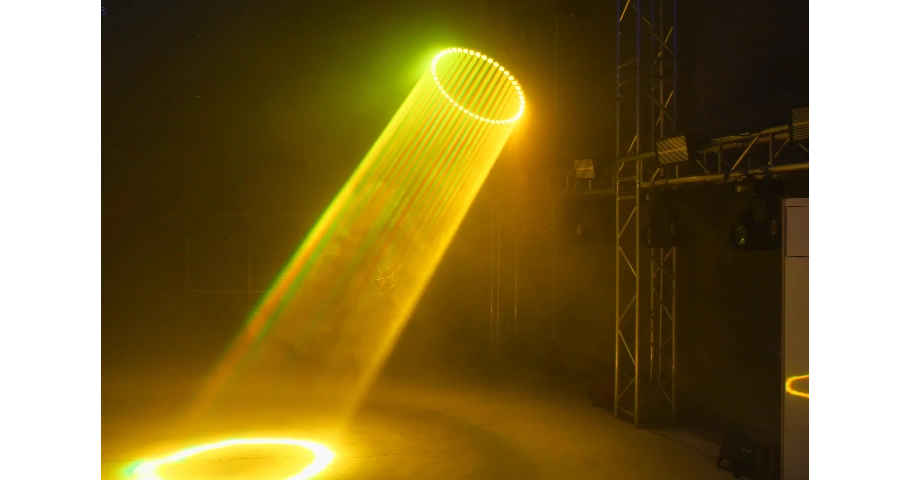

Kinetic Halo Ring
The Halo Ring (Item No.: DLB-048) is a high-performance LED circular projection system designed to deliver immersive visual experiences for events. Featuring 40 pixels with 240 pieces of 0.2W RGB 3-in-1 LEDs, it supports precise DMX512 control via multi-channel winches (Winch A: 126ch, Winch B: 4ch, Winch C: 4ch). Constructed from aluminum, this system ensures durability while producing vibrant, synchronized lighting effects, making it ideal for venues like nightclubs, concerts, and stage performances.
◉ Product Features
Pixel-Level Control
Equipped with 40 pixels and 240 pcs of 0.2W RGB 3-in-1 LEDs, enabling rich color mixing and dynamic circular pattern creation.
Multi-Channel DMX Control
Supports DMX512 control with dedicated channels for winches (Winch A: 126ch, Winch B: 4ch, Winch C: 4ch) to adjust positioning and lighting effects.
Durable Construction
Made from aluminium, ensuring structural strength and longevity in various event environments.
System Integration
Works as part of a larger system (including 3×DLB-P12-9108 units) with a total power of 400W, enabling coordinated visual displays.
◉ Specifications
| Item No. | DLB-H3-11086(3 meters) | ||
| DLB-H6-11087(6 meters) | |||
| Fixture | 60 PCS 3W RGB 4 in 1 LED | ||
| Beam angle: 6° | |||
| Material: Aluminium | |||
| Power: 180W | |||
| Size: D900mm | |||
| Weight: 3.5kg | |||
| Winch（0-6m） | Lifting length: 0-6 meters | ||
| Speed: 0-0.6m/s | |||
| Material: Aluminium | |||
| Body color: Black | |||
| Power: 150w | |||
| Size: L342 *W208*H374mm | |||
| Weight: 16kg | |||
| IP Class 20 | |||
| Group | Winches x 3 | ||
| Bean Ring x 1 | |||
| Control | Graphic LCD control panel | ||
| 4 Menu buttons to set the functions | |||
| DMX512/RDM Protocol | |||
| DMX channels: Winch A: 246CH,Winch B: 4CH, Winch C: 4CH | |||
| Electrical and Connectionsz |
AC100 to 240 Volts - 50/60 Hz | ||
| Total power: 630W Maximum | |||
| Total power: 630W Maximum | |||
| Total weight: 51.5kg Maximum | |||
| 3-Pin XLR input and output | |||
| PowercoN blue input and output | |||
| Maximum | |||
| connect 6 winches via daisy chain | |||
| Ambient temperature:-5-40° | |||
| Installation | The minimum installation height is6 meters | ||
| Ensure vertical hang | |||
| 6 xFY-SE-70002 clamps for | |||
| hanging installation | |||
| Safety wire attachment hole | |||
| Compliance | CE/RoSH | ||
◉ Applications
Nightclubs & Bars
Creates dynamic, color-changing circular backdrops and visual accents for dance floors and stages.
Concerts & Music Festivals
Delivers synchronized circular lighting effects that complement live performances and stage productions.
Large - Scale Events
Enhances visual appeal at corporate events, Enhances visual appeal at corporate events, award ceremonies, and themed parties with immersive LED displays.award ceremonies, and themed parties with immersive LED displays.
Theatrical Productions
Adds atmospheric circular lighting and geometric visual elements to theatrical shows and installations.
◉ Advantages
High Pixel Density
40 pixels with 240 RGB LEDs provide fine-grained control over color and pattern, enabling complex circular visual designs.
Robust Aluminium Construction
Ensures structural integrity and durability for repeated use in event environments.
Flexible DMX Control
Multi-channel winch control allows precise adjustment of both lighting effects and physical positioning, offering creative versatility.
Scalable System
Integrates seamlessly with 3×DLB-P12-9108 units for large-scale, coordinated visual experiences with a total power of 400W.
◉ Customization Options
Pixel & LED Configuration
Adjustments to the number of pixels or LEDs for tailored brightness and resolution requirements.
Size & Shape Modifications
Custom dimensions or alternative circular diameters (subject to structural feasibility).
DMX Channel Optimization
Custom DMX channel allocations to match specific control system setups.
Material Upgrades
Options for enhanced aluminium grades or surface finishes for specialized aesthetic or durability needs.
◉ Packaging & Logistic
Packaging
Each unit is packaged in a sturdy carton with foam insulation to protect aluminium components during transit. Custom flight cases are available for bulk orders to ensure safety for multiple units.
Logistics
Shipped via freight or courier services. The product is classified as electronic equipment; ensure transport within the ambient temperature range (5 - 40°C) to avoid damage.
◉ Frequently Asked Questions
Wholesale Cooperation
Is there a regional protection policy to avoid competition among multiple wholesalers in the same region?
For prefecture-level cities and above, an "exclusive wholesale cooperation" policy is implemented: If there is already a cooperative wholesaler in a region (with an annual purchase amount of ≥ 300,000 RMB), no second wholesaler of the same type will be developed. For county-level regions, 2-3 wholesalers can be developed based on market demand, but clear sales scopes must be divided (e.g., by town) to avoid vicious competition.
What is the MOQ for wholesale cooperation? Is there a tiered pricing policy?
MOQ for wholesale: ≥ 10 units for a single model of conventional lights, and ≥ 5 units for a single model of elevating lights/moving head lights. Tiered pricing is supported: Taking conventional PAR lights as an example, a 5% discount is offered for 10-50 units, a 10% discount for 51-100 units, and a 15% discount for over 100 units. Specific quotations can be negotiated with the account manager based on the cooperation scale (e.g., annual purchase volume).
Wedding & Parties Lighting Solutions
Is the control system compatible with existing consoles?
Supports DMX / Art-Net / sACN for seamless integration with mainstream consoles; also enables Timecode-driven operation and multimedia synchronized control.
Products
The fixture overheats and shuts down. What should I do?
Resolve overheating issues:
1. Environment Check: Ensure the operating temperature ≤60℃; move the fixture away from heat sources (e.g., stage heaters) and ensure 50cm clearance around the fan grille.
2. Fan Maintenance: Clean the fan and fan grille with compressed air (remove dust buildup); check if the fan runs when the fixture is powered on (replace fan if silent).
3. Protection Threshold: Enter "Settings → Temperature Protection" to adjust the threshold (default 60℃, max 80℃) if the environment requires higher operating temperatures.
After-Sales Support
What is included in the product warranty scope? How to handle human-induced damage (e.g., falling, water ingress)?
Warranty scope: Hardware faults caused by non-human factors (e.g., motor failure, lamp bead non-illumination, light control failure). The whole machine is warranted for 1 year, LED lamp beads for 2 years, and core components of the elevating structure (e.g., hydraulic pump, motor) for 2 years. For human-induced damage, a cost fee will be charged for repairs (e.g., replacing the elevating motor requires charging the motor cost + repair fee). The after-sales team will first provide a fault detection report and repair quotation, and repairs will start only after the customer confirms.
