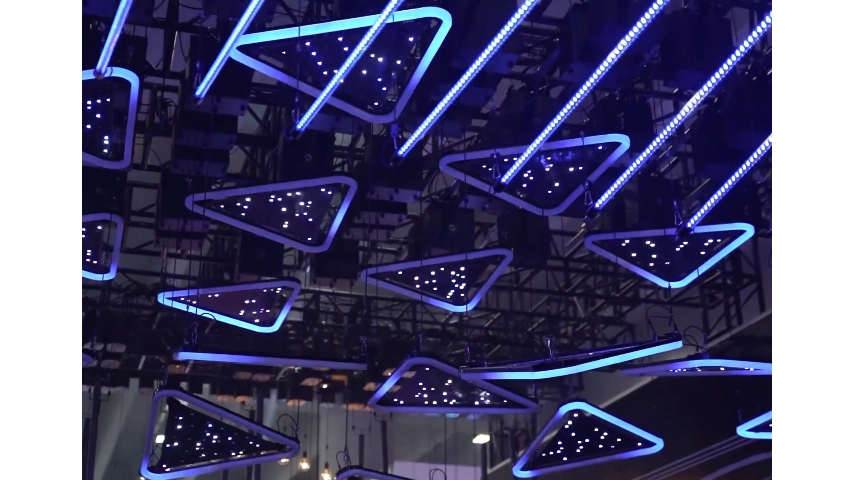

Kinetic Arc Panel
The Arc Panel (Item No.: DLB-028) is a high-performance LED triangle projection system designed to deliver immersive visual experiences for large-scale events. Featuring two parts—120 pixels with 360 pieces of 0.2W RGB 2-in-1 LEDs and 72 pixels with 432 pieces of 0.2W RGB 2-in-1 LEDs—it supports precise DMX512 control via multi-channel winches (Winch A: 36ch, Winch B: 4ch, Winch C: 222 ch). Constructed from aluminum, PE, and PCB, this system ensures durability while producing vibrant, synchronized lighting effects, making it ideal for venues like nightclubs, concerts, and stage performances.
◉ Product Features
Dual Pixel Zones
Consists of two parts—Part 1 with 120 pixels (360×0.2W RGB 2-in-1 LEDs) and Part 2 with 72 pixels (432×0.2W RGB 2-in-1 LEDs)—enabling layered and dynamic visual designs.
Multi-Channel DMX Control
Supports DMX512 control with dedicated channels for winches (Winch A: 36ch, Winch B: 4ch, Winch C: 222ch) to adjust positioning and lighting effects.
Durable Construction
Made from aluminium (for structural strength), PE (for light diffusion), and PCB (for electrical stability), ensuring longevity in various event environments.
System Integration
Works as part of a larger system (including 3×DLB-P9-9109 units) with a total power of 700W, enabling coordinated visual displays.
◉ Specifications
| Item No. | DLB-G3-11066 (6 meters) | ||
| Fixture |
72 Pixels | ||
| 432 pCs 0.3W RGB LED | |||
| Light angle:270° | |||
| Material: LLDPE White | |||
| Power: 129.6W | |||
| Dimensions :L1029mm*W1029 mm*H1029mm | |||
| Weight: 3.45kg | |||
| Winch（0-6m） | Lifting height: 0-6meters | ||
| Average lifting speed:0- 0.6m/s | |||
| Power: 150W(1pcs) | |||
| Dimensions :L247*W167*H337mm | |||
| Size: L342 *W208*H374mm | |||
| Weight: 16kg(1pcs) | |||
| Material: Aluminium | |||
| Housing color: Black | |||
| IP Class:lP20 | |||
| Group | Winches x 3 | ||
| Arc Light x 1 | |||
| Control | Graphic LCD control panel | ||
| 4 Menu buttons to set the functions | |||
| DMX512/RDM Protocol | |||
| DMX channels: winch A: 222CH；Winch B: 4CH；Winch C: 4CH | |||
| Electrical and Connectionsz |
AC100 to 240 Volts , 50/60 Hz | ||
| Total power:580W Maximum | |||
| Total weight: 51.4kg Maximum | |||
| 3-Pin XLR input and output | |||
| PowerCON blue input and output,Maximum connect 6 winches viadaisy chain | |||
| Ambient temperature:5-40' | |||
| Installation | The minimum installation height is 4 meters | ||
| Ensure vertical hang | |||
| 6x FY-SE-70002 clamps for hanging installation | |||
| Safety wire attachment hole | |||
| Compliance | CE/Rosh | ||
◉ Applications

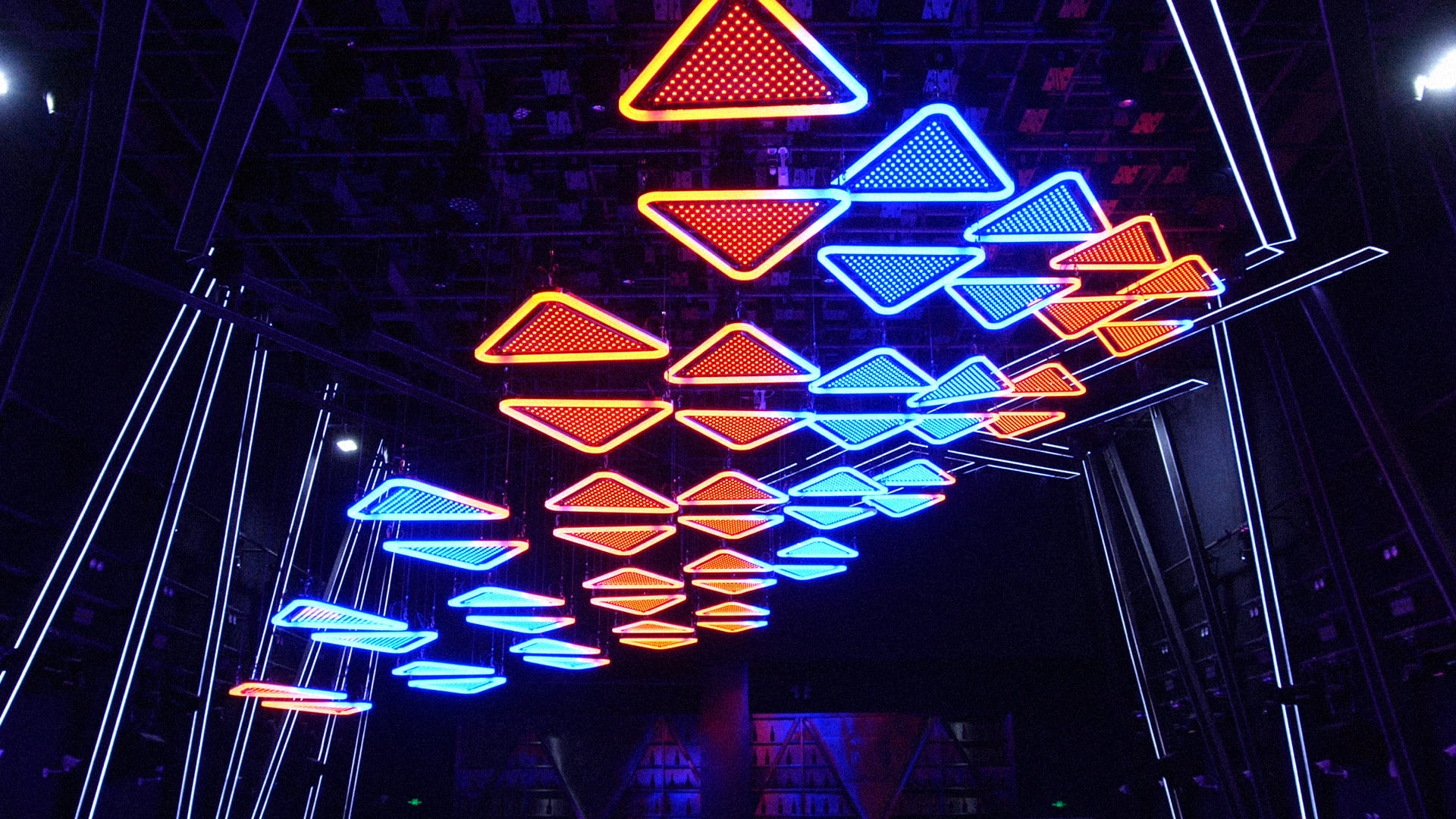

Nightclubs & Bars
Creates dynamic beam and ring lighting backdrops and visual accents for dance floors and stages.

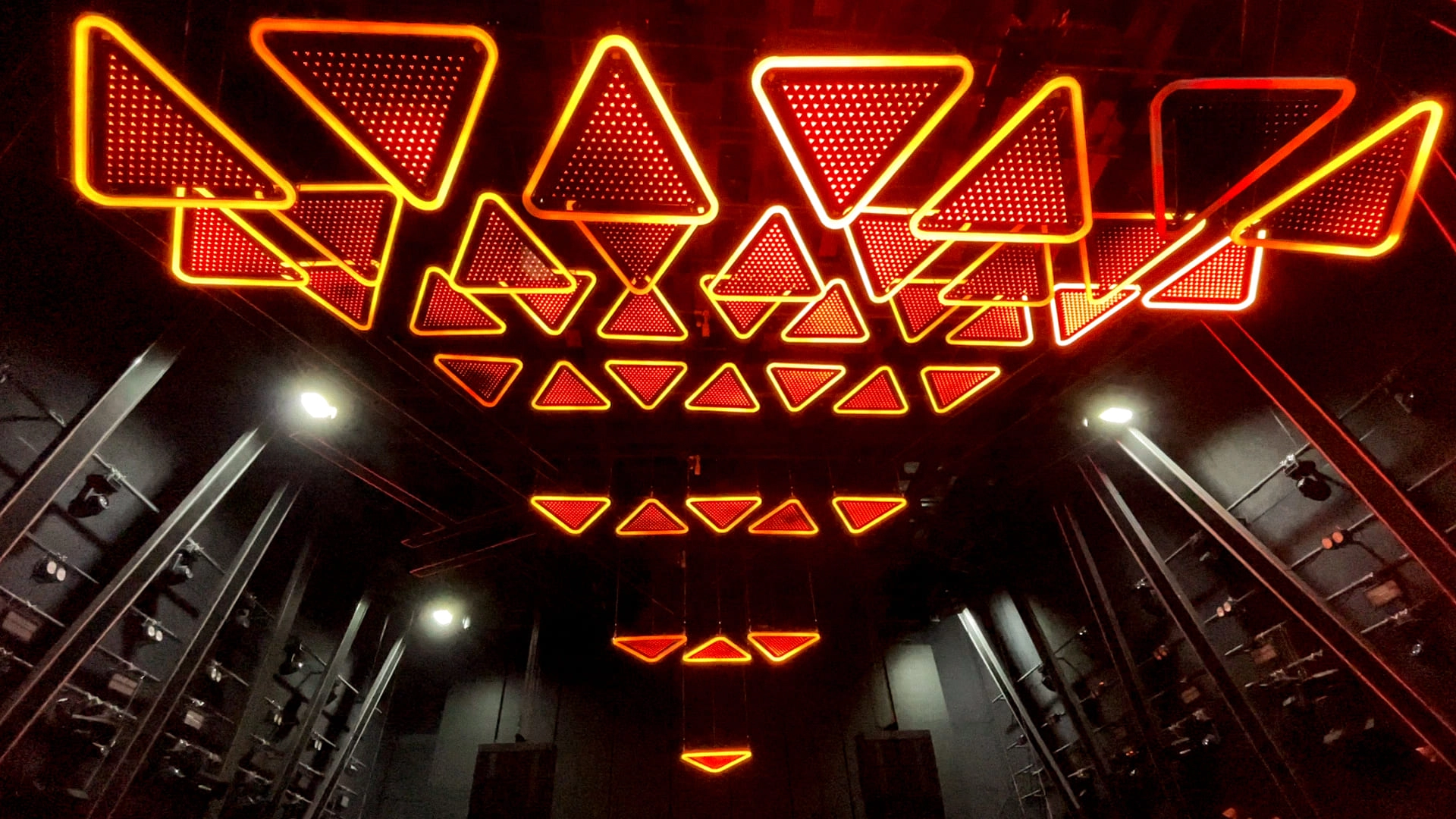

Concerts & Music Festivals
Delivers synchronized lighting effects that complement live performances and stage productions.

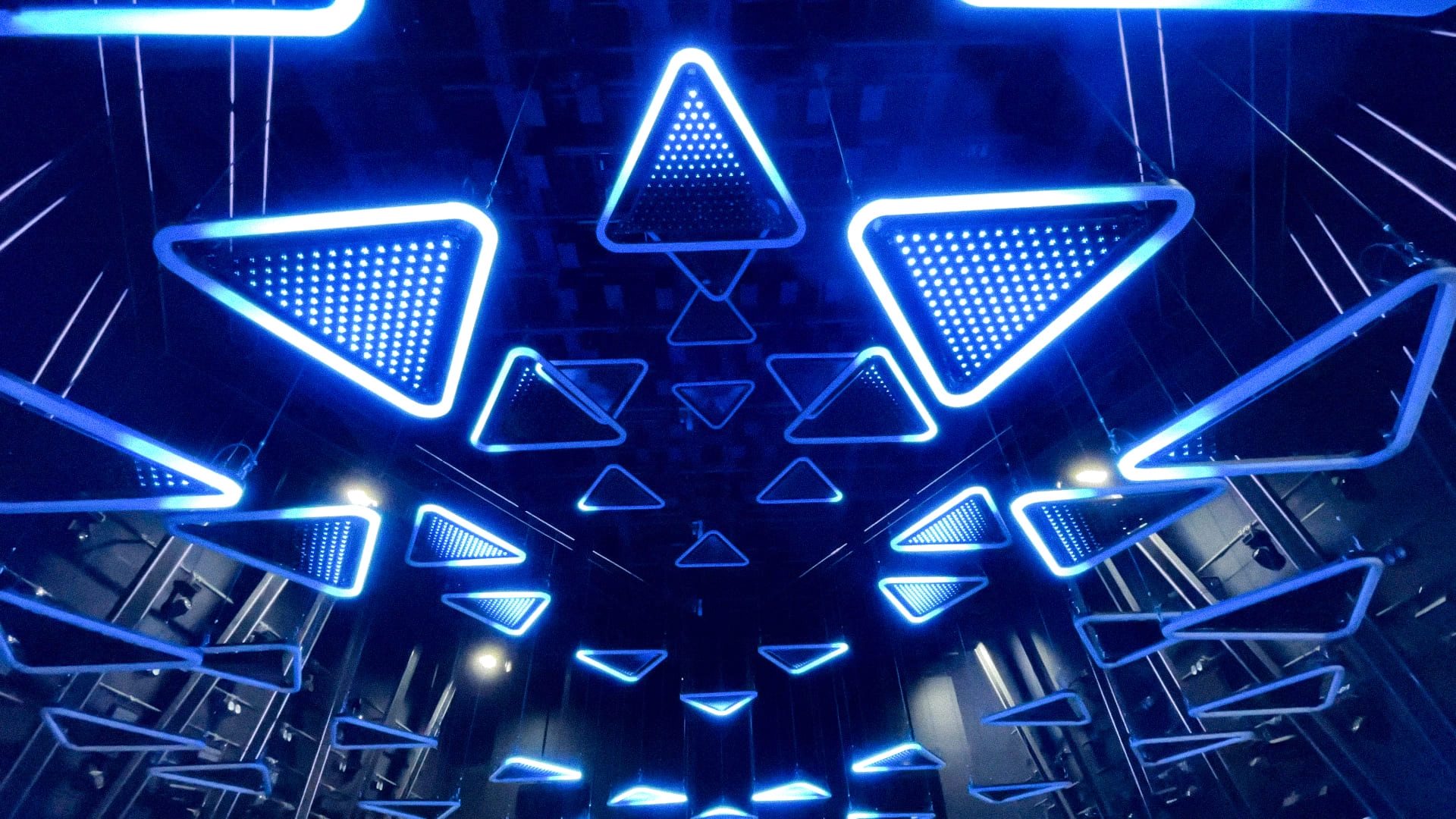

Large - Scale Events
Enhances visual appeal at corporate events, award ceremonies, and themed parties with immersive LED displays.

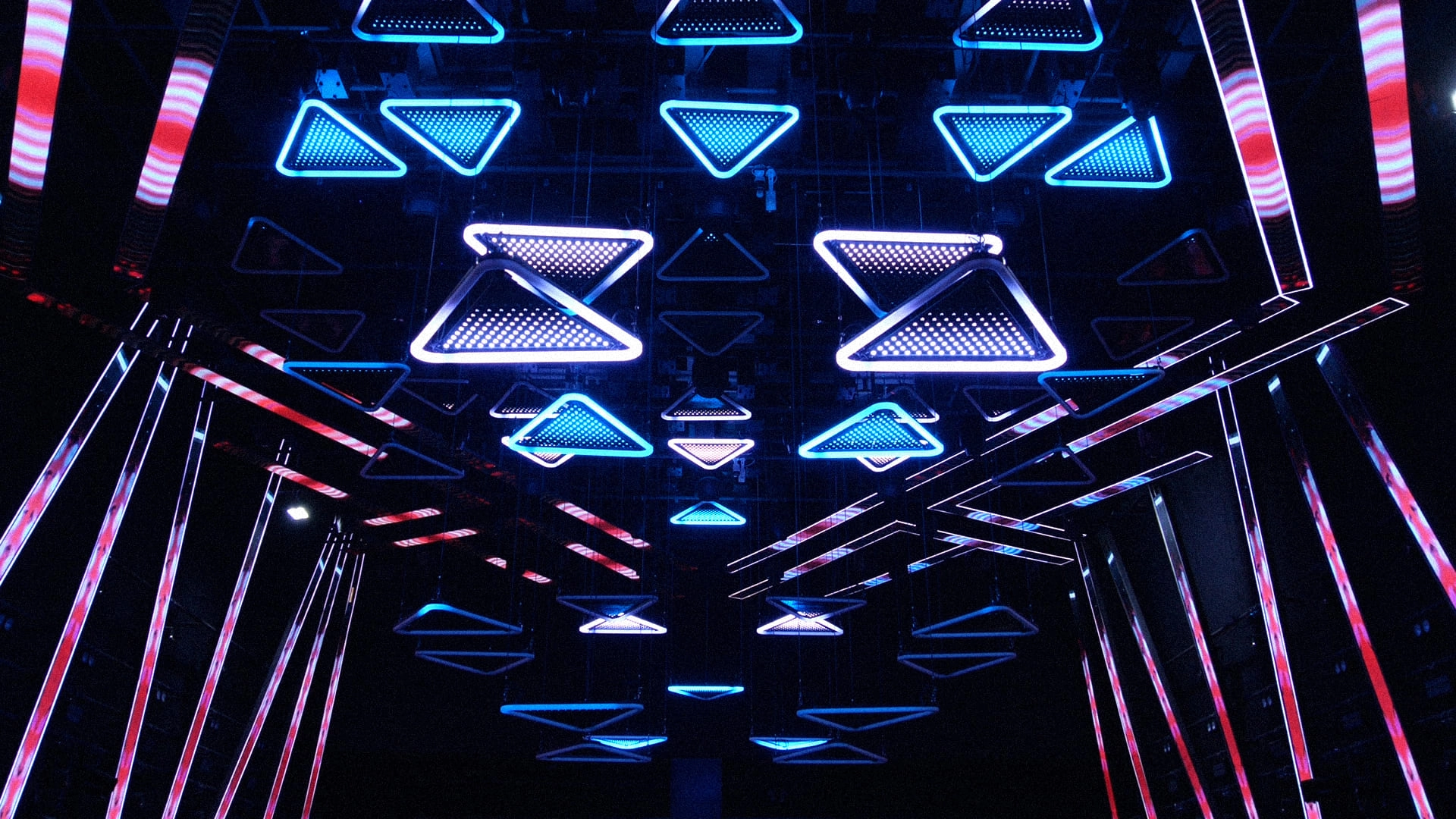

Theatrical Productions
Adds atmospheric lighting and visual elements to theatrical shows and installations.
◉ Advantages
Dual Pixel Density
•Two distinct pixel zones (120/72 pixels) with combined 792 RGB LEDs provide fine-grained control over color and pattern, enabling complex visual designs.
Robust Material Combination
The mix of aluminium (structural integrity), PE (light diffusion), and PCB (electrical reliability) ensures long-term performance.
Flexible DMX Control
Multi-channel winch control allows precise adjustment of both lighting effects and physical positioning, offering creative versatility.
Scalable System
Integrates seamlessly with 3×DLB-P9-9109 units for large-scale, coordinated visual experiences with a total power of 700W.
◉ Customization Options
Pixel & LED Configuration
Adjustments to the number of pixels or LEDs for tailored brightness and resolution requirements.
Size & Shape Modifications
Custom dimensions or alternative geometric shapes (subject to structural feasibility).
DMX Channel Optimization
Custom DMX channel allocations to match specific control system setups.
Material Upgrades
Options for enhanced materials (e.g., higher-grade aluminium or UV-resistant PE) for specialized environments.
◉ Packaging & Logistic
Packaging
Each unit is packaged in a sturdy carton with foam insulation to protect the PE material and LED components during transit. Custom flight cases are available for bulk orders to ensure safety for multiple units.
Logistics
Shipped via freight or courier services. The product is classified as electronic equipment; ensure transport within the ambient temperature range (5 - 40°C) to avoid damage.
◉ Frequently Asked Questions
Wedding & Parties Lighting Solutions
What about after-sales support and training?
On-site training + remote technical support, spare parts availability, and annual inspections. Service Level Agreements (SLAs) for maintenance services are available.
Wholesale Cooperation
What is the MOQ for wholesale cooperation? Is there a tiered pricing policy?
MOQ for wholesale: ≥ 10 units for a single model of conventional lights, and ≥ 5 units for a single model of elevating lights/moving head lights. Tiered pricing is supported: Taking conventional PAR lights as an example, a 5% discount is offered for 10-50 units, a 10% discount for 51-100 units, and a 15% discount for over 100 units. Specific quotations can be negotiated with the account manager based on the cooperation scale (e.g., annual purchase volume).
Nightclub Lighting
Can the lighting, screens, and other equipment be combined to achieve integrated sound, lighting, and visuals?
Programming is possible through Madrix and MA consoles, using timecode synchronization to achieve a precise "programmed show" effect.
Customization/OEM Services
What is the production cycle for customized products? Is sample trial production supported?
The production cycle for regular customization (e.g., appearance logo, parameter fine-tuning) is 15-20 days, and the cycle for complex function customization (e.g., development of a new elevating structure) is 30-45 days. Sample trial production is supported. The sample fee is charged based on the customization cost (the fee can be deducted from the payment after bulk ordering). The trial production cycle is 7-10 days, and bulk production will start only after the customer confirms the sample is qualified.
Logistics Services
What logistics method is used by default for products? What is the delivery time for different regions in China?
Dedicated line logistics (e.g., Anneng, Best Express) is used by default. Express delivery (e.g., SF Express, JD Express) or full-truck transportation can also be arranged according to customer needs. Delivery time:
▪ East China/South China/Central China: 3-5 days.
▪ North China/Southwest China: 5-7 days.
▪ Northeast China/Northwest China: 7-10 days.
▪ Remote areas (e.g., Xinjiang, Tibet): 10-15 days, with an additional remote area freight charge (calculated by weight, specific details to be confirmed with the logistics department).
