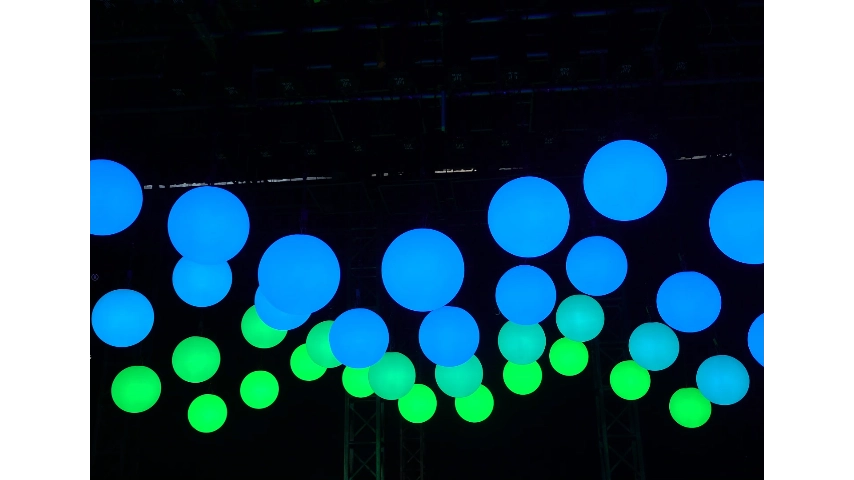

Kinetic Glowing ball——Ideal for a wide range of large-scale events: commercial spaces, TV shows, concerts, nightclubs, and various other settings.
FENG-YI's Kinetic Glowing Ball elevates large-scale events with vibrant motion and radiant light. Perfect for commercial spaces, TV shows, concerts, and nightclubs, this dynamic kinetic glowing ball creates unforgettable, immersive experiences that captivate any audience.
◉ Product Features
Powerful & Agile Lifting
6m lifting travel at 0.65m/s, aluminum body ensures robust and rapid performance.
360° Panoramic Pixel Sphere
12 RGB LEDs enable seamless omnidirectional color mixing for an immersive visual experience.
Professional & Stable Control
Equipped with LCD panel and DMX512/RDM protocol, offering precise and reliable operation.
Integrated Design, Easy Setup
Pre-assembled winch and sphere, quick installation from 4 meters, streamlining the setup process.
◉ Specifications
| Item No. | DLB-E3-11091 (3 meters) | ||
| Fixture | 1 Pixels | ||
| 42 Pcs 0.2W RGB 3 in 1 LED | |||
| Beam angle: 360° | |||
| Material: Polyethylene | |||
| Power: 10W | |||
| Dimensions : D250mm | |||
| Weight: 0.65kg | |||
| Winch（0-3m） | Lifting length: 0-3meters | ||
| Average lifting speed: 0.47m/s | |||
| Power: 100W(1pcs) | |||
| Dimensions : L247 *W167*H337mm | |||
| Weight: 7kg(1pcs) | |||
| Material: Aluminium | |||
| Housing color: Black | |||
| IP Class 20 | |||
| Group | Winches x 1 | ||
| Sphere x 1 | |||
| Control | Graphic LCD control panel | ||
| 4 Menu buttons to set the functions | |||
| DMX512/RDM Protocol | |||
| DMX channels: 9CH | |||
| Electrical and Connectionsz |
AC100 to 240 Volts ; 50/60 Hz | ||
| Total power: 110W Maximum | |||
| Total weight: 8kg Maximum | |||
| Hold hands and quickly insert cables for signal input and output | |||
| Hold hands and quickly insert cables for power input and output, Maximum connect 9 winches via daisy chain（220V）;Maximum connect 5 winches via daisy chain(110V) | |||
| Ambient temperature:-5-40° | |||
| Installation | The minimum installation height is 4 meters | ||
| Ensure vertical hang | |||
| 1x FY-SE-70001 clamps for hanging installation | |||
| Safety wire attachment hole | |||
◉ Applications
Nightclubs & Bars
Creates dynamic, color-changing circular backdrops and visual accents for dance floors and stages.
Concerts & Music Festivals
Delivers synchronized circular lighting effects that complement live performances and stage productions.
Large - Scale Events
Enhances visual appeal at corporate events, Enhances visual appeal at corporate events, award ceremonies, and themed parties with immersive LED displays.award ceremonies, and themed parties with immersive LED displays.
Theatrical Productions
Adds atmospheric circular lighting and geometric visual elements to theatrical shows and installations.
◉ Advantages
High Pixel Density
40 pixels with 240 RGB LEDs provide fine-grained control over color and pattern, enabling complex circular visual designs.
Robust Aluminium Construction
Ensures structural integrity and durability for repeated use in event environments.
Flexible DMX Control
Multi-channel winch control allows precise adjustment of both lighting effects and physical positioning, offering creative versatility.
Scalable System
Integrates seamlessly with 3×DLB-P12-9108 units for large-scale, coordinated visual experiences with a total power of 400W.
◉ Customization Options
Pixel & LED Configuration
Adjustments to the number of pixels or LEDs for tailored brightness and resolution requirements.
Size & Shape Modifications
Custom dimensions or alternative circular diameters (subject to structural feasibility).
DMX Channel Optimization
Custom DMX channel allocations to match specific control system setups.
Material Upgrades
Options for enhanced aluminium grades or surface finishes for specialized aesthetic or durability needs.
◉ Packaging & Logistic
Packaging
Each unit is packaged in a sturdy carton with foam insulation to protect aluminium components during transit. Custom flight cases are available for bulk orders to ensure safety for multiple units.
Logistics
Shipped via freight or courier services. The product is classified as electronic equipment; ensure transport within the ambient temperature range (5 - 40°C) to avoid damage.
◉ Frequently Asked Questions
Wedding & Parties Lighting Solutions
Is the control system compatible with existing consoles?
Supports DMX / Art-Net / sACN for seamless integration with mainstream consoles; also enables Timecode-driven operation and multimedia synchronized control.
Is system operation quiet?
We offer noise-optimized solutions (vibration damping/soft start/low-noise wire rope guidance) to meet acoustic requirements for TV studios and commercial spaces.
What is the delivery timeline?
Standard configurations: approx. 4–8 weeks; custom projects depend on scale and logistics. Expedited options and rental alternatives available.
Products
The X/Y axis moves abnormally (jitter, no response). What causes this?
Address the issue as follows:
1. Mechanical Check: Open the fixture (after power-off) to inspect if the X/Y axis belts are loose or broken; re-tighten or replace belts if needed.
2. Optical Coupling Calibration: Enter "Settings → Motor Calibration → X/Y Axis" to adjust the offset (-128~+127) or enable "Optical Coupling" (auto-corrects step loss).
3. Reset & Restart: Press "Menu → Reset → XY Reset" to reposition the axes; if no response, check the X/Y axis photoelectric switches (replace if "X/Y Hall Error" appears in the error menu).
Customization/OEM Services
What is the production cycle for customized products? Is sample trial production supported?
The production cycle for regular customization (e.g., appearance logo, parameter fine-tuning) is 15-20 days, and the cycle for complex function customization (e.g., development of a new elevating structure) is 30-45 days. Sample trial production is supported. The sample fee is charged based on the customization cost (the fee can be deducted from the payment after bulk ordering). The trial production cycle is 7-10 days, and bulk production will start only after the customer confirms the sample is qualified.
