Kinetic Football Light

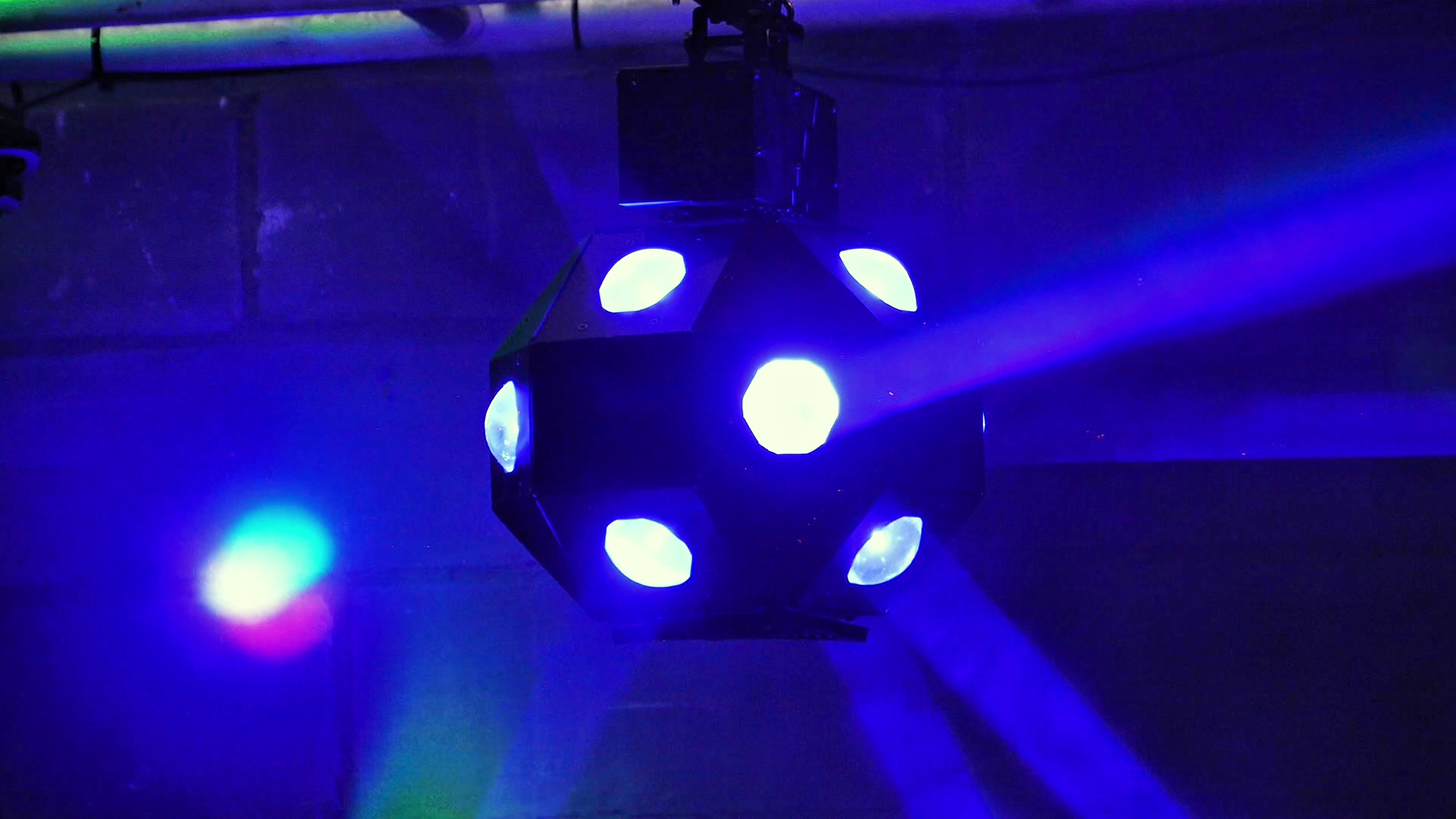

The Football (Item No.: DLB - 059) is an innovative LED projection system that combines beam and ring lighting effects. Comprising two parts—beams with 8 pcs of 4W RGBA 4-in-1 LEDs and rings with 8 rings of 8×12 LEDs (0.2w RGB 3-in-1 LED each)—it supports 19 - channel DMX control and operates on DC24V.
With a compact design (D200 mm) and PE material construction, this system delivers versatile and vibrant lighting effects, making it ideal for venues like nightclubs, concerts, and stage performances.
◉ Product Features
Hybrid Lighting Design
Integrates beam and ring lighting elements, with 8 pcs of 4W RGBA 4 - in - 1 LEDs for beams and 8 rings of 8×12 LEDs (0.2w RGB 3 - in - 1 LED each) for rings, enabling diverse lighting effects.
Precise DMX Control
Supports 19 - channel DMX control, allowing for detailed adjustment of beam angles, colors, and ring lighting parameters.
Compact and Durable
Made of PE material with a diameter of 200 mm and a weight of 1.2 kg, ensuring portability and durability.
System Integration
Works as part of a system with 1×DLB - P12 - 9108 unit, with a total power of 250W, enabling coordinated visual displays.
◉ Specifications
| Item No. |
DLB-G3-11096 (3 meters) DLB-G3-11146 (6 meters) DLB-G9-11105 (9 meters) |
||
| Fixture |
1 Pixels | ||
| 8 pcs 4W RGBA 4 in 1 LED | |||
| Beam angle: 3° | |||
| Beam diameter: 42mm Part 2: Rings LED | |||
| 8 Rings | |||
| 8 Pixels | |||
| 8x12 LEDs 0.2W RGB 3in1 LED | |||
| Ring diameter: 90mm；Dimensions: D200 mm | |||
| Material: PE | |||
| Power: 55w | |||
| Weight: 1.2kg | |||

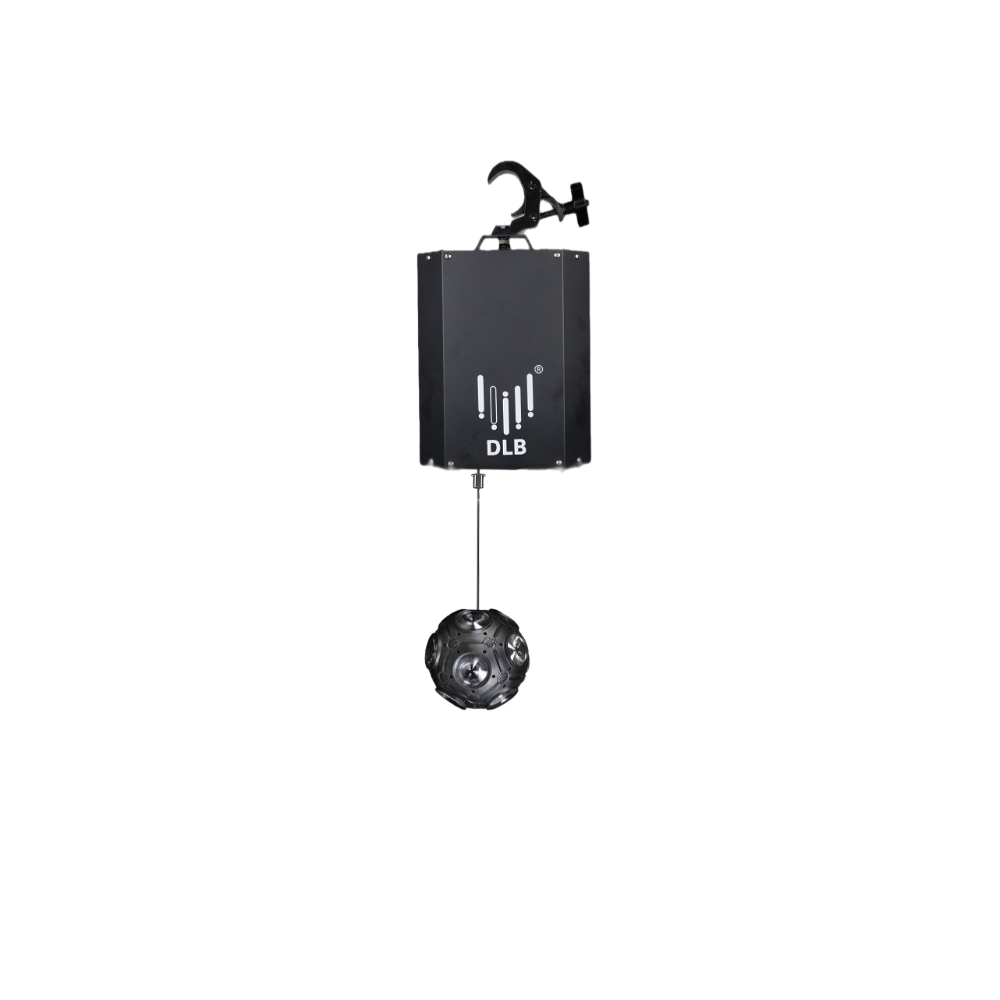

| Winch（0-9meters） | Lifting height: 0-9meters | ||
| Average lifting speed:0.3m/s（3meters）； 0.45m/s（6meters）；0.5m/s（9meters） | |||
| Power: 100W | |||
| Dimensions : L247 *W167*H337mm（3meters/6meters）;Dimensions : L277 *W167*H357mm 9meters） | |||
| Weight: 8.1kg | |||
| Material: Aluminium | |||
| Group | Winches x 3 | ||
| Football x 1 | |||
| Control | Graphic LCD control panel | ||
| 4 Menu buttons to set the functions | |||
| DMX512/RDM Protocol | |||
| DMX channels: 19ch | |||
| Electrical and Connectionsz |
AC100 to 240 Volts ; 50/60 Hz | ||
| Total power: 160W Maximum | |||
| Total weight: 10kg Maximum | |||
| Hold hands and quickly insert cables for signal input and output | |||
| Hold hands and quickly insert cables for power input and output, Maximum connect 10 winches via daisy chain（220V）;Maximum connect 5 winches via daisy chain（110V） | |||
| Ambient temperature:5-40' | |||
| Installation | The minimum installation height is 4 meters | ||
| Ensure vertical hang | |||
| 1x FY-SE-70001 clamps for hanging installation | |||
| Safety wire attachment hole | |||
◉ Applications
Nightclubs & Bars

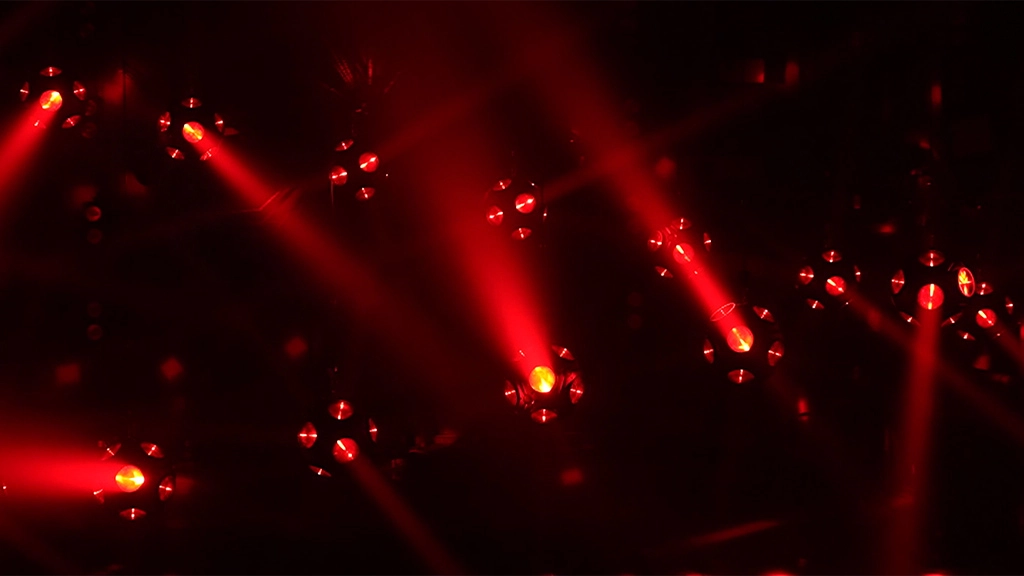

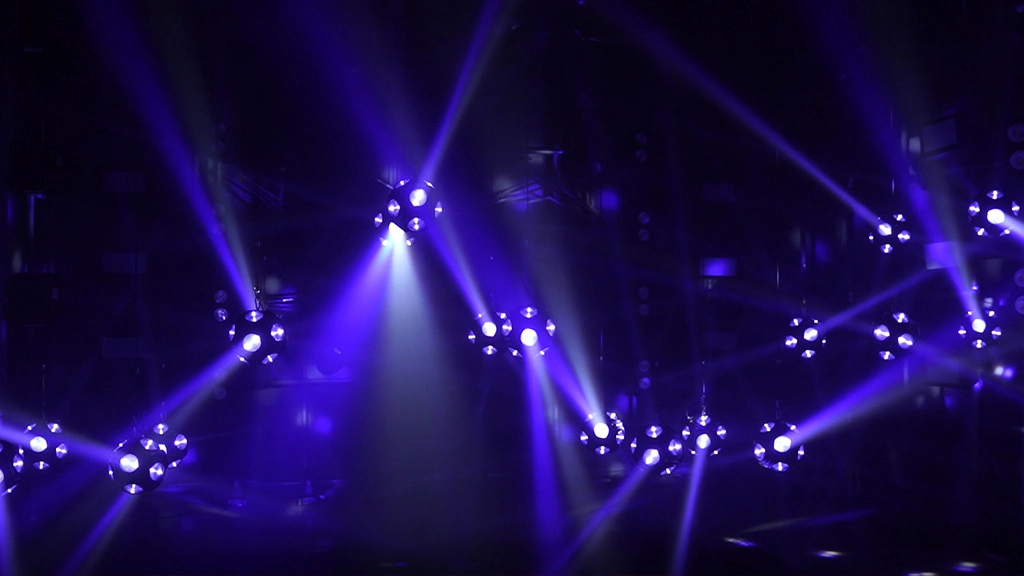

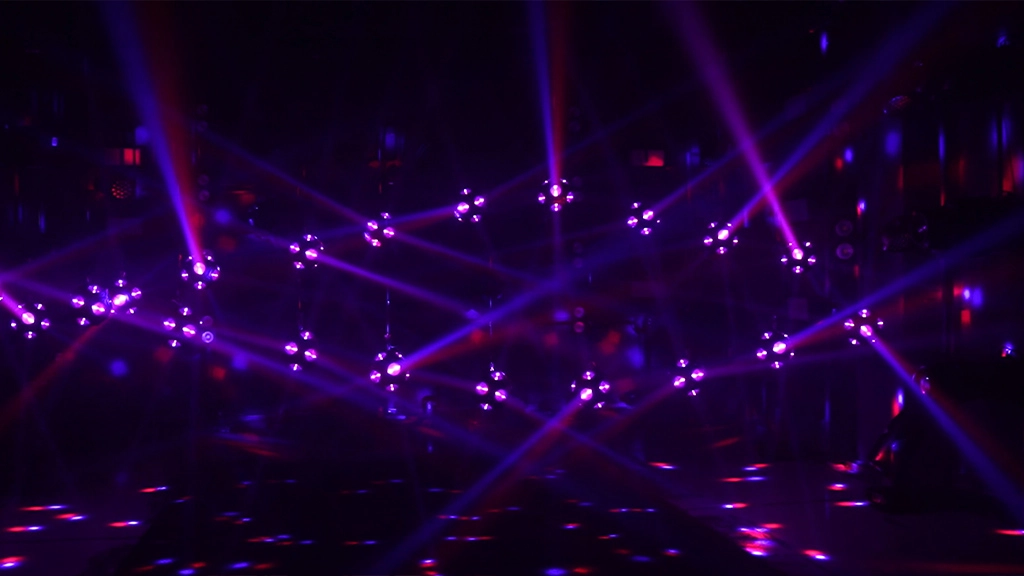

Creates dynamic beam and ring lighting backdrops and visual accents for dance floors and stages.
Concerts & Music Festivals
Delivers synchronized lighting effects that complement live performances and stage productions.
Large - Scale Events
Enhances visual appeal at corporate events, award ceremonies, and themed parties with immersive LED displays.
Theatrical Productions
Adds atmospheric lighting and visual elements to theatrical shows and installations.
◉ Advantages
Hybrid Lighting Effects
Combines beam and ring lighting to offer a wide range of visual possibilities for different scenarios.
Precise DMX Control
19 - channel control allows for fine - tuned adjustment of various lighting parameters, meeting professional lighting design needs.
Compact and Portable
With a small size (D200 mm) and light weight (1.2 kg), it is easy to install and move, suitable for various venue setups.
Energy - Efficient
Utilizes low - power LEDs (0.2w for ring LEDs) while maintaining high brightness, reducing energy consumption.
◉ Customization Options
LED Configuration
Adjustments to the number or type of LEDs for beams and rings to achieve different brightness or color effects.
DMX Channel Optimization
Custom DMX channel allocations to match specific control system setups.
Size Modifications
Custom dimensions for the Football unit to fit specific venue or installation requirements (subject to structural feasibility).
◉ Packaging & Logistic
Packaging
Each unit is packaged in a sturdy carton with foam insulation to protect the PE material and LED components during transit. Custom flight cases are available for bulk orders to ensure safety for multiple units.
Logistics
Shipped via freight or courier services. The product is classified as electronic equipment; ensure transport within the ambient temperature range (5 - 40°C) to avoid damage.
◉ Frequently Asked Questions
Logistics Services
Can on-site installation services be provided? How is the installation fee calculated?
On-site installation services are supported, and the fee is calculated based on the installation difficulty and region:
▪ Regular installation (e.g., bar PAR lights, front lights in small studios): 50-100 RMB/unit in prefecture-level cities and above, 80-150 RMB/unit in county-level regions.
▪ Large-scale installation (e.g., elevating lights in stadiums, moving head light groups for music festivals): Quoted based on the overall project (including travel expenses of installers and tool usage fees). Specific details require providing the installation site floor plan and the number of lights, and the engineering team will formulate a plan before quoting.
Products
What is the XY-axis rotation angle of moving head lights? Are there any load-bearing requirements for installation?
For conventional moving head lights, the X-axis rotation ranges from 0° to 540°, and the Y-axis rotation ranges from 0° to 205° (some models support 16-bit fine adjustment). Installation requirements: For hoisting, the load-bearing capacity of the support frame must be ≥ 1.5 times the weight of the light (e.g., a 10kg moving head light requires a support frame with ≥ 15kg load-bearing capacity). Additionally, a safety rope must be used to pass through the light's handle. When installing at an angle or upside down, pedestrians are prohibited from passing below, and the hook screws and rope wear must be checked regularly.
Customization/OEM Services
What is the minimum order quantity (MOQ) for OEM services? What materials need to be provided?
The MOQ for OEM services varies by product type: ≥ 50 units for a single model of conventional lights, and ≥ 20 units for a single model of large equipment such as elevating lights/moving head lights. The following materials need to be provided: the brand trademark registration certificate (or authorization letter), and vector graphics of the OEM logo (AI format is preferred). If modifications to the product manual content (e.g., brand information, contact details) are required, the final version of the text materials must be provided.
Wholesale Cooperation
Is there a regional protection policy to avoid competition among multiple wholesalers in the same region?
For prefecture-level cities and above, an "exclusive wholesale cooperation" policy is implemented: If there is already a cooperative wholesaler in a region (with an annual purchase amount of ≥ 300,000 RMB), no second wholesaler of the same type will be developed. For county-level regions, 2-3 wholesalers can be developed based on market demand, but clear sales scopes must be divided (e.g., by town) to avoid vicious competition.
Wedding & Parties Lighting Solutions
What is the delivery timeline?
Standard configurations: approx. 4–8 weeks; custom projects depend on scale and logistics. Expedited options and rental alternatives available.
