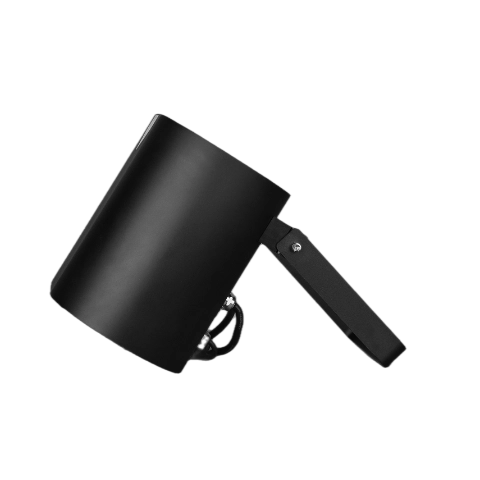

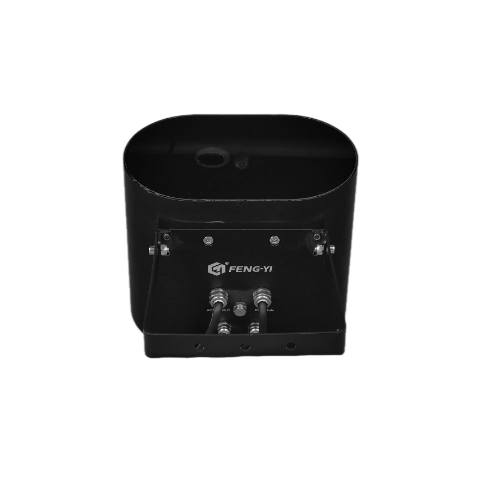

The light of fireflies——Ideal for a wide range of large-scale events: commercial spaces, TV shows, concerts, nightclubs, and various other settings.
◉ Product Features
◉ Specifications
| Parameter | Details | ||
| Light Source | 20W integrated light source | ||
| Beam Angle | 80° | ||
| Projected Light Spots | 500 (average) | ||
| Color Options | 8-color switching | ||
| Protection Rating | IP20 (indoor version) | ||
| Weight | 2.3KG | ||
| Dimensions | 181 × 160 × 139 mm (L × W × H) | ||
| Power Supply | 90-240V 50/60Hz | ||
| Maximum Power | 22W per unit | ||
| Operating Temperature | -10~40°C | ||
| Control Protocol | DMX512 | ||
| DMX Channels | 6ch | ||

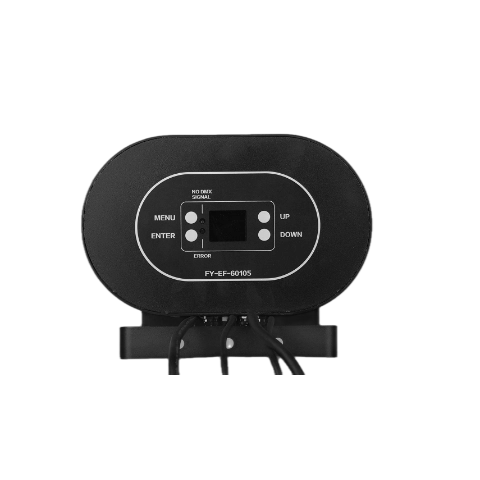

| Display | 4-digit LED display | ||
| Mechanical Buttons | 4 pcs | ||
| Power Connector | 10A quick power socket | ||

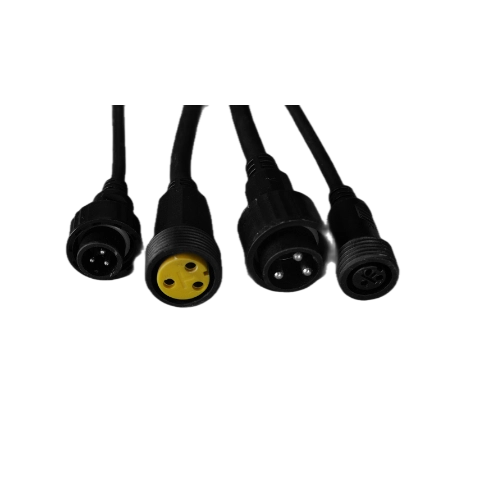

| Signal Interface | 3-pin XLR socket | ||
| Appearance | Main body with black metal spraying | ||
◉ Product Details
◉ Applications
The IP480B waterproof pure beam light, with its multi-mode control, precise beam effects, and safety design, is widely applicable to:
◉ Advantages
◉ Customization Options
Based on basic functions, the following customization services are available (confirmation required in advance):
◉ Packaging & Logistic
Packaging
◦ Inner: EPE foam cushioning to protect the light from impact during transit.
◦ Outer: Corrugated carton matching the product dimensions for extra protection.
◦ Accessories Included: Power cable, DMX cable, user manual, mounting hardware (hooks, screws, etc.).
Logistics
◦ Shipping: Suitable for express delivery or standard logistics services; marked as "fragile" to ensure careful handling.
◦ Storage: Keep in a dry, cool environment with a temperature range of 0-40°C; avoid moisture or direct sunlight.
◉ Frequently Asked Questions
Customization/OEM Services
What is the minimum order quantity (MOQ) for OEM services? What materials need to be provided?
The MOQ for OEM services varies by product type: ≥ 50 units for a single model of conventional lights, and ≥ 20 units for a single model of large equipment such as elevating lights/moving head lights. The following materials need to be provided: the brand trademark registration certificate (or authorization letter), and vector graphics of the OEM logo (AI format is preferred). If modifications to the product manual content (e.g., brand information, contact details) are required, the final version of the text materials must be provided.
Products
How to set the DMX starting address via the panel?
Follow these steps:
1. Press "Left" (multiple times if needed) to return to the main interface.
2. Press "Up/Down" to select "Settings", then press "OK" to enter.
3. Select "DMX Address" and press "OK" to enter edit mode.
4. Adjust the hundreds digit (e.g., 2 for address 286) with "Up/Down", press "OK" to confirm; repeat for tens (8) and units (6) digits.
5. Press "OK" again to save the address (e.g., A286) and exit edit mode.
The fixture does not respond to the DMX controller. How to fix it?
Resolve with these checks:
1. DMX Address & Channels: Ensure the fixture’s starting address is correct (e.g., 34CH fixture 1: A001, fixture 2: A035) and the controller’s channel count ≥ total fixture channels.
2. Signal Wiring: Use shielded twisted-pair DMX cables (≤150m); install a 120Ω terminal resistor between pins 2-3 of the last fixture’s XLR connector.
3. Signal Amplification: For cable lengths >150m, add a DMX signal amplifier to avoid signal loss; separate DMX cables from high-voltage power cables (≥1m apart) to prevent interference.
What is the service life of LED lamp beads? Is professional personnel required for later replacement?
All our lights adopt imported LED chips, with a service life of ≥ 50,000 hours under normal use (8 hours of daily use can last for 17 years). The replacement of lamp beads requires professional operation—due to the involvement of wire soldering and heat dissipation adaptation, unprofessional operation may cause short circuits or uneven light effects. You can contact the after-sales team for on-site replacement or repair-by-mail services.
After-Sales Support
What is included in the product warranty scope? How to handle human-induced damage (e.g., falling, water ingress)?
Warranty scope: Hardware faults caused by non-human factors (e.g., motor failure, lamp bead non-illumination, light control failure). The whole machine is warranted for 1 year, LED lamp beads for 2 years, and core components of the elevating structure (e.g., hydraulic pump, motor) for 2 years. For human-induced damage, a cost fee will be charged for repairs (e.g., replacing the elevating motor requires charging the motor cost + repair fee). The after-sales team will first provide a fault detection report and repair quotation, and repairs will start only after the customer confirms.
