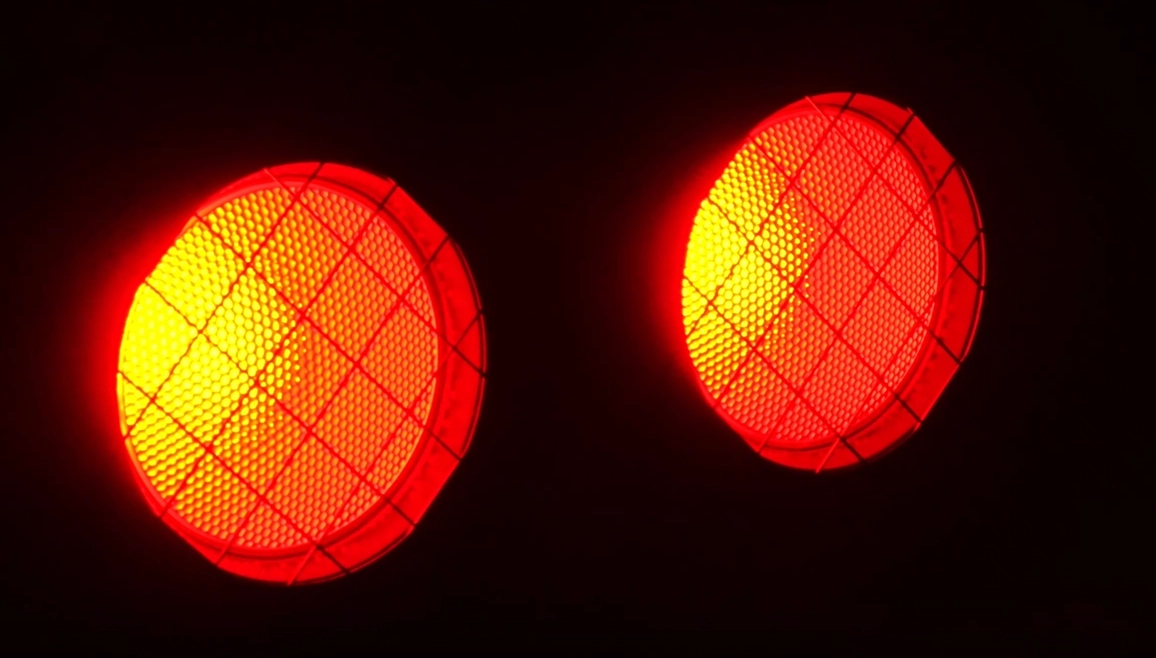

Two-color waterproof LED lights——Ideal for a wide range of large-scale events: commercial spaces, TV shows, concerts, nightclubs
FENG-YI Two-color waterproof LED lights deliver vibrant stage light performance for large-scale events. Perfect for concerts, TV shows, nightclubs, and commercial spaces, these waterproof stage lighting solutions ensure bright, reliable illumination in any environment.
◉ Specifications
| Power Supply & Power | |||
| Input Voltage | AC 110V-240V 50/60Hz | ||
| Rated Power | 600W | ||
| LED Modes | Half Power/Full Power | ||
| Optical Parameters | |||
| Light Source | 2 pcs of 300W LED RGBAWW (1800K-10000K) | ||
| Beam Angle | 65° | ||
| Spot Angle | 97° | ||
| LED Lifespan | 20000H | ||
| Color Parameters | |||
| Color Rendering Index (CRI) | 95 | ||
| Color Temperature Range | 2000K-10000K | ||
| Number of Color Filters | 60 | ||
| Custom Colors | 5 groups | ||
| Control Parameters | |||
| Protocols | DMX512, RDM | ||
| DMX Channel Modes | 18 types (1CH~41CH) | ||
| Data Connection | Waterproof 3-pin XLR In/Out | ||
| Display | 1.3-inch OLED Panel | ||
| Effect Parameters | |||
| Strobe Range | 1-20Hz (5 types) | ||
| Built-in Effects | 10 | ||
| Dimming Curves | 5 (Linear/Square/Anti-Square/S-Curve/Preset) | ||
| Dimming Bit Depth | 8-bit/16-bit | ||
| Structure & Heat Dissipation | |||
| Material | Aluminum Alloy Die-Casting | ||
| Heat Dissipation | Fan Cooling | ||
| Protection Class | IP65 | ||
| Fan Modes | Auto/Silent/Off | ||
| Environmental Parameters | |||
| Operating Environment | -40℃~45℃; Startup Environment: -20℃~45℃; | ||
| Startup Environment | -20℃~45℃ | ||
| DMX Frequency | 1kHz/2kHz/4kHz/12kHz/16kHz/25kHz (default 1kHz) | ||
| Dimensions & Weight | |||
| Dimensions | 502×288×195mm | ||
| Net Weight | 9kg | ||
| Software Upgrade | |||
| Supports software update via DMX signal for convenient upgrading | |||
◉ Product Details
◉ Effect
◉ Applications
As a professional waterproof audience light, this product features a high CRI, wide temperature adaptability, IP65 protection, and flexible control, making it widely applicable to the following scenarios:
Professional Performance Scenarios
Theaters, opera houses, concerts, and live shows. Precise color and strobe effects enhance the stage atmosphere.
Meetings & Events
Large conference halls, product launches, and celebrations. Wide color temperature adjustment adapts to different lighting needs (e.g., warm light for a cozy atmosphere, cool light for improved focus).
Stadiums & Gymnasiums
Indoor gymnasiums (e.g., basketball courts, badminton courts) and outdoor stadiums. The IP65 waterproof rating and wide temperature range adapt to complex environments, while the high power meets large-area lighting needs.
Outdoor Performances
Open-air music festivals and square cultural shows. The -40℃~45℃ operating temperature and IP65 waterproof rating resist harsh conditions such as wind, rain, and extreme temperatures.
Film & Television Shooting
Small film crews and live streaming scenarios. The CRI 95 ensures true restoration of human skin tones and scene colors, and the flicker-free design prevents screen flicker during shooting.
◉ Project Case Recommendations
The "Oscar" One-Stop Event for Sign, Print, LED, Digital Signage, Pro Light & Sound
FENG-YI powered the Oscar One-Stop Event with advanced kinetic lights and the robust Kinetic Witch 15m60kg, delivering seamless integration of sign, print, LED, digital signage, and pro light & sound solutions for an unforgettable experience.
↳ Read More
The Shanghai Disney Resort proposal project
FENG-YI’s Shanghai Disney Resort proposal showcases innovative kinetic lights, enhancing the magical Disney experience with dynamic, energy-efficient illumination. This project highlights our expertise in blending technology and creativity for iconic entertainment destinations.
↳ Read More
A Dynamic Visual Epic for The Lost Christmas Eve 2024 Tour
FENG-YI’s Dynamic Visual Epic for The Lost Christmas Eve 2024 Tour showcases cutting-edge Kinetic Halo Ring and kinetic lights technology, creating immersive, vibrant stage effects that captivate audiences and elevate live performances to unforgettable experiences.
↳ Read More
Xinsifu Technology Co., Ltd.’s 2026 Annual Meeting Event
Xinsifu Technology Co., Ltd.’s 2026 Annual Meeting featured FENG-YI’s innovative kinetic lights and kinetic ball installations, creating a dynamic and engaging atmosphere. This event showcased cutting-edge technology, enhancing brand impact through captivating motion-driven visual experiences.
↳ Read More
Tourist attractions in Luoyang City during the Sui and Tang dynasties.
FENG-YI partnered with Bilibili for The Most Beautiful Night New Year's Eve Gala, delivering stunning kinetic line lights that elevated the event’s visual impact. This collaboration highlights innovative lighting solutions perfect for festive celebrations and immersive brand experiences.
↳ Read More
Hong Kong exhibition events.
FENG-YI’s Hong Kong exhibition features innovative kinetic ball and kinetic lights displays, showcasing cutting-edge technology. This dynamic event highlights our expertise in interactive installations, creating immersive experiences that captivate audiences across HongKong’s vibrant exhibition scene.
↳ Read More
Adjustable, multifaceted, irregular-shaped artistic light.
FENG-YI's Kinetic Bar powered a lighting revolution on Childish Gambino’s The New World Tour in New York. This innovative installation enhanced the stage design with dynamic effects, showcasing FENG-YI’s expertise in cutting-edge Kinetic Bar technology for live performances.
↳ Read More
Closing Ceremony of the 2019 Foshan Kung Fu Film Week
The Closing Ceremony of the 2019 Foshan Kung Fu Film Week showcased FENG-YI’s commitment to authentic Foshan Kung Fu culture. This event highlighted Kung Fu’s heritage, blending tradition and modern film to celebrate Foshan’s martial arts legacy.
↳ Read More
The 3rd TMEA Tencent Music Entertainment Festival
FENG-YI powered the 3rd TMEA Tencent Music Entertainment Festival with advanced kinetic mini balls, kinetic line lights, and kinetic lights, creating dynamic stage visuals that elevated the event experience. Discover innovative lighting solutions for unforgettable performances.
↳ Read More
CCTV3’s “Singing Through the 40th Anniversary Gala”
For CCTV3’s “Singing Through the 40th Anniversary Gala,” FENG-YI provided cutting-edge kinetic bars and kinetic lights, delivering dynamic stage lights that enhanced the show's visual impact. Our innovative solutions ensured a vibrant, memorable performance with seamless lighting effects.
↳ Read More
10W Full-Color Animation Laser Show: A Visual Revolution Merging Laser Purity with Digital Animation.
Discover FENG-YI’s Color Firefly Light, a vibrant lighting solution that transforms spaces with enchanting firefly lights. Perfect for creating magical atmospheres, this innovative product blends style and energy efficiency for modern décor. Illuminate your environment with FENG-YI today.
↳ Read More
10W Full-Color Animation Laser Show:A Visual Revolution Merging Laser Purity with Digital Animation.
Experience the 10W full-color animated laser light by FENG-YI, merging laser purity with dynamic digital animation. This kinetic lights case revolutionizes visual displays, delivering vibrant, precise effects that elevate any event or installation. Discover innovation in motion with FENG-YI’s laser show technology.
↳ Read More
Bilibili "The Most Beautiful Night" New Year's Eve Gala
FENG-YI partnered with Bilibili for The Most Beautiful Night New Year's Eve Gala, delivering stunning kinetic line lights that elevated the event’s visual impact. This collaboration highlights innovative lighting solutions perfect for festive celebrations and immersive brand experiences.
↳ Read More
Jiangsu TV New Year's Eve Gala
FENG-YI proudly partnered with Jiangsu TV for the New Year's Eve Gala, delivering seamless production that captured the festive spirit. This landmark collaboration enhanced Jiangsu TV’s broadcast quality, making the New Year celebration unforgettable for audiences nationwide.
↳ Read More
Jiangsu TV "Music Source Project" New Year's Eve Gala
FENG-YI powered the Jiangsu TV Music Source Project New Year's Eve Gala with cutting-edge kinetic line lights and kinetic lights. Our innovative lighting solutions enhanced the show’s dynamic visuals, delivering a spectacular viewing experience that captivated audiences nationwide.
↳ Read More
Zhang Jingxuan concert
Experience the Zhang Jingxuan concert powered by FENG-YI’s innovative Kinetic Play the ball technology. This case highlights seamless motion interaction enhancing live performances, showcasing FENG-YI’s cutting-edge solutions in kinetic entertainment systems.
↳ Read More
◉ Advantages
Excellent Color Performance
Compared with ordinary RGB 3-color audience lights, the RGBAWW 5-in-1 light source adds amber and warm white channels for more uniform color mixing. It can accurately simulate tungsten lamp effects, and the CRI 95 ensures true color restoration, making it suitable for performance and shooting scenarios with strict color requirements.
Comprehensive Control Functions
Offers 18 DMX channel modes, ranging from basic 1CH dimming to 41CH full-function control, meeting the needs of scenarios with different complexity levels. It supports RDM remote management to reduce on-site debugging workload; the master-slave mode enables synchronized control of multiple lights, suitable for large venues.
Strong Environmental Adaptability
The IP65 waterproof rating and wide operating temperature range of -40℃~45℃ allow direct application in outdoor environments with wind, rain, and extreme temperatures without additional protection. The aluminum alloy die-casting structure and intelligent fan cooling ensure long-term stable operation, with an LED lifespan of 20000H.
Intelligent Operation & Protection
The 1.3-inch OLED Chinese/English display and flexible button logic lower the operation threshold; functions such as screen lock, screen saver, and screen flip adapt to different installation angles and anti-misoperation scenarios. Double temperature control + power limit + DMX signal loss handling prevents equipment damage and improves operational safety.
Silent Operation & Energy Efficiency
The fan supports a "Silent Mode" with low noise during low-speed operation, suitable for low-noise scenarios such as theaters and meetings. It allows setting of half-power mode and power upper limit to adjust energy consumption according to needs, balancing lighting effects and energy efficiency.
◉ Customization Options
Based on the product's basic functions, the following optional customization services are available (confirmation in advance is required):
• Custom DMX Channel Configuration
Customize exclusive DMX channel modes (e.g., simplified channel functions, added specific effect channels) according to customer scenario requirements, requiring firmware modification.
• Color Filter Library Expansion
Supports adding customer-specified color filter parameters (color coordinates, transmittance, etc.) to expand the number of color filter options to more than 60.
• Firmware Function Customization
Add specific built-in effects (e.g., gradient, chase effects), adjust temperature control threshold ranges, and optimize dimming curve algorithms, with firmware upgrading via DMX signal.
• Custom Appearance Color
The default color is aluminum alloy; other colors (e.g., black, white) can be customized (minimum order quantity required) to match the overall style of the venue.
• Custom Accessories
Customizable extended waterproof XLR cables and dedicated mounting brackets (e.g., hooks, bracket angle adjusters) to improve installation convenience.
◉ Packaging & Logistic
Packaging
• Inner Packaging: The lamp body is wrapped in thick EPE foam to prevent collision and wear during transportation; accessories (power cable, waterproof 3-pin XLR cable, manual, mounting screws) are individually packaged and placed in fixed slots next to the lamp.
• Outer Packaging: Uses 5-layer corrugated cartons, printed with product model, specifications, and protection marks (moisture-proof, shock-proof, "This Side Up"). Each carton holds 1 lamp (matching the 502×288×195mm product size; net weight 9kg, gross weight approx. 11kg).
• Bulk Packaging: For bulk transportation (10 units or more), pallet packing is adopted. Each pallet can hold no more than 5 layers, wrapped with stretch film for moisture and dust prevention, and equipped with wooden pallets for easy forklift loading/unloading.
Logistics
• Transportation Methods: Road, sea, and air transportation are supported; road transportation (e.g., Deppon, SF Express) is mainly used for domestic transportation, with a delivery time of 2-5 days. For international transportation, sea freight (suitable for bulk orders, 30-45 days) or air freight (suitable for urgent orders, 5-7 days) can be selected.
• Protection Measures: Avoid severe vibration, extrusion, and inversion during transportation (follow the "This Side Up" mark on the carton); for transportation in low-temperature areas, add insulation layers to prevent the temperature from dropping below -20℃ (which may affect startup).
• Receiving Notes: Check for outer packaging damage and complete accessories upon receipt. If lamp damage or missing accessories is found, take photos and contact the supplier promptly for handling.
◉ Frequently Asked Questions
Customization/OEM Services
What is the minimum order quantity (MOQ) for OEM services? What materials need to be provided?
The MOQ for OEM services varies by product type: ≥ 50 units for a single model of conventional lights, and ≥ 20 units for a single model of large equipment such as elevating lights/moving head lights. The following materials need to be provided: the brand trademark registration certificate (or authorization letter), and vector graphics of the OEM logo (AI format is preferred). If modifications to the product manual content (e.g., brand information, contact details) are required, the final version of the text materials must be provided.
Do customized products enjoy the same warranty service as standard products?
Yes, customized products have the same warranty policy as standard products (under non-human damage, the whole machine is warranted for 1 year, and LED lamp beads are warranted for 2 years). For faults caused by customized functions (e.g., adaptation issues of the special light control protocol specified by the customer), the after-sales team will give priority to targeted troubleshooting to ensure no impact on use.
Nightclub Lighting
Can the lighting, screens, and other equipment be combined to achieve integrated sound, lighting, and visuals?
Programming is possible through Madrix and MA consoles, using timecode synchronization to achieve a precise "programmed show" effect.
Products
The lamp does not light up. What should I check?
Troubleshoot in 4 steps:
1. Power Supply: Confirm the input voltage matches AC 200V~240V/50~60Hz; check if the power cable is securely connected and the switch is on.
2. Cooling Period: Ensure the fixture has cooled for 20 minutes after previous use (mandatory cooling to prevent overheat damage).
3. DMX Signal: If in DMX mode, verify the controller is sending "Shutter On" (CH6: 252-255) and "Dimming" (CH7: 100-255) signals.
4. Internal Wiring: If above checks pass, contact after-sales to inspect internal connections (e.g., lamp holder, driver board) for loose or burned components.
The fixture overheats and shuts down. What should I do?
Resolve overheating issues:
1. Environment Check: Ensure the operating temperature ≤60℃; move the fixture away from heat sources (e.g., stage heaters) and ensure 50cm clearance around the fan grille.
2. Fan Maintenance: Clean the fan and fan grille with compressed air (remove dust buildup); check if the fan runs when the fixture is powered on (replace fan if silent).
3. Protection Threshold: Enter "Settings → Temperature Protection" to adjust the threshold (default 60℃, max 80℃) if the environment requires higher operating temperatures.
