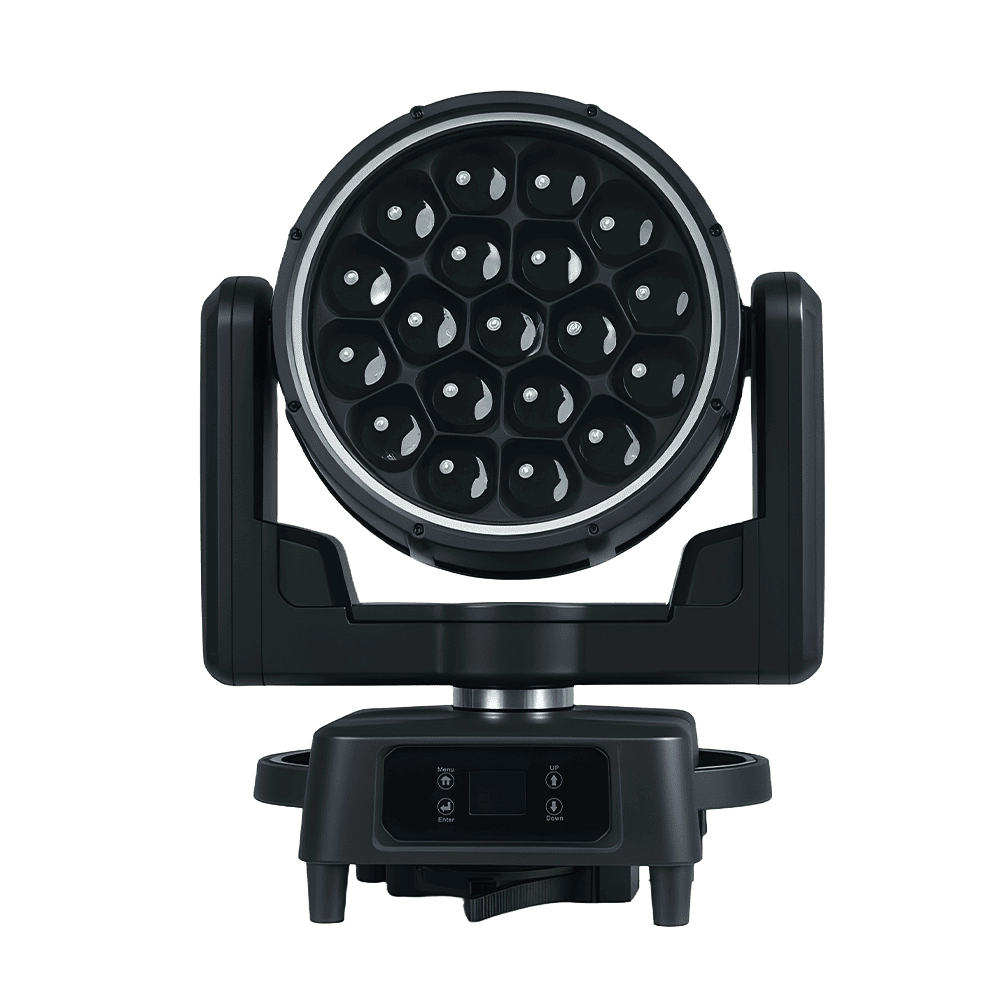

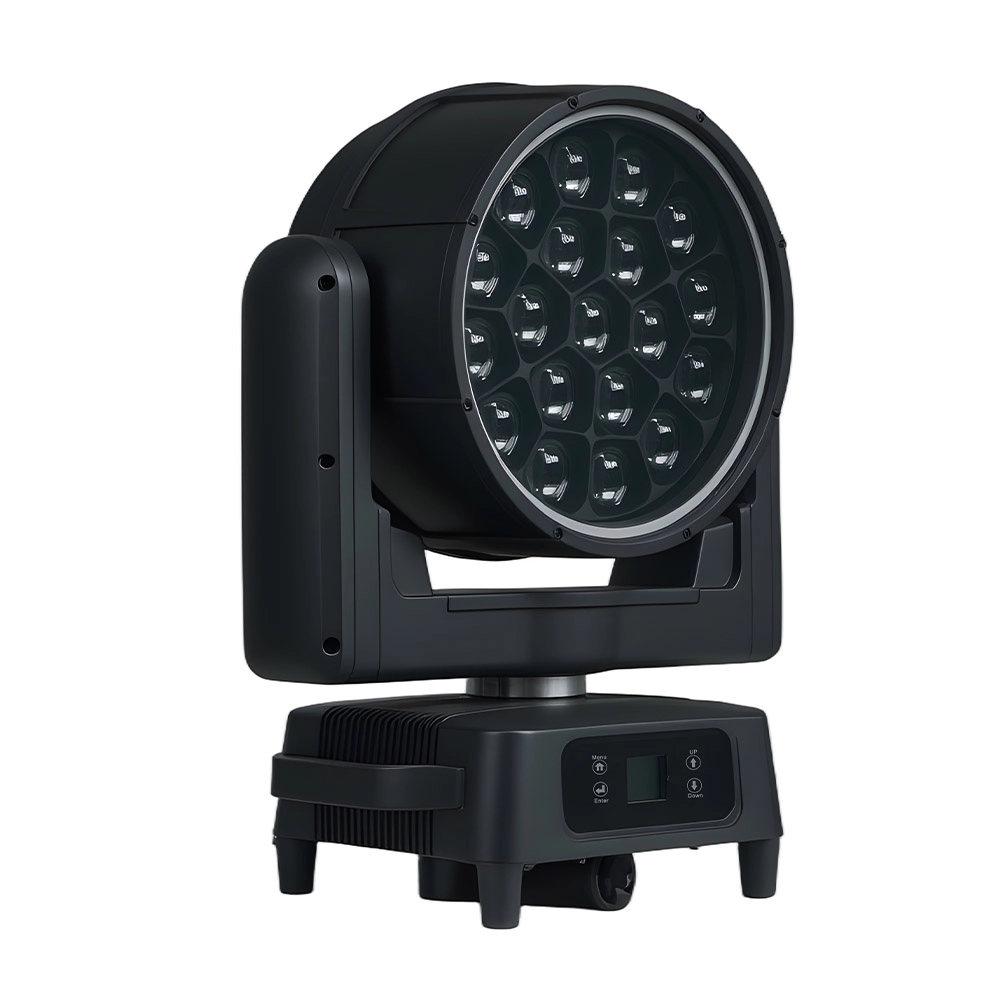

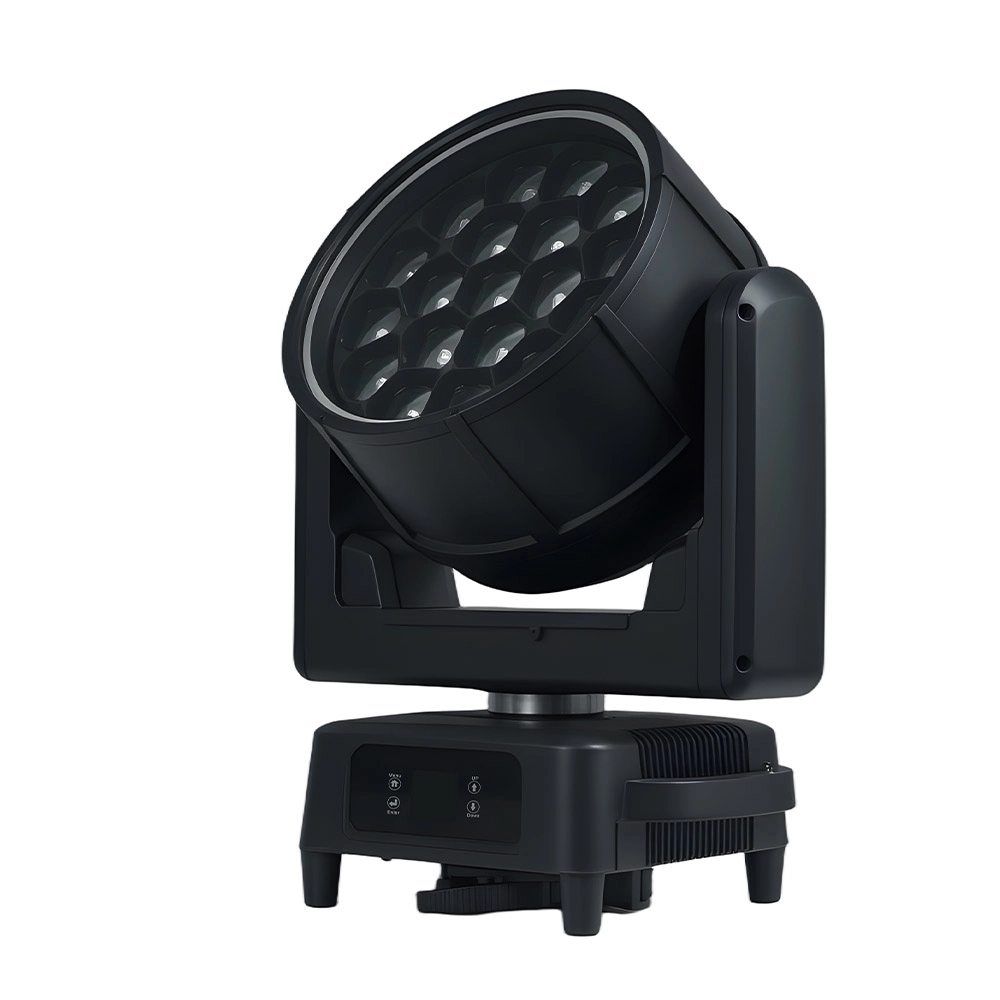

19x40W RGBW Zoom Bee-Eye Moving Head Light——Ideal for a wide range of large-scale events: commercial spaces, TV shows, concerts, nightclubs
The 19x40W RGBW Zoom Bee-Eye Moving Head Light by FENG-YI delivers vibrant, dynamic lighting for large-scale events. Perfect for concerts, TV shows, nightclubs, and commercial spaces, this bee eye LED moving head light ensures stunning visual effects with powerful zoom and color mixing.
◉ Product Features
Precise Optical & Effect Control
• Zoom and Beam Adjustment: 6°-60° zoom range, suitable for "narrow beam focusing" (e.g., stage spot lighting) and "wide beam floodlighting" (e.g., venue illumination), with uniform beams and no stray light.
• Multi-Dimensional Color Control:
◦ RGBW 4-in-1 color mixing, supporting independent dimming (0-255) and offset correction for red/green/blue/white;
◦ 2800K-8000K wide color temperature adjustment (including 11 fixed color temperatures from 2800K warm yellow to 8000K cool white);
◦ 25 macro color modes (each mode corresponding to 10 channel value ranges), enabling one-click activation of preset color transition effects.
• Rich Pattern Effects:
◦ Static patterns: 67 monochrome static patterns + 15 mixed-color static patterns (each pattern corresponding to 3 channel values);
◦ Dynamic patterns: 30 monochrome dynamic patterns + 14 mixed-color dynamic patterns (each pattern corresponding to 5 channel values), supporting pattern forward/reverse rotation and speed variation (0-255, fast to slow);
◦ Pattern auxiliary functions: independent dimming of background color (RGBW), pattern fade-in/fade-out (0-255), and independent stroboscope for foreground/background.
• Flexible Stroboscope Control: 1-25Hz synchronous stroboscope (channel values 4-203), random stroboscope (204-255), and channel values 0-3 for "constant on", meeting the needs of scenarios with different rhythms.
• Multi-Dimensional Color Control:
◦ RGBW 4-in-1 color mixing, supporting independent dimming (0-255) and offset correction for red/green/blue/white;
◦ 2800K-8000K wide color temperature adjustment (including 11 fixed color temperatures from 2800K warm yellow to 8000K cool white);
◦ 25 macro color modes (each mode corresponding to 10 channel value ranges), enabling one-click activation of preset color transition effects.
• Rich Pattern Effects:
◦ Static patterns: 67 monochrome static patterns + 15 mixed-color static patterns (each pattern corresponding to 3 channel values);
◦ Dynamic patterns: 30 monochrome dynamic patterns + 14 mixed-color dynamic patterns (each pattern corresponding to 5 channel values), supporting pattern forward/reverse rotation and speed variation (0-255, fast to slow);
◦ Pattern auxiliary functions: independent dimming of background color (RGBW), pattern fade-in/fade-out (0-255), and independent stroboscope for foreground/background.
• Flexible Stroboscope Control: 1-25Hz synchronous stroboscope (channel values 4-203), random stroboscope (204-255), and channel values 0-3 for "constant on", meeting the needs of scenarios with different rhythms.
Multi-Mode Operation & Intelligent Control
• Comprehensive Operation Modes:
◦ DMX Mode: Compatible with DMX512 protocol, supporting 7 channel modes (from 21CH basic control to 99CH full-function control);
◦ Master-Slave Mode: No controller required; the master unit synchronously controls parameters of multiple slave units;
◦ Auto Run Mode: Runs built-in programs automatically without manual intervention;
◦Sound-Activated Mode: Triggers preset scenes when strong sound signals are detected; maintains the last scene when no sound is present.
•Convenient Parameter Setting:
◦DMX Address Setting: Press "Menu→Set DMX Address→Enter" to adjust parameters (001-512); press "Enter" to save, "Menu" to cancel;
◦Critical Parameter Lock: Operations such as lamp on/off and factory reset require "YES/NO" confirmation to avoid misoperation;
◦Status Monitoring: The LCD displays channel values, LED board temperature, and software version (e.g., Soft V1.1), with real-time prompts for faults.
◦ DMX Mode: Compatible with DMX512 protocol, supporting 7 channel modes (from 21CH basic control to 99CH full-function control);
◦ Master-Slave Mode: No controller required; the master unit synchronously controls parameters of multiple slave units;
◦ Auto Run Mode: Runs built-in programs automatically without manual intervention;
◦Sound-Activated Mode: Triggers preset scenes when strong sound signals are detected; maintains the last scene when no sound is present.
•Convenient Parameter Setting:
◦DMX Address Setting: Press "Menu→Set DMX Address→Enter" to adjust parameters (001-512); press "Enter" to save, "Menu" to cancel;
◦Critical Parameter Lock: Operations such as lamp on/off and factory reset require "YES/NO" confirmation to avoid misoperation;
◦Status Monitoring: The LCD displays channel values, LED board temperature, and software version (e.g., Soft V1.1), with real-time prompts for faults.
User-Friendly Operation & Display
• 180° Reversible LCD: Supports screen flip (suitable for inverted installation), with default English display (Chinese expandable);
• Clear Key Logic: Menu (menu/return), Up/Down (parameter adjustment), Enter (confirmation); parameters are automatically stored in memory after input (retained after power-off);
• Screen Protection Mechanism: Supports 4 protection modes: ① "Off": Keep the last page; ② "Mode 1": Screen off; ③ "Mode 2": Display DMX address (black screen); ④ "Mode 3": Display logo + address + mode; ⑤ "Mode 4": Mode 3 + screen off after 30 seconds.
• Clear Key Logic: Menu (menu/return), Up/Down (parameter adjustment), Enter (confirmation); parameters are automatically stored in memory after input (retained after power-off);
• Screen Protection Mechanism: Supports 4 protection modes: ① "Off": Keep the last page; ② "Mode 1": Screen off; ③ "Mode 2": Display DMX address (black screen); ④ "Mode 3": Display logo + address + mode; ⑤ "Mode 4": Mode 3 + screen off after 30 seconds.
Safety Protection & Stable Operation
• Motor & LED Protection:
◦ Motor Optical Coupling Calibration: Detects Pan/Tilt axis offset and automatically calibrates to avoid collision with the lamp body;
◦ LED Over-Temperature Protection: Fans adjust speed automatically based on lamp head temperature; reduces LED power when temperature exceeds the threshold;
◦ Lamp Switch Limitation: Minimum 30-second interval between two on/off operations to avoid damage to the light source from frequent startup.
• Installation Safety Requirements:
◦ Load-Bearing Requirement: The installation structure shall withstand 10 times the lamp weight (net weight 15.2kg);
◦ Safety Rope: A safety rope that can withstand 12 times the lamp weight must be used, fixed through the lamp bracket holes;
◦ Operation Safety: The maximum surface temperature of the lamp during operation is 85℃; do not touch with bare hands; do not open the cover within 5 minutes after power-off.
◦ Motor Optical Coupling Calibration: Detects Pan/Tilt axis offset and automatically calibrates to avoid collision with the lamp body;
◦ LED Over-Temperature Protection: Fans adjust speed automatically based on lamp head temperature; reduces LED power when temperature exceeds the threshold;
◦ Lamp Switch Limitation: Minimum 30-second interval between two on/off operations to avoid damage to the light source from frequent startup.
• Installation Safety Requirements:
◦ Load-Bearing Requirement: The installation structure shall withstand 10 times the lamp weight (net weight 15.2kg);
◦ Safety Rope: A safety rope that can withstand 12 times the lamp weight must be used, fixed through the lamp bracket holes;
◦ Operation Safety: The maximum surface temperature of the lamp during operation is 85℃; do not touch with bare hands; do not open the cover within 5 minutes after power-off.
Independent Control in High-Channel Modes
• Modes 78/92/97/99CH support independent dimming of individual LEDs (e.g., in 99CH mode, CH24-CH99 correspond to independent control of R/G/B/W for 19 LEDs), enabling precise creations such as "sequential lighting" and "flowing light effects" to meet the complex needs of professional lighting designers.
◉ Specifications
| LIGHT SOURCE | |||
| Light Source | 19*40 W LED Osram light source | ||
| CONTROL | |||
| Protocol | DMX512 | ||
| Personalities | CH21 / CH30 / CH35 / CH 78 / CH 92 / CH 97 / CH 106 / CH42 | ||
| Display | Display in Both Chinese and English | ||
| PHOTOMETRIC DATA | |||
| Beam Angle | 7-45° | ||
| ELECTRICAL and CONNECTIONS | |||
| Operating Voltage | AC100-240v 50-60 HZ | ||
| Power Connectors | Waterproof power socket | ||
| Data Connectors | 3-pin XLR waterproof signal socket input/output（optional 5-pin XLR waterproof signal socket input/output） | ||
| Maximum Data Connections | 30（May need an amplifier） | ||
| Power consumption | 1000 W | ||
| DYNAMIC EFFECTS | |||
| Pan Movement | 540° (16bit precision scanning) | ||
| Tilt Movement | 250° (16bit precision scanning) | ||
| Strobe | 0.3-25 times / second with multiple strobe effects | ||
| Dimming | 0-100% Linear dimming | ||
| PHYSICAL INFORMATION | |||
| Housing | Magnesium alloy with nylon material | ||
| Installation | Horizontal or vertical or oblique mounting | ||
| Cooling | Aluminum alloy heat sink with low noise fan / Heat pipe and low noise LP fan | ||
| IP Rating | IP66 | ||
| Work Environment | -20–45℃ | ||
| Fixture Dimensions | 437.8×333×537.4 mm | ||
| Fixture Weight | 22.5 kg | ||
| Packing Dimensions | 650×370×535 mm | ||
| Packing Weight | 24.2 kg | ||
| Included Items | Integrated lamp hook | ||
| Optional Accessories | Flight case + foam shell (2 options) | ||

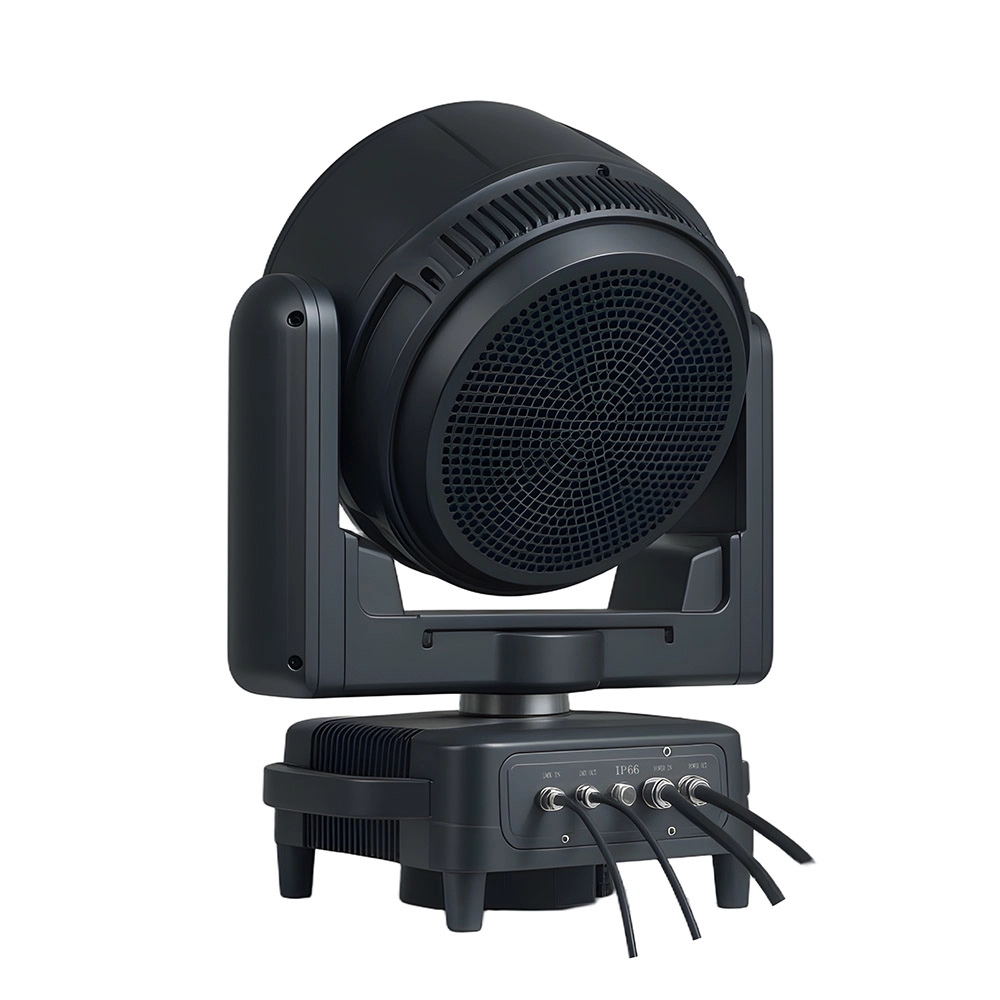

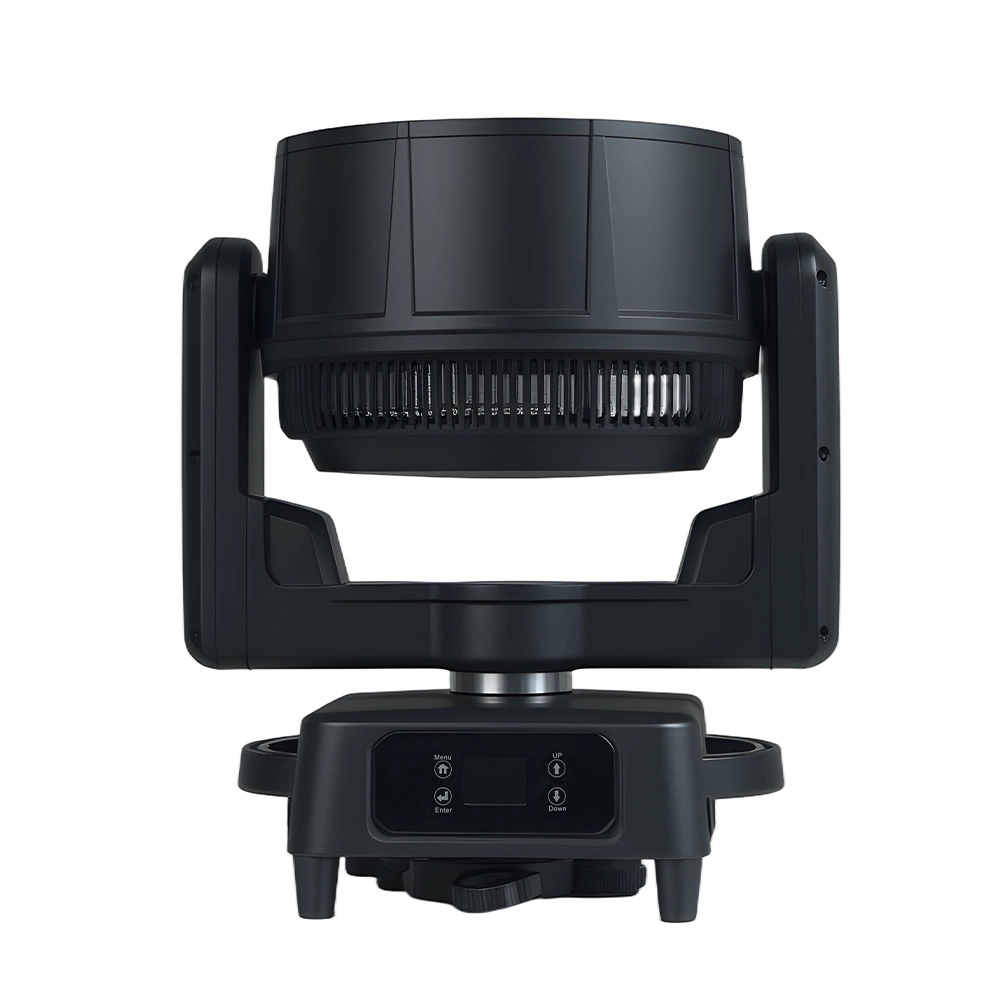

◉ Product Details
◉ Effect
◉ Applications
With core advantages of "IP65 protection, multiple effects, multiple modes, and independent LED control", this product is suitable for the following scenarios:
Entertainment Venues
Bars, KTVs, CLUs (sound-activated mode responds to music rhythm; dynamic patterns + stroboscope create atmosphere; high-channel modes enable personalized light shows);
Professional Performances

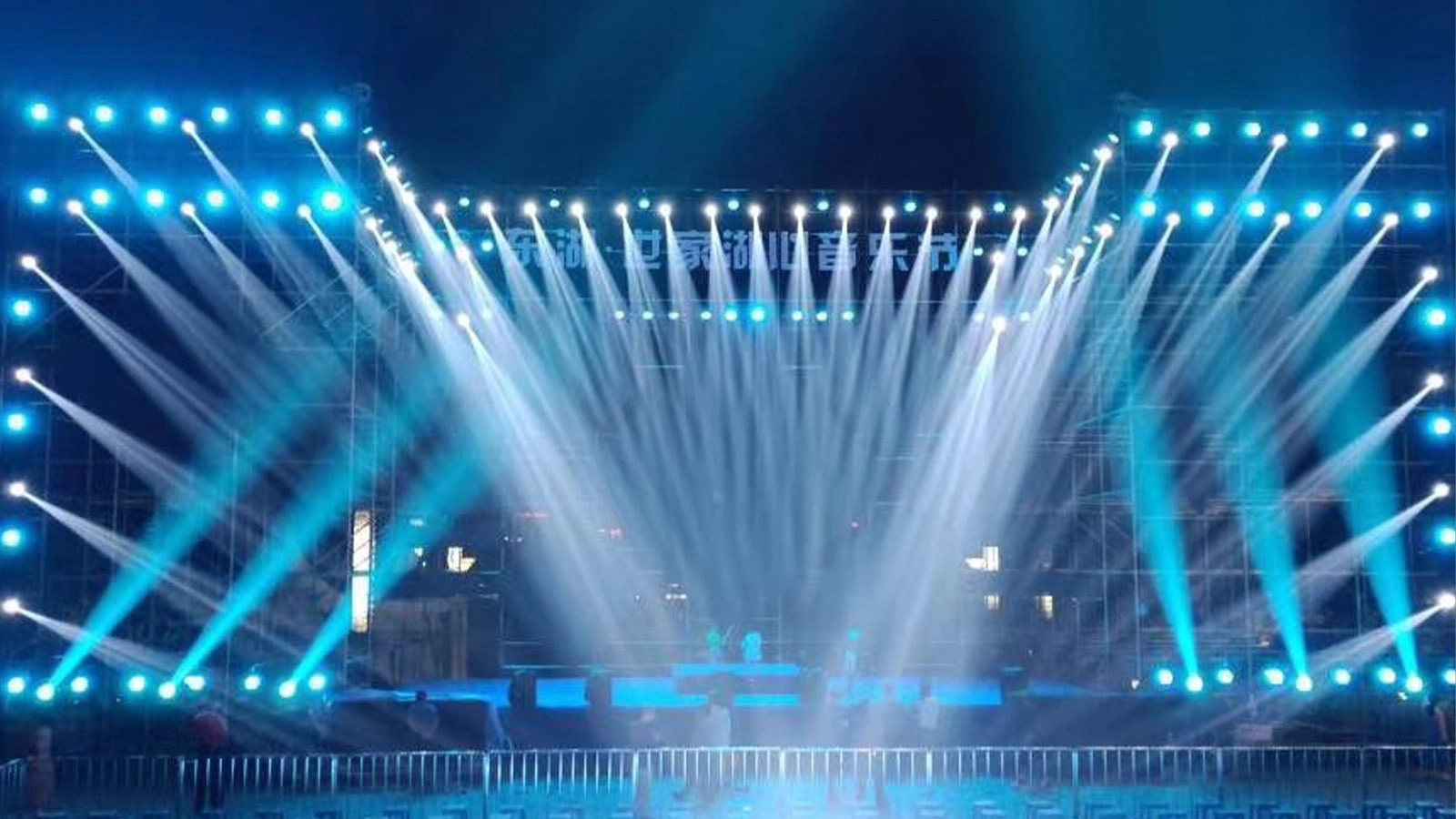

Theaters, concerts, live shows (DMX mode for precise control; zoom + wide color temperature adapt to the needs of different stage areas, e.g., 3200K warm light for front light, 6000K cool light for side light);
Outdoor Performance
Open-air music festivals, square cultural shows (IP65 waterproof and dustproof, withstanding wind and rain; auto mode enables quick effect setup without complex consoles);
Event & Sports
Small-to-medium sports events, outdoor carnivals (wide zoom covers venues; high power meets large-area lighting needs; Pan/Tilt enables quick switching of focused areas);
Commercial Events

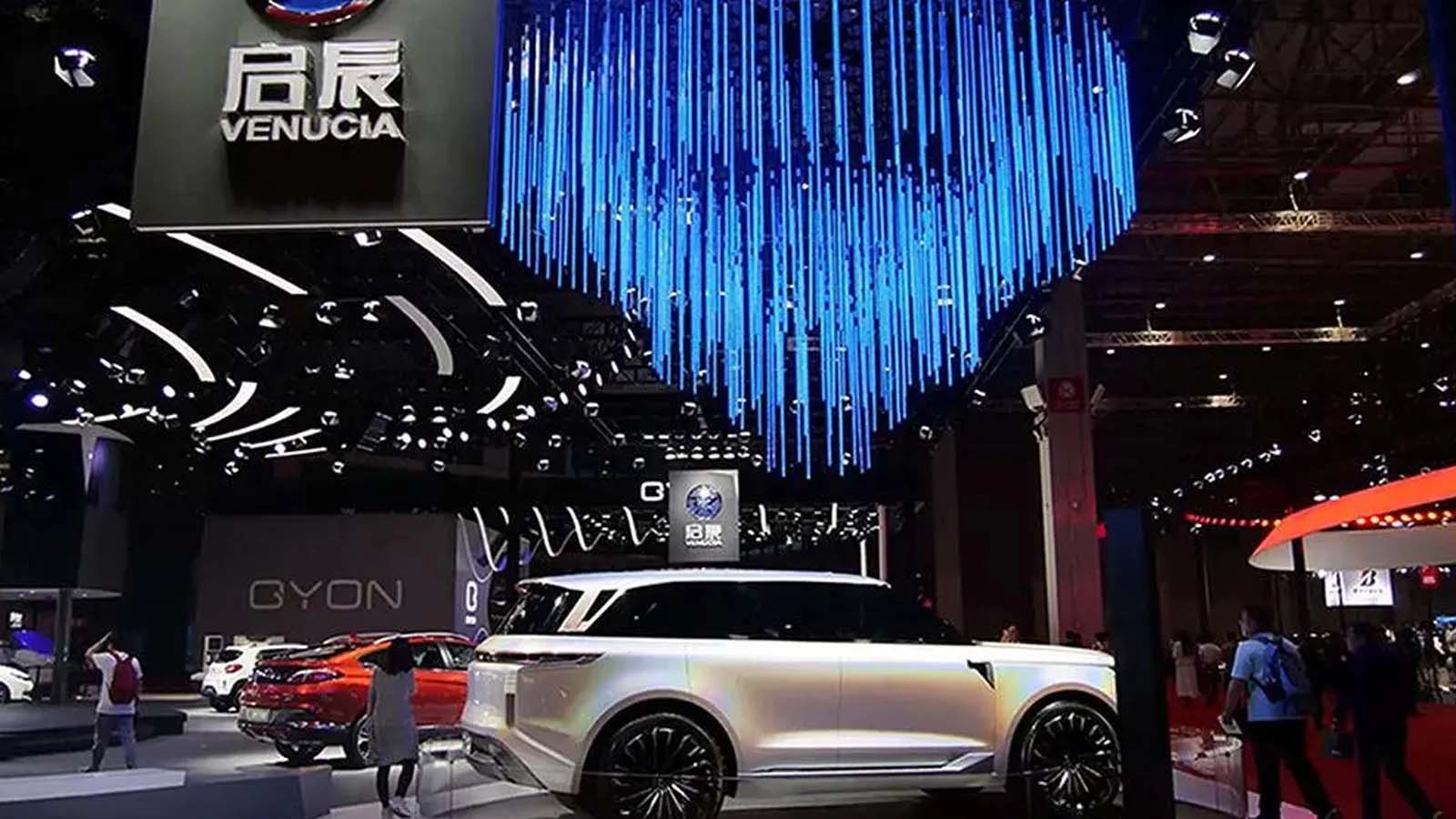

Product launches, wedding venues (static patterns project brand logos or wedding elements; 2800K-5500K color temperature adapts to different theme tones).
◉ Advantages
Strong Adaptability to Multiple Scenarios
• IP65 High Protection: Compared with ordinary IP20 indoor lights, it can be directly used in outdoor scenarios with wind and rain, no additional protection equipment required, reducing setup costs;
• 7 Optional DMX Channels: 21CH meets basic control needs (e.g., small events), while 99CH supports independent adjustment of individual LEDs (e.g., professional light shows), covering both "entry-level" and "professional" needs and avoiding repeated purchases by users.
• 7 Optional DMX Channels: 21CH meets basic control needs (e.g., small events), while 99CH supports independent adjustment of individual LEDs (e.g., professional light shows), covering both "entry-level" and "professional" needs and avoiding repeated purchases by users.
High Creative Flexibility
• Full-Dimensional Effect Control: Full-chain adjustment from "color temperature - color - pattern - stroboscope - zoom"; 25 macro colors + 126 pattern combinations reduce reliance on external equipment;
• Independent LED Control: Independent R/G/B/W dimming for 19 LEDs in high-channel modes enables "pixel-level" lighting effects, providing more creative space than traditional bee-eye lights.
• Independent LED Control: Independent R/G/B/W dimming for 19 LEDs in high-channel modes enables "pixel-level" lighting effects, providing more creative space than traditional bee-eye lights.
Outstanding Safety & Stability
• Strict Installation Safety Design: 10x load-bearing + 12x safety rope requirements, far exceeding industry standards, reducing fall risks;
• Intelligent Protection Mechanisms: Motor anti-collision, LED over-temperature protection, and auto fan speed adjustment reduce fault rates and extend service life (theoretical LED lifespan ≥20,000H).
• Intelligent Protection Mechanisms: Motor anti-collision, LED over-temperature protection, and auto fan speed adjustment reduce fault rates and extend service life (theoretical LED lifespan ≥20,000H).
High Operational Convenience
• Reversible LCD & Double Confirmation: Screen flip for inverted installation; double confirmation for critical operations reduces installation and operation errors;
• Quick Mode Switching: No complex programming required; auto/sound-activated modes are plug-and-play, suitable for non-professional users to get started quickly.
• Quick Mode Switching: No complex programming required; auto/sound-activated modes are plug-and-play, suitable for non-professional users to get started quickly.
◉ Customization Options
Based on the product’s basic functions, the following customization services are available (confirmation in advance is required):
•DMX Channel Customization
Simplify channels (e.g., remove independent LED control, retain 21CH core functions) or expand channels (e.g., add dedicated "effect synchronization" channels) according to scenario needs, requiring matching firmware modification;
Pattern Library Expansion
Support adding custom static/dynamic patterns (vector graphics or high-definition images required from customers) to expand beyond the existing quantity;
•Firmware Parameter Adjustment
Customize temperature control thresholds (default for 40℃ environment, adjustable to -10℃~50℃ wide temperature range), stroboscope speed range (1-25Hz expandable to 0.5-50Hz), and pattern speed variation range;
•Appearance & Accessory Customization
◦Appearance Color: Default industrial gray; customizable to black, white, etc. (minimum order quantity required);
◦Accessories: Custom extended XLR signal cables (5m/10m), dedicated suspension brackets (adapting to different venue structures);
• Language & Display Customization
Add multiple languages (e.g., Spanish, French) to the LCD, or customize the display interface (e.g., add customer brand logos).
◉ Packaging & Logistic
Packaging
• Inner Packaging: The lamp body is wrapped in thick EPE foam to prevent collision; accessories (power cable, 3-pin XLR cable, user manual, mounting screws) are individually packed in small boxes and fixed in the same carton.
• Outer Packaging: 5-layer corrugated carton with product model, specifications, and protection labels ("Moisture-Proof", "Shock-Proof", "This Side Up"); single carton holds 1 lamp (gross weight not specified).
• Bulk Packaging: For orders of 10+ units, pallets are used (max. 5 layers per pallet), wrapped in stretch film for dust/moisture protection; wooden pallets facilitate forklift loading/unloading.
Logistics
• Transportation Methods:
◦ Domestic: Road transportation (e.g., Deppon, SF Express), delivery time 2-5 days.
◦ International: Sea freight (suitable for bulk orders, 30-45 days) or air freight (urgent orders, 5-7 days).
• Protection Measures:
◦ Avoid severe vibration, extrusion, or inversion (follow "This Side Up" label); add insulation layers for transportation in high-temperature areas (≤60℃).
◦ For inverted installation accessories (e.g., safety ropes), pack separately to prevent damage.
• Receiving Notes:
◦ Check outer packaging for damage and accessories for completeness upon receipt.
◦ If the lamp is damaged or accessories are missing, take photos and contact the supplier within 48 hours.
◉ Frequently Asked Questions
Logistics Services
Can on-site installation services be provided? How is the installation fee calculated?
On-site installation services are supported, and the fee is calculated based on the installation difficulty and region:
▪ Regular installation (e.g., bar PAR lights, front lights in small studios): 50-100 RMB/unit in prefecture-level cities and above, 80-150 RMB/unit in county-level regions.
▪ Large-scale installation (e.g., elevating lights in stadiums, moving head light groups for music festivals): Quoted based on the overall project (including travel expenses of installers and tool usage fees). Specific details require providing the installation site floor plan and the number of lights, and the engineering team will formulate a plan before quoting.
How is the lamp packaging protected? What if damage occurs during transportation?
The packaging adopts three-layer protection: shockproof foam + hard carton + wooden box (for large equipment such as elevating lights). Key parts of the lamp (e.g., moving head light lens, elevating structure) are individually wrapped with EPE foam. If damage occurs during transportation, the customer must take photos (of the damaged packaging and the faulty part of the product) and send them to the logistics department within 24 hours of receipt. We will give priority to reissuing new products (or arranging repairs) and hold the logistics company responsible. The customer does not need to bear additional costs.
After-Sales Support
Can technical training be provided? For example, teaching customers how to debug DMX consoles and set light addresses.
Free technical training is supported:
▪ Online training: Operation video tutorials and live teaching (e.g., a "DMX Light Control Practical Course" once a month) are provided.
▪ Offline training: For wholesale customers (with a single purchase of ≥ 100 units), technicians can be arranged for on-site training (1-2 days, including console debugging, address setting, and fault troubleshooting).
▪ Customized training: For large-scale projects (e.g., stadium lighting projects), on-site technical guidance can be provided (charged based on the project cycle, specific details to be negotiated).
Products
The fixture does not respond to the DMX controller. How to fix it?
Resolve with these checks:
1. DMX Address & Channels: Ensure the fixture’s starting address is correct (e.g., 34CH fixture 1: A001, fixture 2: A035) and the controller’s channel count ≥ total fixture channels.
2. Signal Wiring: Use shielded twisted-pair DMX cables (≤150m); install a 120Ω terminal resistor between pins 2-3 of the last fixture’s XLR connector.
3. Signal Amplification: For cable lengths >150m, add a DMX signal amplifier to avoid signal loss; separate DMX cables from high-voltage power cables (≥1m apart) to prevent interference.
Wedding & Parties Lighting Solutions
Is the control system compatible with existing consoles?
Supports DMX / Art-Net / sACN for seamless integration with mainstream consoles; also enables Timecode-driven operation and multimedia synchronized control.
Tags
bee eye led moving head light
bee eye led moving head light
Bee-Eye Moving Head Light
Bee-Eye Moving Head Light
Get a Free Quote
Your request is safe with us. Share your requirements and we’ll provide the best options for your business.
Rest assured that your privacy is important to us, and all information provided will be handled with the utmost confidentiality.
By clicking "Send your message," I agree to your processing my personal data.
To see how to withdraw your consent, how to control your personal data, and how we process it, please see our Privacy Policy and Terms of Use.
You may also like
700W Waterproof profile Light——Ideal for a wide range of large-scale events: commercial spaces, TV shows, concerts, nightclubs
FENG-YI 700W Waterproof Profile Light delivers powerful, reliable stage lighting for large-scale events. Perfect for concerts, TV shows, nightclubs, and commercial spaces, this waterproof profile light ensures vibrant, high-performance illumination in any environment.
↳ Read More
480W Waterproof Beam Light——Ideal for a wide range of large-scale events: commercial spaces, TV shows, concerts, nightclubs
Experience the FENG-YI 480W Waterproof Beam Light, perfect for large-scale events like concerts, TV shows, and nightclubs. This waterproof moving head beam light delivers powerful, weather-resistant performance, ensuring vibrant lighting in any commercial space or outdoor setting.
↳ Read More
7*60 Waterproof Bee Eye Light——Ideal for a wide range of large-scale events: commercial spaces, TV shows, concerts, nightclubs
FENG-YI 7*60 Waterproof Bee Eye Light delivers vibrant, waterproof moving head lighting perfect for large-scale events. Ideal for commercial spaces, TV shows, concerts, and nightclubs, it ensures dynamic, reliable illumination even in challenging environments. Elevate your event’s visual impact effortlessly.
↳ Read More
The light of fireflies——Ideal for a wide range of large-scale events: commercial spaces, TV shows, concerts, nightclubs, and various other settings.
Experience FENG-YI’s The Light of Fireflies—perfect for large-scale events like commercial spaces, TV shows, concerts, and nightclubs. Elevate your venue with mesmerizing ambiance and dynamic lighting designed to captivate every audience. Ideal for creating unforgettable experiences.
↳ Read More
Water-resistant strip strobe light——Ideal for a wide range of large-scale events: commercial spaces, TV shows, concerts, nightclubs
FENG-YI Water-Resistant Strip Strobe Light delivers vibrant colour kinetic light effects, perfect for large-scale events—including commercial spaces, TV shows, concerts, and nightclubs. Durable and weatherproof, it ensures dynamic lighting performance in any setting.
↳ Read More
Two-color waterproof LED lights——Ideal for a wide range of large-scale events: commercial spaces, TV shows, concerts, nightclubs
FENG-YI Two-color waterproof LED lights deliver vibrant stage light performance for large-scale events. Perfect for concerts, TV shows, nightclubs, and commercial spaces, these waterproof stage lighting solutions ensure bright, reliable illumination in any environment.
↳ Read More
Stage Firefly Light——Ideal for a wide range of large-scale events: commercial spaces, TV shows, concerts, nightclubs, and various other settings.
FENG-YI’s Stage Firefly Light delivers vibrant, dynamic firefly stage lights ideal for large-scale events. Perfect for concerts, TV shows, nightclubs, and commercial spaces, it enhances any setting with brilliant stage light effects, ensuring an unforgettable visual experience.
↳ Read More
960 full-color strobe——Ideal for a wide range of large-scale events: commercial spaces, TV shows, concerts, nightclubs, and various other settings
The FENG-YI 960 Full-Color Strobe delivers vibrant flashing light effects, perfect for large-scale events including concerts, TV shows, nightclubs, and commercial spaces. Enhance your visuals with dynamic full-color illumination designed to captivate any audience.
↳ Read More
FENG-YI has been continuously innovating and has grown into a Kinetic Lights Manufacturer and solution provider with unique advantages.
Contact
+86 181 2742 0174
Address
Building 5, No. 34, Fuyuan Road, Jinghu IndustrialZone, Xinhua Town, Huadu District, Guangzhou, China.
© 2025 FENG-YI. All Rights Reserved.
Facebook
Instagram
YouTube
TikTok
FENGYI Kinetic Lights Solution
