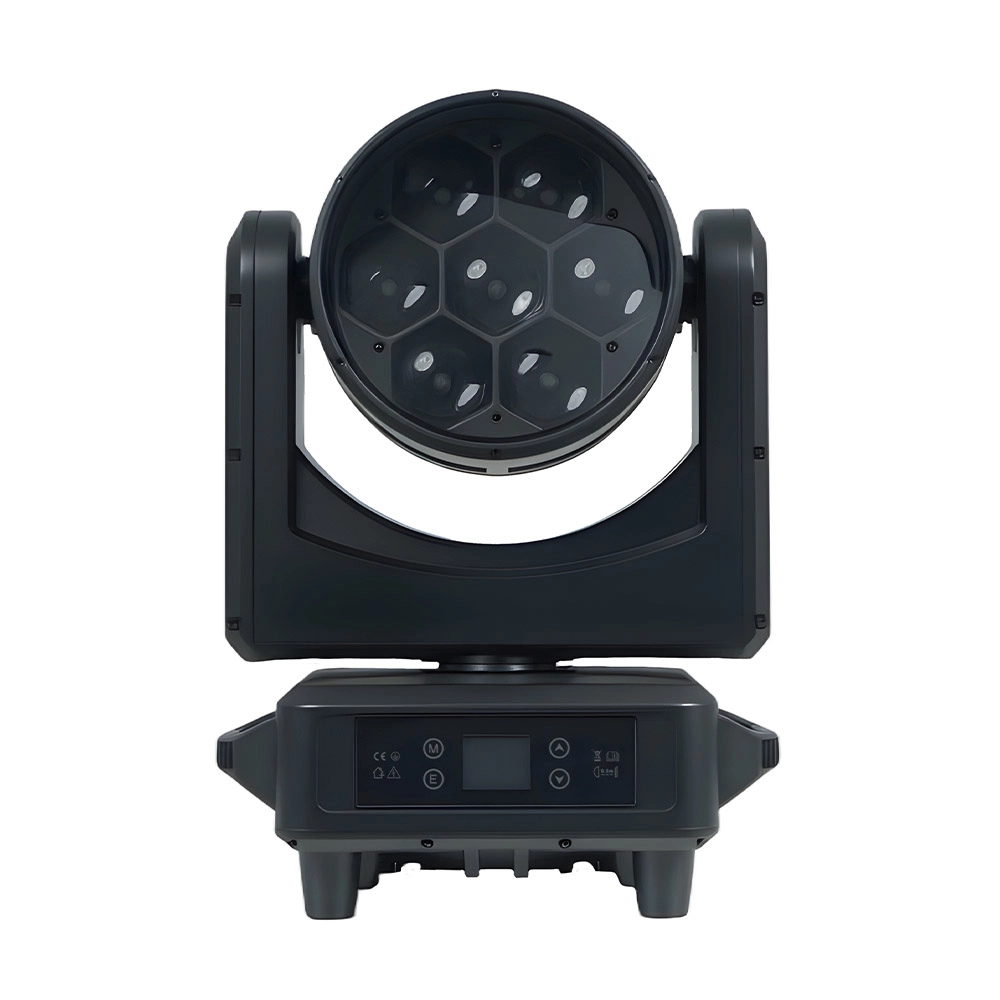

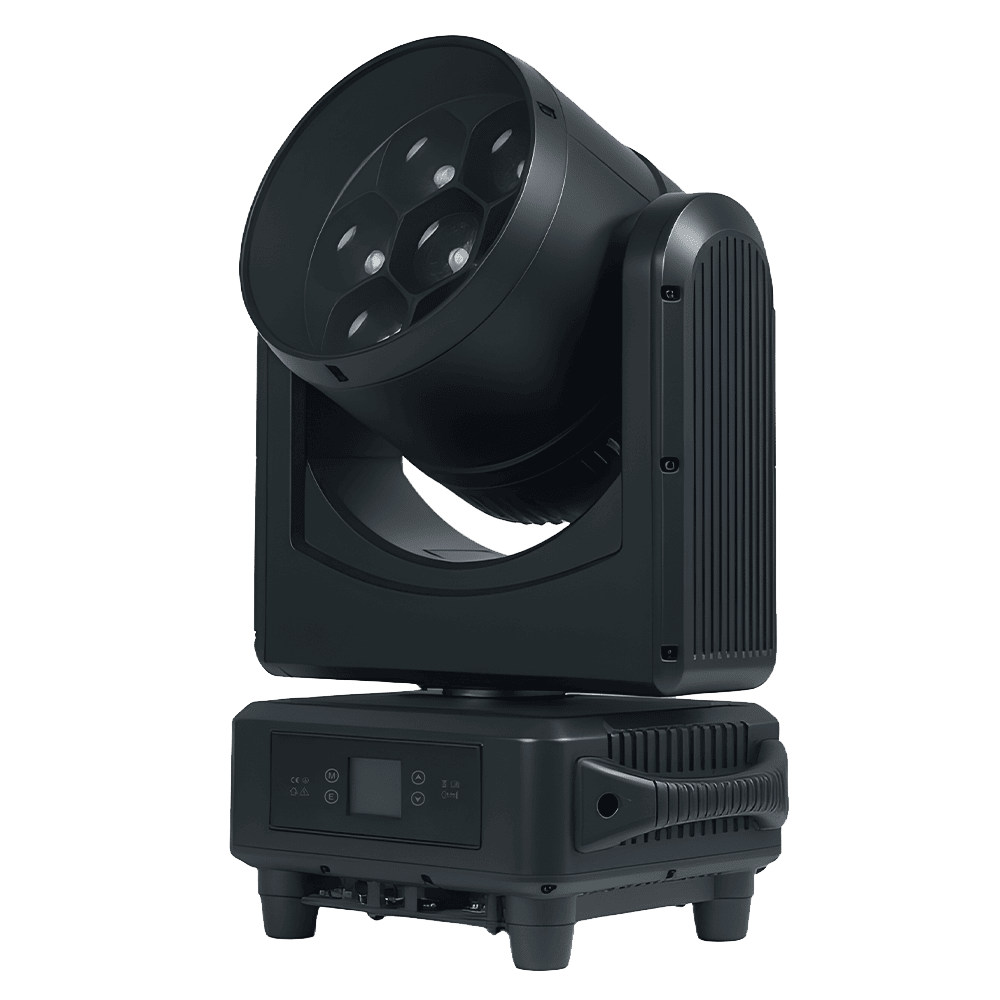

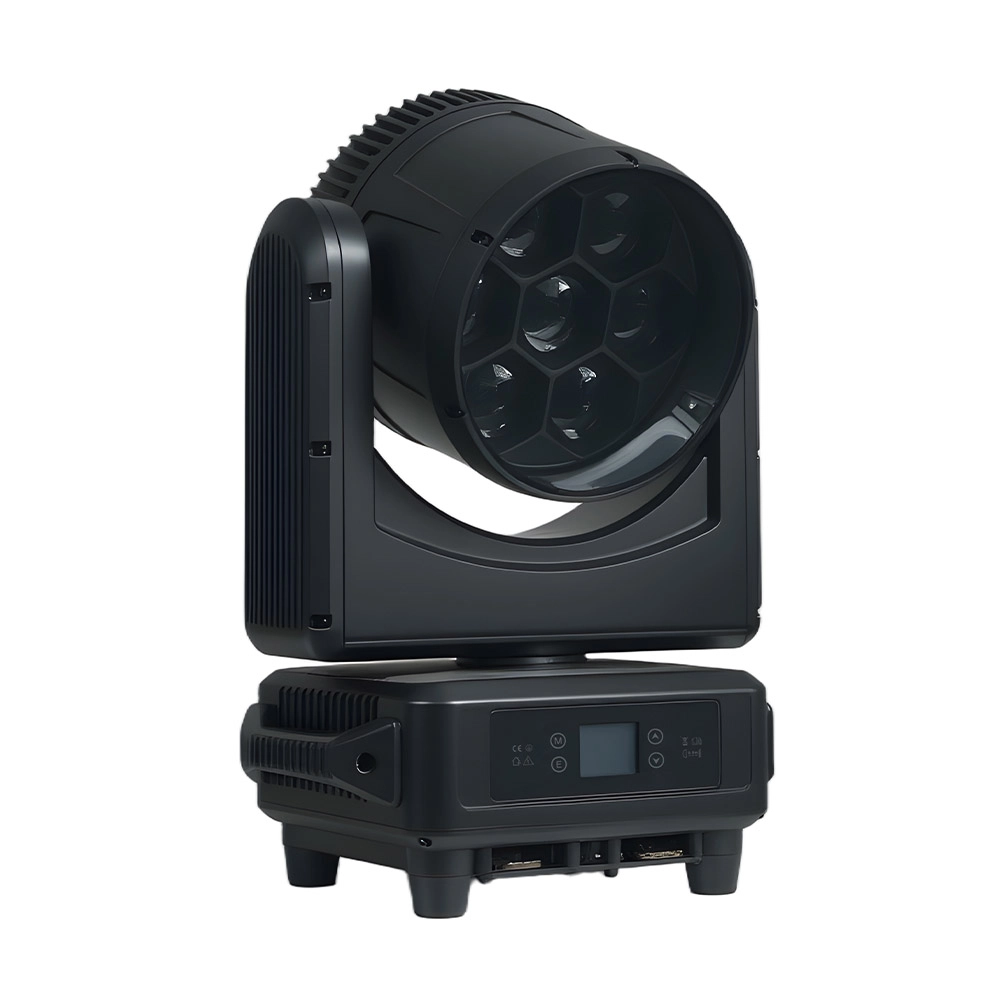

7*60 Waterproof Bee Eye Light——Ideal for a wide range of large-scale events: commercial spaces, TV shows, concerts, nightclubs
◉ Product Features
◉ Specifications
| LIGHT SOURCE | |
| Light Source | 7×60W 4in1 LED Source |
| Color Temperature | Built-in CTO DMX linear dimming |
| Lifespan | 30,000 hours |
| CONTROL | |
| Protocol | DMX512 / RDM |
| Personalities | 23CH, 35CH, 51CH |
| DYNAMIC EFFECTS | |
| Pan Movement | 540° (16bit precision scanning) |
| Tilt Movement | 270° (16bit precision scanning) |
| Strobe | 0.3–25 times/second, optional synchronous or asynchronous random strobe |
| Dimming | Electronic dimming 0–100% linear adjustment |
| ELECTRICAL AND CONNECTIONS | |
| Operating Voltage | AC100V–240V 50/60Hz |
| Power Connectors | Waterproof power socket |
| Data Connectors | 3-pin XLR waterproof signal socket input/output (optional 5-pin XLR waterproof signal socket input/output) |
| Maximum Data Connections | 30 (May need an amplifier) |
| Power Consumption | 600W |
| PHYSICAL INFORMATION | |
| Housing | Magnesium alloy with nylon material |
| Installation | Horizontal or vertical or oblique mounting |
| Cooling | Aluminum alloy heat sink with low noise fan / Heat pipe and low noise LP fan |
| IP Rating | IP66 |
| Work Environment | -20–45℃ |
| Fixture Dimensions | 334×227×490 mm |
| Fixture Weight | 15.1 kg |
| Packing Dimensions | 520×390×300 mm |
| Packing Weight | 16.1 kg |
| Included Items | 2×fast-lock Omega clamps (1/4) on the base / Hanging system with fast-lock Omega clamps (1/4) on the base |
| Optional Accessories | Flight case + foam shell (2 options) |

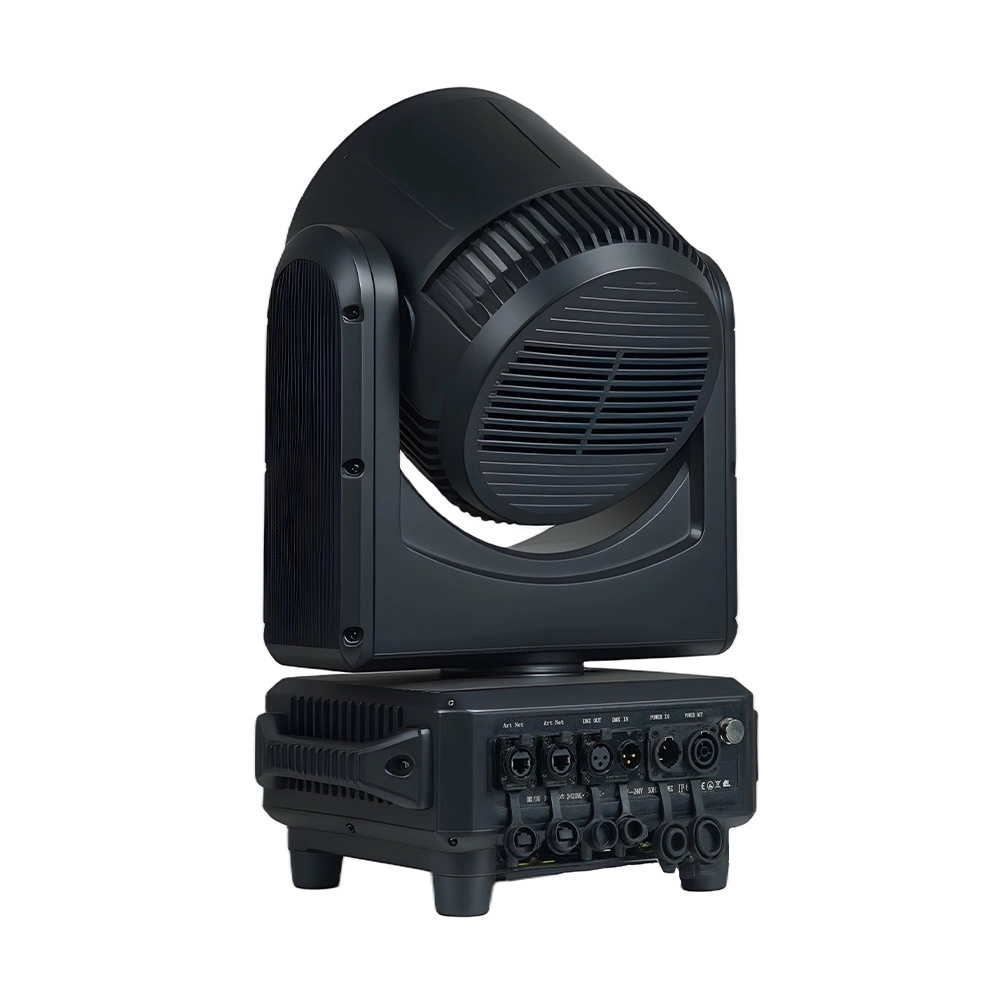

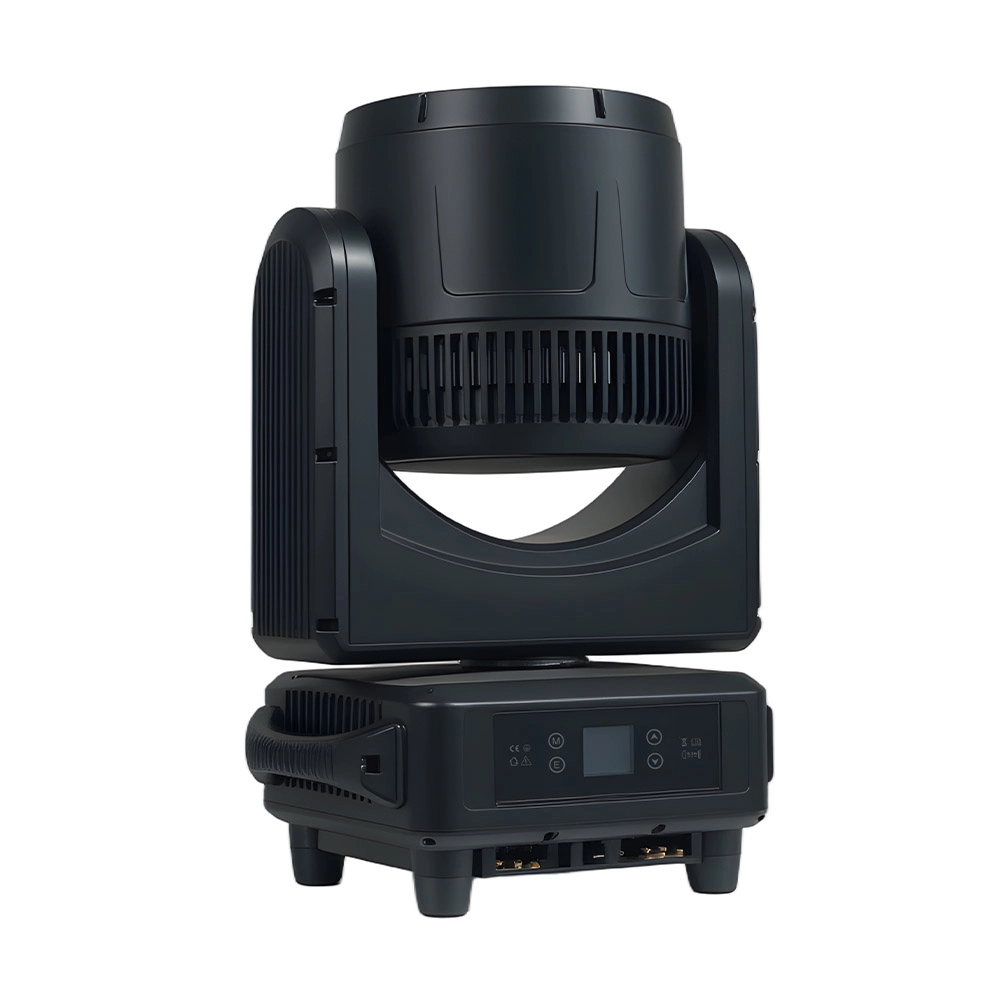

◉ Product Details
◉ Effect

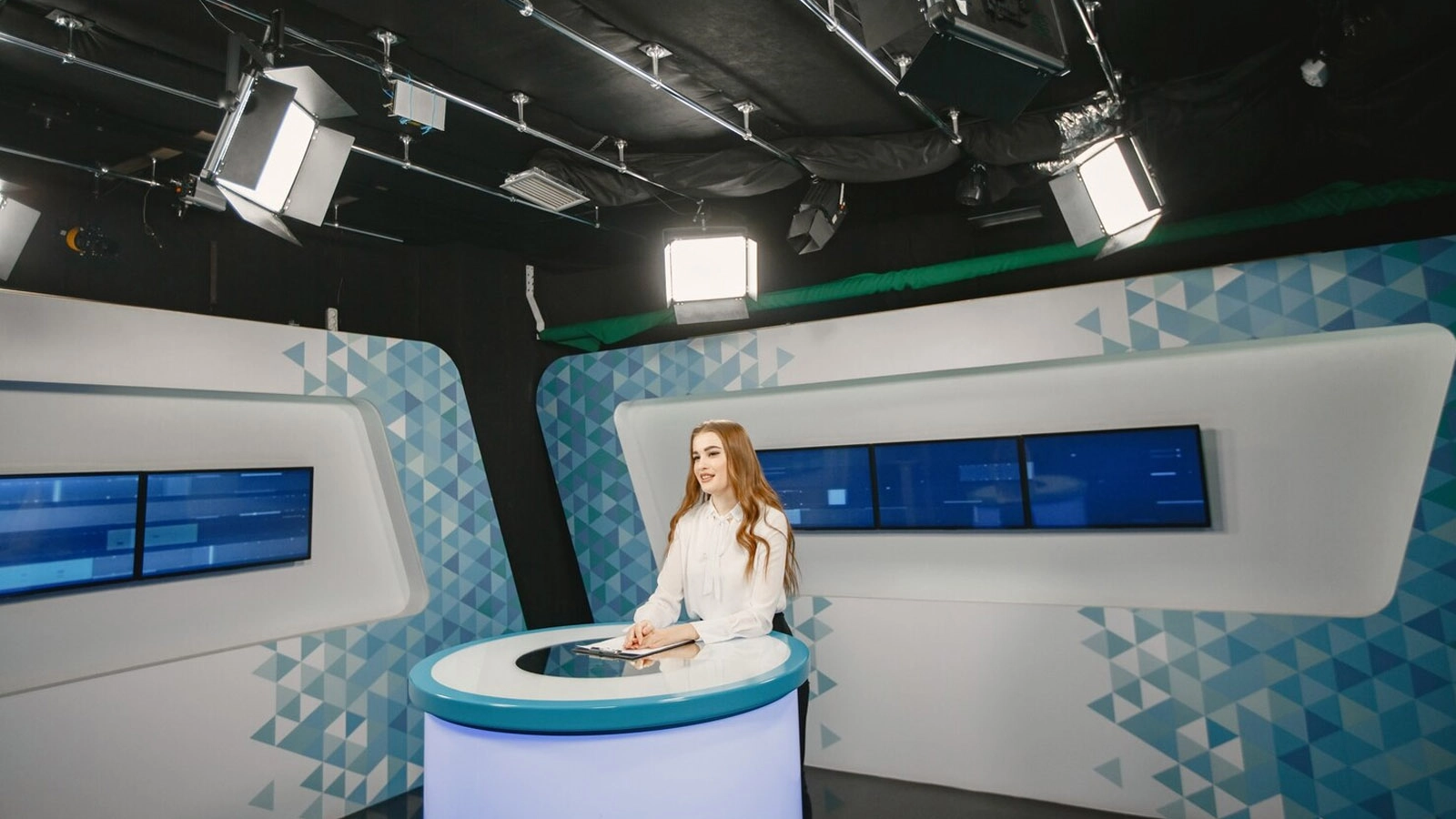

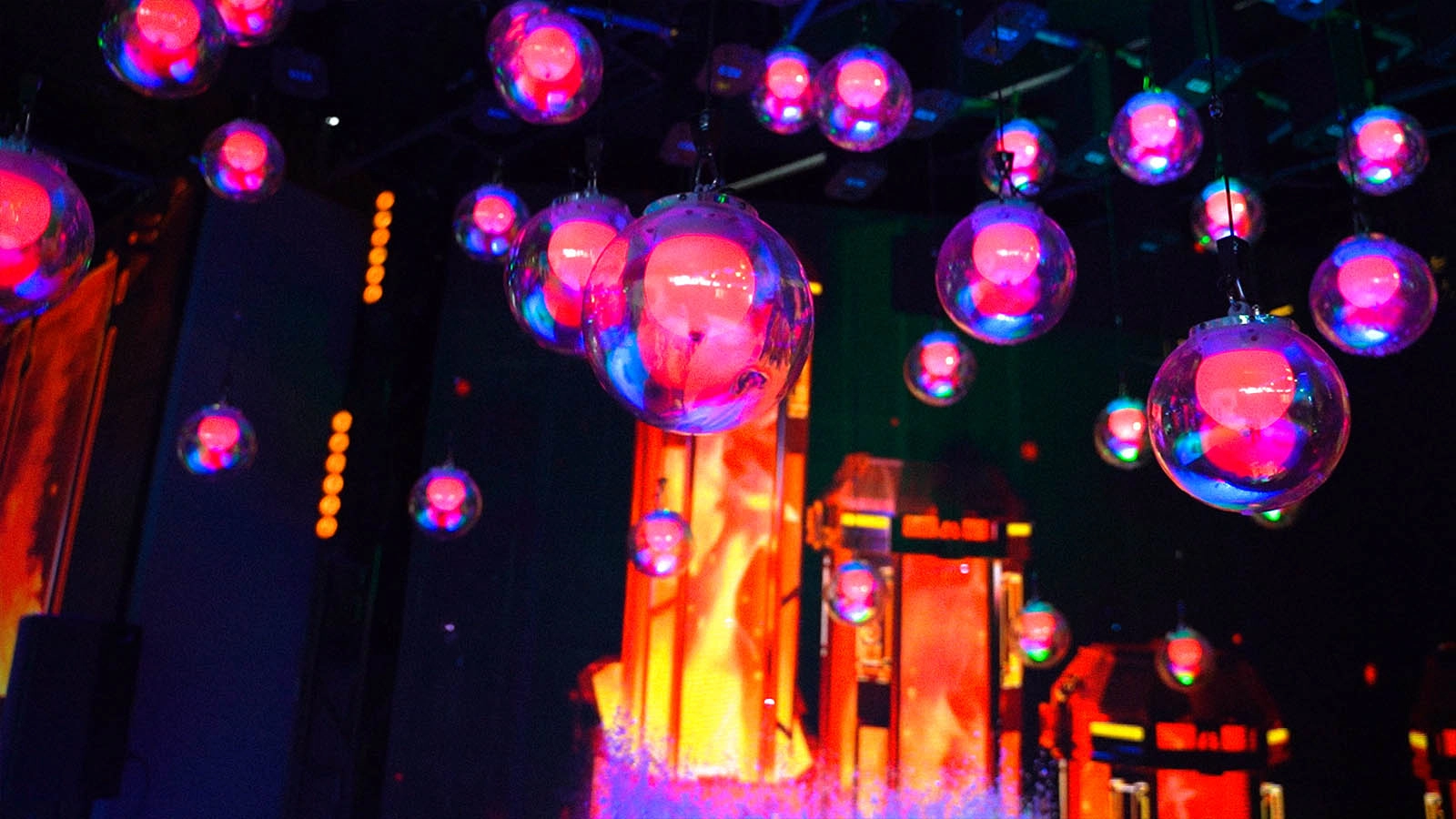

◉ Applications
◉ Advantages
◉ Customization Options
◉ Packaging & Logistic
Packaging
▪Inner: EPE foam cushioning to protect the light from impact during transit.
▪Outer: Corrugated carton matching the product dimensions for extra protection.
▪Accessories Included: Power cable, DMX cable, user manual, mounting hardware (hooks, screws, etc.).
Logistics
▪Shipping: Suitable for express delivery or standard logistics services; marked as "fragile" to ensure careful handling.
▪Storage: Keep in a dry, cool environment with a temperature range of 0-40°C; avoid moisture or direct sunlight.
◉ Frequently Asked Questions
Wholesale Cooperation
Is there a regional protection policy to avoid competition among multiple wholesalers in the same region?
For prefecture-level cities and above, an "exclusive wholesale cooperation" policy is implemented: If there is already a cooperative wholesaler in a region (with an annual purchase amount of ≥ 300,000 RMB), no second wholesaler of the same type will be developed. For county-level regions, 2-3 wholesalers can be developed based on market demand, but clear sales scopes must be divided (e.g., by town) to avoid vicious competition.
Products
The fixture overheats and shuts down. What should I do?
Resolve overheating issues:
1. Environment Check: Ensure the operating temperature ≤60℃; move the fixture away from heat sources (e.g., stage heaters) and ensure 50cm clearance around the fan grille.
2. Fan Maintenance: Clean the fan and fan grille with compressed air (remove dust buildup); check if the fan runs when the fixture is powered on (replace fan if silent).
3. Protection Threshold: Enter "Settings → Temperature Protection" to adjust the threshold (default 60℃, max 80℃) if the environment requires higher operating temperatures.
After-Sales Support
Can technical training be provided? For example, teaching customers how to debug DMX consoles and set light addresses.
Free technical training is supported:
▪ Online training: Operation video tutorials and live teaching (e.g., a "DMX Light Control Practical Course" once a month) are provided.
▪ Offline training: For wholesale customers (with a single purchase of ≥ 100 units), technicians can be arranged for on-site training (1-2 days, including console debugging, address setting, and fault troubleshooting).
▪ Customized training: For large-scale projects (e.g., stadium lighting projects), on-site technical guidance can be provided (charged based on the project cycle, specific details to be negotiated).
Logistics Services
How is the lamp packaging protected? What if damage occurs during transportation?
The packaging adopts three-layer protection: shockproof foam + hard carton + wooden box (for large equipment such as elevating lights). Key parts of the lamp (e.g., moving head light lens, elevating structure) are individually wrapped with EPE foam. If damage occurs during transportation, the customer must take photos (of the damaged packaging and the faulty part of the product) and send them to the logistics department within 24 hours of receipt. We will give priority to reissuing new products (or arranging repairs) and hold the logistics company responsible. The customer does not need to bear additional costs.
Wedding & Parties Lighting Solutions
Is system operation quiet?
We offer noise-optimized solutions (vibration damping/soft start/low-noise wire rope guidance) to meet acoustic requirements for TV studios and commercial spaces.
