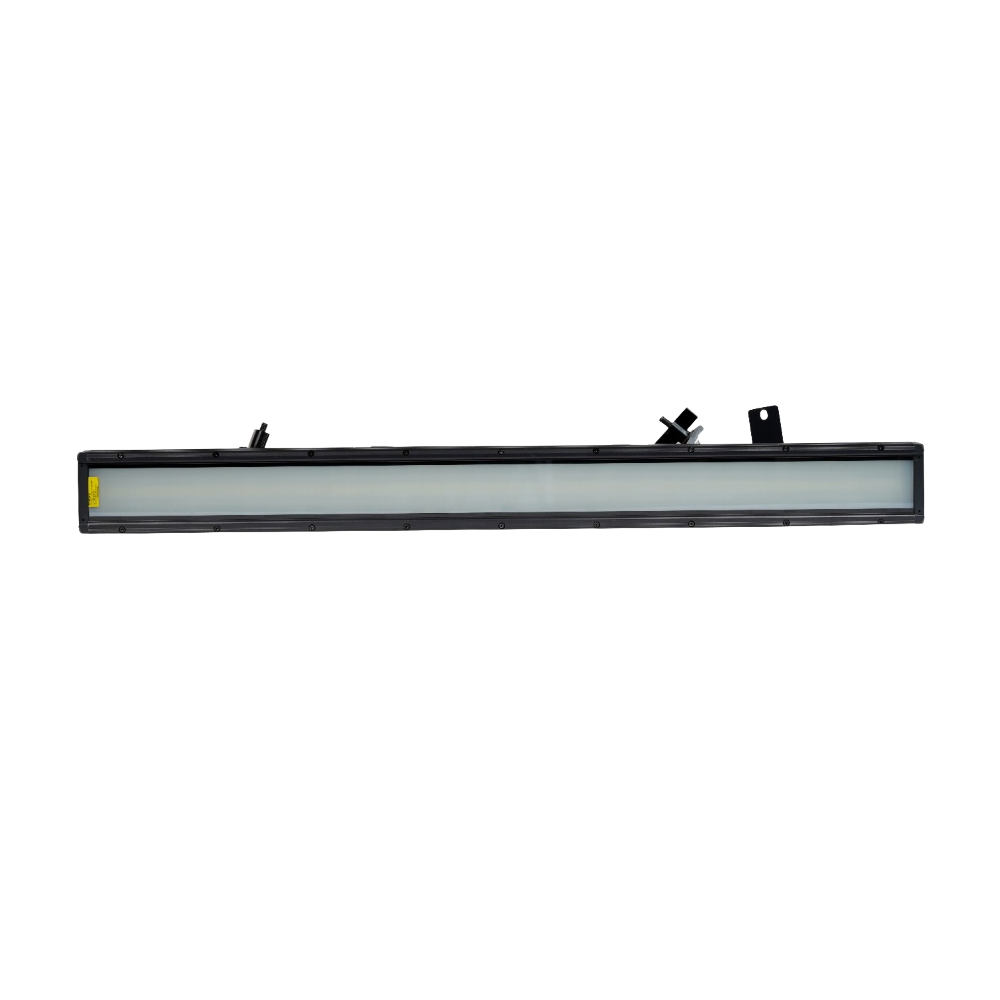

Dual-Lens, Five-Color IP-Rated Audience Light

This advanced audience light is engineered to deliver exceptional lighting performance and unwavering reliability in diverse environments. Its core feature is a sophisticated dual-lens optical system, which works in harmony to produce a wide, uniform, and soft wash of light, effectively eliminating harsh shadows and ensuring consistent audience illumination.

The fixture offers versatile five-color temperature options, allowing lighting designers to seamlessly match the ambient mood of any event—from the warm, inviting glow for a classical concert to a crisp, energetic cool white for a corporate conference. This flexibility eliminates the need for color filters or multiple dedicated fixtures.

Built to endure the demands of rigorous use, it boasts a robust IP65 waterproof and dustproof rating. This superior protection guarantees reliable operation in challenging conditions, making it an ideal choice for permanent installations in theaters, television studios, and outdoor event spaces. With its blend of optical precision, color versatility, and industrial-grade durability, this audience light provides a superior, set-and-forget solution for professional venue lighting.

Get a free quote

Get my solution

FY-BM-10028 480W Waterproof Pure Beam English Instruction Manual.pdf

◉ Product Features

Intuitive Touch Operation & Anti-Misoperation

• Touch Key Unlocking: To prevent accidental touches, the screen locks after inactivity. Unlocking requires: ① For Interface 1: Press "ESC", "ENTER", "UP", "DOWN" in sequence; ② For Interface 2: Press red-marked keys one by one until icons turn black.

• Parameter Input & Saving: When entering values (e.g., DMX address), use "UP"/"DOWN" to adjust and press "ENTER" to save to internal memory (persists after power-off).

• Key Confirmation for Critical Settings: Important operations (e.g., bulb on/off, factory reset) trigger a "SURE/NO" confirmation window to avoid misoperation.

Versatile Operation Modes

• DMX Mode: Receives DMX signals (compatible with DMX512 protocol) and RDM signals for remote management; supports automatic channel filtering (invalid addresses excluded).

• Auto Mode: Runs built-in programs automatically without a controller, suitable for simple scenarios.

• Sound-Activated Mode: Triggers pre-set scenes when strong sounds are detected; maintains the last scene when no sound is present.

• Scene Mode: Supports editing 10 custom scenes (each with channel parameters like color wheel, strobe); auto-cycles scenes if "scene time" (0.1-25.5s) is set (time=scene time × multiplier).

Flexible Display Settings

• Language Switch: Supports Chinese/English to adapt to different users.

• Screen Protection: 4 modes available: ① "Off": Keep last page; ② "Mode 1": Screen off; ③ "Mode 2": Show DMX address (black screen); ④ "Mode 3": Show logo + address + mode; ⑤ "Mode 4": Mode 3 + screen off after 30s.

• Screen Rotation: "On"/"Off" for inverted display (matches inverted installation).

• Backlight Adjustment: 10 brightness levels (dims after 10s of inactivity, full brightness during operation).

• Screen Lock: "On": Locks after inactivity (re-unlock required for editing); "Off": Unlocks once per power cycle.

Precise Beam Effects

• Color Wheel: 15 colors + color mixing (0-255 for color transition; 150-202 forward flow, 203-255 reverse flow).

• Gobo Wheel: 13 patterns + pattern shaking (70-139) and flow effects (140-255); supports clear pattern projection.

• Strobe: 0-0 (off), 1-50/241-249/253-255 (on), 51-240 (slow-to-fast pulse).

• Focus: 0-255 (far-to-near) for sharp or soft beam projection.

• Prism Function: 2 prisms (insert/remove via CH11/CH13); prism rotation (0-360° manual, 128-255 auto flow).

• Fogging: 0-127 (off), 128-191 (7-color), 192-255 (fog effect) for softening beams.

Safety & Protection Mechanisms

• Bulb Protection: 30s interval between bulb on/off; cooling required for 10min after power-off before re-start.

• Motor Protection: Optical coupling correction (detects XY axis misalignment and auto-corrects); XY axis collision prevention (adjust offset to avoid hitting housing).

• Data Protection: "Data Hold" setting: ① "On": Maintain last DMX data when signal is lost; ② "Off": Reset to initial state.

• Fault Monitoring: Detects temperature sensor failure, fan malfunction, bulb burnout, and motor hall errors; records 8 recent faults (valid for current power cycle).

• Reset Function: Restores lamp to initial position (requires "SURE" confirmation); factory reset clears foreground parameters (background parameters retained).

Flexible Installation Adaptation

• Installation Modes: Horizontal placement, tilted mounting, inverted hanging (must use safety ropes through handles and brackets to prevent falling).

• XY Axis Adjustment: X/Y axis reverse (for installation direction) and offset (4-150 for X, 4-48 for Y) to calibrate beam position.

◉ Specifications

LIGHT SOURCE
Light Source	Oxtail light source 420W
Color Temperature	8000K
Lifespan	4000H
CONTROL
Protocol	DMX512, RDM
Personalities	16CH
PHOTOMETRIC DATA
Beam Angle	2–4°
Front Lens	150mm
ELECTRICAL AND CONNECTIONS
Operating Voltage	AC100–240V, 50/60Hz
Power Connectors	Waterproof power socket
Data Connectors	3-pin XLR waterproof signal socket input/output (optional 5-pin XLR waterproof signal socket input/output)
Maximum Data Connections	30 (May need an amplifier)
Power Consumption	550W
DYNAMIC EFFECTS
Color Wheel	14 colors + white light
Gobo System	13 fixed gobos + white light
Strobe	Double-pitch strobe (0.5–9 times/s)
Dimming	0–100% linear adjustment
Prism	The rotating octagonal prism and honeycomb prism with a rainbow effect can be rotated in both directions, and the rotation speed can be adjusted
PHYSICAL INFORMATION
Housing	Magnesium alloy with nylon material
Installation	Horizontal or vertical or oblique mounting
Cooling	Aluminum alloy heat sink with low noise fan / Heat pipe and low noise LP fan
IP Rating	IP66
Work Environment	-20–45℃
Fixture Dimensions	360×262×610 mm
Fixture Weight	21 kg
Packing Dimensions	795×365×505 mm
Packing Weight	23.5 kg
Included Items	Integrated lamp hook
Optional Accessories	Flight case + foam shell (2 options)

◉ Product Details

IP480B 480W Waterproof Pure Beam Light-01 - FENG-YI

IP480B 480W Waterproof Pure Beam Light - FENG-YI

IP480B 480W Waterproof Pure Beam Light-02 - FENG-YI

IP480B 480W Waterproof Pure Beam Light-03 - FENG-YI

◉ Effect

concert stage lighting equipment - FENG-YI

concert moving head stage light maker - FENG-YI

concert led moving stage light wholesale - FENG-YI

◉ Applications

The IP480B waterproof pure beam light, with its multi-mode control, precise beam effects, and safety design, is widely applicable to:

Small-to-Medium-sized Performance Scenarios - FENG-YI

Professional Performances

Theaters, operas, and concerts (DMX mode + XY axis control for precise beam positioning; high-brightness beam enhances stage layering).

Events & Celebrations

Product launches, weddings, and corporate events (scene mode supports 10 pre-set scenes, no controller needed for small-scale use; sound-activated mode responds to music rhythm).

Entertainment Venues

Bars, KTVs, and nightclubs (color wheel, prism, and fogging effects create dynamic atmospheres; compact design fits limited spaces).

Entertainment & Leisure Venues - FENG-YI

Small Stadiums/Gymnasiums

Indoor badminton courts or training halls (wide XY axis range covers large areas; waterproof design adapts to humid environments).

Outdoor Performances

Open-air music festivals and square shows (waterproof structure resists rain; high-temperature protection (≤60℃) adapts to outdoor heat).

◉ Advantages

User-Friendly & Safe Operation

• Anti-Misoperation Touch Design: Dual unlocking methods for touch keys and critical operation confirmations reduce accidental parameter changes, suitable for non-professional users.

• Intuitive Display: 1.8-inch color screen + multi-language support lowers learning costs; screen rotation/backlight adjustment adapts to different installation angles and lighting environments.

Versatile Adaptability to Scenarios

• 4 Operation Modes: Covers from simple (auto/sound-activated) to complex (DMX/scene) scenarios, eliminating the need for additional controllers for small events and supporting professional DMX control for large shows.

• RDM Remote Management: Enables remote DMX address setting and fault query, reducing on-site debugging time for multi-lamp installations (e.g., concert stages with dozens of lamps).

Precise Beam Control

• XY Axis Calibration: Optical coupling correction + offset adjustment ensures accurate beam positioning (no misalignment after long-term use); 0-540° X axis/0-270° Y axis covers wide areas.

• Rich Effects: 15-color wheel, 13-pattern gobo, dual prisms, and fogging meet diverse creative needs (e.g., color transitions for concerts, pattern projections for weddings).

Reliable Safety Protection

• Comprehensive Fault Monitoring: Detects temperature, fan, bulb, and motor faults, with fault records for quick troubleshooting (reduces maintenance time).

• Bulb & Motor Protection: 30s bulb switch interval and optical coupling anti-collision extend product lifespan; safety rope requirement for inverted installation prevents accidents.

Flexible Installation & Durability

• Multi-Mounting Modes: Horizontal/tilted/inverted installation fits various venues; rugged structure (suitable for outdoor use) resists vibration during transportation.

• Data Hold Function: Maintains beam state when DMX signal is lost (avoids sudden blackouts in performances), ensuring show continuity.

◉ Customization Options

Based on basic functions, the following customization services are available (confirmation required in advance):

DMX Channel Customization

Adjust channel count or function (e.g., simplify channels for non-professionals or add dedicated effect channels) via firmware modification.

Effect Expansion

Add custom colors to the color wheel or patterns to the gobo wheel (requires providing color coordinates/pattern files).

Firmware Parameter Tuning

Modify XY axis range, temperature protection threshold, or scene time multiplier to adapt to specific venue needs.

Appearance Customization

Customize housing color (e.g., black/white) for brand consistency (minimum order quantity required).

Accessory Customization

Provide extended waterproof XLR cables (10m/20m) or dedicated mounting brackets (adjustable angle) for special installation scenarios.

◉ Packaging & Logistic

Packaging

• Inner Packaging: The lamp body is wrapped in thick EPE foam to prevent collision; accessories (power cable, 3-pin XLR cable, user manual, mounting screws) are individually packed in small boxes and fixed in the same carton.

• Outer Packaging: 5-layer corrugated carton with product model, specifications, and protection labels ("Moisture-Proof", "Shock-Proof", "This Side Up"); single carton holds 1 lamp (gross weight not specified).

• Bulk Packaging: For orders of 10+ units, pallets are used (max. 5 layers per pallet), wrapped in stretch film for dust/moisture protection; wooden pallets facilitate forklift loading/unloading.

Logistics

• Transportation Methods:

◦ Domestic: Road transportation (e.g., Deppon, SF Express), delivery time 2-5 days.

◦ International: Sea freight (suitable for bulk orders, 30-45 days) or air freight (urgent orders, 5-7 days).

• Protection Measures:

◦ Avoid severe vibration, extrusion, or inversion (follow "This Side Up" label); add insulation layers for transportation in high-temperature areas (≤60℃).

◦ For inverted installation accessories (e.g., safety ropes), pack separately to prevent damage.

• Receiving Notes:

◦ Check outer packaging for damage and accessories for completeness upon receipt.

◦ If the lamp is damaged or accessories are missing, take photos and contact the supplier within 48 hours.

◉ Frequently Asked Questions

Wholesale Cooperation

What is the restocking cycle for wholesale customers? Can production be prioritized?

The restocking cycle for standard models is 3-7 days (same-day shipment if stock is sufficient), and the restocking cycle for customized models is the same as the initial customization cycle (15-45 days). For annual cooperative customers (with an annual purchase amount of ≥ 500,000 RMB), a "priority restocking agreement" can be signed, and 10%-15% of safety stock will be reserved to ensure emergency restocking needs are met within 3 days.

Products

The fixture overheats and shuts down. What should I do?

Resolve overheating issues:

1. Environment Check: Ensure the operating temperature ≤60℃; move the fixture away from heat sources (e.g., stage heaters) and ensure 50cm clearance around the fan grille.

2. Fan Maintenance: Clean the fan and fan grille with compressed air (remove dust buildup); check if the fan runs when the fixture is powered on (replace fan if silent).

3. Protection Threshold: Enter "Settings → Temperature Protection" to adjust the threshold (default 60℃, max 80℃) if the environment requires higher operating temperatures.

The X/Y axis moves abnormally (jitter, no response). What causes this?

Address the issue as follows:

1. Mechanical Check: Open the fixture (after power-off) to inspect if the X/Y axis belts are loose or broken; re-tighten or replace belts if needed.

2. Optical Coupling Calibration: Enter "Settings → Motor Calibration → X/Y Axis" to adjust the offset (-128~+127) or enable "Optical Coupling" (auto-corrects step loss).

3. Reset & Restart: Press "Menu → Reset → XY Reset" to reposition the axes; if no response, check the X/Y axis photoelectric switches (replace if "X/Y Hall Error" appears in the error menu).

What is the service life of LED lamp beads? Is professional personnel required for later replacement?

All our lights adopt imported LED chips, with a service life of ≥ 50,000 hours under normal use (8 hours of daily use can last for 17 years). The replacement of lamp beads requires professional operation—due to the involvement of wire soldering and heat dissipation adaptation, unprofessional operation may cause short circuits or uneven light effects. You can contact the after-sales team for on-site replacement or repair-by-mail services.

After-Sales Support

What is the after-sales process when a product malfunctions? How long is the repair cycle?

After-sales process:

01. The customer contacts the after-sales team (by phone/WeChat) and provides the product model, fault description, and purchase certificate.

02. Technicians conduct remote troubleshooting (e.g., guiding parameter debugging, checking circuits). If the problem cannot be solved, repair by mail or on-site repair will be arranged.

03. Repairs for products sent by mail will be completed and returned within 3-5 days after receipt (freight is borne by us). On-site repair (limited to prefecture-level cities and above) will respond within 48 hours, with a repair cycle of 1-3 days.
