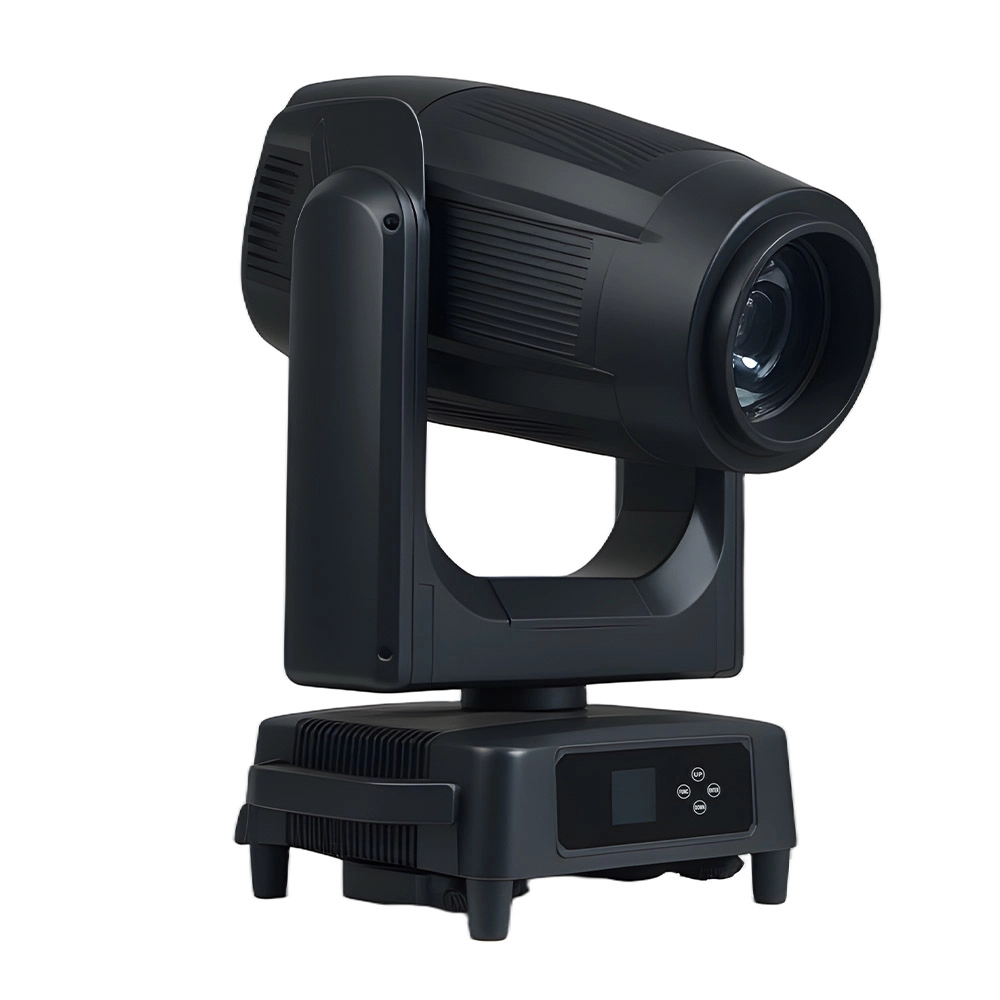

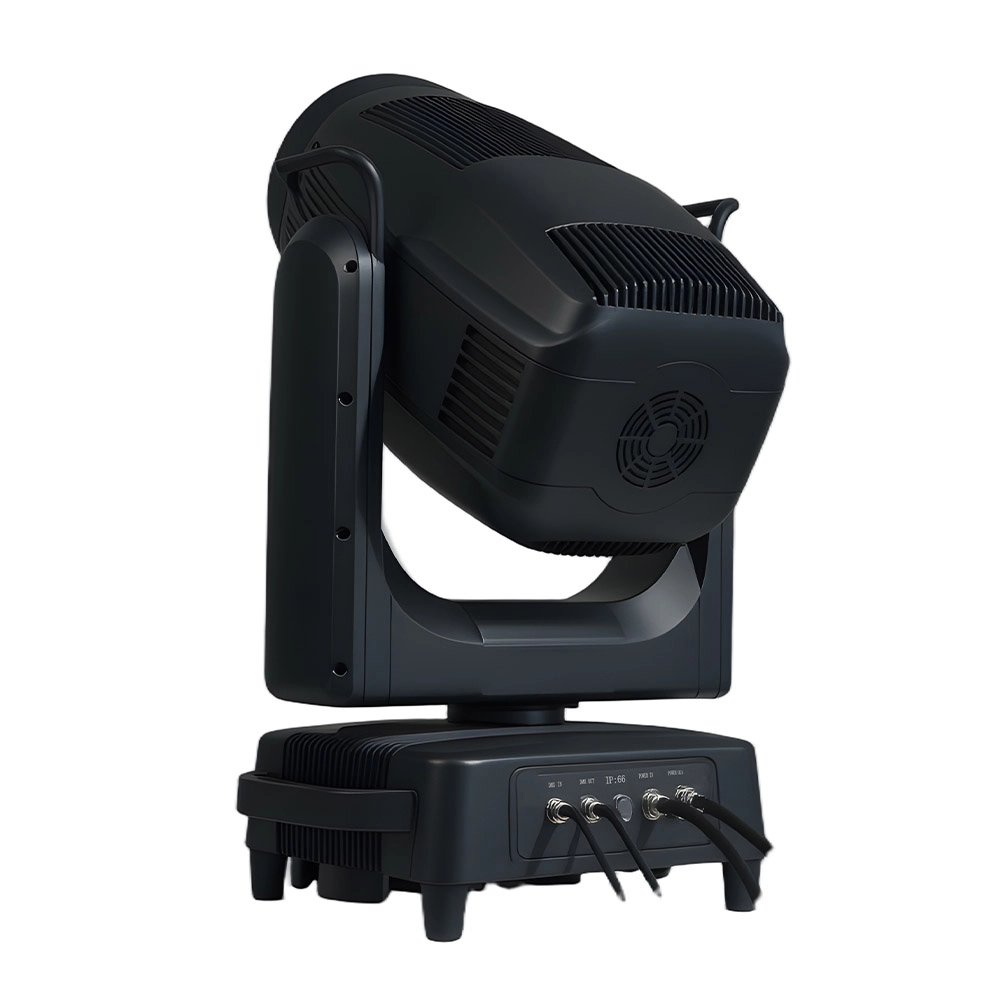

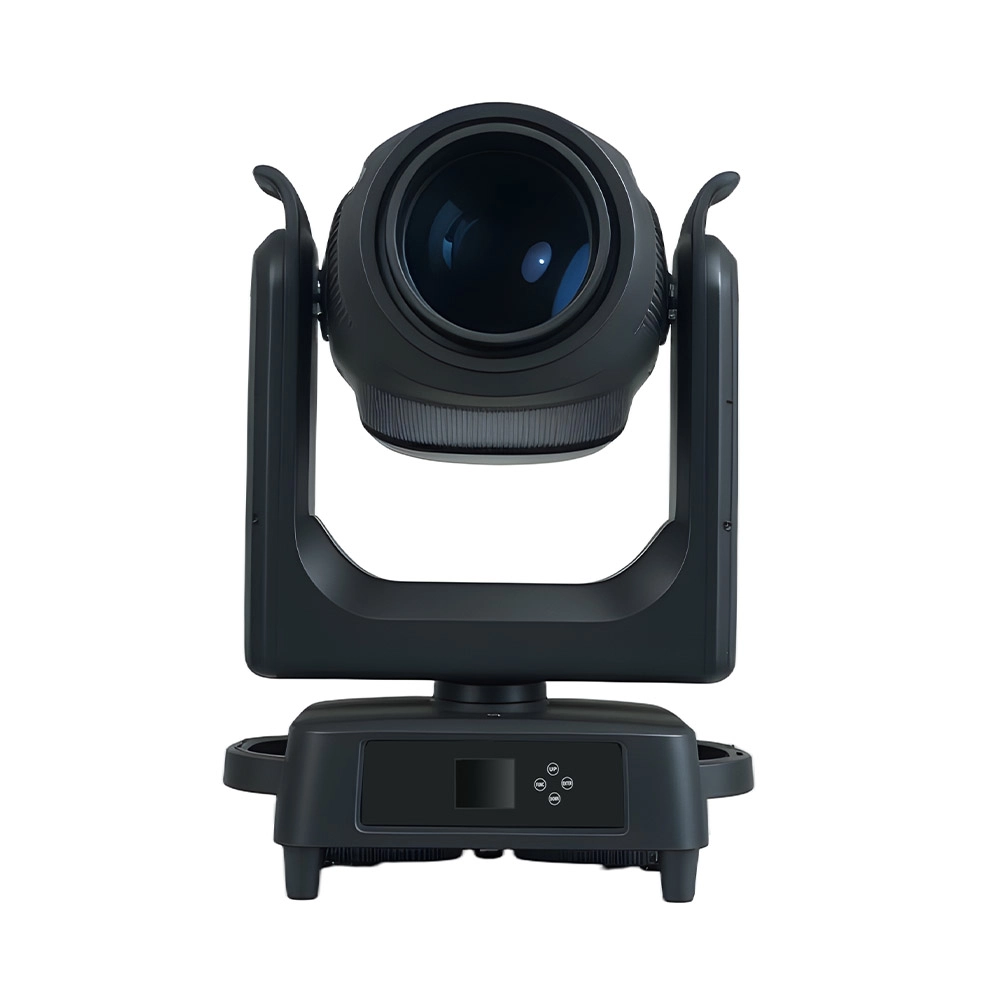

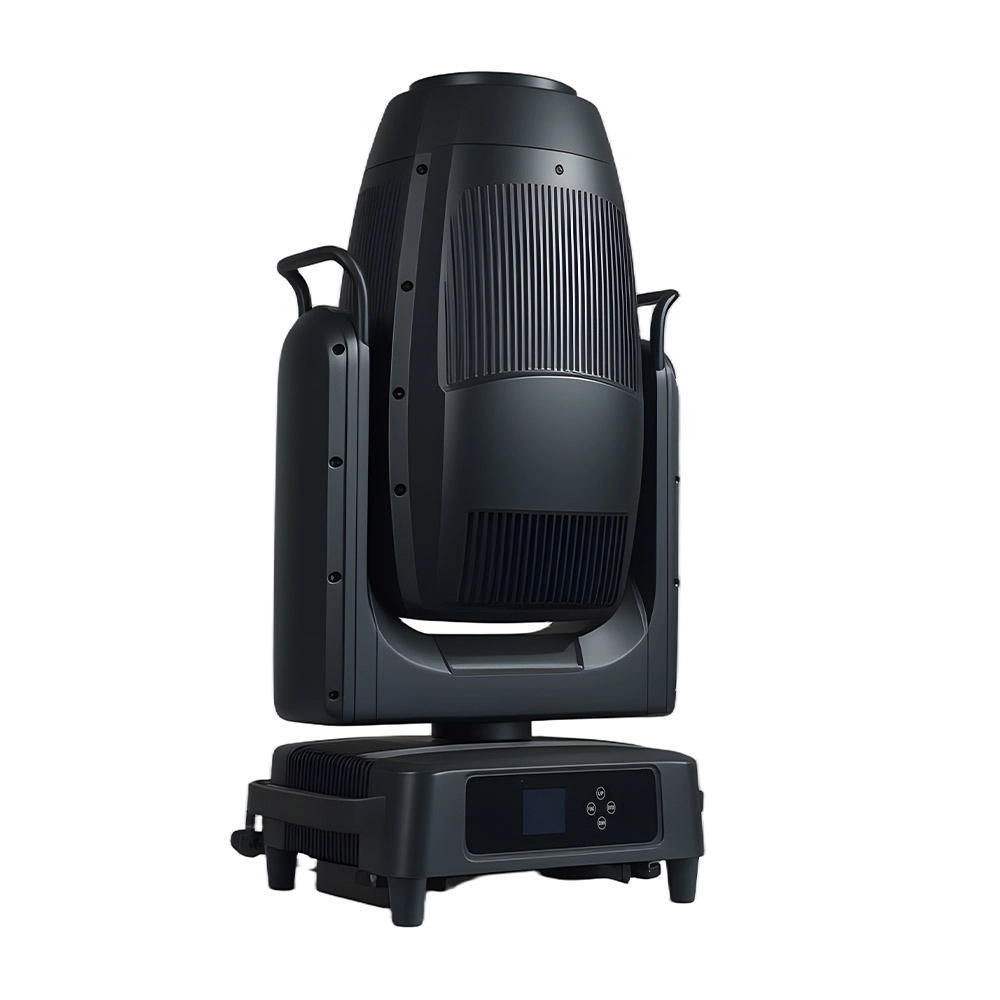

480W Waterproof Beam Light——Ideal for a wide range of large-scale events: commercial spaces, TV shows, concerts, nightclubs
Experience the FENG-YI 480W Waterproof Beam Light, perfect for large-scale events like concerts, TV shows, and nightclubs. This waterproof moving head beam light delivers powerful, weather-resistant performance, ensuring vibrant lighting in any commercial space or outdoor setting.
Get a free quote
Get my solution
FY-BM-10028 480W Waterproof Pure Beam English Instruction Manual.pdf
◉ Product Features
Intuitive Touch Operation & Anti-Misoperation
• Touch Key Unlocking: To prevent accidental touches, the screen locks after inactivity. Unlocking requires: ① For Interface 1: Press "ESC", "ENTER", "UP", "DOWN" in sequence; ② For Interface 2: Press red-marked keys one by one until icons turn black.
• Parameter Input & Saving: When entering values (e.g., DMX address), use "UP"/"DOWN" to adjust and press "ENTER" to save to internal memory (persists after power-off).
• Key Confirmation for Critical Settings: Important operations (e.g., bulb on/off, factory reset) trigger a "SURE/NO" confirmation window to avoid misoperation.
• Parameter Input & Saving: When entering values (e.g., DMX address), use "UP"/"DOWN" to adjust and press "ENTER" to save to internal memory (persists after power-off).
• Key Confirmation for Critical Settings: Important operations (e.g., bulb on/off, factory reset) trigger a "SURE/NO" confirmation window to avoid misoperation.
Versatile Operation Modes
• DMX Mode: Receives DMX signals (compatible with DMX512 protocol) and RDM signals for remote management; supports automatic channel filtering (invalid addresses excluded).
• Auto Mode: Runs built-in programs automatically without a controller, suitable for simple scenarios.
• Sound-Activated Mode: Triggers pre-set scenes when strong sounds are detected; maintains the last scene when no sound is present.
• Scene Mode: Supports editing 10 custom scenes (each with channel parameters like color wheel, strobe); auto-cycles scenes if "scene time" (0.1-25.5s) is set (time=scene time × multiplier).
• Auto Mode: Runs built-in programs automatically without a controller, suitable for simple scenarios.
• Sound-Activated Mode: Triggers pre-set scenes when strong sounds are detected; maintains the last scene when no sound is present.
• Scene Mode: Supports editing 10 custom scenes (each with channel parameters like color wheel, strobe); auto-cycles scenes if "scene time" (0.1-25.5s) is set (time=scene time × multiplier).
Flexible Display Settings
• Language Switch: Supports Chinese/English to adapt to different users.
• Screen Protection: 4 modes available: ① "Off": Keep last page; ② "Mode 1": Screen off; ③ "Mode 2": Show DMX address (black screen); ④ "Mode 3": Show logo + address + mode; ⑤ "Mode 4": Mode 3 + screen off after 30s.
• Screen Rotation: "On"/"Off" for inverted display (matches inverted installation).
• Backlight Adjustment: 10 brightness levels (dims after 10s of inactivity, full brightness during operation).
• Screen Lock: "On": Locks after inactivity (re-unlock required for editing); "Off": Unlocks once per power cycle.
• Screen Protection: 4 modes available: ① "Off": Keep last page; ② "Mode 1": Screen off; ③ "Mode 2": Show DMX address (black screen); ④ "Mode 3": Show logo + address + mode; ⑤ "Mode 4": Mode 3 + screen off after 30s.
• Screen Rotation: "On"/"Off" for inverted display (matches inverted installation).
• Backlight Adjustment: 10 brightness levels (dims after 10s of inactivity, full brightness during operation).
• Screen Lock: "On": Locks after inactivity (re-unlock required for editing); "Off": Unlocks once per power cycle.
Precise Beam Effects
• Color Wheel: 15 colors + color mixing (0-255 for color transition; 150-202 forward flow, 203-255 reverse flow).
• Gobo Wheel: 13 patterns + pattern shaking (70-139) and flow effects (140-255); supports clear pattern projection.
• Strobe: 0-0 (off), 1-50/241-249/253-255 (on), 51-240 (slow-to-fast pulse).
• Focus: 0-255 (far-to-near) for sharp or soft beam projection.
• Prism Function: 2 prisms (insert/remove via CH11/CH13); prism rotation (0-360° manual, 128-255 auto flow).
• Fogging: 0-127 (off), 128-191 (7-color), 192-255 (fog effect) for softening beams.
• Gobo Wheel: 13 patterns + pattern shaking (70-139) and flow effects (140-255); supports clear pattern projection.
• Strobe: 0-0 (off), 1-50/241-249/253-255 (on), 51-240 (slow-to-fast pulse).
• Focus: 0-255 (far-to-near) for sharp or soft beam projection.
• Prism Function: 2 prisms (insert/remove via CH11/CH13); prism rotation (0-360° manual, 128-255 auto flow).
• Fogging: 0-127 (off), 128-191 (7-color), 192-255 (fog effect) for softening beams.
Safety & Protection Mechanisms
• Bulb Protection: 30s interval between bulb on/off; cooling required for 10min after power-off before re-start.
• Motor Protection: Optical coupling correction (detects XY axis misalignment and auto-corrects); XY axis collision prevention (adjust offset to avoid hitting housing).
• Data Protection: "Data Hold" setting: ① "On": Maintain last DMX data when signal is lost; ② "Off": Reset to initial state.
• Fault Monitoring: Detects temperature sensor failure, fan malfunction, bulb burnout, and motor hall errors; records 8 recent faults (valid for current power cycle).
• Reset Function: Restores lamp to initial position (requires "SURE" confirmation); factory reset clears foreground parameters (background parameters retained).
• Motor Protection: Optical coupling correction (detects XY axis misalignment and auto-corrects); XY axis collision prevention (adjust offset to avoid hitting housing).
• Data Protection: "Data Hold" setting: ① "On": Maintain last DMX data when signal is lost; ② "Off": Reset to initial state.
• Fault Monitoring: Detects temperature sensor failure, fan malfunction, bulb burnout, and motor hall errors; records 8 recent faults (valid for current power cycle).
• Reset Function: Restores lamp to initial position (requires "SURE" confirmation); factory reset clears foreground parameters (background parameters retained).
Flexible Installation Adaptation
• Installation Modes: Horizontal placement, tilted mounting, inverted hanging (must use safety ropes through handles and brackets to prevent falling).
• XY Axis Adjustment: X/Y axis reverse (for installation direction) and offset (4-150 for X, 4-48 for Y) to calibrate beam position.
• XY Axis Adjustment: X/Y axis reverse (for installation direction) and offset (4-150 for X, 4-48 for Y) to calibrate beam position.
◉ Specifications
|
LIGHT SOURCE |
|
| Light Source | Oxtail light source 420W |
| Color Temperature | 8000K |
| Lifespan | 4000H |
| CONTROL | |
| Protocol | DMX512, RDM |
| Personalities | 16CH |
| PHOTOMETRIC DATA | |
| Beam Angle | 2–4° |
| Front Lens | 150mm |
| ELECTRICAL AND CONNECTIONS | |
| Operating Voltage | AC100–240V, 50/60Hz |
| Power Connectors | Waterproof power socket |
| Data Connectors | 3-pin XLR waterproof signal socket input/output (optional 5-pin XLR waterproof signal socket input/output) |
| Maximum Data Connections | 30 (May need an amplifier) |
| Power Consumption | 550W |
| DYNAMIC EFFECTS | |
| Color Wheel | 14 colors + white light |
| Gobo System | 13 fixed gobos + white light |
| Strobe | Double-pitch strobe (0.5–9 times/s) |
| Dimming | 0–100% linear adjustment |
| Prism | The rotating octagonal prism and honeycomb prism with a rainbow effect can be rotated in both directions, and the rotation speed can be adjusted |
| PHYSICAL INFORMATION | |
| Housing | Magnesium alloy with nylon material |
| Installation | Horizontal or vertical or oblique mounting |
| Cooling | Aluminum alloy heat sink with low noise fan / Heat pipe and low noise LP fan |
| IP Rating | IP66 |
| Work Environment | -20–45℃ |
| Fixture Dimensions | 360×262×610 mm |
| Fixture Weight | 21 kg |
| Packing Dimensions | 795×365×505 mm |
| Packing Weight | 23.5 kg |
| Included Items | Integrated lamp hook |
| Optional Accessories | Flight case + foam shell (2 options) |
◉ Product Details
◉ Effect
◉ Applications
The IP480B waterproof pure beam light, with its multi-mode control, precise beam effects, and safety design, is widely applicable to:
Professional Performances
Theaters, operas, and concerts (DMX mode + XY axis control for precise beam positioning; high-brightness beam enhances stage layering).
Events & Celebrations
Product launches, weddings, and corporate events (scene mode supports 10 pre-set scenes, no controller needed for small-scale use; sound-activated mode responds to music rhythm).
Entertainment Venues
Bars, KTVs, and nightclubs (color wheel, prism, and fogging effects create dynamic atmospheres; compact design fits limited spaces).
Small Stadiums/Gymnasiums
Indoor badminton courts or training halls (wide XY axis range covers large areas; waterproof design adapts to humid environments).
Outdoor Performances
Open-air music festivals and square shows (waterproof structure resists rain; high-temperature protection (≤60℃) adapts to outdoor heat).
◉ Advantages
User-Friendly & Safe Operation
• Anti-Misoperation Touch Design: Dual unlocking methods for touch keys and critical operation confirmations reduce accidental parameter changes, suitable for non-professional users.
• Intuitive Display: 1.8-inch color screen + multi-language support lowers learning costs; screen rotation/backlight adjustment adapts to different installation angles and lighting environments.
• Intuitive Display: 1.8-inch color screen + multi-language support lowers learning costs; screen rotation/backlight adjustment adapts to different installation angles and lighting environments.
Versatile Adaptability to Scenarios
• 4 Operation Modes: Covers from simple (auto/sound-activated) to complex (DMX/scene) scenarios, eliminating the need for additional controllers for small events and supporting professional DMX control for large shows.
• RDM Remote Management: Enables remote DMX address setting and fault query, reducing on-site debugging time for multi-lamp installations (e.g., concert stages with dozens of lamps).
• RDM Remote Management: Enables remote DMX address setting and fault query, reducing on-site debugging time for multi-lamp installations (e.g., concert stages with dozens of lamps).
Precise Beam Control
• XY Axis Calibration: Optical coupling correction + offset adjustment ensures accurate beam positioning (no misalignment after long-term use); 0-540° X axis/0-270° Y axis covers wide areas.
• Rich Effects: 15-color wheel, 13-pattern gobo, dual prisms, and fogging meet diverse creative needs (e.g., color transitions for concerts, pattern projections for weddings).
• Rich Effects: 15-color wheel, 13-pattern gobo, dual prisms, and fogging meet diverse creative needs (e.g., color transitions for concerts, pattern projections for weddings).
Reliable Safety Protection
• Comprehensive Fault Monitoring: Detects temperature, fan, bulb, and motor faults, with fault records for quick troubleshooting (reduces maintenance time).
• Bulb & Motor Protection: 30s bulb switch interval and optical coupling anti-collision extend product lifespan; safety rope requirement for inverted installation prevents accidents.
• Bulb & Motor Protection: 30s bulb switch interval and optical coupling anti-collision extend product lifespan; safety rope requirement for inverted installation prevents accidents.
Flexible Installation & Durability
• Multi-Mounting Modes: Horizontal/tilted/inverted installation fits various venues; rugged structure (suitable for outdoor use) resists vibration during transportation.
• Data Hold Function: Maintains beam state when DMX signal is lost (avoids sudden blackouts in performances), ensuring show continuity.
• Data Hold Function: Maintains beam state when DMX signal is lost (avoids sudden blackouts in performances), ensuring show continuity.
◉ Customization Options
Based on basic functions, the following customization services are available (confirmation required in advance):
DMX Channel Customization
Adjust channel count or function (e.g., simplify channels for non-professionals or add dedicated effect channels) via firmware modification.
Effect Expansion
Add custom colors to the color wheel or patterns to the gobo wheel (requires providing color coordinates/pattern files).
Firmware Parameter Tuning
Modify XY axis range, temperature protection threshold, or scene time multiplier to adapt to specific venue needs.
Appearance Customization
Customize housing color (e.g., black/white) for brand consistency (minimum order quantity required).
Accessory Customization
Provide extended waterproof XLR cables (10m/20m) or dedicated mounting brackets (adjustable angle) for special installation scenarios.
◉ Packaging & Logistic
Packaging
• Inner Packaging: The lamp body is wrapped in thick EPE foam to prevent collision; accessories (power cable, 3-pin XLR cable, user manual, mounting screws) are individually packed in small boxes and fixed in the same carton.
• Outer Packaging: 5-layer corrugated carton with product model, specifications, and protection labels ("Moisture-Proof", "Shock-Proof", "This Side Up"); single carton holds 1 lamp (gross weight not specified).
• Bulk Packaging: For orders of 10+ units, pallets are used (max. 5 layers per pallet), wrapped in stretch film for dust/moisture protection; wooden pallets facilitate forklift loading/unloading.
Logistics
• Transportation Methods:
◦ Domestic: Road transportation (e.g., Deppon, SF Express), delivery time 2-5 days.
◦ International: Sea freight (suitable for bulk orders, 30-45 days) or air freight (urgent orders, 5-7 days).
• Protection Measures:
◦ Avoid severe vibration, extrusion, or inversion (follow "This Side Up" label); add insulation layers for transportation in high-temperature areas (≤60℃).
◦ For inverted installation accessories (e.g., safety ropes), pack separately to prevent damage.
• Receiving Notes:
◦ Check outer packaging for damage and accessories for completeness upon receipt.
◦ If the lamp is damaged or accessories are missing, take photos and contact the supplier within 48 hours.
◉ Frequently Asked Questions
Wedding & Parties Lighting Solutions
Are there minimum requirements for venue ceiling height and load capacity?
We recommend a clear height of ≥6–8 m (higher may be required for choreography needs). Load capacity is calculated based on point load plus safety factor. We provide structural calculations and suspension point recommendations.
What about after-sales support and training?
On-site training + remote technical support, spare parts availability, and annual inspections. Service Level Agreements (SLAs) for maintenance services are available.
Nightclub Lighting
Can the lighting, screens, and other equipment be combined to achieve integrated sound, lighting, and visuals?
Programming is possible through Madrix and MA consoles, using timecode synchronization to achieve a precise "programmed show" effect.
After-Sales Support
Can technical training be provided? For example, teaching customers how to debug DMX consoles and set light addresses.
Free technical training is supported:
▪ Online training: Operation video tutorials and live teaching (e.g., a "DMX Light Control Practical Course" once a month) are provided.
▪ Offline training: For wholesale customers (with a single purchase of ≥ 100 units), technicians can be arranged for on-site training (1-2 days, including console debugging, address setting, and fault troubleshooting).
▪ Customized training: For large-scale projects (e.g., stadium lighting projects), on-site technical guidance can be provided (charged based on the project cycle, specific details to be negotiated).
Can accessories (e.g., power cords, DMX signal cables, lamp beads) be purchased separately after the lights have been used for many years?
Separate purchase of accessories is supported. Common accessories (power cords, signal cables, standard lamp beads) are in stock and will be shipped within 1-3 days after ordering. Special accessories (e.g., hydraulic pumps for elevating lights, XY-axis motors for moving head lights) need to be reserved 3-5 days in advance. The after-sales team can provide accessory installation guidance (e.g., sending installation videos).
