Performance version 12m 1.5kg lift main unit

The FENG-YI Performance version 12m 1.5kg lift main unit features an advanced kinetic light lift system for smooth, efficient operation. Designed for reliability and precision, it supports loads up to 1.5kg with easy handling in a compact 12m setup. Ideal for enhanced performance in lifting applications.

Specifications

Specifications
Lifting length 0-12 meters
Maximum load capacity 1.5 kg
Average rise and fall speed 0.55m/s
16-bit smooth increment/decrement
Single-lift line
Material Aluminum alloy
Housing color Black
Weight 9kg (1 unit)
Dimensions 317x167x387mm
Protection Class IP20
Install
Minimum installation height of 4 meters.
Ensure that it is hung vertically.
1 x FY-SE-70003 lamp hook for hanging installation
Secure rope fastening hook
Control
1 TTF LCD Liquid Crystal Display panel
Four menu button settings functions.
Control protocol DMX512+RDM
Channels mode 21+
Linear dimming from 0 to 100%.
Electrical systems and interfaces
Rated voltage of the main unit 100-240 VAC; 50/60Hz
Rated power of the main unit 100W
Signal interface 3-pin/5-pin Neutrik connector
Power Interface True 1 Input/Output Power Jack
Signal output DMX512
Luminous body interface 4-core GX12 aviation connector
Operating temperature 5-40℃

Product Details

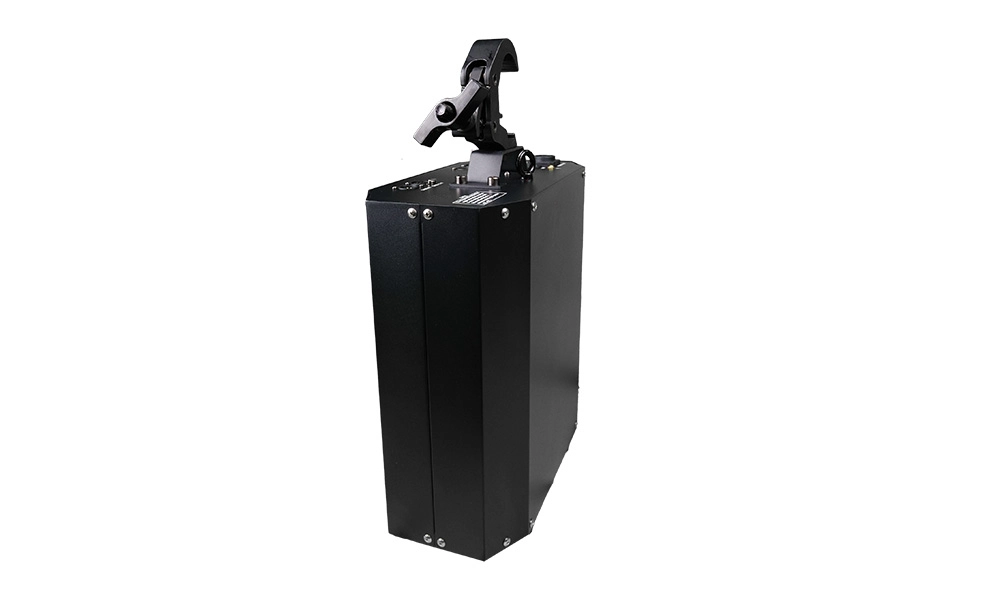

DLB-P12-9108 - FENG-YI

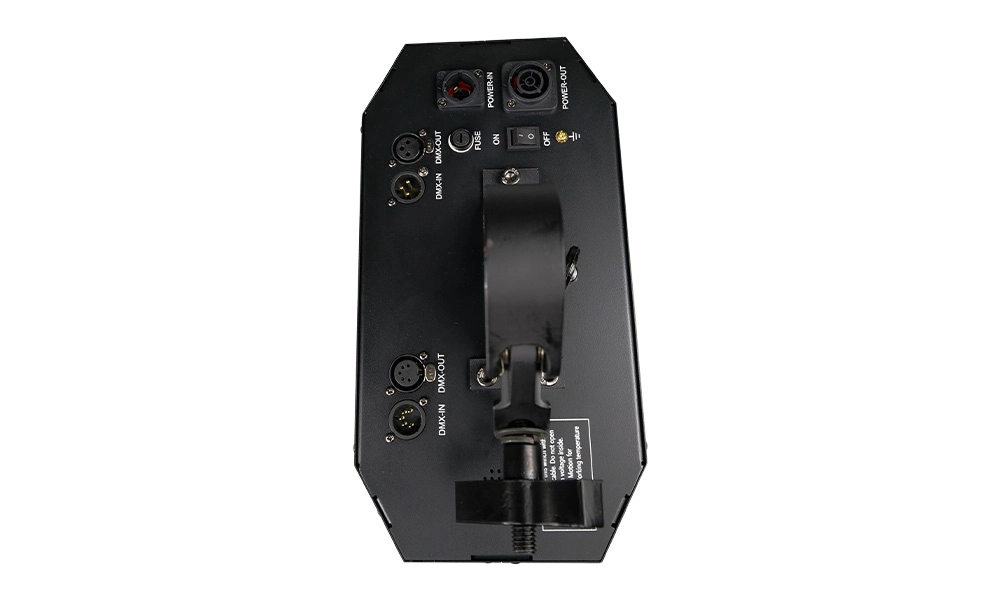

Performance version 12m 1.5kg lift main unit - FENG-YI

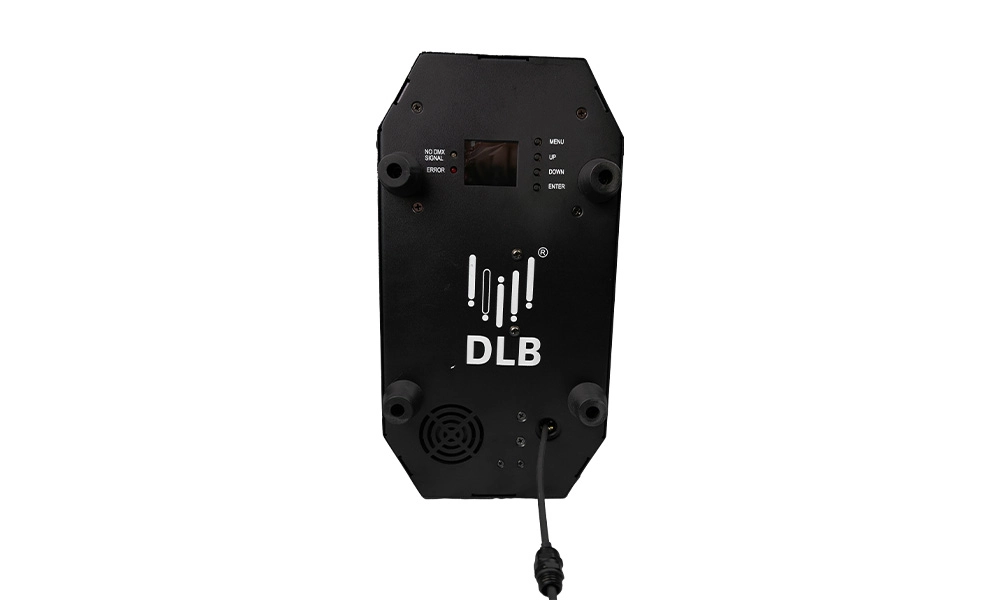

Performance version 12m 1.5kg lift main unit-01 - FENG-YI

Packaging & Logistic

Packaging - FENG-YI

Packaging

Each unit is packaged in a sturdy carton with foam insulation to protect aluminium components during transit. Custom flight cases are available for bulk orders to ensure safety for multiple units.

Logistics - FENG-YI

Logistics

Shipped via freight or courier services. The product is classified as electronic equipment; ensure transport within the ambient temperature range (5 - 40°C) to avoid damage.

Frequently Asked Questions

Products
The X/Y axis moves abnormally (jitter, no response). What causes this?

Address the issue as follows:

1. Mechanical Check: Open the fixture (after power-off) to inspect if the X/Y axis belts are loose or broken; re-tighten or replace belts if needed.

2. Optical Coupling Calibration: Enter "Settings → Motor Calibration → X/Y Axis" to adjust the offset (-128~+127) or enable "Optical Coupling" (auto-corrects step loss).

3. Reset & Restart: Press "Menu → Reset → XY Reset" to reposition the axes; if no response, check the X/Y axis photoelectric switches (replace if "X/Y Hall Error" appears in the error menu).

The lamp does not light up. What should I check?

Troubleshoot in 4 steps:

1. Power Supply: Confirm the input voltage matches AC 200V~240V/50~60Hz; check if the power cable is securely connected and the switch is on.

2. Cooling Period: Ensure the fixture has cooled for 20 minutes after previous use (mandatory cooling to prevent overheat damage).

3. DMX Signal: If in DMX mode, verify the controller is sending "Shutter On" (CH6: 252-255) and "Dimming" (CH7: 100-255) signals.

4. Internal Wiring: If above checks pass, contact after-sales to inspect internal connections (e.g., lamp holder, driver board) for loose or burned components.

Wholesale Cooperation
Are samples provided for wholesale cooperation? How is the sample fee settled?

1-2 standard samples are provided free of charge (the customer needs to bear the freight). For customized samples, a cost fee is charged (e.g., 200-500 RMB/unit for appearance-customized samples). If the customer places a subsequent bulk order (meeting the MOQ of the corresponding product), the sample fee can be fully deducted from the payment, and free samples do not need to be returned.

Customization/OEM Services
What customization services can you provide? For example, adjustments to appearance, functions, or parameters.

Multi-dimensional customization is supported:

▪ Appearance customization: Lamp housing colors (e.g., in addition to black and silver, exclusive brand colors can be customized), and laser engraving of the brand logo on the body.

▪ Function customization: Adjustment of channel modes (e.g., adding exclusive light control channels), adaptation of light control protocols (e.g., compatibility with the customer's own central control system), and special scenario functions (e.g., increasing the waterproof level of outdoor models to IP65).

▪ Parameter customization: Extended stroke of elevating lights (default 0-5 meters, customizable up to 10 meters), adjustment of the beam angle of conventional lights (e.g., custom 15° narrow beam angle for PAR lights).

Do customized products enjoy the same warranty service as standard products?

Yes, customized products have the same warranty policy as standard products (under non-human damage, the whole machine is warranted for 1 year, and LED lamp beads are warranted for 2 years). For faults caused by customized functions (e.g., adaptation issues of the special light control protocol specified by the customer), the after-sales team will give priority to targeted troubleshooting to ensure no impact on use.
