Lifting 80CM Diameter Luminous Ring

Discover the FENG-YI Lifting 80CM Diameter Luminous Ring, a High Quality kinetic light ring designed for dynamic illumination. Perfect for modern spaces, this kinetic ring light combines style and function to elevate your environment with vibrant, energy-efficient lighting.

Specifications

sItem No.

DLB-E3-11044(3meters)

DLB-E3-11045 (6meters)

Fixture

40 Pixels
240 pCs 0.3W RGB LED
Light angle:120°
Material: Aluminium
Power:72W
Size:D800mm
Weight: 1.38kg
Winch(0-6meters)   Lifting height: 0-6meters
Average lifting speed:0- 0.5m/s
Power: 100W
Size:L247xW167xH304mm
Weight: 7.5kg(1pcs)
Material: Aluminium
Housing color: Black
IP Class:lP20
Group Winches x 3
Pixel Ring x 1
Control Graphic LCD control panel
4 Menu buttons to set the functions
DMX512/RDM Protocol
DMX channels: Winch A: 126CH,Winch B: 4CH, Winch c: 4CH
Electrical and  Connectionsz
AC100 to 240 Volts , 50/60 Hz
Total power:400W Maximum
Total weight: 23.88kg Maximum
3-Pin XLR input and output
PowerCoN blue input and output,Maximum connect 6 winches viadaisy chain
Ambient temperature:5-40'
Installation The minimum installation height is 5 meters
Ensure vertical hang
6 x FY-SE-70001 clamps for hanging installation
Safety wire attachment hole
Compliance CE/Rosh

Product Details

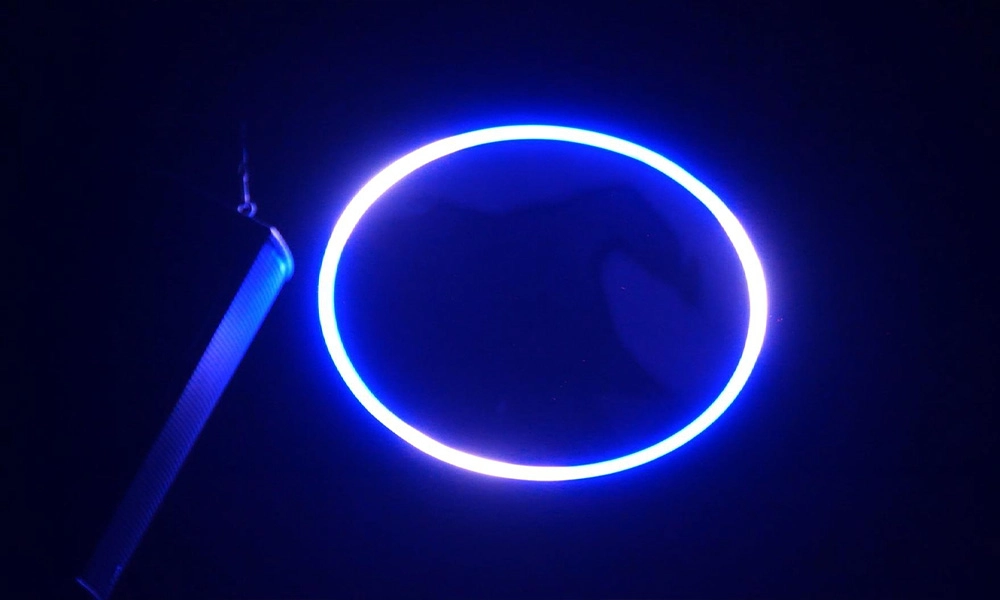

Lifting 80CM diameter luminous ring-01 - FENG-YI

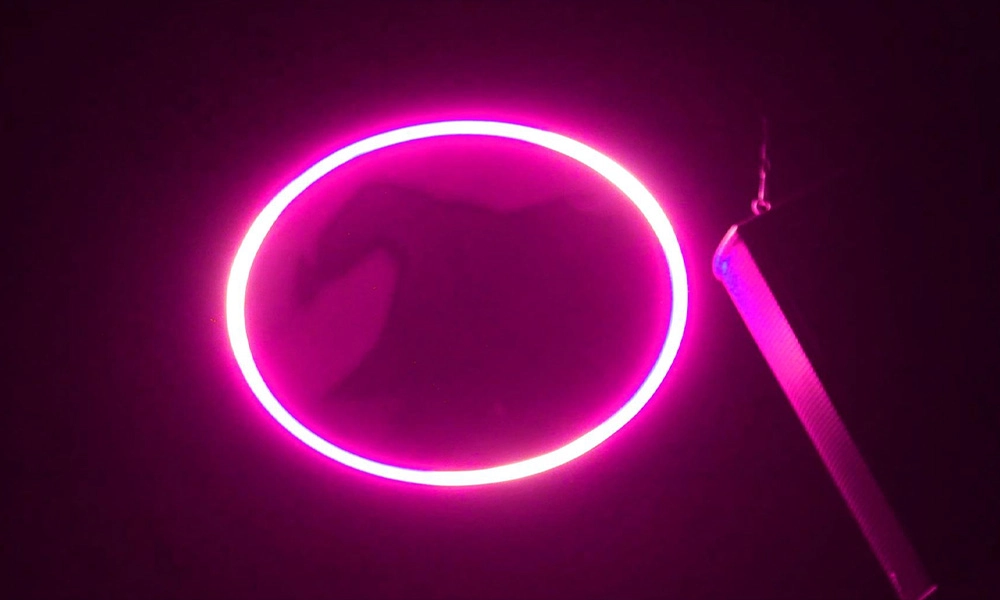

Lifting 80CM diameter luminous ring - FENG-YI
Lifting 80CM diameter luminous ring-02 - FENG-YI

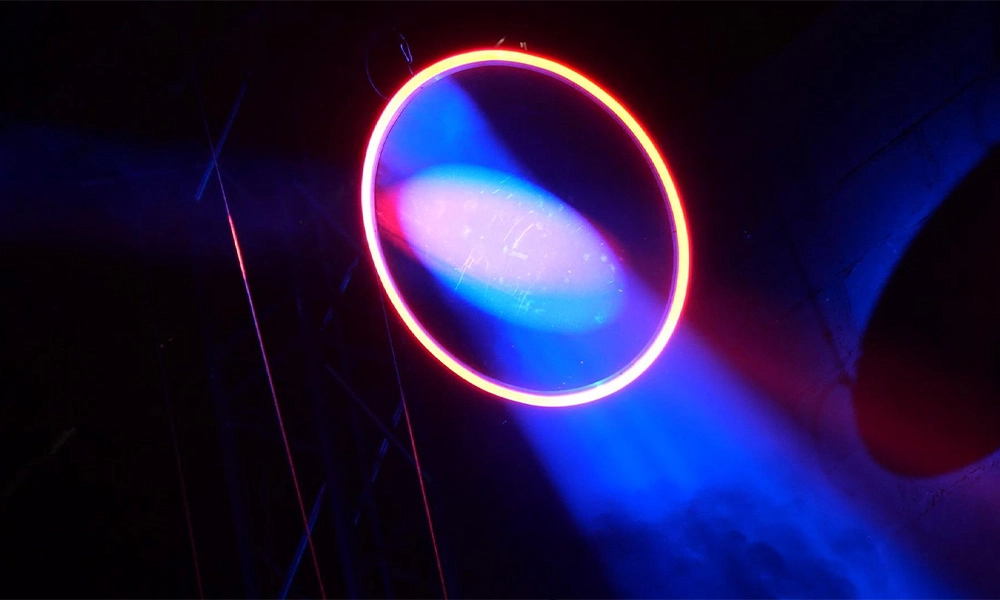

Lifting 80CM diameter luminous ring-03 - FENG-YI

Packaging & Logistic

Packaging - FENG-YI

Packaging

Each unit is packaged in a sturdy carton with foam insulation to protect aluminium components during transit. Custom flight cases are available for bulk orders to ensure safety for multiple units.

Logistics - FENG-YI

Logistics

Shipped via freight or courier services. The product is classified as electronic equipment; ensure transport within the ambient temperature range (5 - 40°C) to avoid damage.

Frequently Asked Questions

Products
What is the service life of LED lamp beads? Is professional personnel required for later replacement?

All our lights adopt imported LED chips, with a service life of ≥ 50,000 hours under normal use (8 hours of daily use can last for 17 years). The replacement of lamp beads requires professional operation—due to the involvement of wire soldering and heat dissipation adaptation, unprofessional operation may cause short circuits or uneven light effects. You can contact the after-sales team for on-site replacement or repair-by-mail services.

The fixture overheats and shuts down. What should I do?

Resolve overheating issues:

1. Environment Check: Ensure the operating temperature ≤60℃; move the fixture away from heat sources (e.g., stage heaters) and ensure 50cm clearance around the fan grille.

2. Fan Maintenance: Clean the fan and fan grille with compressed air (remove dust buildup); check if the fan runs when the fixture is powered on (replace fan if silent).

3. Protection Threshold: Enter "Settings → Temperature Protection" to adjust the threshold (default 60℃, max 80℃) if the environment requires higher operating temperatures.

The cutting blades do not move linearly. How to troubleshoot?

Fix with these steps:

1. Channel Check: Ensure the correct cutting channel (e.g., Cut 1: CH24) is selected on the controller; set the channel value to 100-255 (0=no movement).

2. Motor Calibration: Enter "Factory Settings → Motor Calibration → Cut 1" and adjust the offset (-128~+127) to compensate for mechanical errors.

3. Mechanical Blockage: Power off the fixture and check if debris (dust, wire) is blocking the blade’s travel path; clean the path with a soft brush and re-test.

Nightclub Lighting
Can your company provide design solutions?

Of course. We can provide a lighting design based on your budget and desired effect. Once the design is finalized, we can provide a 3D simulation video to give you a clear understanding of the overall design.

After-Sales Support
Can technical training be provided? For example, teaching customers how to debug DMX consoles and set light addresses.

Free technical training is supported:

▪ Online training: Operation video tutorials and live teaching (e.g., a "DMX Light Control Practical Course" once a month) are provided.

▪ Offline training: For wholesale customers (with a single purchase of ≥ 100 units), technicians can be arranged for on-site training (1-2 days, including console debugging, address setting, and fault troubleshooting).

▪ Customized training: For large-scale projects (e.g., stadium lighting projects), on-site technical guidance can be provided (charged based on the project cycle, specific details to be negotiated).
