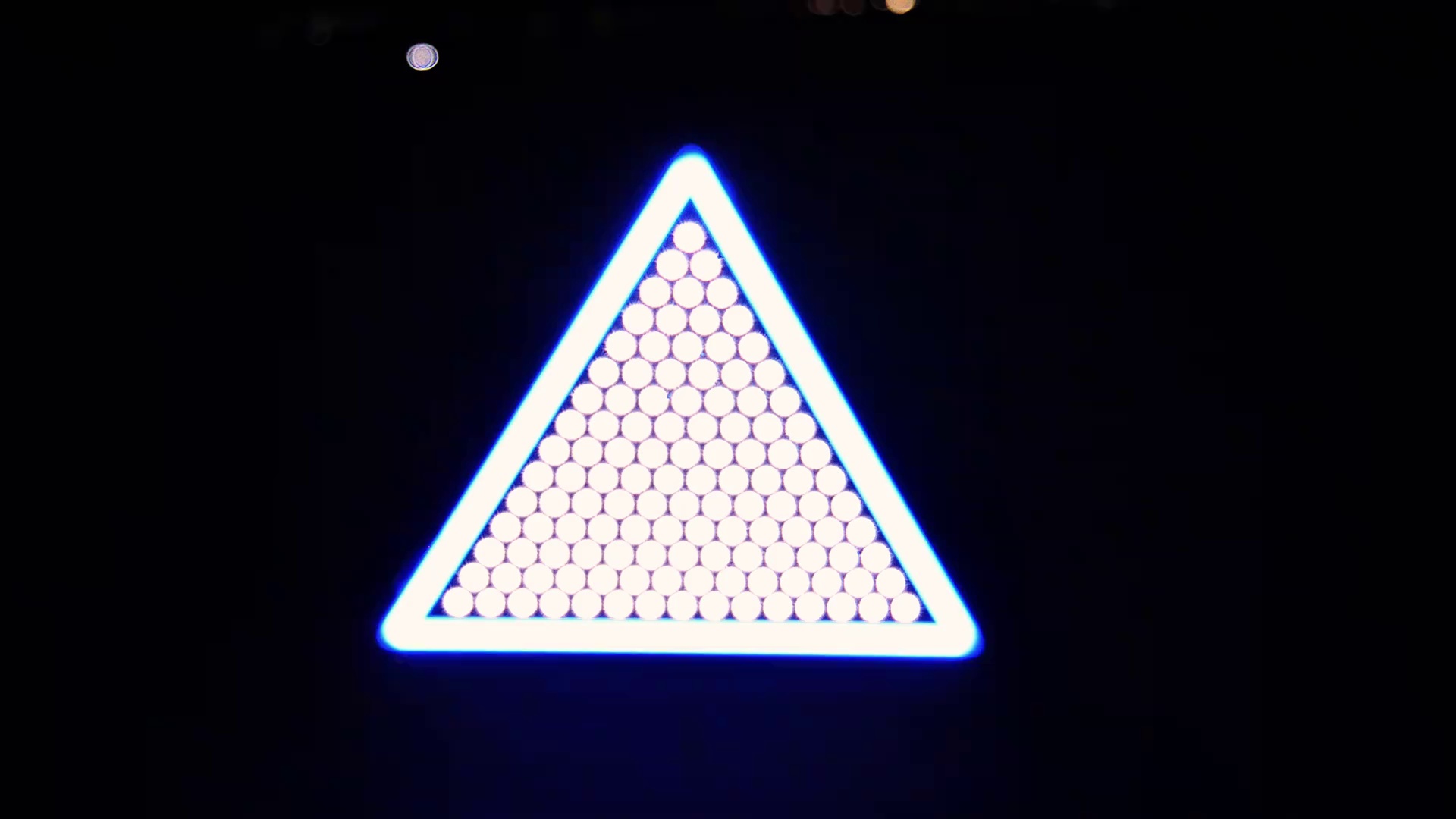

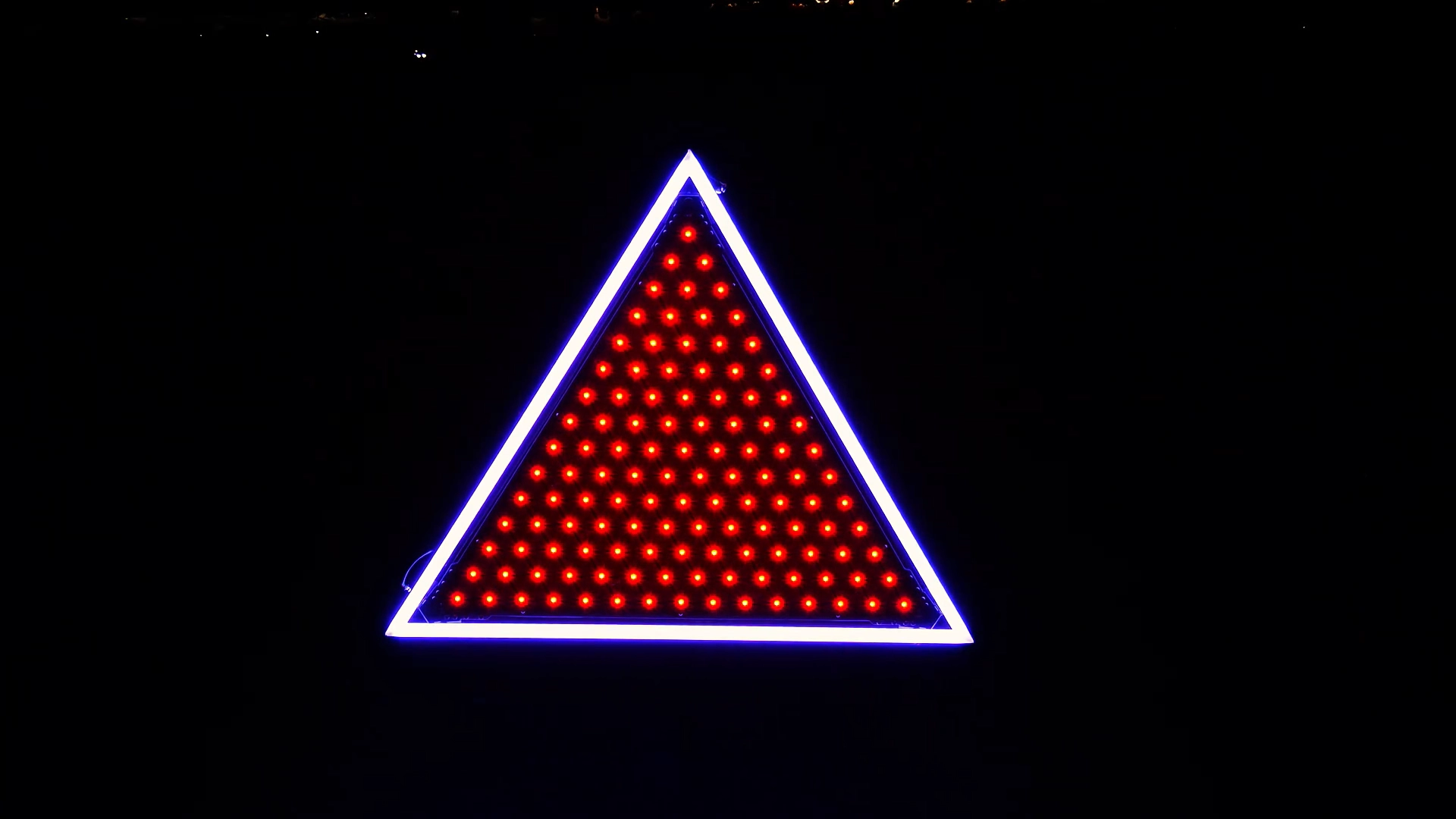

Kinetic Triangular Panel
Discover the FENG-YI Kinetic Triangular Panel, a cutting-edge kinetic triangle LED light panel designed for dynamic lighting solutions. Perfect for modern spaces, it combines innovative motion effects with energy-efficient LED technology to elevate any environment.
◉ Specifications
| Item No. |
DLB-H3-11073 (3 meters) DLB-H6-11074 (6 meters) |
||
| Fixture |
Part 1: Panel pixels | ||
| 120 Pixels | |||
| 120 pcs 0.2W RGB 3 in 1 LED Part 2: Triangle | |||
| Part 2: Triangle | |||
| 1 Pixel | |||
| 144 pcs 0.2W RGB 3 in 1 LED | |||
| Part 3: Beam | |||
| 15 Pixels | |||
| 15 pcs 10W warm white LED(2600-2800k) | |||
| Beam angle: 3° | |||
| Beam diameter: D28mm | |||
| Others | |||
| Dimensions : L 937x937x937 mm | |||
| Material: Aluminium+PE+PCB | |||
| Power: 250W | |||
| Weight: 4.6kg | |||
| Winch（0-6meters） | Lifting length: 0-3meters | ||
| Average lifting speed: 0.3m/s(3meters) ; 0.46m/s(6meters) | |||
| Power: 160W(1pcs) | |||
| Dimensions : L342 *W280*H432mm | |||
| Weight:16.5kg(1pcs) | |||
| Material: Aluminium | |||
| Housing color: Black | |||
| IP Class:lP20 | |||

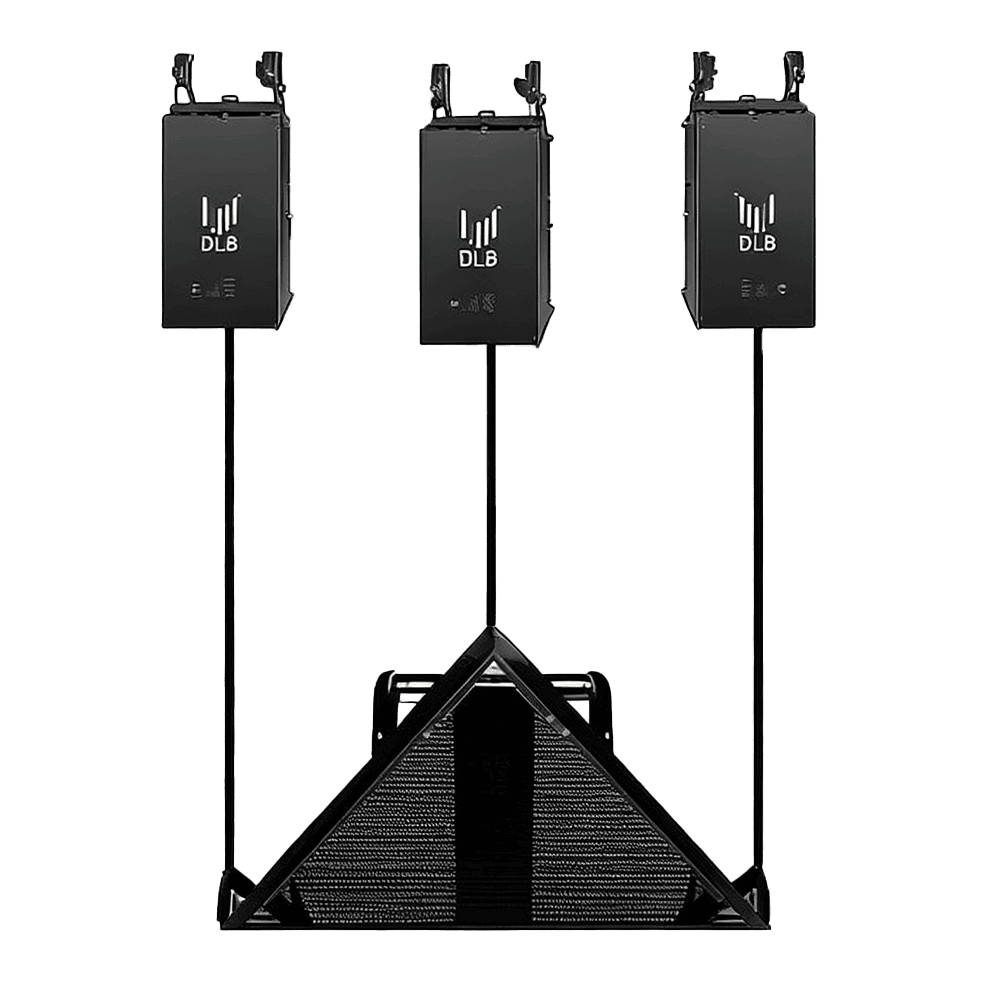

| Group | Winches x 3 | ||
| Triangle Beam Panel x 1 | |||
| Control | Graphic LCD control panel | ||
| 4 Menu buttons to set the functions | |||
| DMX512/RDM Protocol | |||
| DMX channels: Winch A: 366CH, Winch B: 54CH, Winch C: 4CH | |||
| Electrical and Connectionsz |
AC100 to 240 Volts , 50/60 Hz | ||
| Total power: 800W Maximum | |||
| Total weight: 55kg Maximum | |||
| 3-Pin XLR input and output | |||
| PowerCON input and output, Maximum connect 6 winches via daisy chain（220V）;Maximum connect 3 winches via daisy chain(110V) | |||
| Ambient temperature:5-40' | |||
| Installation | The minimum installation height is 3 meters | ||
| Ensure vertical hang | |||
| 6 x FY-SE-70002 clamps for hanging installation | |||
| Safety wire attachment hole | |||

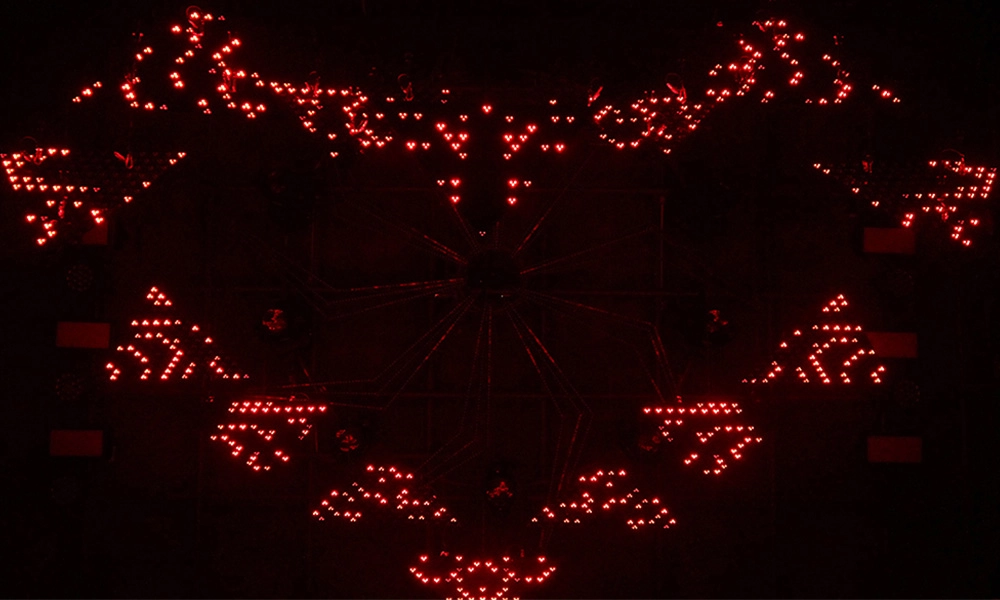

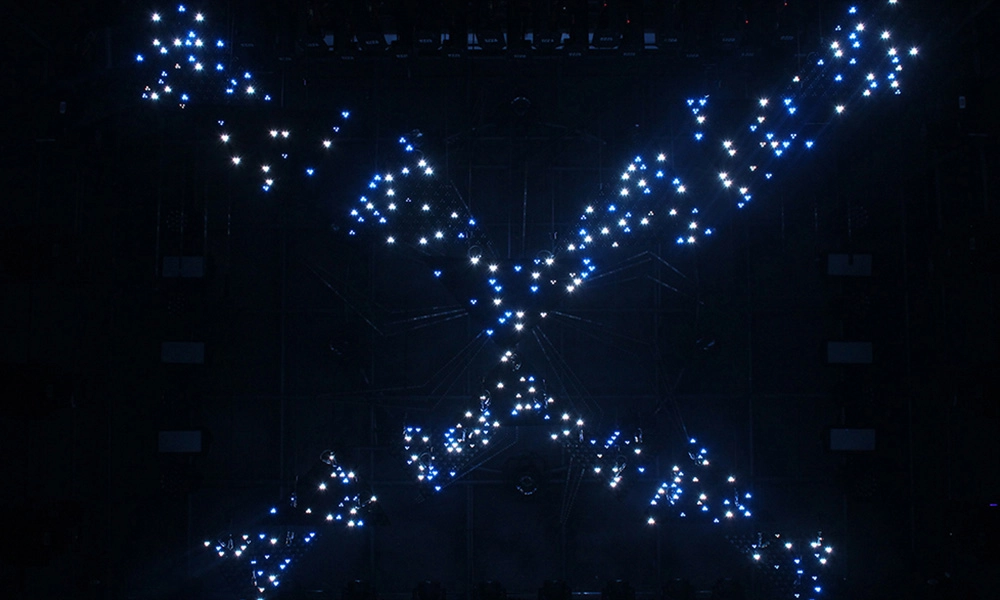

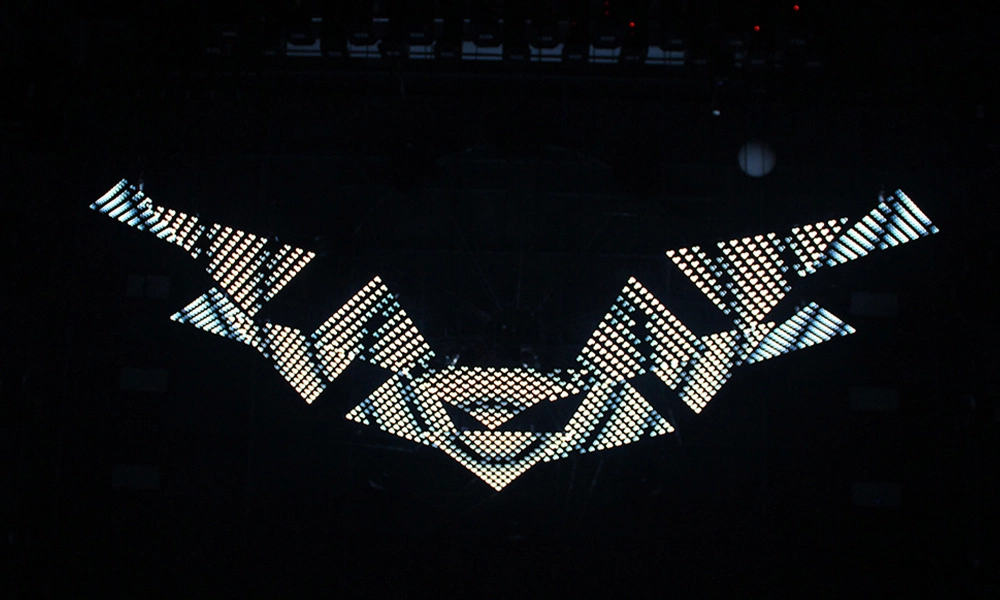

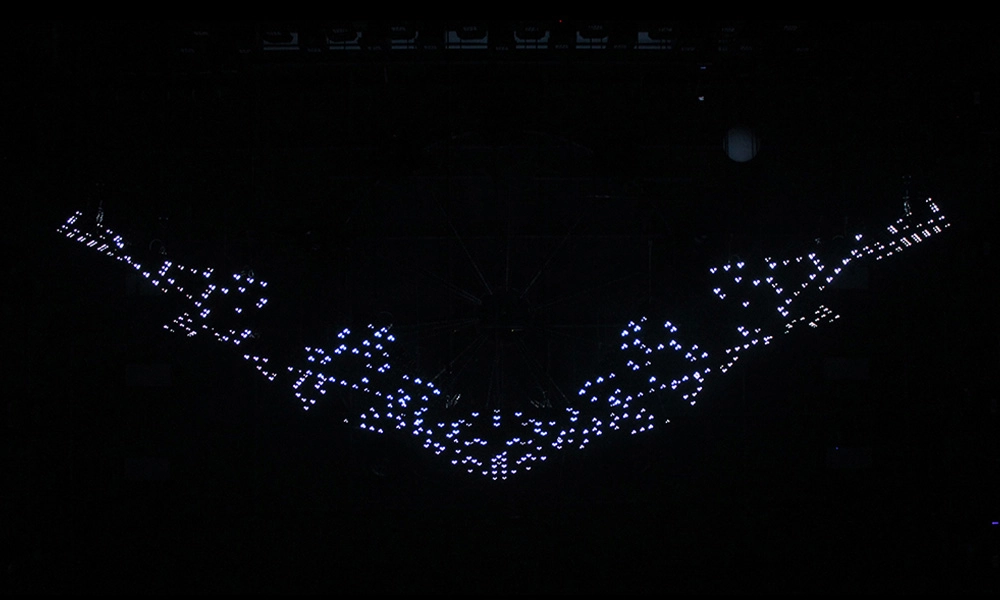

◉ Applications
◉ Packaging & Logistic
Packaging
Each unit is packaged in a sturdy carton with foam insulation to protect aluminium components during transit. Custom flight cases are available for bulk orders to ensure safety for multiple units.
Logistics
Shipped via freight or courier services. The product is classified as electronic equipment; ensure transport within the ambient temperature range (5 - 40°C) to avoid damage.
◉ Frequently Asked Questions
Products
What is the XY-axis rotation angle of moving head lights? Are there any load-bearing requirements for installation?
For conventional moving head lights, the X-axis rotation ranges from 0° to 540°, and the Y-axis rotation ranges from 0° to 205° (some models support 16-bit fine adjustment). Installation requirements: For hoisting, the load-bearing capacity of the support frame must be ≥ 1.5 times the weight of the light (e.g., a 10kg moving head light requires a support frame with ≥ 15kg load-bearing capacity). Additionally, a safety rope must be used to pass through the light's handle. When installing at an angle or upside down, pedestrians are prohibited from passing below, and the hook screws and rope wear must be checked regularly.
The lamp does not light up. What should I check?
Troubleshoot in 4 steps:
1. Power Supply: Confirm the input voltage matches AC 200V~240V/50~60Hz; check if the power cable is securely connected and the switch is on.
2. Cooling Period: Ensure the fixture has cooled for 20 minutes after previous use (mandatory cooling to prevent overheat damage).
3. DMX Signal: If in DMX mode, verify the controller is sending "Shutter On" (CH6: 252-255) and "Dimming" (CH7: 100-255) signals.
4. Internal Wiring: If above checks pass, contact after-sales to inspect internal connections (e.g., lamp holder, driver board) for loose or burned components.
Nightclub Lighting
Can your company provide design solutions?
Of course. We can provide a lighting design based on your budget and desired effect. Once the design is finalized, we can provide a 3D simulation video to give you a clear understanding of the overall design.
Wedding & Parties Lighting Solutions
Is the control system compatible with existing consoles?
Supports DMX / Art-Net / sACN for seamless integration with mainstream consoles; also enables Timecode-driven operation and multimedia synchronized control.
What is the delivery timeline?
Standard configurations: approx. 4–8 weeks; custom projects depend on scale and logistics. Expedited options and rental alternatives available.
