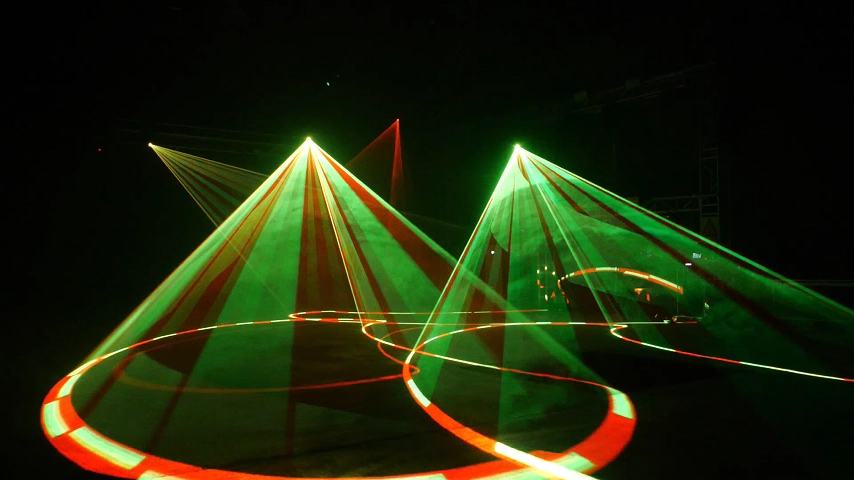

Kinetic Laser light——Ideal for a wide range of large-scale events: commercial spaces, TV shows, concerts, nightclubs, and various other settings.
◉ Product Features
◉ Specifications
| Power: ≤70WItem No. |
DLB-J3-11223(3m) DLB-J6-11224(6m) DLB-J8-11225(9m) |
||
| Fixture | Hanging point: 2 Pcs | ||
| Color: RGB | |||
| Light source: Semiconductor diode laser source | |||
| Angle: <1.3mrad | |||
| Modulation mode: analog modulation | |||
| Modulation frequency: 100K | |||
| Scanning system (galvanometer): 35kpps host (0-3m) | |||
| Scan angle maximum: 55° | |||
| Winch(0-8m) | Lifting height:0-8m | ||
| Double Cable winch | |||
| Lifting speed: 0.15m/S | |||
| Maximum loading:8kg | |||
| Material: Aluminium | |||
| Color:Black | |||
| Winch power:160w | |||
| Dimensions: L379*W342*H633mm | |||
| Weight: 29.2kg | |||
| IP Class 20 | |||
| Others | Dimensions: L197xW175xH190mm | ||
| Material: Aluminium | |||
| Power: ≤70W | |||
| Weight: 4kg | |||
| Control | Graphic LCD control panel | ||
| 4 Menu buttons to set the functions | |||
| DMX512/RDM Protocol | |||
| Winch DMX channels: 33ch | |||
| Electrical and Connectionsz |
Voltage:100-240VAC,50/60Hz | ||
| Fixture connections: GX20 4Pin | |||
| Signal connection: XR3/5-Pin Black aviation female plug | |||
| PowerCON Blue input and output, Maximum connect 4 winches via daisy chain(220V);Maximum connect 2 winches via daisy chain(110V) | |||
| Ambient temperature: 5-40° | |||
| Installation | The minimum installation height is 4 meters | ||
| Ensure vertical hang | |||
◉ Applications
◉ Advantages
◉ Customization Options
◉ Packaging & Logistic
Packaging
Each unit is packaged in a sturdy carton with foam insulation to protect aluminium components during transit. Custom flight cases are available for bulk orders to ensure safety for multiple units.
Logistics
Shipped via freight or courier services. The product is classified as electronic equipment; ensure transport within the ambient temperature range (5 - 40°C) to avoid damage.
◉ Frequently Asked Questions
Products
The fixture overheats and shuts down. What should I do?
Resolve overheating issues:
1. Environment Check: Ensure the operating temperature ≤60℃; move the fixture away from heat sources (e.g., stage heaters) and ensure 50cm clearance around the fan grille.
2. Fan Maintenance: Clean the fan and fan grille with compressed air (remove dust buildup); check if the fan runs when the fixture is powered on (replace fan if silent).
3. Protection Threshold: Enter "Settings → Temperature Protection" to adjust the threshold (default 60℃, max 80℃) if the environment requires higher operating temperatures.
The lamp does not light up. What should I check?
Troubleshoot in 4 steps:
1. Power Supply: Confirm the input voltage matches AC 200V~240V/50~60Hz; check if the power cable is securely connected and the switch is on.
2. Cooling Period: Ensure the fixture has cooled for 20 minutes after previous use (mandatory cooling to prevent overheat damage).
3. DMX Signal: If in DMX mode, verify the controller is sending "Shutter On" (CH6: 252-255) and "Dimming" (CH7: 100-255) signals.
4. Internal Wiring: If above checks pass, contact after-sales to inspect internal connections (e.g., lamp holder, driver board) for loose or burned components.
Customization/OEM Services
What is the minimum order quantity (MOQ) for OEM services? What materials need to be provided?
The MOQ for OEM services varies by product type: ≥ 50 units for a single model of conventional lights, and ≥ 20 units for a single model of large equipment such as elevating lights/moving head lights. The following materials need to be provided: the brand trademark registration certificate (or authorization letter), and vector graphics of the OEM logo (AI format is preferred). If modifications to the product manual content (e.g., brand information, contact details) are required, the final version of the text materials must be provided.
After-Sales Support
Can technical training be provided? For example, teaching customers how to debug DMX consoles and set light addresses.
Free technical training is supported:
▪ Online training: Operation video tutorials and live teaching (e.g., a "DMX Light Control Practical Course" once a month) are provided.
▪ Offline training: For wholesale customers (with a single purchase of ≥ 100 units), technicians can be arranged for on-site training (1-2 days, including console debugging, address setting, and fault troubleshooting).
▪ Customized training: For large-scale projects (e.g., stadium lighting projects), on-site technical guidance can be provided (charged based on the project cycle, specific details to be negotiated).
Nightclub Lighting
Can your company provide design solutions?
Of course. We can provide a lighting design based on your budget and desired effect. Once the design is finalized, we can provide a 3D simulation video to give you a clear understanding of the overall design.
