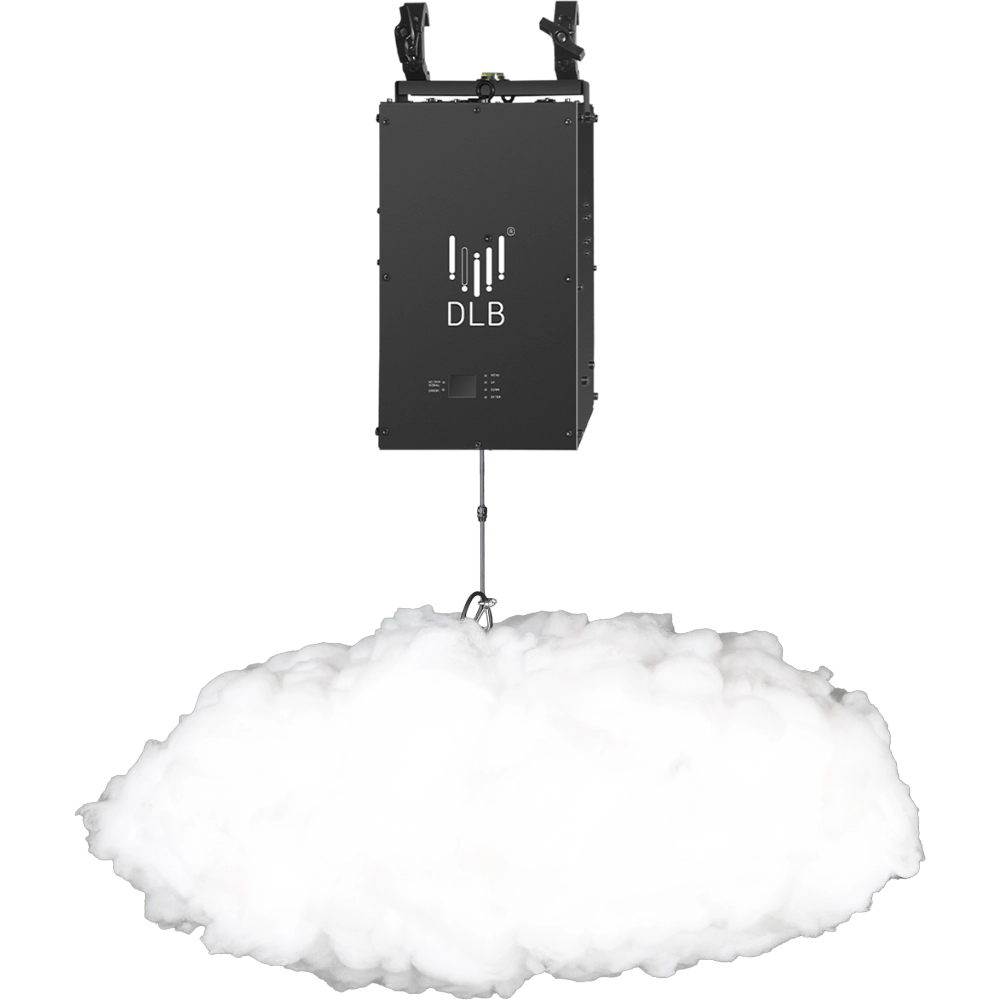

Kinetic Cloud-shaped lamp——Ideal for a wide range of large-scale events: commercial spaces, TV shows, concerts, nightclubs, and various other settings
The FENG-YI Kinetic Cloud-shaped lamp delivers dynamic lighting, perfect for large-scale events like concerts, TV shows, nightclubs, and commercial spaces. Its innovative design creates captivating atmospheres, enhancing any setting with vibrant, cloud-inspired motion.
◉ Product Features
◉ Specifications
| Item No. | DLB-H3-11115 (3 meters) | ||
| DLB-H6-11114 (6 meters) | |||
| Fixture | 1Pixels | ||
| 42 pcs 0.2W RGB 3 in 1 LED | |||
| Beam angle: 360° | |||
| Dimensions : L 1100 x W500mm x H500mm | |||
| Power: 10W Maximum | |||
| Weight:2.6kg | |||
| Winch(0-6m) | Lifting height: 0-6meters | ||
| Average lifting speed: 0.3m/s(3meters);0.46m/s(6meters) | |||
| Material: Aluminium | |||
| Housing color: Black | |||
| Power: 160W(1pcs) | |||
| Dimensions : L342 *W280*H432mm | |||
| Weight: 16.5kg(1pcs) | |||
| IP Class 20 | |||
| Group | Winches x 1 | ||
| Strobe Bar x 1 | |||
| Control | Graphic LCD control panel | ||
| 4 Menu buttons to set the functions | |||
| DMX512/RDM Protocol | |||
| DMX channels: 9CH | |||
| Electrical and Connectionsz |
AC100 to 240 Volts; 50/60 Hz | ||
| Total power: 200W Maximum | |||
| Total weight: 20kg Maximum | |||
| 3-Pin XLR input and output | |||
| PowerCON input and output, Maximum connect 8 winches via daisy chain(220V);Maximum connect 4 winches via daisy chain(110V) | |||
| Ambient temperature:-5-40° | |||
| Installation | The minimum installation height is 4 meters | ||
| Ensure vertical hang | |||
| 2 x FY-SE-70002 clamps for hanging installation | |||
| Safety wire attachment hole | |||
◉ Applications
◉ Advantages
◉ Customization Options
◉ Packaging & Logistic
Packaging
Each unit is packaged in a sturdy carton with foam insulation to protect aluminium components during transit. Custom flight cases are available for bulk orders to ensure safety for multiple units.
Logistics
Shipped via freight or courier services. The product is classified as electronic equipment; ensure transport within the ambient temperature range (5 - 40°C) to avoid damage.
◉ Frequently Asked Questions
Wedding & Parties Lighting Solutions
Is the control system compatible with existing consoles?
Supports DMX / Art-Net / sACN for seamless integration with mainstream consoles; also enables Timecode-driven operation and multimedia synchronized control.
What is the delivery timeline?
Standard configurations: approx. 4–8 weeks; custom projects depend on scale and logistics. Expedited options and rental alternatives available.
Wholesale Cooperation
What is the restocking cycle for wholesale customers? Can production be prioritized?
The restocking cycle for standard models is 3-7 days (same-day shipment if stock is sufficient), and the restocking cycle for customized models is the same as the initial customization cycle (15-45 days). For annual cooperative customers (with an annual purchase amount of ≥ 500,000 RMB), a "priority restocking agreement" can be signed, and 10%-15% of safety stock will be reserved to ensure emergency restocking needs are met within 3 days.
Products
The X/Y axis moves abnormally (jitter, no response). What causes this?
Address the issue as follows:
1. Mechanical Check: Open the fixture (after power-off) to inspect if the X/Y axis belts are loose or broken; re-tighten or replace belts if needed.
2. Optical Coupling Calibration: Enter "Settings → Motor Calibration → X/Y Axis" to adjust the offset (-128~+127) or enable "Optical Coupling" (auto-corrects step loss).
3. Reset & Restart: Press "Menu → Reset → XY Reset" to reposition the axes; if no response, check the X/Y axis photoelectric switches (replace if "X/Y Hall Error" appears in the error menu).
The fixture does not respond to the DMX controller. How to fix it?
Resolve with these checks:
1. DMX Address & Channels: Ensure the fixture’s starting address is correct (e.g., 34CH fixture 1: A001, fixture 2: A035) and the controller’s channel count ≥ total fixture channels.
2. Signal Wiring: Use shielded twisted-pair DMX cables (≤150m); install a 120Ω terminal resistor between pins 2-3 of the last fixture’s XLR connector.
3. Signal Amplification: For cable lengths >150m, add a DMX signal amplifier to avoid signal loss; separate DMX cables from high-voltage power cables (≥1m apart) to prevent interference.
