Kinetic Mini Ball

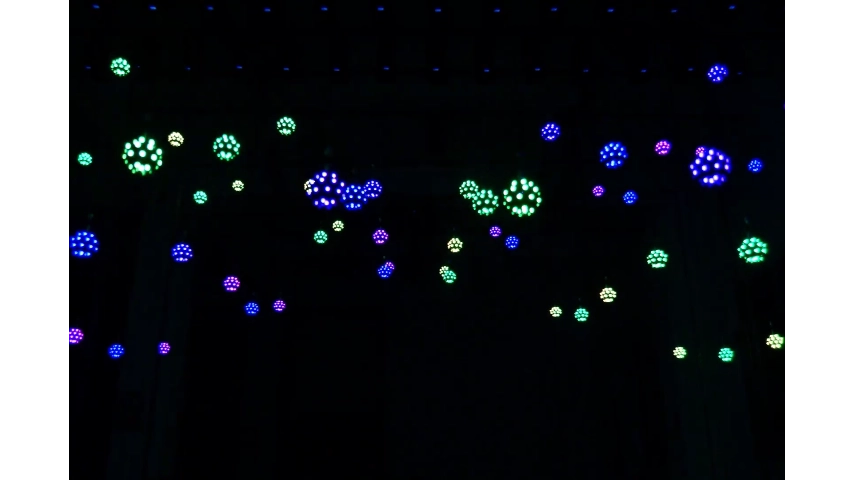

The DLB Mini Ball is an innovative LED projection system engineered to create dynamic and immersive lighting atmospheres.
Featuring a 360° luminous sphere with 33 RGB LEDs, a black PCB exterior, and an Earth-like shape (85mm in diameter), it supports DMX512 control, master-slave operation, and sound activation.
With adjustable lifting strokes (3 m, 6 m, or 9 m) and a maximum speed of 1 m/s, this system delivers vivid, synchronized color effects and vertical movement for venues such as stages, banquets, and commercial spaces.
◉ Product Features
360° Luminous Sphere
•The 85mm-diameter sphere (with a black PCB exterior and Earth-like design) emits light in all directions via 33 RGB LEDs, enabling uniform and rich color mixing.
Versatile Control Modes
Integrates DMX512 (9-channel mode), master-slave synchronization, and sound-activated triggering to support flexible scene customization.
Adjustable Lifting Function
Offers lifting strokes of 3m, 6m, or 9m with a maximum speed of 1m/s, allowing for dynamic vertical movement.
Intuitive Operation Interface
Equipped with a built-in LCD display panel and 4 mechanical single keys for easy parameter setting (including dimming and mode selection).
Efficient RGB Lighting
33 RGB LEDs provide 0-100% linear dimming and a wide range of color combinations.
◉ Specifications
| Item No. | DLB-A3-11006 (3 meters) | ||
| Fixture |
1 Pixels | ||
| 33 pcs 0.2W RGB 3 in 1 LED | |||
| Light angle: 360° | |||
| Material: PCB | |||
| Power: 6.6W | |||
| Dimensions : D85mm | |||
| Weight: 0.2kg | |||
| Winch（0-3meters） | Lifting length: 0-3meters | ||
| Average lifting speed: 0.45m/s | |||
| Power: 100W(1pcs) | |||
| Dimensions : L157 *W157*H316mm | |||
| SWeight: 4.8kg(1pcs) | |||
| Material: Aluminium | |||
| Housing color: Black | |||
| IP Class:lP20 | |||
| Group | Winches x 1 | ||
| Arc Light x 1 | |||
| Control | Graphic LCD control panel | ||
| 4 Menu buttons to set the functions | |||
| DMX512/RDM Protocol | |||
| DMX channels: 9CH | |||
| Electrical and Connectionsz |
AC100 to 240 Volts , 50/60 Hz | ||
| Total power: 110W Maximum | |||
| Total weight:6kg Maximum | |||
| 3-Pin XLR input and output | |||
| PowerCON input and output, Maximum connect 9 winches via daisy chain(220V);Maximum connect 5 winches via daisy chain(110V); | |||
| Ambient temperature:5-40' | |||
| Installation | The minimum installation height is 4 meters | ||
| Ensure vertical hang | |||
| 1x FY-SE-70001 clamps for hanging installation | |||
| Safety wire attachment hole | |||
◉ Applications
Stage Performances
Concerts, theatrical shows, and live events to introduce dynamic lighting and visual intrigue.
Banquet & Event Venues
Weddings, corporate dinners, and celebrations to craft romantic or festive atmospheres.
Commercial & Public Spaces
Shopping malls, exhibition halls, and atriums for aesthetic and interactive lighting displays.
◉ Advantages & Competitiveness
360° Immersive Lighting
The all-around luminous sphere ensures uniform color distribution, enhancing the visual appeal of spaces.
Flexible Control Options
Supports DMX512, master-slave, and sound-activated modes, adapting to both professional and simple operational needs.
Customizable Lifting Dynamics
Multiple stroke options (3m/6m/9m) and a maximum speed of 1m/s allow tailored vertical movement for venues of different heights.
User-Friendly Operation
The LCD display and mechanical keys simplify parameter adjustment, while the ability to daisy-chain up to 10 hosts streamlines large-scale deployments.
Compact & Safe Design
The lightweight sphere (0.1kg) and IP20 protection ensure reliable indoor use, with safety mounting components adding security.
◉ Customization Options
Sphere Customization
Alternative sphere shapes, sizes, or exterior finishes (other than the default black PCB and Earth-like design).
Lifting Stroke
Custom stroke lengths for specialized venue requirements (subject to technical feasibility).
Control Functions
Extended DMX channel modes or additional control protocols for integrated smart lighting systems.
Host Aesthetics
Custom spray coating colors for the metal host enclosure to match venue design themes.
◉ Packaging & Logistic
Packaging
▪ Each unit is packaged with protective foam and placed in a durable carton. For bulk orders, custom packaging (e.g., flight cases for multiple units) is available.
▪ Included accessories: User manual, warranty card, 1.5m 3-pin XLR signal cable, 1.5m 3-core power cable, mounting hardware.
Logistics Instructions
▪ Transport via courier or freight; mark as "fragile" to ensure careful handling.
▪ Storage: Keep in a dry, cool environment (0-40°C) away from direct moisture or extreme temperatures.
◉ Frequently Asked Questions
Products
The fixture does not respond to the DMX controller. How to fix it?
Resolve with these checks:
1. DMX Address & Channels: Ensure the fixture’s starting address is correct (e.g., 34CH fixture 1: A001, fixture 2: A035) and the controller’s channel count ≥ total fixture channels.
2. Signal Wiring: Use shielded twisted-pair DMX cables (≤150m); install a 120Ω terminal resistor between pins 2-3 of the last fixture’s XLR connector.
3. Signal Amplification: For cable lengths >150m, add a DMX signal amplifier to avoid signal loss; separate DMX cables from high-voltage power cables (≥1m apart) to prevent interference.
The X/Y axis moves abnormally (jitter, no response). What causes this?
Address the issue as follows:
1. Mechanical Check: Open the fixture (after power-off) to inspect if the X/Y axis belts are loose or broken; re-tighten or replace belts if needed.
2. Optical Coupling Calibration: Enter "Settings → Motor Calibration → X/Y Axis" to adjust the offset (-128~+127) or enable "Optical Coupling" (auto-corrects step loss).
3. Reset & Restart: Press "Menu → Reset → XY Reset" to reposition the axes; if no response, check the X/Y axis photoelectric switches (replace if "X/Y Hall Error" appears in the error menu).
What is the XY-axis rotation angle of moving head lights? Are there any load-bearing requirements for installation?
For conventional moving head lights, the X-axis rotation ranges from 0° to 540°, and the Y-axis rotation ranges from 0° to 205° (some models support 16-bit fine adjustment). Installation requirements: For hoisting, the load-bearing capacity of the support frame must be ≥ 1.5 times the weight of the light (e.g., a 10kg moving head light requires a support frame with ≥ 15kg load-bearing capacity). Additionally, a safety rope must be used to pass through the light's handle. When installing at an angle or upside down, pedestrians are prohibited from passing below, and the hook screws and rope wear must be checked regularly.
What light control modes does the 7-lamp 60W wash light support? Is it compatible with DMX consoles of other brands?
It supports three control modes: DMX512, sound activation, and auto-run. The channels can be selected as 23CH/35CH/51CH (the 51CH mode enables independent R/G/B/W dimming for each individual lamp bead). It complies with the international universal DMX512 protocol and is compatible with mainstream brand consoles (e.g., MA, Good, Pearl consoles). When connecting, it is recommended to connect a 120Ω terminator to the output end of the last light to reduce signal interference.
The fixture overheats and shuts down. What should I do?
Resolve overheating issues:
1. Environment Check: Ensure the operating temperature ≤60℃; move the fixture away from heat sources (e.g., stage heaters) and ensure 50cm clearance around the fan grille.
2. Fan Maintenance: Clean the fan and fan grille with compressed air (remove dust buildup); check if the fan runs when the fixture is powered on (replace fan if silent).
3. Protection Threshold: Enter "Settings → Temperature Protection" to adjust the threshold (default 60℃, max 80℃) if the environment requires higher operating temperatures.
