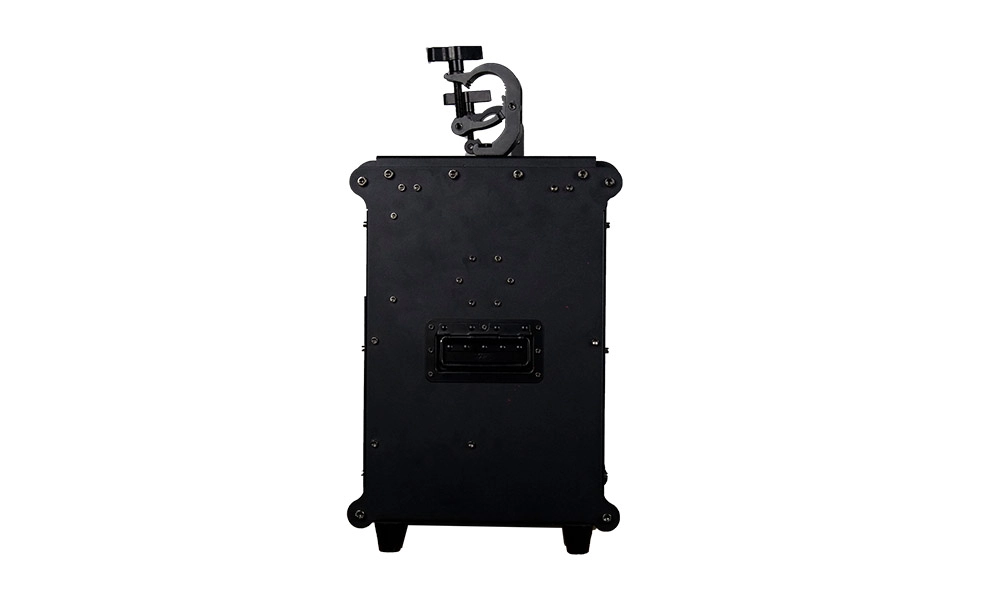

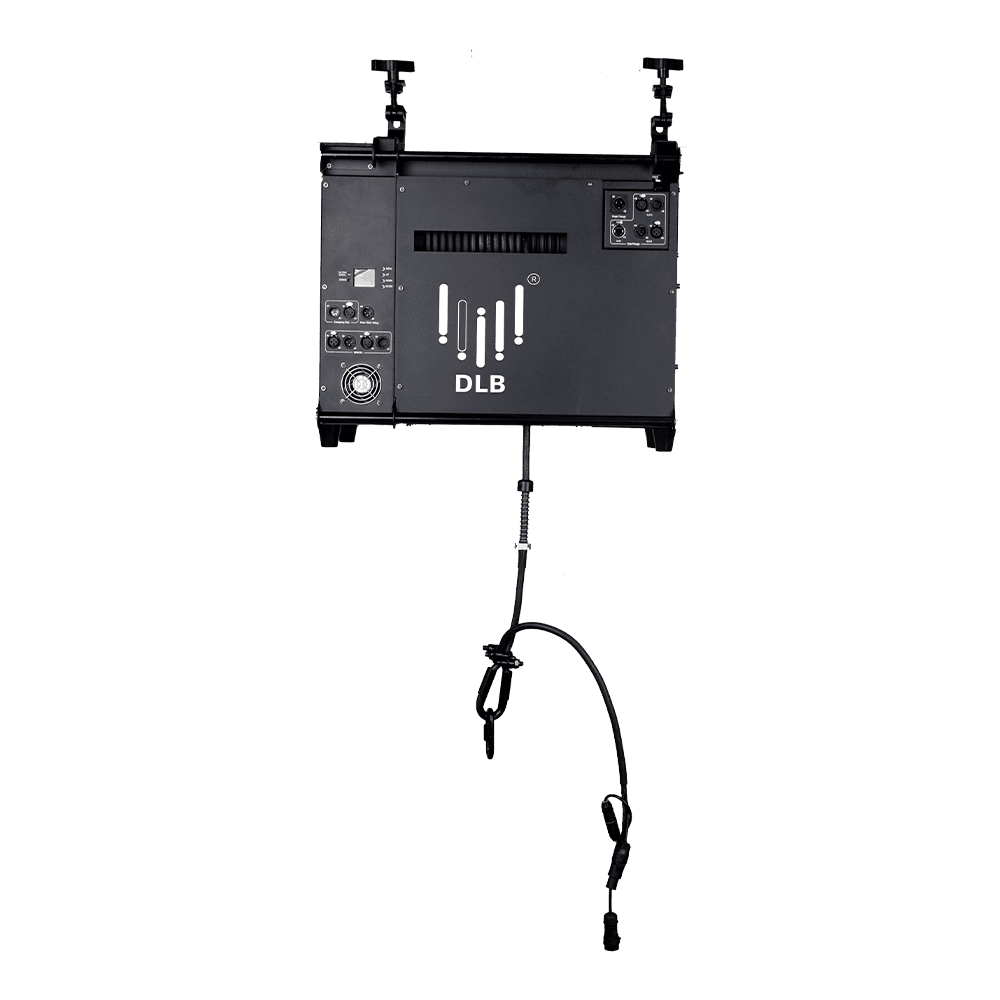

DLB Kinetic Winch 9m15kg
The FENG-YI DLB Kinetic Winch 9m15kg offers reliable power and efficiency for heavy-duty lifting. Designed for durability and smooth operation, this kinetic winch ensures safe handling of loads up to 15kg with a 9-meter reach—ideal for industrial and construction applications.
◉ Specifications
| Item No. | |||
| DLB-P9-9170 | |||
| Motor hoist 9m 15kg | |||
| Installation | |||
| The minimum installation height is 4 meters | |||
| Ensure vertical hang | |||

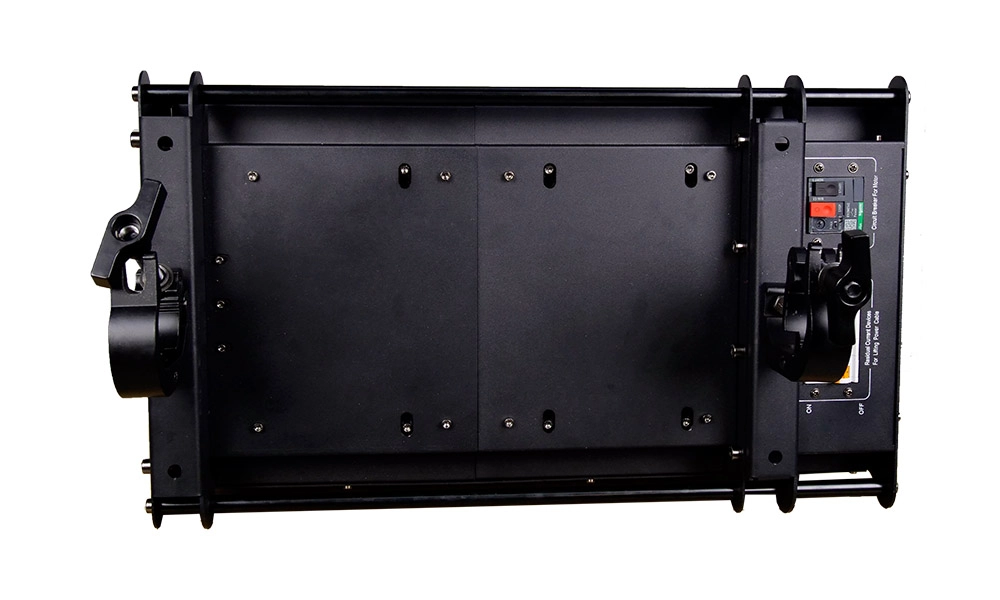

| 2 x FY-SE-70004 clamps for hanging installation | |||
| Specifications | |||
| Lifting length | 0-9meters | ||
| Average lifting speed | 0.5m/s | ||
| Lifting capacity | 15kg | ||
| 16bit fine Movment | |||
| Single composite Cable With AC Power and Cat-5e Cable | |||
| Material | Aluminium and Iron | ||
| Housing color | Black | ||
| Weight | 39kg (1pcs) | ||
| Dimensions | L615*W360*H648mm | ||
| IP Class | IP20 | ||
| Control | |||
| Graphic TTF LCD control panel； | |||
| 4 Menu buttons to set the functions | |||
| Protocol | DMX512+RDM | ||
| Channels mode | 4ch | ||
| Electrical and Connectors | |||
| Winch power | 1200W | ||
| Servo motor power | 750W | ||
| Passthrough power | ≤1320W(AC220V);≤660W(AC110V) | ||

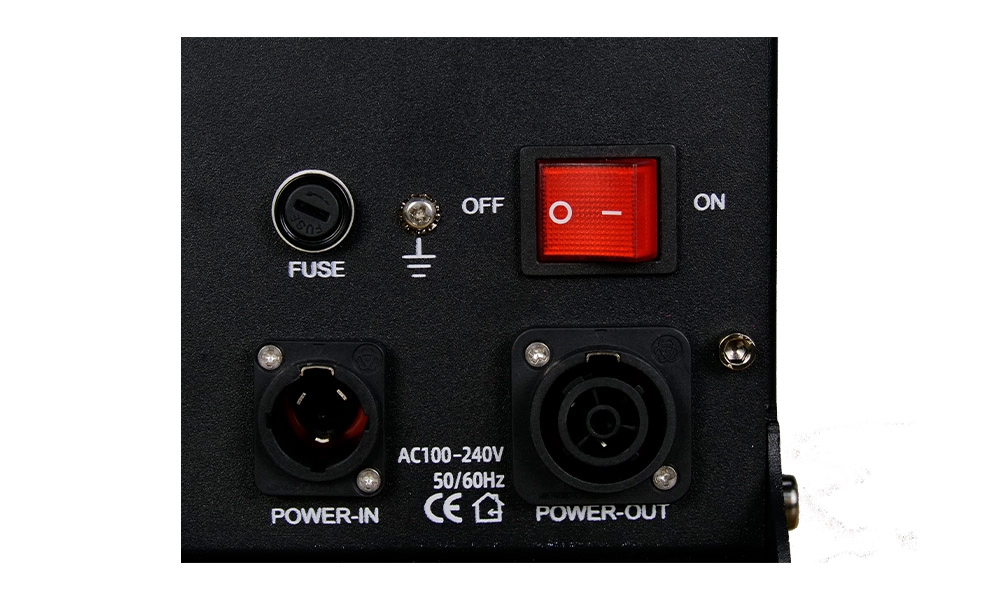

| Input volts | AC100 to 240 Volts;50/60Hz | ||
| Signal for movement | XLR-3 male-female socket pair,XLR-5 male-female socket pair (DMX512 signal for controlling the lift and lowering) | ||
| XLR-3 public socket (Servo Motor Debugging Port) | |||
| XLR-4 public socket (An emergency stop switch interface) | |||

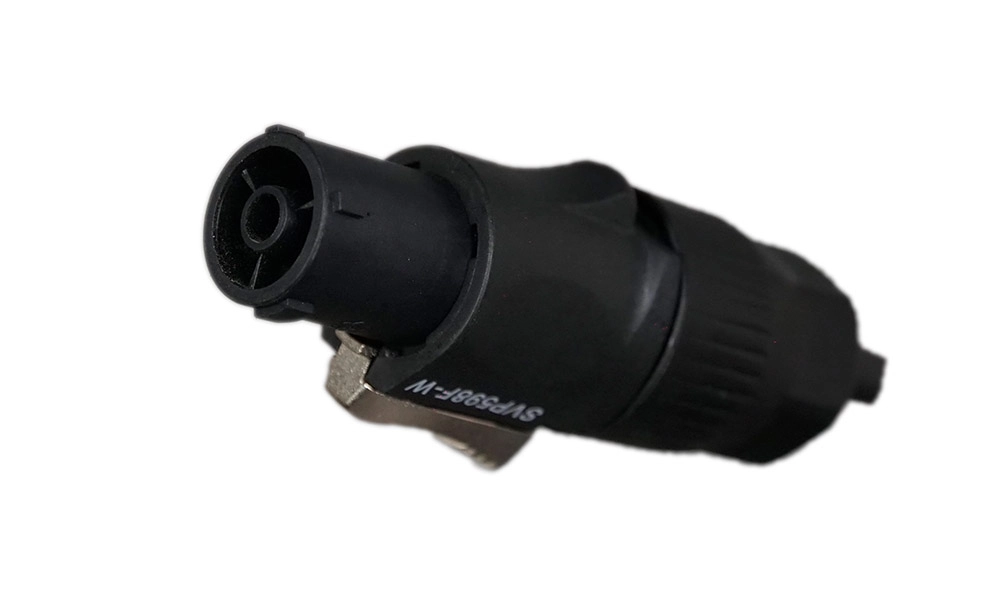

| True1 Male/Female Power Adapter, Maximum connection: 2 hosts in series (at 220V), 1 host in series (at 110V) | |||

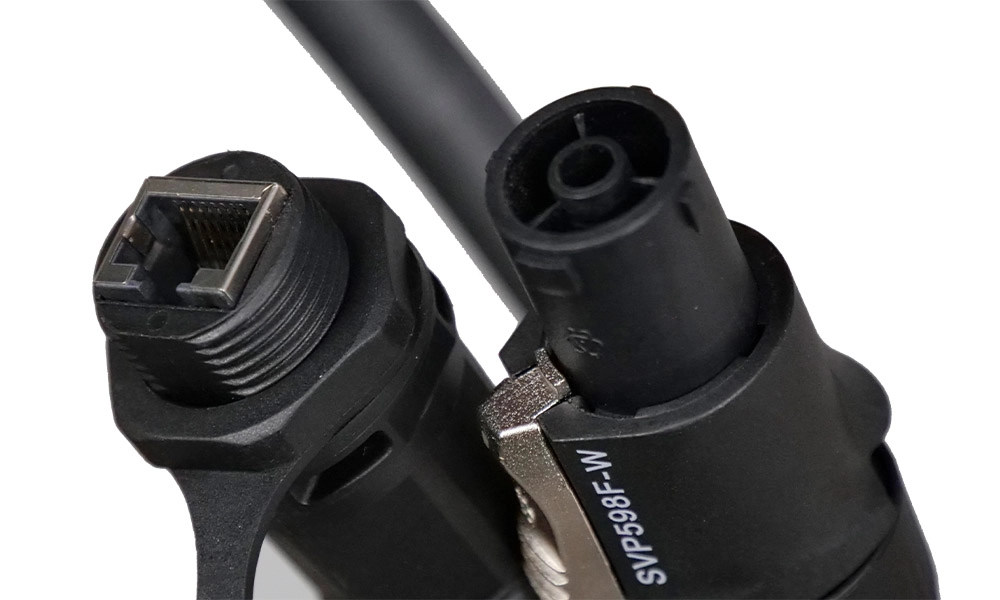

| Passthrough signal input ports | 1 x Ethercon RJ45 ,XLR-3 male-female socket pair,XLR-5 male-female socket pair | ||
| Passthrough signal output ports | 1 x RJ45 | ||
| Passthrough power input ports | True 1 female connector | ||
| Passthrough power output ports | 1 x True 1 female connector | ||
| Ambient temperature | 5-40℃ | ||
◉ Product Details
◉ Packaging & Logistic
Packaging
Each unit is packaged in a sturdy carton with foam insulation to protect aluminium components during transit. Custom flight cases are available for bulk orders to ensure safety for multiple units.
Logistics
Shipped via freight or courier services. The product is classified as electronic equipment; ensure transport within the ambient temperature range (5 - 40°C) to avoid damage.
◉ Frequently Asked Questions
Products
What light control modes does the 7-lamp 60W wash light support? Is it compatible with DMX consoles of other brands?
It supports three control modes: DMX512, sound activation, and auto-run. The channels can be selected as 23CH/35CH/51CH (the 51CH mode enables independent R/G/B/W dimming for each individual lamp bead). It complies with the international universal DMX512 protocol and is compatible with mainstream brand consoles (e.g., MA, Good, Pearl consoles). When connecting, it is recommended to connect a 120Ω terminator to the output end of the last light to reduce signal interference.
The fixture overheats and shuts down. What should I do?
Resolve overheating issues:
1. Environment Check: Ensure the operating temperature ≤60℃; move the fixture away from heat sources (e.g., stage heaters) and ensure 50cm clearance around the fan grille.
2. Fan Maintenance: Clean the fan and fan grille with compressed air (remove dust buildup); check if the fan runs when the fixture is powered on (replace fan if silent).
3. Protection Threshold: Enter "Settings → Temperature Protection" to adjust the threshold (default 60℃, max 80℃) if the environment requires higher operating temperatures.
Nightclub Lighting
Can your company provide design solutions?
Of course. We can provide a lighting design based on your budget and desired effect. Once the design is finalized, we can provide a 3D simulation video to give you a clear understanding of the overall design.
Wholesale Cooperation
What is the MOQ for wholesale cooperation? Is there a tiered pricing policy?
MOQ for wholesale: ≥ 10 units for a single model of conventional lights, and ≥ 5 units for a single model of elevating lights/moving head lights. Tiered pricing is supported: Taking conventional PAR lights as an example, a 5% discount is offered for 10-50 units, a 10% discount for 51-100 units, and a 15% discount for over 100 units. Specific quotations can be negotiated with the account manager based on the cooperation scale (e.g., annual purchase volume).
Wedding & Parties Lighting Solutions
How is safety ensured?
Encoder closed-loop control, emergency stop circuits, software/hardware limit switches, load monitoring, and collision-avoidance zones. A comprehensive pre-performance checklist is provided.
