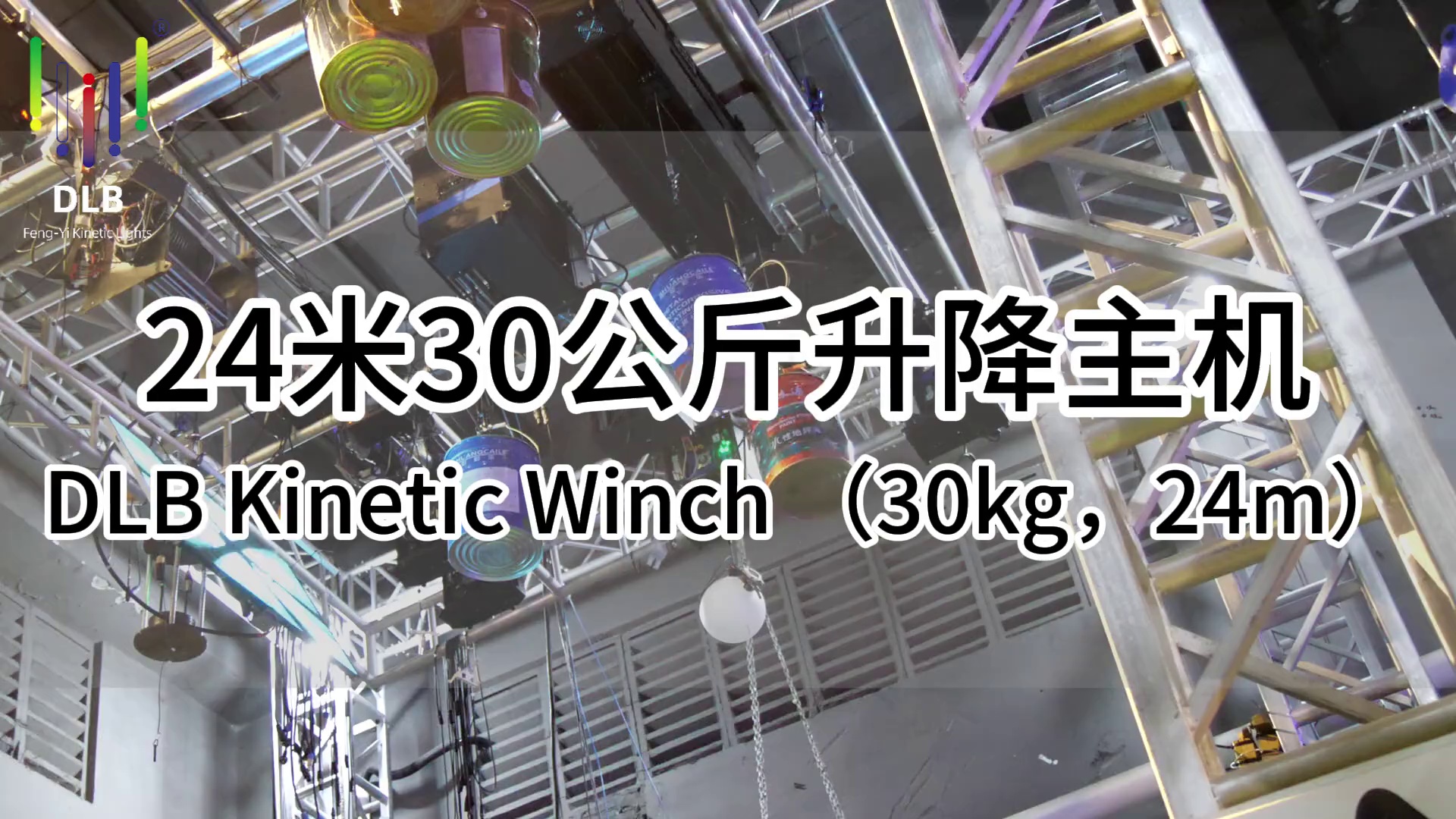

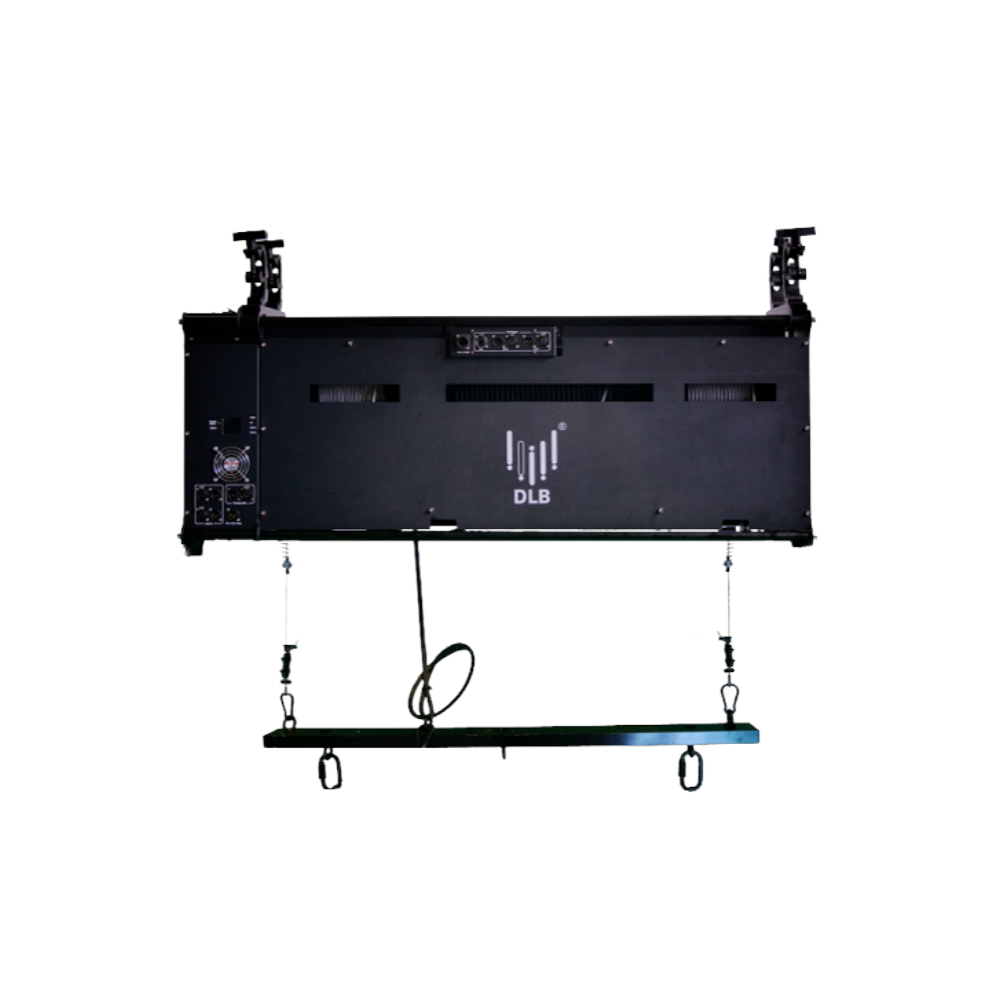

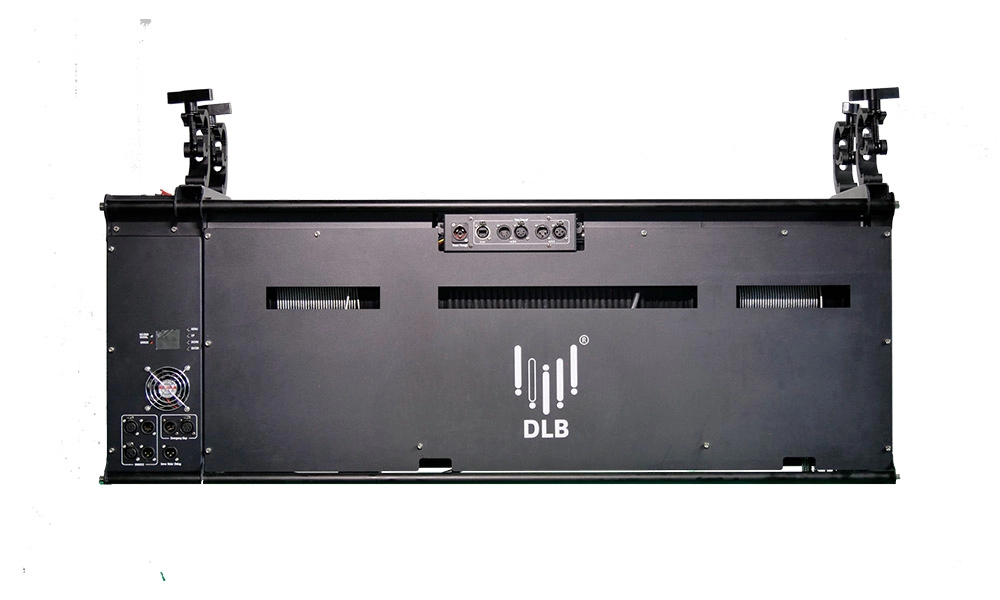

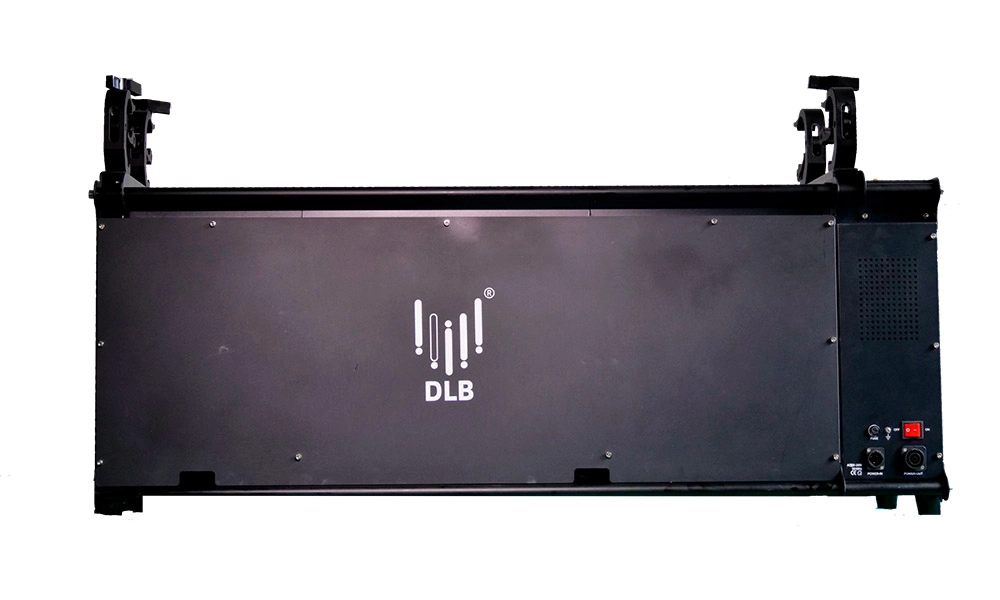

DLB Kinetic Winch 24m30kg
The FENG-YI DLB Kinetic Winch 24m30kg delivers powerful, reliable kinetic winching with a 24-meter line and 30kg capacity. Ideal for efficient load pulling and rescue tasks, this kinetic winch combines durability and performance for professional use. Perfect for your kinetic winch needs.
◉ Specifications
| Item No. | |||
| DLB-P24-9166 | |||
| Motor hoist 24m 30kg | |||
| Installation | |||
| The minimum installation height is 4 meters | |||
| Ensure vertical hang | |||

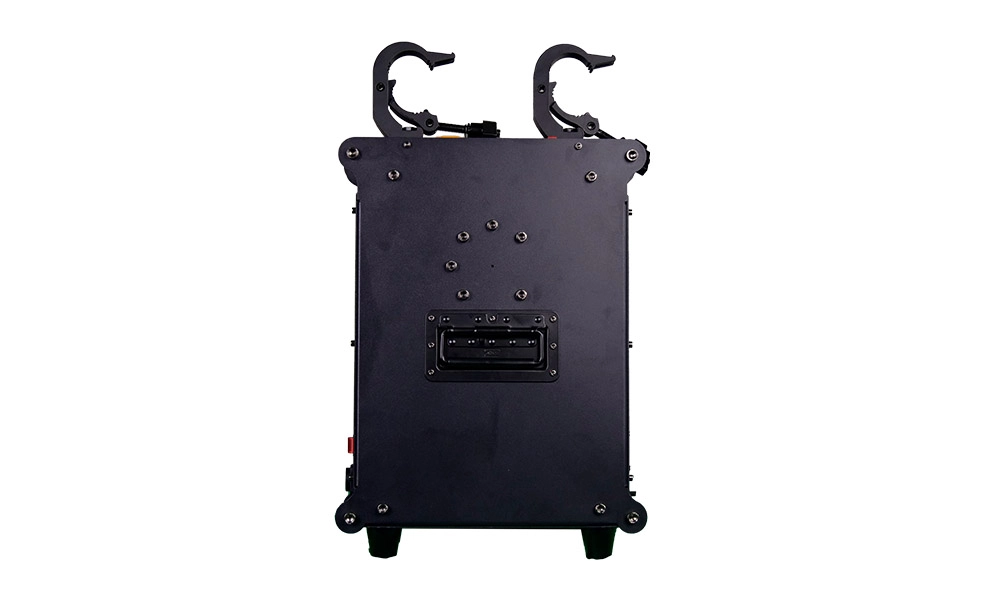

| 4 x FY-SE-70004 clamps for hanging installation | |||
| Specifications | |||
| Lifting length | 0-24meters | ||
| Average lifting speed | 0.4m/s | ||
| Lifting capacity | 30kg | ||
| 16bit fine Movment | |||
| Single composite Cable With AC Power and Cat-5e Cable | |||
| Material | Aluminium and Iron | ||
| Housing color | Black | ||
| Weight | 83kg ( 1pcs ) | ||
| Dimensions | L1230*W360*H626mm | ||
| IP Class | IP20 | ||
| Control | |||
| Graphic TTF LCD control panel； | |||
| 4 Menu buttons to set the functions | |||
| Protocol | DMX512+RDM | ||
| Channels mode | 4ch | ||
| Electrical and Connectors | |||
| Winch power | 1200W | ||
| Servo motor power | 1000W | ||
| Passthrough power | ≤1320W(AC220V);≤660W(AC110V) | ||
| Input volts | AC100 to 240 Volts;50/60Hz | ||
| Signal for movement | XLR-3 male-female socket pair,XLR-5 male-female socket pair (DMX512 signal for controlling the lift and lowering) | ||
| XLR-3 public socket (Servo Motor Debugging Port) | |||
| XLR-4 public socket (An emergency stop switch interface) | |||
| True1 Male/Female Power Adapter, Maximum connection: 2 hosts in series (at 220V), 1 host in series (at 110V) | |||

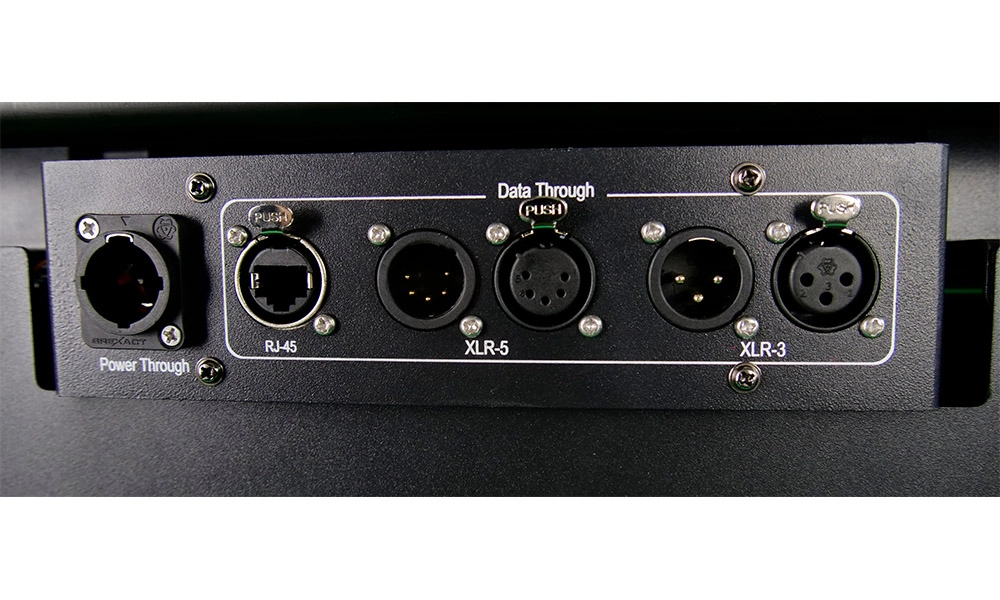

| Passthrough signal input ports | 1 x Ethercon RJ45 ,XLR-3 male-female socket pair, XLR-5 male-female socket pair | ||
| Passthrough signal output ports | 1 x RJ45 | ||
| Passthrough power input ports | True 1 female connector | ||
| Passthrough power output ports | 1 x True 1 female connector | ||
| Ambient temperature | 5-40℃ | ||
◉ Product Details
◉ Packaging & Logistic
Packaging
Each unit is packaged in a sturdy carton with foam insulation to protect aluminium components during transit. Custom flight cases are available for bulk orders to ensure safety for multiple units.
Logistics
Shipped via freight or courier services. The product is classified as electronic equipment; ensure transport within the ambient temperature range (5 - 40°C) to avoid damage.
◉ Frequently Asked Questions
After-Sales Support
What is included in the product warranty scope? How to handle human-induced damage (e.g., falling, water ingress)?
Warranty scope: Hardware faults caused by non-human factors (e.g., motor failure, lamp bead non-illumination, light control failure). The whole machine is warranted for 1 year, LED lamp beads for 2 years, and core components of the elevating structure (e.g., hydraulic pump, motor) for 2 years. For human-induced damage, a cost fee will be charged for repairs (e.g., replacing the elevating motor requires charging the motor cost + repair fee). The after-sales team will first provide a fault detection report and repair quotation, and repairs will start only after the customer confirms.
What is the after-sales process when a product malfunctions? How long is the repair cycle?
After-sales process:
01. The customer contacts the after-sales team (by phone/WeChat) and provides the product model, fault description, and purchase certificate.
02. Technicians conduct remote troubleshooting (e.g., guiding parameter debugging, checking circuits). If the problem cannot be solved, repair by mail or on-site repair will be arranged.
03. Repairs for products sent by mail will be completed and returned within 3-5 days after receipt (freight is borne by us). On-site repair (limited to prefecture-level cities and above) will respond within 48 hours, with a repair cycle of 1-3 days.
Wedding & Parties Lighting Solutions
What about after-sales support and training?
On-site training + remote technical support, spare parts availability, and annual inspections. Service Level Agreements (SLAs) for maintenance services are available.
Wholesale Cooperation
Is there a regional protection policy to avoid competition among multiple wholesalers in the same region?
For prefecture-level cities and above, an "exclusive wholesale cooperation" policy is implemented: If there is already a cooperative wholesaler in a region (with an annual purchase amount of ≥ 300,000 RMB), no second wholesaler of the same type will be developed. For county-level regions, 2-3 wholesalers can be developed based on market demand, but clear sales scopes must be divided (e.g., by town) to avoid vicious competition.
Are samples provided for wholesale cooperation? How is the sample fee settled?
1-2 standard samples are provided free of charge (the customer needs to bear the freight). For customized samples, a cost fee is charged (e.g., 200-500 RMB/unit for appearance-customized samples). If the customer places a subsequent bulk order (meeting the MOQ of the corresponding product), the sample fee can be fully deducted from the payment, and free samples do not need to be returned.
