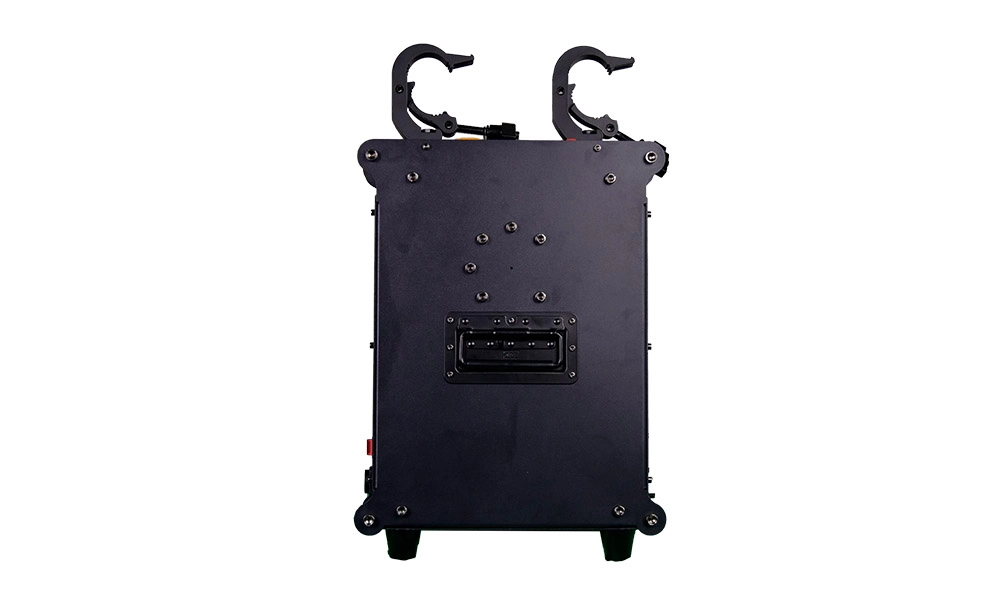

DLB Kinetic Winch 20m50kg
The FENG-YI DLB Kinetic Winch 20m50kg offers powerful, reliable lifting and pulling with a 20m cable length and 50kg capacity. Designed for efficiency and durability, this kinetic winch is ideal for various industrial and outdoor applications. Enhance your workflow with FENG-YI quality.
◉ Specifications
| Item No. | |||
| DLB-P20-9161 | |||
| Motor hoist 20m 50kg | |||
| Installation | |||
| The minimum installation height is 4 meters | |||
| Ensure vertical hang | |||
| 4 x FY-SE-70004 clamps for hanging installation | |||
| Specifications | |||
| Lifting length | 0-20meters | ||
| Average lifting speed | 0.3m/s | ||
| Lifting capacity | 50kg | ||
| 16bit fine Movment | |||
| Two lifting Wires and one composite Cable With AC Power and Cat-5e Cable | |||
| Material | Aluminium and Iron | ||
| Housing color | Black | ||
| Weight | 83kg (1pcs ) | ||
| Dimensions | L1230*W360*H626mm | ||
| IP Class | IP20 | ||
| Control | |||
| Graphic TTF LCD control panel； | |||
| 4 Menu buttons to set the functions | |||
| Protocol | DMX512+RDM | ||
| Channels mode | 4ch | ||
| Electrical and Connectors | |||
| Winch power | 1200W | ||
| Servo motor power | 1000W | ||
| Passthrough power | ≤1320W(AC220V);≤660W(AC110V) | ||
| Input volts | AC100 to 240 Volts;50/60Hz | ||
| Signal for movement | XLR-3 male-female socket pair, XLR-5 male-female socket pair (DMX512 signal for controlling the lift and lowering) | ||
| XLR-3 public socket (Servo Motor Debugging Port) | |||
| XLR-4 public socket (An emergency stop switch interface) | |||
| True1 Male/Female Power Adapter, Maximum connection: 2 hosts in series (at 220V), 1 host in series (at 110V) | |||

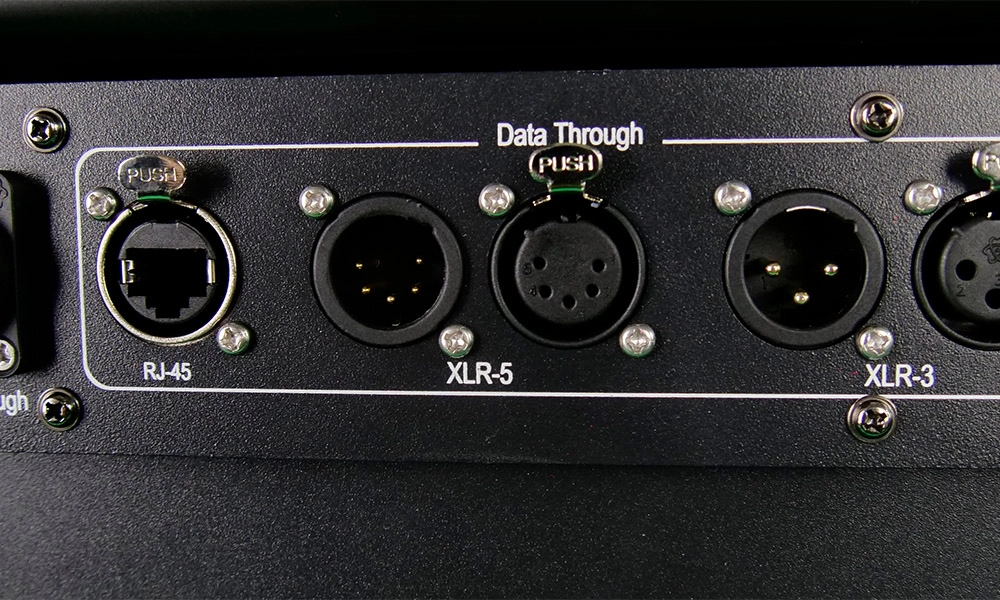

| Passthrough signal input ports | 1 x Ethercon RJ45 ,XLR-3 male-female socket pair,XLR-5 male-female socket pair | ||
| Passthrough signal output ports | 1 x RJ45 | ||
| Passthrough power input ports | True 1 female connector | ||
| Passthrough power output ports | 1 x True 1 female connector | ||
| Ambient temperature | 5-40℃ | ||
◉ Product Details
◉ Packaging & Logistic
Packaging
Each unit is packaged in a sturdy carton with foam insulation to protect aluminium components during transit. Custom flight cases are available for bulk orders to ensure safety for multiple units.
Logistics
Shipped via freight or courier services. The product is classified as electronic equipment; ensure transport within the ambient temperature range (5 - 40°C) to avoid damage.
◉ Frequently Asked Questions
Nightclub Lighting
Can your company provide design solutions?
Of course. We can provide a lighting design based on your budget and desired effect. Once the design is finalized, we can provide a 3D simulation video to give you a clear understanding of the overall design.
Products
The X/Y axis moves abnormally (jitter, no response). What causes this?
Address the issue as follows:
1. Mechanical Check: Open the fixture (after power-off) to inspect if the X/Y axis belts are loose or broken; re-tighten or replace belts if needed.
2. Optical Coupling Calibration: Enter "Settings → Motor Calibration → X/Y Axis" to adjust the offset (-128~+127) or enable "Optical Coupling" (auto-corrects step loss).
3. Reset & Restart: Press "Menu → Reset → XY Reset" to reposition the axes; if no response, check the X/Y axis photoelectric switches (replace if "X/Y Hall Error" appears in the error menu).
The fixture overheats and shuts down. What should I do?
Resolve overheating issues:
1. Environment Check: Ensure the operating temperature ≤60℃; move the fixture away from heat sources (e.g., stage heaters) and ensure 50cm clearance around the fan grille.
2. Fan Maintenance: Clean the fan and fan grille with compressed air (remove dust buildup); check if the fan runs when the fixture is powered on (replace fan if silent).
3. Protection Threshold: Enter "Settings → Temperature Protection" to adjust the threshold (default 60℃, max 80℃) if the environment requires higher operating temperatures.
Wedding & Parties Lighting Solutions
Are there minimum requirements for venue ceiling height and load capacity?
We recommend a clear height of ≥6–8 m (higher may be required for choreography needs). Load capacity is calculated based on point load plus safety factor. We provide structural calculations and suspension point recommendations.
How is safety ensured?
Encoder closed-loop control, emergency stop circuits, software/hardware limit switches, load monitoring, and collision-avoidance zones. A comprehensive pre-performance checklist is provided.
