15m 25kg Intelligent Kinetic Lighting Winch System for Stage Shows Exhibition and Nightclub
Stage Lighting Winch by FENG-YI is a 15m 25kg motorized lighting winch designed for precise kinetic lighting lift system control in stage shows, exhibitions, and nightclubs, ensuring reliable, quiet operation and easy integration with existing rigging setups.
◉ Specifications
| Item No. | |||
| DLB-P15-9165 | |||
| Motor hoist 15m 25kg | |||
| Installation | |||
| The minimum installation height is 4 meters | |||
| Ensure vertical hang | |||
| 2 x FY-SE-70004 clamps for hanging installation | |||
| Specifications | |||
| Lifting length | 0-15meters | ||
| Average lifting speed | 0.32m/s | ||
| Lifting capacity | 25kg | ||
| 16bit fine Movment | |||
| Two composite Cables With AC Power and Cat-5e Cable | |||
| Weight | Aluminium and Iron | ||
| Housing color | Black | ||
| Weight | 45kg (1pcs ) | ||
| Dimensions | L874*W328*H392mm | ||
| IP Class | IP20 | ||
| Control | |||
| Graphic TTF LCD control panel； | |||
| 4 Menu buttons to set the functions | |||
| Protocol | DMX512+RDM | ||
| Channels mode | 4ch | ||
| Electrical and Connectors | |||
| Winch power | 1000W | ||
| Servo motor power | 750W | ||
| Passthrough power | 1300W(AC220V);600W(AC110V); | ||
| Input volts | AC100 to 240 Volts;50/60Hz | ||

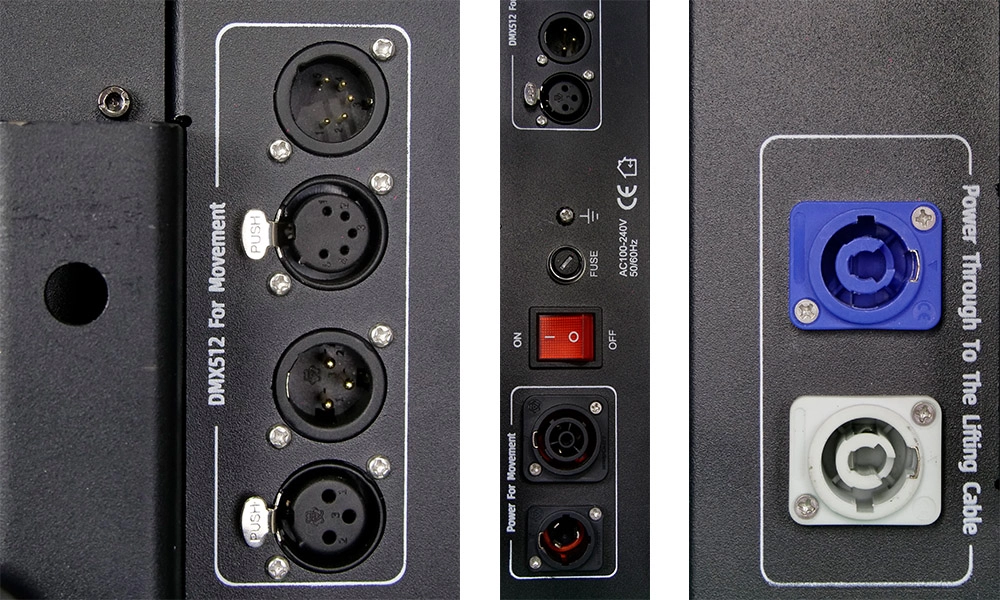

| Signal for movement | XLR-3 male-female socket pair,XLR-5 male-female socket pair（DMX512 signal for controlling the lift and lowering） | ||
| XLR-4 public socket (Servo Motor Debugging Port) | |||
| True1 Male/Female Power Adapter,Maximum connection: 2 hosts in series (at 220V), 1 host in series (at 110V) | |||
| Passthrough signal input ports | 1 x Ethercon RJ45 ,1 x XLR-3 public socket | ||
| Passthrough signal output ports | 1 x RJ45 | ||
| Passthrough power input ports | Blue and white power adapter x1 pair | ||
| Passthrough power output ports | 1 x True 1 female connector | ||
| Ambient temperature | 5-40℃ | ||
◉ Product Details
◉ Project Case Recommendations
China-Silence Wang Live in Guangzhou-Kinetic Pixel Line
FENG-YI’s China-Silence Wang Live in Guangzhou showcases the innovative Kinetic Pixel Line, combining dynamic Kinetic Light technology for an immersive visual experience. Discover how cutting-edge Kinetic Light transforms spaces with vibrant motion and energy.
↳ Read More
Shanghai Light Festival-2024
FENG-YI showcased innovative Kinetic Bars and Kinetic Bulbs at the Shanghai Light Festival-2024, creating dynamic light sculptures that blend art and technology. This project highlights our expertise in kinetic lighting solutions, enhancing urban spaces with interactive visual experiences.
↳ Read More
Wuchuan Oscar Bar
Discover how FENG-YI transformed Wuchuan Oscar Bar with innovative kinetic lights, creating a dynamic and immersive atmosphere. Our kinetic lights for bar solutions enhance ambiance and elevate guest experiences, blending cutting-edge technology with stylish design.
↳ Read More
Qingdao Supermiu
Qingdao Supermiu by FENG-YI showcases innovative kinetic lighting solutions that transform spaces with dynamic illumination. This case highlights cutting-edge design and energy efficiency, enhancing ambiance and user experience. Discover how kinetic lighting elevates modern environments.
↳ Read More
Huadu PIU Club
Huadu PIU Club by FENG-YI showcases innovative kinetic lights that elevate ambiance and design. This project highlights dynamic lighting solutions, blending artistry with technology to create captivating environments. Discover how FENG-YI transforms spaces with kinetic light installations.
↳ Read More
He LIVE HOUSE nightclub
FENG-YI’s He LIVE HOUSE nightclub project features innovative kinetic lights, transforming the venue with dynamic lighting effects. Our kinetic lights for nightclub deliver immersive experiences, enhancing ambiance and energy for unforgettable nightlife moments. Discover cutting-edge nightclub lighting solutions.
↳ Read More
Grammy Union Nightclub
FENG-YI’s Grammy Union Nightclub project showcases innovative kinetic lighting, transforming the nightlife experience. Expertly designed kinetic lighting for nightclub spaces enhances ambiance and energy, creating a dynamic environment that captivates visitors and elevates the brand’s atmosphere.
↳ Read More
Fuzhou MK Nightclub
FENG-YI’s kinetic light installation at Fuzhou MK Nightclub transforms the space with dynamic, mesmerizing effects. Expertly designed kinetic light for nightclub environments enhances atmosphere and energy, creating an unforgettable experience that elevates nightlife entertainment.
↳ Read More
GETshow 2026 in Guangzhou was a premier global exhibition for professional lighting and entertainment technology
FENG-YI proudly showcased cutting-edge kinetic lighting at GETshow 2026 Guangzhou. As leading GETshow kinetic lighting exhibitors, we defined kinetic lighting trends and drove innovation in entertainment technology. Explore our dynamic displays and solutions from this premier global exhibition!
↳ Read More
2020 Exhibition Interactive | Interactive Art Studio
FENG-YI transformed the 2020 Exhibition Interactive into a stunning light art installation that captivated visitors through immersive experiential art installation design. The project merged technology with creative vision, delivering an unforgettable interactive experience that redefined how audiences engage with contemporary art.
↳ Read More
2023 GETSHOW Exhibition Featured Immersive LED Installation
FENG-YI designed a kinetic lighting immersive experience for the 2023 GETSHOW Exhibition, blending dynamic LED installations with interactive motion to captivate visitors. As a kinetic art installation company, we transformed the exhibition space into an engaging environment where light and movement worked together to create lasting brand impact.
↳ Read More
Tourism promotion for Luoyang Luoyi Ancient City.
FENG-YI brought Luoyang's ancient heritage to life through kinetic art installations that transformed the Luoyi Ancient City into an immersive experience. Our experiential art installation drew thousands of visitors, boosting tourism engagement and cultural storytelling in ways static displays never could.
↳ Read More
Large Scale Kinetic Lighting Used in Hubei Spring Festival Gala
FENG-YI's kinetic lighting system transformed the Hubei Spring Festival Gala with dynamic stage visual effects that synchronized perfectly to live performance. Our creative stage lighting design delivered real-time motion control across massive installations, giving performers and audiences an unforgettable visual experience that set a new standard for large-scale broadcast productions.
↳ Read More
The Yingtianmen Light Show at the Sui-Tang Luoyang City | Cultural Scenic Dynamic Lighting Show
FENG-YI designed and executed large outdoor kinetic lighting for the Yingtianmen Light Show at Sui-Tang Luoyang City, transforming the historic site into a dynamic cultural performance lighting spectacle. The installation brought ancient architecture to life with synchronized motion and color, creating an immersive visitor experience that honored the location's heritage while showcasing modern lighting innovation.
↳ Read More
Douyin’s Spectacular Heritage Gala
FENG-YI’s kinetic lights and kinetic line light illuminated Douyin’s Spectacular Heritage Gala, creating dynamic visual effects that enhanced the event’s immersive atmosphere. Discover how our innovative lighting solutions bring heritage celebrations to life with vibrant motion and energy.
↳ Read More
◉ Packaging & Logistic
Packaging
Each unit is packaged in a sturdy carton with foam insulation to protect aluminium components during transit. Custom flight cases are available for bulk orders to ensure safety for multiple units.
Logistics
Shipped via freight or courier services. The product is classified as electronic equipment; ensure transport within the ambient temperature range (5 - 40°C) to avoid damage.
◉ Frequently Asked Questions
Nightclub Lighting
Do you offer pre-programmed services?
Yes, we can pre-set multiple "lighting scenes" (e.g., welcome mode, performance mode, climax mode, and clearing mode) for you. You can switch between them at will, allowing you to see how the lighting changes dynamically with the music and business hours, creating a truly immersive experience.
After-Sales Support
Can accessories (e.g., power cords, DMX signal cables, lamp beads) be purchased separately after the lights have been used for many years?
Separate purchase of accessories is supported. Common accessories (power cords, signal cables, standard lamp beads) are in stock and will be shipped within 1-3 days after ordering. Special accessories (e.g., hydraulic pumps for elevating lights, XY-axis motors for moving head lights) need to be reserved 3-5 days in advance. The after-sales team can provide accessory installation guidance (e.g., sending installation videos).
Wedding & Parties Lighting Solutions
Is system operation quiet?
We offer noise-optimized solutions (vibration damping/soft start/low-noise wire rope guidance) to meet acoustic requirements for TV studios and commercial spaces.
How is safety ensured?
Encoder closed-loop control, emergency stop circuits, software/hardware limit switches, load monitoring, and collision-avoidance zones. A comprehensive pre-performance checklist is provided.
Products
What light control modes does the 7-lamp 60W wash light support? Is it compatible with DMX consoles of other brands?
It supports three control modes: DMX512, sound activation, and auto-run. The channels can be selected as 23CH/35CH/51CH (the 51CH mode enables independent R/G/B/W dimming for each individual lamp bead). It complies with the international universal DMX512 protocol and is compatible with mainstream brand consoles (e.g., MA, Good, Pearl consoles). When connecting, it is recommended to connect a 120Ω terminator to the output end of the last light to reduce signal interference.
