DLB-G3-11042 Lifting Triangle Arc Light

The FENG-YI DLB-G3-11042 Lifting Triangle Arc Light features cutting-edge LED kinetic triangle tube light technology. This kinetic triangle LED light panel delivers dynamic illumination with energy efficiency and sleek design—perfect for modern architectural and commercial lighting applications.

Specifications

Item No.

DLB-E3-11038 (3 meters)

DLB-E6-11039 (6 meters)

Fixture

72 Pixels
432 pCs 0.3W RGB LED
Light angle:270°
Material: LLDPE White
Power: 129.6W
Dimensions :L1029mm*W1029 mm*H1029mm
Weight: 3.45kg
Winch(0-6m)   Lifting height: 0-3meters
Average lifting speed:0- 0.47m/s
Power: 100W(1pcs)
External dimensions: length, width and height 247 * 167 * 337mm (without lamp hooks);
Length, width and height 247 * 167 * 452mm (including lamp hook)
Weight: 7kg(1pcs)
Material: Aluminium
Housing color: Black
IP Class:lP20
Group Winches x 3
Arc Light x 1
Control Graphic LCD control panel
4 Menu buttons to set the functions
DMX512/RDM Protocol
Photoelectric correction system, where failures are automatically corrected;
Electrical and  Connectionsz
AC100 to 240 Volts , 50/60 Hz
Signal interface: 1.5m XLR3 core input and output fast plug signal line
Power supply interface: 1.5 meters 3 core input and output fast plug input power supply line, maximum series of 10 hosts (220v), maximum series of 6 hosts (110v)
Luminous body interface: GX12 4-core aviation plug
PowerCON blue input and output,Maximum connect 6 winches viadaisy chain
Ambient temperature:5-40'
Installation The minimum installation height is 4 meters
Ensure vertical hang
1 FY-SE-70001 lamp hook mounted on 50 mm diameter tube
Safety wire attachment hole
Compliance CE/Rosh

Applications

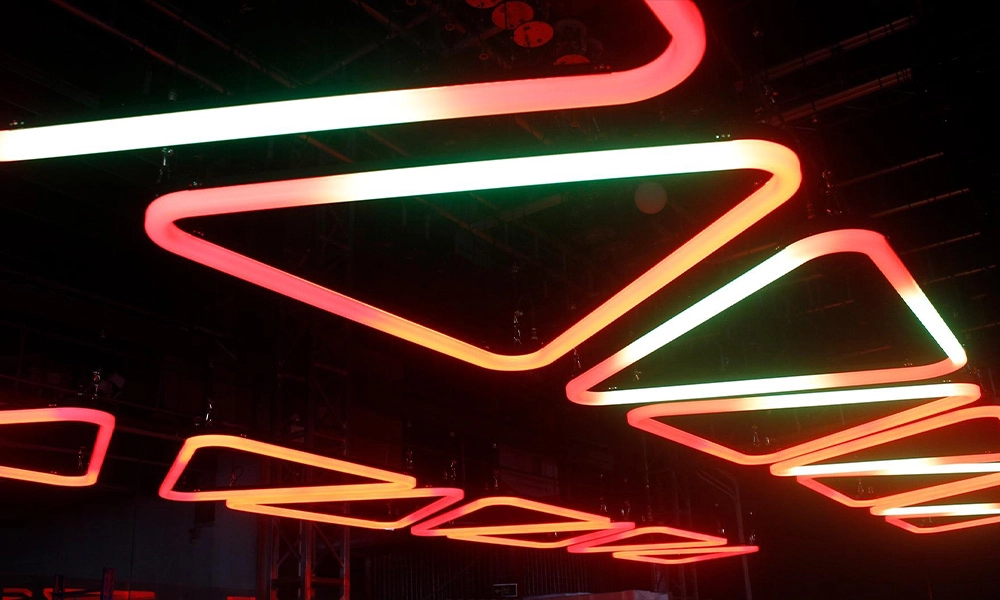

DLB-G3-11042 Lifting triangle arc light-03 - FENG-YI

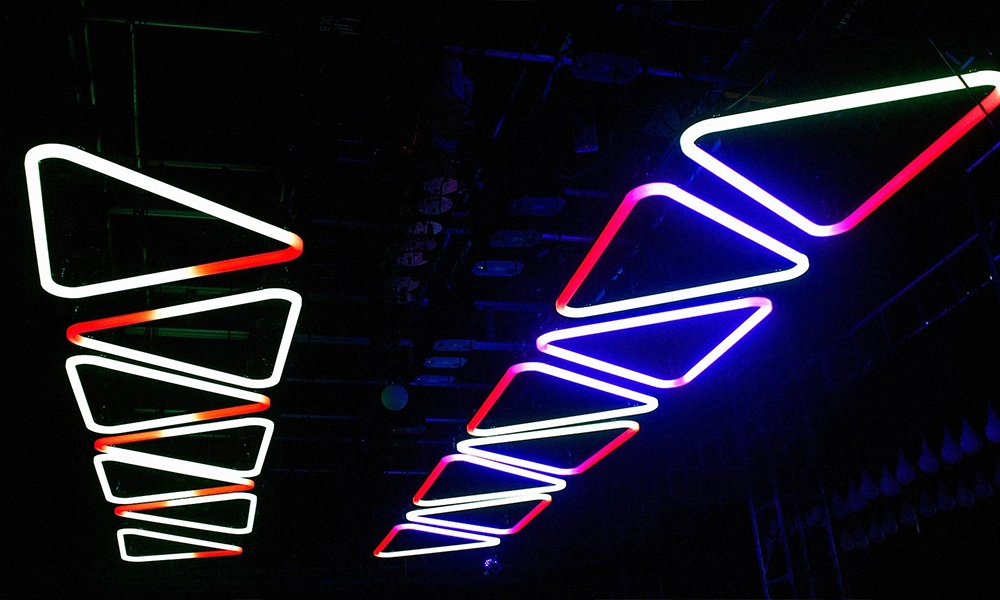

DLB-G3-11042 Lifting triangle arc light-01 - FENG-YI

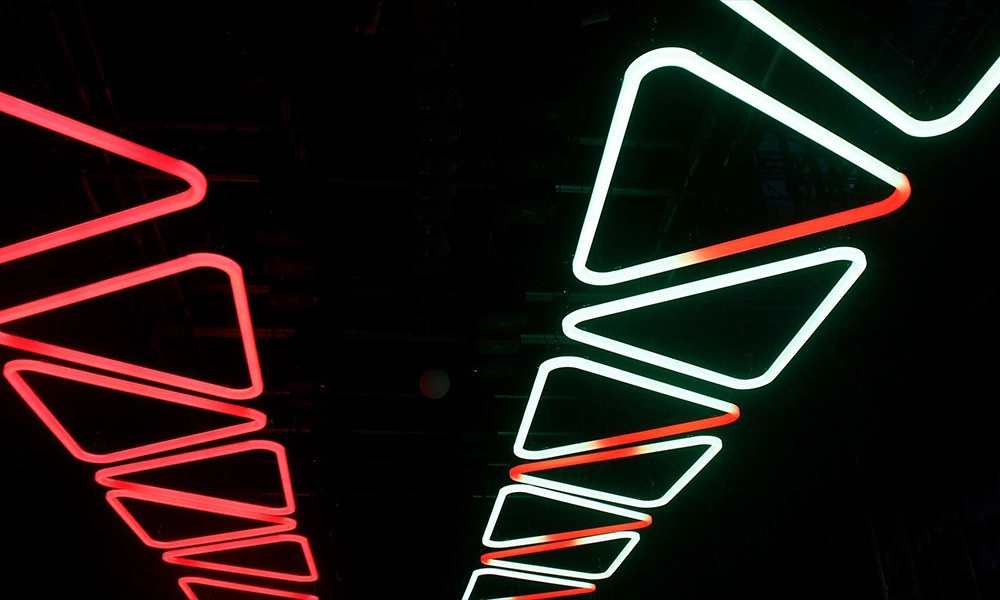

DLB-G3-11042 Lifting triangle arc light - FENG-YI

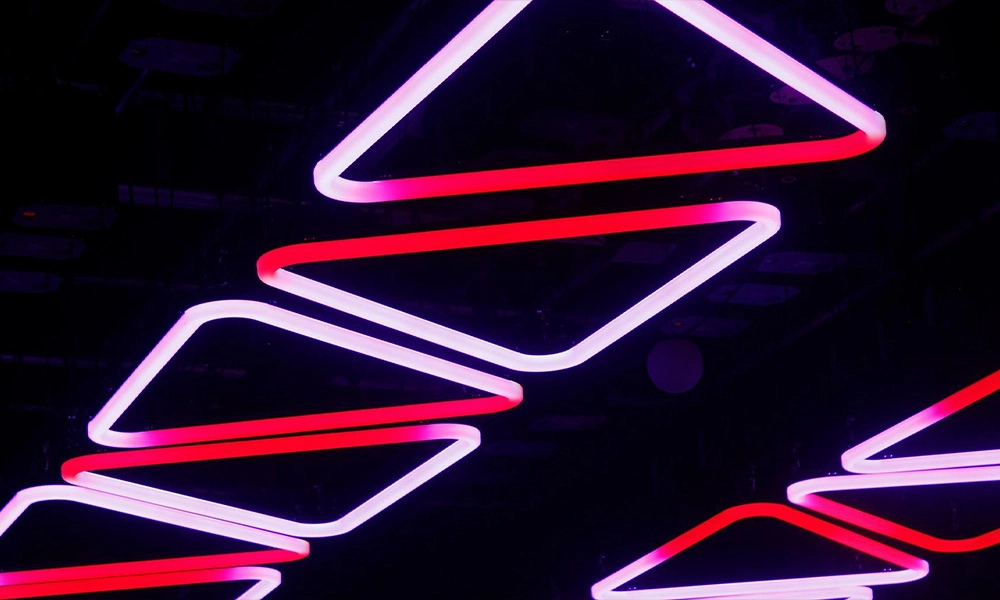

DLB-G3-11042 Lifting triangle arc light-02 - FENG-YI

Packaging & Logistic

Packaging - FENG-YI

Packaging

Each unit is packaged in a sturdy carton with foam insulation to protect aluminium components during transit. Custom flight cases are available for bulk orders to ensure safety for multiple units.

Logistics - FENG-YI

Logistics

Shipped via freight or courier services. The product is classified as electronic equipment; ensure transport within the ambient temperature range (5 - 40°C) to avoid damage.

Frequently Asked Questions

Products
The X/Y axis moves abnormally (jitter, no response). What causes this?

Address the issue as follows:

1. Mechanical Check: Open the fixture (after power-off) to inspect if the X/Y axis belts are loose or broken; re-tighten or replace belts if needed.

2. Optical Coupling Calibration: Enter "Settings → Motor Calibration → X/Y Axis" to adjust the offset (-128~+127) or enable "Optical Coupling" (auto-corrects step loss).

3. Reset & Restart: Press "Menu → Reset → XY Reset" to reposition the axes; if no response, check the X/Y axis photoelectric switches (replace if "X/Y Hall Error" appears in the error menu).

Logistics Services
What logistics method is used by default for products? What is the delivery time for different regions in China?

Dedicated line logistics (e.g., Anneng, Best Express) is used by default. Express delivery (e.g., SF Express, JD Express) or full-truck transportation can also be arranged according to customer needs. Delivery time:

▪ East China/South China/Central China: 3-5 days.

▪ North China/Southwest China: 5-7 days.

▪ Northeast China/Northwest China: 7-10 days.

▪ Remote areas (e.g., Xinjiang, Tibet): 10-15 days, with an additional remote area freight charge (calculated by weight, specific details to be confirmed with the logistics department).

Nightclub Lighting
Can your company provide design solutions?

Of course. We can provide a lighting design based on your budget and desired effect. Once the design is finalized, we can provide a 3D simulation video to give you a clear understanding of the overall design.

Will the equipment break down easily? How long is the after-sales service?

Our products are designed specifically for the entertainment industry. They feature excellent heat dissipation and can withstand the harsh, high-temperature, high-humidity, and dusty environments of bars. They are guaranteed to operate continuously for 2,000 hours. We offer a one-year warranty starting from the date of delivery (excluding consumables such as bulbs and LEDs). If the product is damaged due to quality issues, the seller will provide a replacement free of charge.

Wedding & Parties Lighting Solutions
How is safety ensured?

Encoder closed-loop control, emergency stop circuits, software/hardware limit switches, load monitoring, and collision-avoidance zones. A comprehensive pre-performance checklist is provided.
