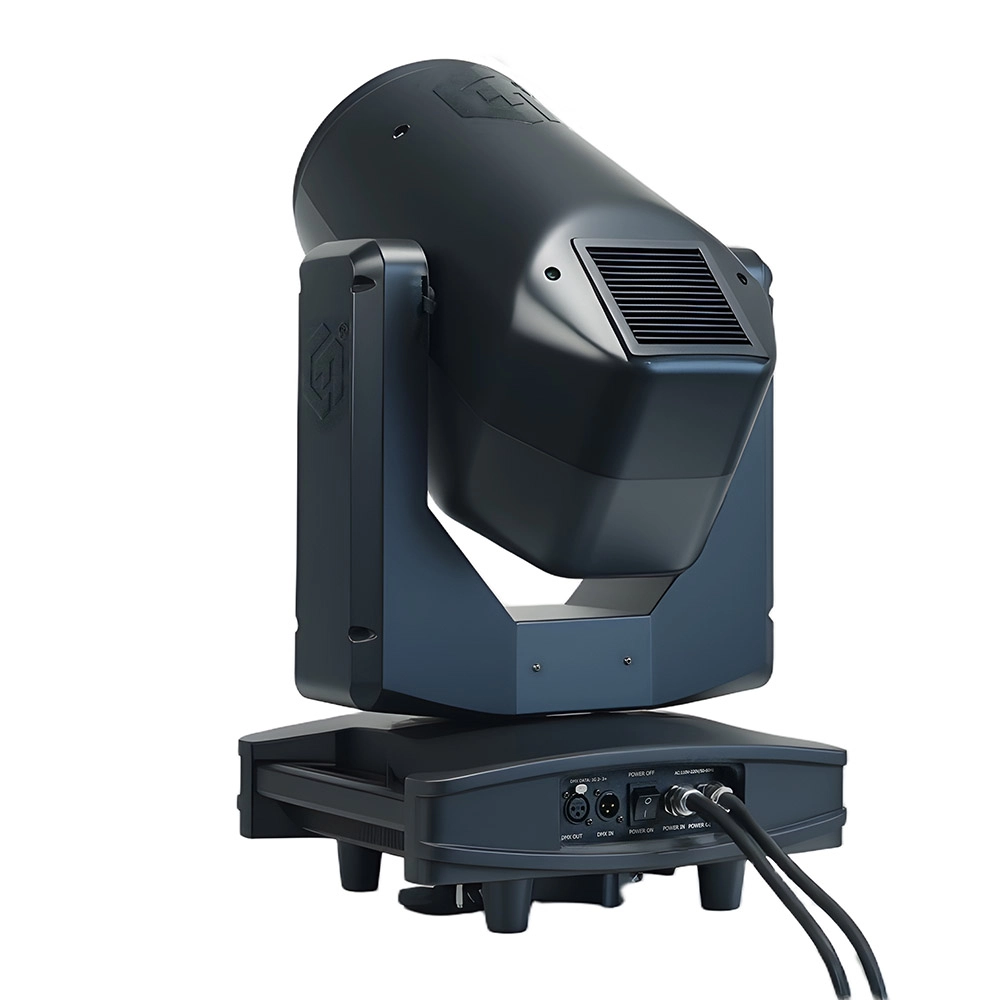

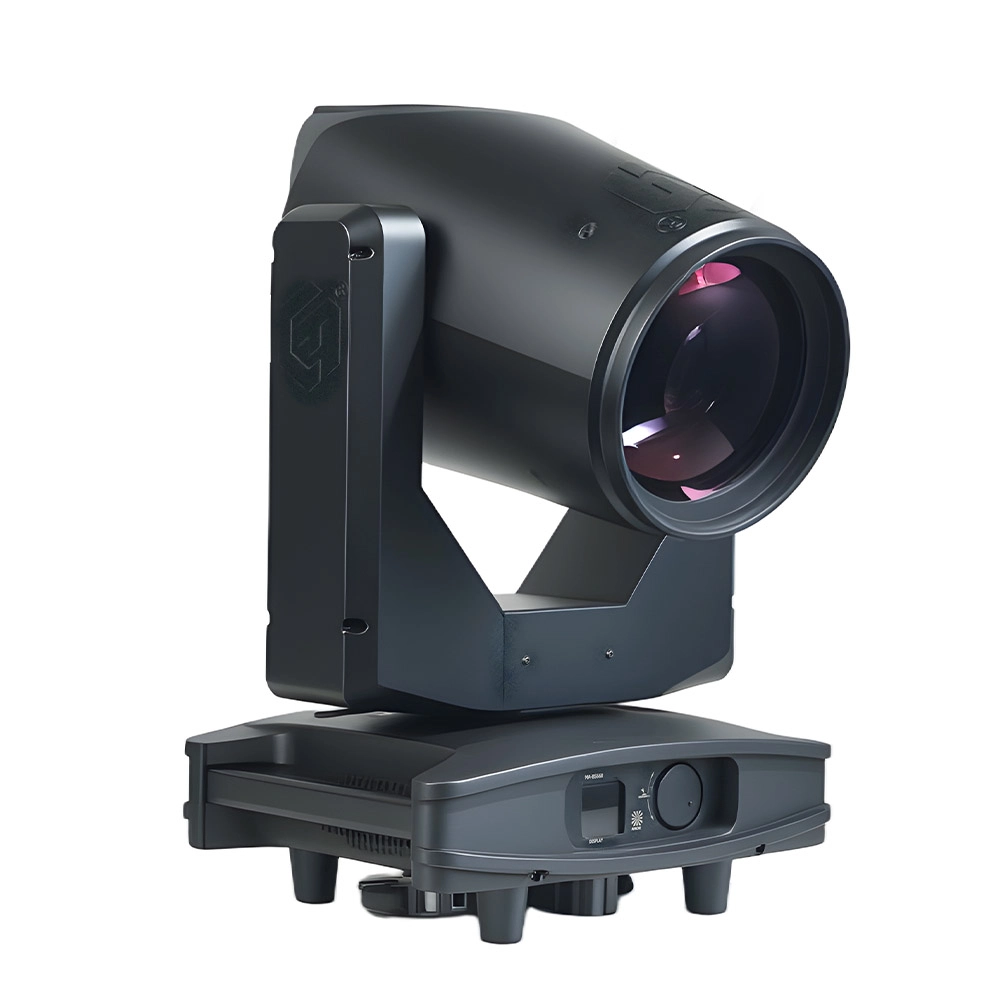

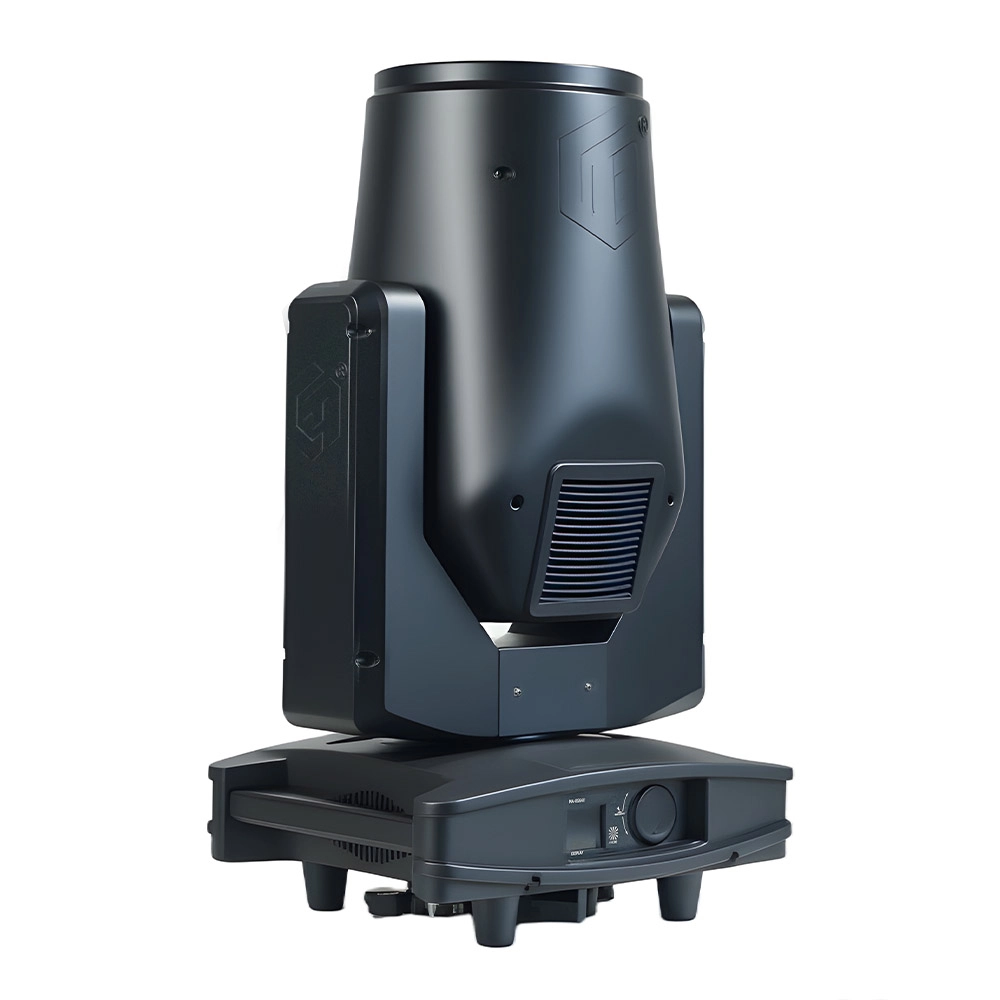

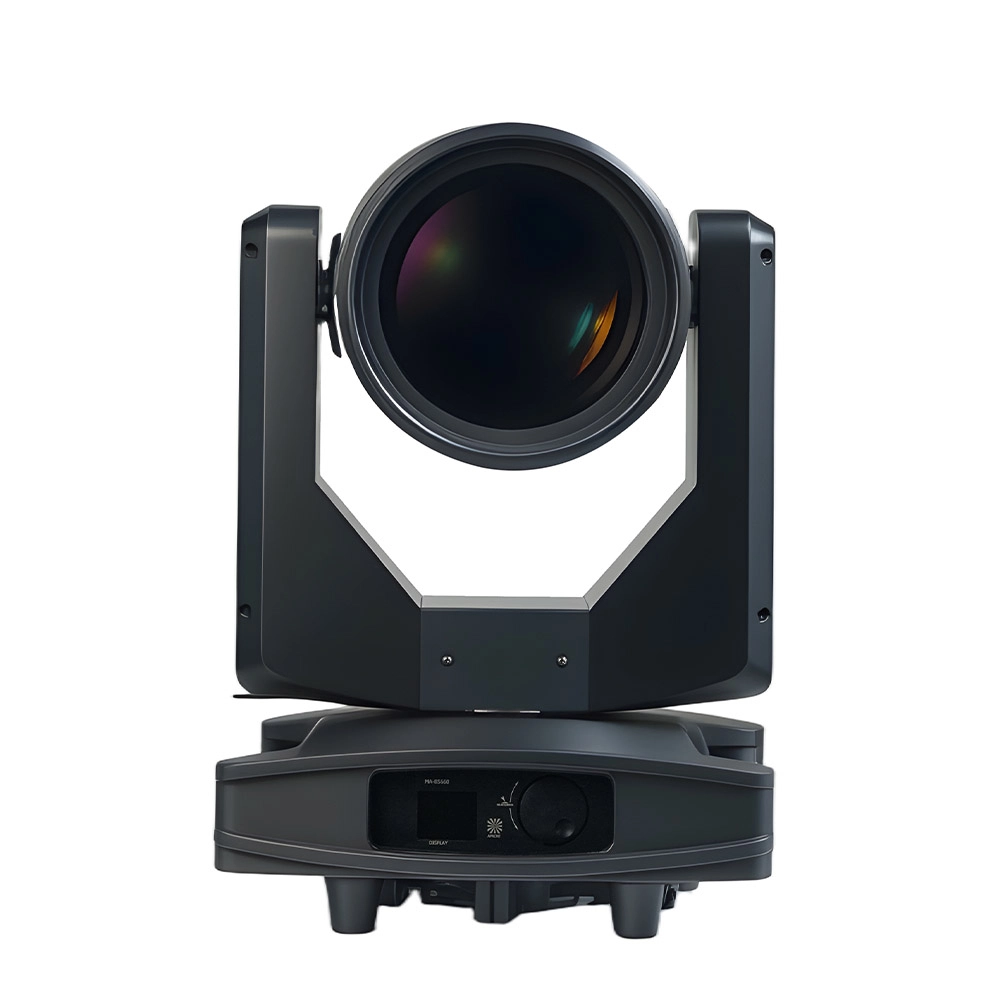

380W Waterproof Beam Light FY-BM-10031——Ideal for a wide range of large-scale events: commercial spaces, TV shows, concerts, nightclubs
The 380W Waterproof Beam Light FY-BM-10031 by FENG-YI delivers powerful, reliable lighting for large-scale events. This waterproof moving head beam light is perfect for concerts, TV shows, nightclubs, and commercial spaces, ensuring vibrant visuals in any environment.
◉ Product Features
Environmental Adaptability
Operates in dry environments; intermittent use extends service life; regular cleaning of fans, fan grilles, and lenses ensures ventilation and lighting performance.
Intuitive Control Panel
1.8-inch color touch screen with anti-misoperation unlock function (two unlock interfaces for different models); supports Chinese/English display switching and screen rotation (normal/reversed).
Multiple Operating Modes
DMX mode (receives DMX/RDM signals), auto-run mode (built-in programs), sound-activated mode (triggers scenes via sound), and scene mode (supports 10 customizable scenes).
RDM Remote Management
Enables remote setting of DMX addresses and monitoring of device status via RDM-enabled controllers, eliminating the need for on-site operation.
Parameter Preservation
Automatically saves adjusted parameters (e.g., operating modes, display settings) to internal memory; retains last DMX data when "Data Hold" is enabled (optional).
Real-Time Status Monitoring
Displays motor information (Hall status, step loss), temperature data (light source, display board, main board), fault records (last 8 faults in current power cycle), and cumulative operating time (light source and fixture).
Precise Channel Control
Supports 16-20 channels for dimming (0-100%), strobing (slow-to-fast pulses), pan (0-540°), tilt (0-270°), color wheel control, gobo control, prism adjustment, focusing, and nebulization.
Safety Protection
Requires 20-minute cooling after power-off before re-powering; bulb on/off interval limited to 30 seconds; over-temperature protection via sensors; fan failure detection.
◉ Specifications
| LIGHT SOURCE | |
| Light Source | 380W Osram |
| Color Temperature | 7500K |
| Lifespan | 1500 hours |
| CONTROL | |
| Protocol | DMX512 |
| Personalities | Standard 14 channels / Extended 18 channels |
| Display | LCD display, Chinese and English languages can be switched |
| PHOTOMETRIC DATA | |
| CRI | 84.6 |
| Beam Angle | 1.7° |
| Front Lens | 168 mm |
| ELECTRICAL AND CONNECTIONS | |
| Operating Voltage | AC 100V–240V 50/60Hz |
| Power Connectors | Waterproof power socket |
| Data Connectors | 3-pin XLR waterproof signal socket input/output (optional 5-pin XLR waterproof signal socket input/output) |
| Maximum Data Connections | 30 (May need an amplifier) |
| Power Consumption | 500W |
| DYNAMIC EFFECTS | |
| Pan Movement | 540° (16bit precision scanning) |
| Tilt Movement | 270° (16bit precision scanning) |
| Color Wheel | 14 color plate + open |
| Gobo System | 17 + open |
| Strobe | 1–20Hz fast strobe per second, with pulse, synchronous, and asynchronous strobe effects |
| Dimming | 0–100% linear adjustment |
| Prism | 8 prism, 8+16 prism |
| PHYSICAL INFORMATION | |
| Housing | Nylon material |
| Installation | Horizontal or vertical or oblique mounting |
| Cooling | Aluminum alloy heat sink with low noise fan / Heat pipe and low noise LP fan |
| IP Rating | IP65 |
| Work Environment | 0–45℃ |
| Fixture Dimensions | 344×294×557 mm |
| Fixture Weight | 20 kg |
| Packing Dimensions | 795×365×505 mm |
| Packing Weight | 22.5 kg |
| Included Items | Integrated lamp hook |
| Optional Accessories | Flight case + foam shell (2 options) |
◉ Product Details
◉ Product Details
◉ Applications
The IP480B waterproof pure beam light, with its multi-mode control, precise beam effects, and safety design, is widely applicable to:
• Professional stage performances (concerts, theaters, musicals)
• Live events (festivals, award ceremonies, talent shows)
• Entertainment venues (nightclubs, bars, KTV rooms)
• Indoor/outdoor exhibitions (product launches, trade shows)
• Banquet halls (weddings, corporate dinners)
• Architectural lighting (landscape lighting, building facade lighting)
◉ Advantages
RDM Compatibility
Unlike traditional DMX-only fixtures, it supports two-way RDM communication for remote address setting and status monitoring, reducing on-site maintenance costs.
User-Friendly Interface
1.8-inch color touch screen with anti-misoperation lock and bilingual support simplifies operation for global users.
Versatile Operating Modes
4 operating modes (DMX, auto-run, sound-activated, scene) adapt to single-fixture or multi-fixture setups without additional controllers.
Precise Control
20-channel fine adjustment for dimming, strobing, pan/tilt, and optical effects (color, gobo, prism) meets professional lighting design needs.
Reliable Safety Design
Strict thermal protection, mandatory cooling periods, and fault monitoring prevent device damage and ensure user safety.
Durability
Intermittent use optimization and dust-proof fan design extend service life; waterproof performance suits semi-outdoor environments.
◉ Customization Options
Based on basic functions, the following customization services are available (confirmation required in advance):
Display Settings
Language (Chinese/English), screen rotation (normal/reversed), screen saver (4 modes: off, screen-off, address display, logo+address+mode), backlight brightness (10 levels).
Operating Modes
Custom scene editing (10 scenes, adjustable scene duration: 0-25.5s), master-slave selection (master/slave/auto) for multi-fixture synchronization.
Bulb Startup Mode
Power-on bulb-on (bulb on first, fixture reset after 30s), post-reset bulb-on (reset first, bulb on after completion), manual bulb-on (bulb on via menu/controller).
Mechanical Adjustments
Pan/tilt reversal (on/off), pan/tilt offset (X-axis: 4-150, Y-axis: 4-48), optocoupler calibration (on/off for step loss correction).
Data Retention
"Data Hold" function (on/off) to retain last DMX data or reset to initial state when DMX signal is lost.
◉ Packaging & Logistic
Packaging
• Inner Packaging: The lamp body is wrapped in thick EPE foam to prevent collision; accessories (power cable, 3-pin XLR cable, user manual, mounting screws) are individually packed in small boxes and fixed in the same carton.
• Outer Packaging: 5-layer corrugated carton with product model, specifications, and protection labels ("Moisture-Proof", "Shock-Proof", "This Side Up"); single carton holds 1 lamp (gross weight not specified).
• Bulk Packaging: For orders of 10+ units, pallets are used (max. 5 layers per pallet), wrapped in stretch film for dust/moisture protection; wooden pallets facilitate forklift loading/unloading.
Logistics
• Transportation Methods:
◦ Domestic: Road transportation (e.g., Deppon, SF Express), delivery time 2-5 days.
◦ International: Sea freight (suitable for bulk orders, 30-45 days) or air freight (urgent orders, 5-7 days).
• Protection Measures:
◦ Avoid severe vibration, extrusion, or inversion (follow "This Side Up" label); add insulation layers for transportation in high-temperature areas (≤60℃).
◦ For inverted installation accessories (e.g., safety ropes), pack separately to prevent damage.
• Receiving Notes:
◦ Check outer packaging for damage and accessories for completeness upon receipt.
◦ If the lamp is damaged or accessories are missing, take photos and contact the supplier within 48 hours.
◉ Frequently Asked Questions
Products
How to set the DMX starting address via the panel?
Follow these steps:
1. Press "Left" (multiple times if needed) to return to the main interface.
2. Press "Up/Down" to select "Settings", then press "OK" to enter.
3. Select "DMX Address" and press "OK" to enter edit mode.
4. Adjust the hundreds digit (e.g., 2 for address 286) with "Up/Down", press "OK" to confirm; repeat for tens (8) and units (6) digits.
5. Press "OK" again to save the address (e.g., A286) and exit edit mode.
The lamp does not light up. What should I check?
Troubleshoot in 4 steps:
1. Power Supply: Confirm the input voltage matches AC 200V~240V/50~60Hz; check if the power cable is securely connected and the switch is on.
2. Cooling Period: Ensure the fixture has cooled for 20 minutes after previous use (mandatory cooling to prevent overheat damage).
3. DMX Signal: If in DMX mode, verify the controller is sending "Shutter On" (CH6: 252-255) and "Dimming" (CH7: 100-255) signals.
4. Internal Wiring: If above checks pass, contact after-sales to inspect internal connections (e.g., lamp holder, driver board) for loose or burned components.
Customization/OEM Services
What is the minimum order quantity (MOQ) for OEM services? What materials need to be provided?
The MOQ for OEM services varies by product type: ≥ 50 units for a single model of conventional lights, and ≥ 20 units for a single model of large equipment such as elevating lights/moving head lights. The following materials need to be provided: the brand trademark registration certificate (or authorization letter), and vector graphics of the OEM logo (AI format is preferred). If modifications to the product manual content (e.g., brand information, contact details) are required, the final version of the text materials must be provided.
What is the production cycle for customized products? Is sample trial production supported?
The production cycle for regular customization (e.g., appearance logo, parameter fine-tuning) is 15-20 days, and the cycle for complex function customization (e.g., development of a new elevating structure) is 30-45 days. Sample trial production is supported. The sample fee is charged based on the customization cost (the fee can be deducted from the payment after bulk ordering). The trial production cycle is 7-10 days, and bulk production will start only after the customer confirms the sample is qualified.
Wedding & Parties Lighting Solutions
Are there minimum requirements for venue ceiling height and load capacity?
We recommend a clear height of ≥6–8 m (higher may be required for choreography needs). Load capacity is calculated based on point load plus safety factor. We provide structural calculations and suspension point recommendations.
